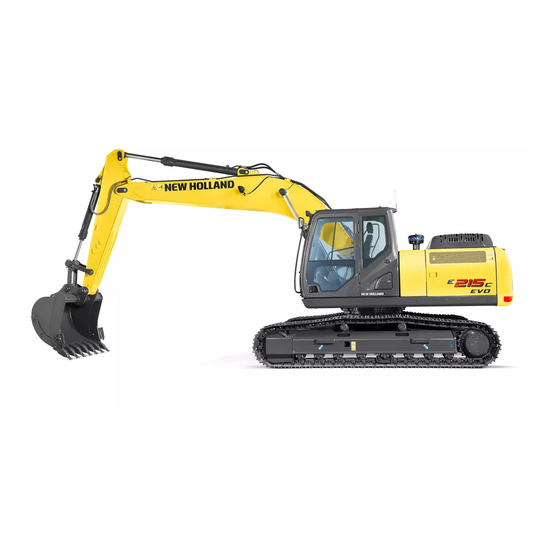

- Page 1 OPERATOR’S MANUAL E215C EVO Crawler Excavator Part number 48016681 edition English June 2016...
-
Page 2: Table Of Contents
Contents 1 GENERAL INFORMATION Note to the Owner ................1-1 Intended use. - Page 3 Right-hand side controls Right-hand control arm ..............3-47 Cab radio .
- Page 4 Stopping the unit Stopping the engine ..............4-13 Moving the unit Machine travel .
- Page 5 Machine inspection and cleaning............6-62 Checking the machine settings .
- Page 6 Find manuals at https://best-manuals.com...
-
Page 7: General Information
NEW HOLLAND CONSTRUCTION spare parts, your guarantee of quality and match. You can obtain manuals on the operation, maintenance and repair of your machine from your NEW HOLLAND CON- STRUCTION Dealer. To ensure quick and efficient service, consult your NEW HOLLAND CONSTRUCTION Dealer for assistance in ordering the correct manuals for your machine. -
Page 8: Intended Use
• The add‐on equipment must not interfere with the functioning of the on board electronics Failure to comply with these rules will render the NEW HOLLAND CONSTRUCTION warranty null and void. Find manuals at https://best-manuals.com... -
Page 9: Product Identification
Product identification The E215C EVO LC is a totally hydraulic excavator. It consists of an undercarriage fitted with tracks and a turntable bearing which supports the upper structure frame. The upper structure frame supports the attachment, at the front end of the machine, plus the engine, hydraulics and cab. - Page 10 1 - GENERAL INFORMATION Engine Make and type: ISUZU GI - 4HK1X Serial number: NOTICE: The engine and fuel system on your machine is designed and built to government emissions standards. Tampering by dealers, customers, operators and users is STRICTLY PROHIBITED BY LAW. Failure to comply could result in government fines, rework charges, invalid warranty, legal action and possible confiscation of the ma- chine until rework to original condition is completed.
-
Page 11: Operator's Manual Storage On The Machine
(behind the operator’s seat). Make sure it is al- ways complete and in good condition. If you wish to ob- tain extra copies, or copies in languages other than that of the country of use, consult your NEW HOLLAND CON- STRUCTION Dealer. YLNR3P-002 Machine orientation The terms "Right-hand", "Left-hand", "Front"... -
Page 12: Machine Components
1 - GENERAL INFORMATION Machine components ABAFE006 Backhoe bucket 13. Hydraulic pump Connecting rod 14. Engine compartment Yokes 15. Counterweight Backhoe bucket cylinder 16. Air filter 17. Batteries Arm cylinder 18. Tracks Boom 19. Travel reduction gears Boom cylinders 20. Lower rollers Swing reduction gear 21. -
Page 13: Safety Information
2 - SAFETY INFORMATION 2 - SAFETY INFORMATION###_2_### Safety rules and signal word definitions Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury. Throughout this manual you will find the signal words DANGER, WARNING, and CAUTION followed by special in- structions. -
Page 14: Safety Rules
2 - SAFETY INFORMATION Safety rules General safety rules Use caution when you operate the machine on slopes. Make sure that all guards and shields are in good con- Raised equipment, full tanks and other loads will change dition and properly installed before you operate the ma- the center of gravity of the machine. - Page 15 2 - SAFETY INFORMATION Always make sure that working area is clear of tools, Scalding can result from incorrect removal of coolant parts, other persons and pets before you start operating caps. Cooling systems operate under pressure. Hot the machine. coolant can spray out if you remove a cap while the sys- tem is hot.
- Page 16 2 - SAFETY INFORMATION Battery acid causes burns. Batteries contain sulfuric acid. Do not induce vomiting. Seek medical attention immedi- Avoid contact with skin, eyes, or clothing. Antidote (exter- ately. nal): Flush with water. Antidote (eyes): flush with water Keep out of reach of children and other unauthorized per- for 15 minutes and seek medical attention immediately.
- Page 17 2 - SAFETY INFORMATION Utility safety When digging or using ground-engaging equipment, be power source occur, the following precautions must be aware of buried cables and other services. Contact your taken: local utilities or authorities, as appropriate, to determine • Stop the machine movement immediately. the locations of services.
-
Page 18: Hand Signals
• Remove any obstructions which hinder visibility. Keep weight, turntable bearing and operator's compartment. the windshield, rear view mirror and windows clean at In the event of problems, consult your NEW HOLLAND all times. CONSTRUCTION Dealer. • Make sure the windshield wiper works correctly. - Page 19 2 - SAFETY INFORMATION Operating the machine • When working on a public highway, use standard traf- • It is forbidden to use the machine to carry out tasks fic signs and take into consideration the working range other than those for which it is intended. Never use the of the upperstructure and its attachments.
- Page 20 When replacing such components, it is and instructions featuring in this manual. mandatory to make sure that they conform to regula- tions. For safety's sake, use genuine NEW HOLLAND • When carrying out service work always wear suitable CONSTRUCTION parts.
- Page 21 • If the accumulator is not functioning correctly, consult If it is necessary to touch them for maintenance your NEW HOLLAND CONSTRUCTION Dealer. Never purposes, consult your NEW HOLLAND CONSTRUC- try to carry out any servicing operation on the accumu- TION Dealer.
- Page 22 CONSTRUCTION strongly recommends that you return systems may cause considerable spillage. all used batteries to a NEW HOLLAND CONSTRUCTION • In general, avoid skin contact with all fuels, oils, acids, dealer, who will dispose of the used batteries or recycle solvents, etc.
- Page 23 2 - SAFETY INFORMATION Hand signals When operating the machine, never attempt to carry out tasks calling for fine control or working in areas where visibility is poor or impaired without seeking the assistance of a signalman. Make perfectly sure that you and the signalman understand the signals to be used.
- Page 24 2 - SAFETY INFORMATION Stop Lower load or tool Wave one hand back and forth. PDE0006TBP1 PDE0005ATBP1 Slowly raise the load or tool Emergency stop Wave hands back and forth. PDE0007ATBP1 Slowly lower the load or tool PDE0005TBP1 Raise load or tool PDE0007TBP1 PDE0006ATBP1 2-12...
- Page 25 2 - SAFETY INFORMATION Turn machine left (swing load left) Lower tool To stop movement, stop moving hand and clench fist. PDE0009TBP1 PDE0008ATBP1 Lift boom Turn machine right (swing load right) To stop movement, stop moving hand and clench fist. PDE0010ATBP1 Lower boom PDE0008TBP1...
- Page 26 2 - SAFETY INFORMATION Retract arm Fill tool PDE0011ATBP1 PDE0012ATBP1 Extend arm Empty tool PDE0011TBP1 PDE0012TBP1 2-14...
- Page 27 Replace all safety decals that are damaged, missing, painted over, or illegible. If a safety decal is on a part that is replaced, make sure the safety decal is installed on the new part. See your NEW HOLLAND CONSTRUCTION Dealer for replacement safety decals.
- Page 28 2 - SAFETY INFORMATION Position of decals When replacing a decal, make sure it is located as shown below. SMIL16CEX1060HB 2-16...
- Page 29 2 - SAFETY INFORMATION SMIL16CEX1051HB 2-17...
- Page 30 2 - SAFETY INFORMATION Decal placement diagrams Table of safety precautions Part number: KHP12151 UTOLPI-001 Interference with attachments The end attachment used for machine operation (e.g. bucket, hydraulic breaker, clamshell...) may hit the cab and/or the boom depending upon the length of the arm, the size of the bucket or the installation of a quick coupler.
