Keychron K1 Max User Manual

Wireless mechanical keyboard
Hide thumbs Also See for K1 Max:

Advertisement

Quick Links

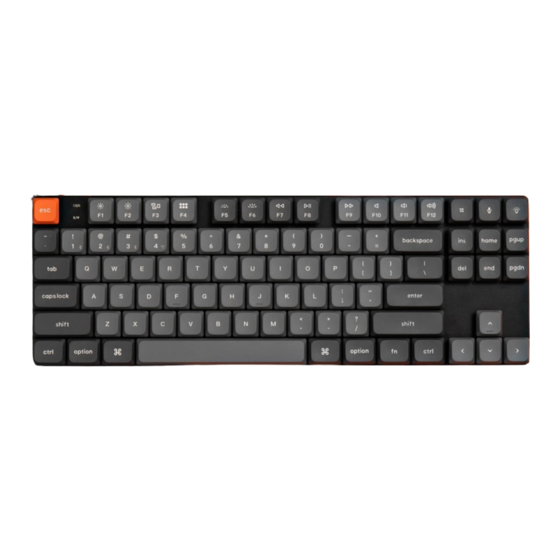

K1 Max Wireless Mechanical Keyboard

Advertisement

loading
Need help?

Need help?

Do you have a question about the K1 Max and is the answer not in the manual?

Questions and answers

Summary of Contents for Keychron K1 Max

  • Page 1 K1 Max Wireless Mechanical Keyboard...
  • Page 2 Keychron K1 Max Wireless Mechanical Keyboard x 1 Type-C Cable x 1 Manual x 1 Quick Start Guide x 1 Extra Keycaps Set x 1 Type-A to Type-C Adapter x 1 Type-A 2.4GHz Receiver x 1...
  • Page 3 QUICK START GUIDE If you are a Windows user, please find the appropriate keycaps in the box, then follow the instructions below to find and replace the following keycaps. Mac / Windows...
  • Page 4 G = 2.4GHz of latency and fewer signal interferences. Connect Bluetooth Press fn + 1 (for 4 seconds) and pair with device named Keychron K1 Max. G / Cable / BT fn + 1...
  • Page 5 Connect Cable G / Cable / BT Switch To The Right System Please make sure the system toggle on the top left corner has been switched to the same system as your computer's operating system.
  • Page 6 The VIA Key Remapping Software Please visit usevia.app to use the online VIA software to remap the keys. If the VIA cannot recognize your keyboard, please reach our support to get the instruction. Your keyboard’s best friend *The online VIA software can only run on the latest version of Chrome, Edge, and Opera browsers yet. *VIA only works when the keyboard is connected by wire to the computer.
  • Page 7 The Backlight Press fn + Q to change the lighting effect Press fn + tab to turn the backlight on/off fn + Q fn + tab Adjust The Backlight Brightness Press fn + W to increase the backlight brightness Press fn + S to decrease the backlight brightness fn + W fn + S...
  • Page 8 Adjust The Backlight Speed Press fn + T to increase the light effect speed Press fn + G to decrease the light effect speed fn + T fn + G Warranty The keyboard is highly customizable and easy to be rebuilt. If anything goes wrong with any of the keyboard components of keyboard during the warranty period, we will only replace the defective parts of the keyboard, not the whole keyboard.
  • Page 9 Factory Reset Troubleshooting? Don’t know what’s going on with the keyboard? 1. Download the right firmware and QMK Toolbox from our website. 2. Unplug the power cable and switch the keyboard to Cable mode. 3. Remove the space bar keycap to find the reset button on the PCB. 4.
  • Page 10 Charging time: Around 3 hours Charging port: USB Type-C Mode: Bluetooth / Wired / 2.4GHz Bluetooth operating distance: Within 10 meters (open space) Name of Bluetooth device: Keychron K1 Max Function LED Location Status Low Power - Red Light Blinking...
  • Page 11 K1 MAX WIRELESS MECHANICAL KEYBOARD OVERVIEW ⑥ ③ ④ ⑤ Windows ① Caps Lock Indicator ② BT / 2.4G Indicator ③ Type-C Port ④ 2.4G / Cable / BT (Connection Mode Toggle) ⑤ Win/Android Mac/iOS (OS Toggle Switch) ⑥ Battery Indicator...
  • Page 12 DEFAULT KEY LAYOUT: LAYER 0: This layer will be activated when your keyboard’s system toggle is switched to Mac. Scr- Scr+ MCtl LPad Brght- Brght+ Prvs Play Next Mute Vol- Vol+ SShot SIRI Left Shift Right Shift Left Ctrl LOpt LCmd Space RCmd...
  • Page 13 LAYER 1: This layer will be activated when your keyboard’s system toggle is switched to Mac and press the fn/MO(1) key. RGBTg BTH1 BTH2 BTH3 2.4G Brght+ Hue+ Sat+ Toggle Brght- Hue- Sat- Batt NKRO...
  • Page 14 LAYER 2: This layer will be activated when your keyboard’s system toggle is switched to Windows. Cortan Print Left Shift Right Shift Left Ctrl LWin LAlt Space RAlt RWin MO(3) RCtl LWin = Left Windows LAlt = Left Alt RAlt = Right Alt RWin = Right Windows RCtl = Right Ctrl...
  • Page 15 LAYER 3: This layer will be activated when your keyboard’s system toggle is switched Windows and press the fn/MO(3) key. Scr- Scr+ Task File Brght- Brght+ Prvs Play Next Mute Vol- Vol+ RGBTg 2.4G BTH1 BTH2 BTH3 Brght+ Hue+ Sat+ Toggle Brght- Hue-...
  • Page 16: Key Description

    KEY DESCRIPTION Key Description Key Description Scr- Screen Brightness Decrease RGBMd- RGB Mode Previous Scr+ Screen Brightness Increase Hue+ Hue Increase Bright- Backlight Decrease Hue- Hue Decrease Bright+ Backlight Increase RGB SPI RGB Speed Increase Prvs Previous RGB SPD RGB Speed Decrease Layer 1 will be activated Play Play/Pause...
  • Page 17 A red light will stay on while charging; Fully charged in around 3 hours, a green battery indicator will appear. *The K1 Max keyboard is compatible with all USB ports. Please use a 5V 1A adapter or USB 3.0 for the best performance. The K1 Max can be charged in 2.4GHz/Cable/Bluetooth mode.
  • Page 18 4. Search for the Bluetooth device “Keychron K1 Max” on your device and connect it (the Bluetooth indicator goes off after successful pairing). Note: This keyboard supports pairing up to 3 devices simultaneously via key combination “fn” + “1” / “fn”...
  • Page 19: Backlight Setting

    BACKLIGHT SETTING Short press to switch between different types of lighting effects. OS TOGGLE SWITCH 1 — MAC/iOS Switch the toggle to Mac/iOS when the keyboard is connected to a Mac or iOS operating system. 2 — WINDOWS/ANDROID 3 — INPUT METHOD SWITCH...
  • Page 20 My keyboard isn’t working in Bluetooth mode. For the computer/smartphone: Go to your device Bluetooth settings>Select the keyboard and remove/delete/unpair it. Then restart your device. For the keyboard: Turn the keyboard off and back on. Then reconnect it to your device.
  • Page 21 Bluetooth connection is interrupted even within 10 meters. Third-party input tools are not compatible with the keyboard. Due to compatibility, versions, brands and drivers of Windows/Android OS, functions of third-party input tools may be affected while using the keyboard. Please make sure your operating system and drivers are up to date.
  • Page 23 K1 Max 无线机械键盘...
  • Page 24 内容清单 Keychron K1 Max 无线机械键盘 x 1 USB线 x 1 拔键器 x 1 赠送键帽套装 x 1 说明书 x 1 快速上手指南 x 1 Type-A to Type-C 转接头 x 1 Type-A 2.4GHz 接收器 x 1...
  • Page 25 快速上手指南 如果你是Windows用户, 请在包装盒里找到如下的键帽, 用拔键器拔下键盘上的对应键帽并且更换。...
  • Page 26 Type-C 连接2.4GHz接收器 线材 接收器 延长器 2.4GHz 接收器 将2.4GHz接收器连接到设备USB端口。 把开关拨到2.4GHz模式 注意:为了获得最佳的无线体验, 我们建议将2.4GHz接收器 G / Cable / BT 插入线材+赠送的接收器延长器, 放置在书桌上靠近你的键盘, G = 2.4GHz 以降低延迟率和更少的干扰信号。 连接蓝牙 长按fn+1四秒使键盘进入配对模式, 键盘的配对名为: Keychron K1 Max。 把开关拨到蓝牙模式 G / Cable / BT fn + 1...
  • Page 27 连接有线 把开关拨到有线模式 G / Cable / BT 系统切换 请确保键盘左上角的系统拨片切换到对应系统, 如果没有选择正确, 部分功能将无法使用。...
  • Page 28 关于VIA映射软件 可以访问 usevia.app使用在线VIA软件, VIA是可以映射按键的软件。 如果VIA软件不能识别你的键盘, 请联系我们以获得技术支持。 *在线VIA只能在最新版本的Chrome, Edge和Opera浏览器中运行。 *VIA仅在键盘通过线连接到计算机时有效。 关于键盘键层说明 键盘有四层按键设置。 如果您的系统拨片切换到Mac档位, 如果您的系统拨片切换到Windows, 层0和层1是用于Mac系统。 层0将被激活。 那么层2将被激活。 层2和层3用于Windows系统。 如果您在Windows系统模式下使用, 请对层2进行更改, 而不是层0。 否则无法进行按键映射操作。...
  • Page 29 更改键盘背光模式以及快速关闭/开启键盘背光 组合fn+Q键, 更改键盘背光模式。 组合fn+tab键, 可快速关闭/开启键盘背光。 fn + Q fn + tab 调整键盘背光亮度 组合fn+W键, 提高键盘背光亮度。 组合fn+S键, 减少键盘背光亮度。 fn + W fn + S...
  • Page 30 调整背光速度 组合fn+T键, 增加光效速度。 组合fn+G键, 降低光效速度。 fn + T fn + G 保修 由于K1 Max客制化键盘是可高度定制且易于组装的, 所以键盘的任何一个部件出了问题, 我们只会更换键盘有问题的部件而不是整个键盘。...
  • Page 31 恢复出厂模式 如果键盘出现了故障, 不知道怎么办? 1. 从我们的网站为您的键盘下载正确的固件和QMK Toolbox; 2. 拔掉数据线, 并将键盘拨动到Cable模式。 3. 拔掉空格键键帽, 然后找到位于PCB上面的复位按钮; 4. 首先长按住复位键, 然后将数据线插入键盘。 2秒后放开这个复位键, 此时键盘会进入DFU模式; 5. 然后您可以使用QMK工具箱进行刷新固件的操作; 6. 烧录完成后, 长按fn+J+Z将键盘恢复出厂设置。 *步骤指南可以在我们的网站上找到。...
  • Page 32 K1 Max 键盘概述 ⑥ ③ ④ ⑤ Windows ① 大写锁定指示灯 ② BT/2.4G指示灯 ③ Type-C充电口 ④ Bluetooth/Cable/2.4G (连接模式切换开关) ⑤ Win/Android Mac/iOS (OS切换开关) ⑥ 电量指示灯...
  • Page 33 K1 Max 键盘规格 按键: 87键 轴: 机械轴 电池: 2000mAh 充电时间: 3小时 充电端口: USB Type-C 模式: 蓝牙 / 有线 / 2.4G 蓝牙工作距离: 最长10米 (开放空间) 蓝牙设备名称: Keychron K1 Max 功能说明 LED状态显示如下: 功能 LED位置 状态 低电量—红灯闪烁 充电—红灯长亮 充电 电源指示灯 满电—绿灯 快闪—切换 蓝牙 蓝牙指示灯...
  • Page 34 按键布局 层0: 当您的系统拨片切换到Mac档位的时候, 层0将被激活使用。 Scr- Scr+ MCtl LPad Brght- Brght+ Prvs Play Next Mute Vol- Vol+ SShot SIRI Left Shift Right Shift Left Ctrl LOpt LCmd Space RCmd ROpt MO(1) RCtl...
  • Page 35 层1: 当您的系统拨片切换到Mac档位并组合fn/MO(1)键的时候, 层1将被激活使用。 RGBTg BTH1 BTH2 BTH3 2.4G Brght+ Hue+ Sat+ Toggle Brght- Hue- Sat- Batt NKRO...
  • Page 36 层2: 当您的系统拨片切换到Windows档位的时候, 层2将被激活使用。 Print Cortan Left Shift Right Shift Left Ctrl LWin LAlt Space RAlt RWin MO(3) RCtl LWin = Left Windows LAlt = Left Alt RAlt = Right Alt RWin = Right Windows RCtl = Right Ctrl...
  • Page 37 层3: 当您的系统拨片切换到Windows档位并组合fn/MO(3)键的时候, 层3将被激活使用。 Scr- Scr+ Task File Brght- Brght+ Prvs Play Next Mute Vol- Vol+ RGBTg 2.4G BTH1 BTH2 BTH3 Brght+ Hue+ Sat+ Toggle Brght- Hue- Sat- Batt NKRO...
  • Page 38 K1 Max客制化键盘多媒体按键说明 BTH1 蓝牙连接设备 1 BTH2 蓝牙连接设备 2 BTH3 蓝牙连接设备 3 2.4G 2.4G连接...
  • Page 39 2. 将键盘 “模式切换” 拨动到 “G” 位置 (2.4GHz模式) , 键盘将自动连接到您的设备。 *长按 “fn+4” 组合键4秒可以对键盘进行强制配对。 配对过程中建议键盘和接收器的距离不超过20cm。 蓝牙模式 1. 将键盘 “模式切换” 拨动到 BT 位置。 2. 键盘背光灯将打开。 3. 长按 “fn+1” 键4秒激活蓝牙配对 (蓝牙指示灯闪烁3分钟) 。 4. 在你的装置上搜索蓝牙装置 “Keychron K1 Max” 并连接它 (配对成功后蓝牙指示灯熄灭) 。 注意: 此键盘支持通过组合键 “fn+1” / “fn+2” / “fn+3” 依次配对最多3台设备。 *因蓝牙版本较多等原因, 初次连接可能出现连接缓慢或连接失败等问题, 请耐心检查设备设置是否正确。...
  • Page 40 切换至蓝牙装置 短按组合键 “fn+1” / “fn+2” / “fn+3” 切换到其他装置。 *切换过程可能会因切换频繁或切换速度过快, 导致延迟, 此时请耐心等待或重新切换。 回连 1. 将键盘切换到Bluetooth位置启动键盘。 2. 蓝牙指示灯快闪3秒, 自动配对上一次配对的设备。 3. 如蓝牙指示灯熄灭, 可按任何按键再次进入回连状态。 *键盘必须曾经配对该装置才能实现此功能。 有线模式 1. 将键盘 “模式切换” 拨动到 Cable 位置 (没插USB线的时候键盘无任何反应) 。 2. 使用本产品USB Type-C线连接电脑即可使用。 3. 键盘背光灯将打开。 *在有线模式下, 键盘不会自动进入省电模式。 关闭键盘 将模式开关拨动到Cable, 拔掉电源线, 此时键盘关闭所有模式。 系统切换...
  • Page 41 对于安卓: 输入法切换: Shift + Space 注: 由于Windows / 安卓OS的兼容性、 版本、 品牌和驱动程序, 某些多媒体键的功能可能不能被使用。 我们还建议不要频繁切换操作 系统, 因为它可能会影响键盘的操作。 疑难排解 我无法将键盘与我的装置配对。 答: 确认您要配对的装置可使用蓝牙。 重新启动装置并尝试再次与键盘配对。 注意: 在Windows计算机上, 新的蓝牙连接有时需要额外的软件更新 - 在出现表示成功完成的消息后, 该过程可能仍在进行中。 配对 后至少等待20分钟, 以确保在重新启动计算机之前完成所有更新。 确认装置配置可接受蓝牙连接 (Windows) 并支持外部键盘 (HID配置文件) 。 转到蓝牙装置>打开设置, 然后选择以下复选框: 允许蓝牙装置找到这台电脑 允许蓝牙装置连接到这台电脑 当蓝牙装置想要连接时提醒我 我的键盘无法使用。 答:...
  • Page 42 某些多媒体键或功能键在设备上不起作用。 答: 由于设备的兼容性, 系统版本, 驱动程序等原因, 某些多媒体键或者功能键可能无法使用。 *多媒体键: 功能键: 注意事项: 请勿将本产品, 其配件和包装部件放在儿童接触到的地方, 以防发生意外引致窒息。 请保持产品干燥, 以免腐蚀。 请勿将产品暴露在低于-10°C (5°F) 或高于50°C (131°F) 的极端温度下, 以维持键盘或电池的使用寿命。...
