Keychron Q2 Max - Wireless Mechanical Keyboard Manual

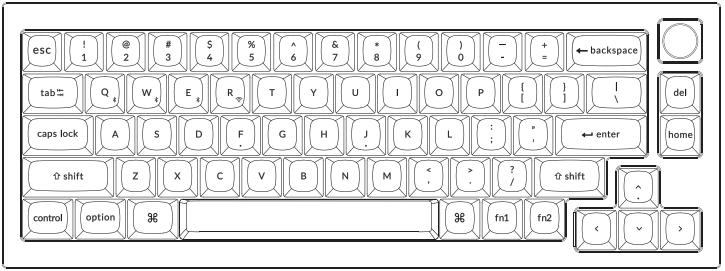

Fully Assembled Version

Keyboard
1x Fully Assembled Keyboard

Including
1x Aluminum Case
1x PCB
1x PC Plate
1x Sound Absorbing Foam
1x IXPE Foam
1x PET Foam
1x Latex Bottom Pad
1x Bottom Case Acoustic Foam
1x Bottom Case PET Foam
14x Gaskets (10 Installed and 4 in the Box)
4 sets x Stabilizers
1 set x Keycaps (PBT Double-shot)
1 set x Switches

Cable
1x Type-C to Type C Cable
1x Type-A to Type-C Adapter
1x Extension Adapter for Receiver

Receiver
1x Type-A 2.4 GHz Receiver

Tools
1x Keycap & Switch Puller
1x Screwdriver
1x Hex Key

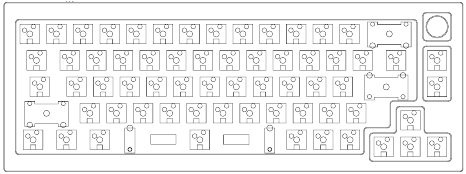

Barebone Version

Keyboard Kit
1x Keyboard Kit (Without Keycaps & Switches)

Including
1x Aluminum Case
1x PCB
1x PC Plate
1x Sound Absorbing Foam
1x IXPE Foam
1x PET Foam
1x Latex Bottom Pad
1x Bottom Case Acoustic Foam
1x Bottom Case PET Foam
14x Gaskets (10 Installed and 4 in the Box)
4 sets x Stabilizers

Cable
1x Type-C to Type-C Cable
1x Type-A to Type C Adapter
1x Extension Adapter for Receiver

Receiver
1x Type-A 2.4 GHz Receiver

Tools
1x Keycap & Switch Puller
1x Screwdriver
1x Hex Key

Quick Start Guide

If you are a Windows user, please find the appropriate keycaps in the box, then follow the instructions below to find and rep ace the following keycaps.

Switch To The Right System

Please make sure the system togg e on the top left corner has been switched to the same system asyour computer's operating system.

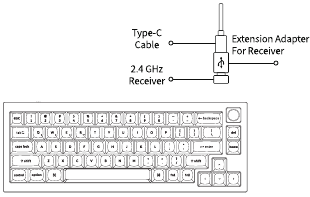

Connect 2.4GHz Receiver

Connect the 2.4 GHz receiver to the device USB port.

Switch togge to 2.4 GHz mode
G = 2.4 GHz

Note: For the best wireless experience, we recommend using the extension adapter for receiver and putting the 2.4 GHz receiver somewhere on your desk close to your keyboard for a low rate of latency and fewer signal interferences.

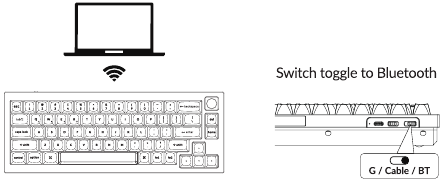

Connect Bluetooth

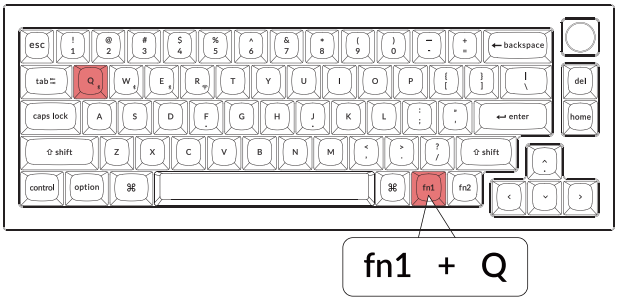

Press fn1 + Q (for4 seconds) and pair with device named Keychron Q2 Max

Connect Cable

The VIA Key Remapping Software

Please visit usevia.app to use the online VIA software to remap the keys.
If the VIA cannot recognize your keyboard, please reach our support to get the instruction.

*The online VIA software can only run on the latest version of Chrome, Edge, and Opera browsers yet.
*VIA only works when the keyboard is connected by wire to the computer.

The Layers

There are five layers of key settings on the keyboard.
The layer 0 is for the Mac system.
The layer 1 is for the Windows system.
The layer 2 is for the Mac Multimedia keys.
The layer 3 is for the Windows Multimedia keys.
The layer 4 is for function keys.

If your system toggle is switched to Mac, then the layer 0 will be activated.

If your system toggle is switched to Windows, then the layer 1 will be activated.

Multimedia Key and Function Key

In order to get Multimedia Key, you need to press fn1 and key

In order to get Function Key, you need to press fn2 and key

The Backlight

Adjust The Backlight Brightness

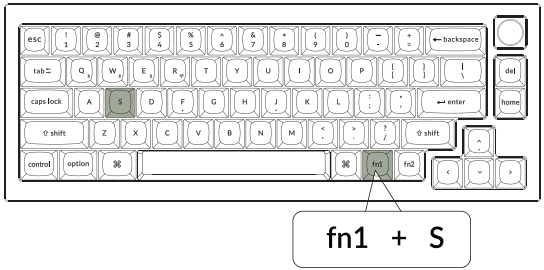

Press fn1 + S to increase the backlight brightness

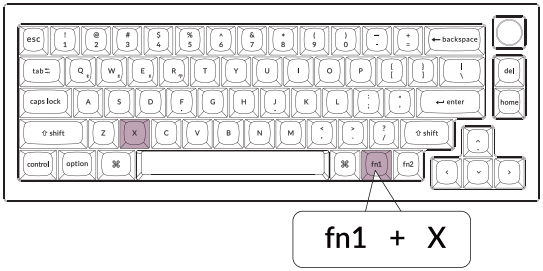

Press fn1 + X to decrease the backlight brightness

Adjust The Backlight Speed

Press fn1 + G to increase the light effect speed

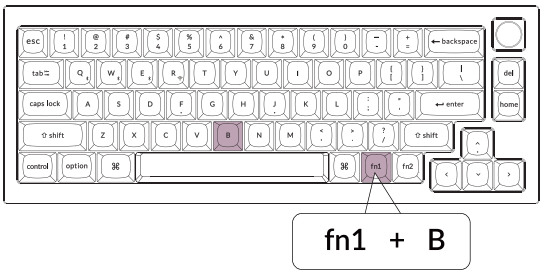

Press fn1 + B to decrease the light effect speed

Factory Reset

Troubleshooting? Don't know what's going on with the keyboard?

1. Download the right firmware and QMK Toolbox from our website.
2. Unplug the power cable and switch the keyboard to Cable mode.

3. Remove the space bar keycap to find the reset button on the PCB.
4. Hold the reset key first, then plug the power cable into the keyboard.
   Release the reset key after 2 seconds, and the keyboard will now enter DFU mode.
5. Flash the firmware with the QMK Toolbox.
6. Factory reset the keyboard by pressing fn2 + J + Z (for 4 seconds).

*Step by step guide can be found on our website.

PRODUCT SPECIFICATIONS

Number of keys: 66
Switch type: Mechanical
Battery: 4000mAh
Wireless working time (RGB): Up to 100 hours (Lowest brightness)
Charging time: Around 5 hours
Charging port: USB Type-C
Mode: 2.4 GHz/ Cable / Bluetooth
Wireless operating distance: Within 10 meters (open space)
Name of Bluetooth device: Keychron Q2 Max

Operating environment: -10 to 50°C
Technical specifications can be subjected to change without notice, we apologize for any inconvenience caused.

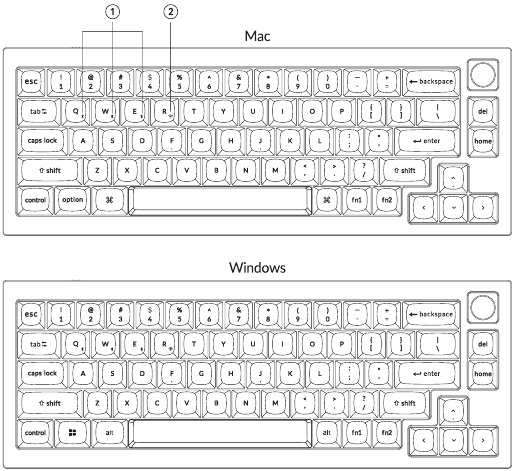

PRODUCT OVERVIEW

1. Bluetooth indicator
2. 2.4 GHz indicator
3. G cable BT (Mode Toggle)
4. Win/Android Mac/iOS (OS Toggle)
5. Type-C Port
6. Battery indicator

DEFAULT KEY LAYOUT

LAYER 0:This layer will be activated when your keyboard's system toggle is switched to Mac.

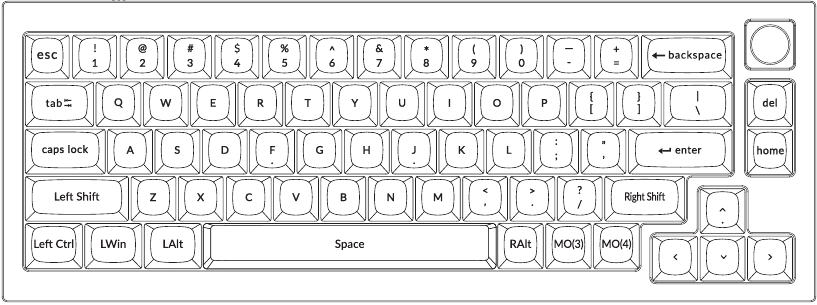

LAYER 1: This layer will be activated when your keyboard's system toggle is switched to Windows.
LWin = Left Windows
LAIt = Left Alt
RAIt = Right Alt

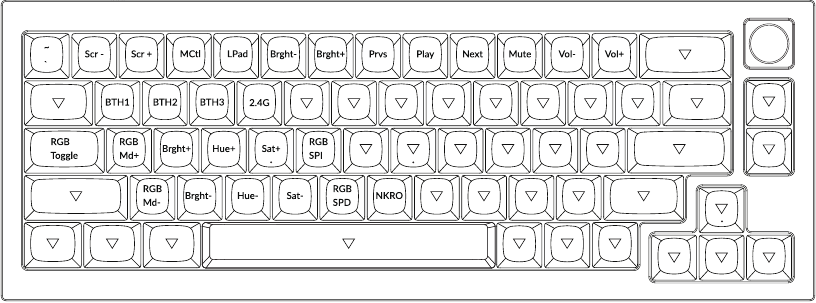

LAYER 2: This layer will be activated when your keyboard's system toggle is switched to Mac and press the fn1/MO(2) key.

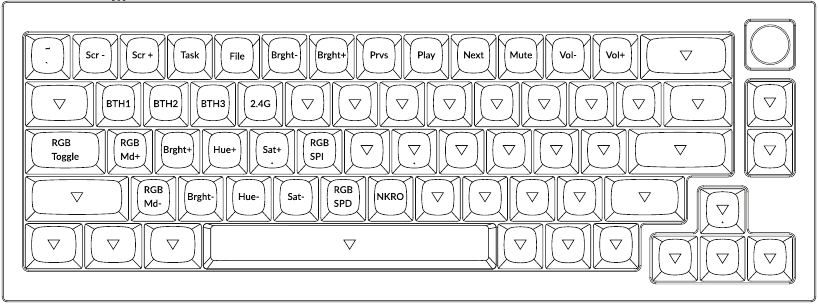

LAYER 3: This layer will be activated when your keyboard's system toggle is switched to Windows and press the fn1/MO(3) key.

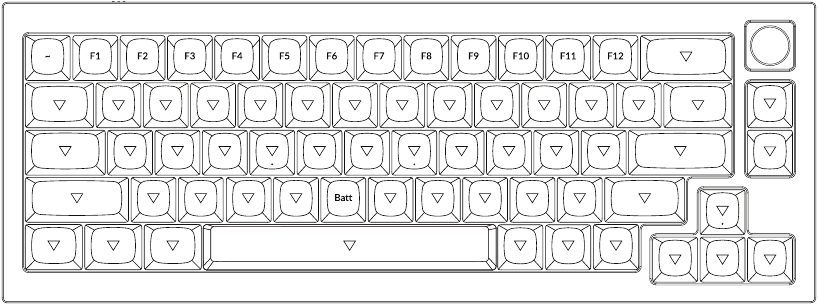

LAYER 4: This layer will be activated when you press the fn2/MO(4)

KEY DESCRIPTION

LED STATUS OVERVIEW

FUNCTION DESCRIPTION

CHARGING

Plug the cable into a USB port and plug the other end into the keyboard port. Charging Indicator: A red light will stay on while charging; Fully charged in around 5 hours, a green battery indicator will appear. If the power is low, the red light will blink.

*The Keychron keyboard is compatible with all USB ports. Please use a 5V 1A adapter or USB 3.0 for the best performance. The Keychron Q2 Max can be charged in 2.4 GHz/Cable/Bluetooth mode.
** This product supports up to 5V charging voltage and 1A charging current. We are not responsible for any problems caused by improper charging.

MODE TOGGLE SWITCH

2.4 GHZ WIRED MODE

1. Connect the 2.4 GHz receiver to your device's USB Port.
2. Switch the toggle switch to the 2.4 GHz option. The keyboard will automatically connect to your device.

*Press the key combination "fn1" + "R" to enter the forced pairing mode. During this period, it is recommended that the keyboard be within 20cm of the receiver.

WIRED MODE

1. Switch the toggle switch to the Cable option (it only works when a USB cable is plugged in).
2. Connect our cable with your PC and keyboard.
3. Backlighting will be turned on.

*Under Wired Mode, keyboard will not enter into Battery Saver Mode.

BLUETOOTH MODE

1. Switch the toggle switch to the Bluetooth option.
2. Backlighting will be turned on.
3. Hold "fn1+Q" key for 4 seconds to activate Bluetooth pairing (the Bluetooth indicator fast flashes for 3 minutes to detect pairing).
4. Search for the Bluetooth device "Keychron Q2 Max" on your device and connect it (the Bluetooth indicator goes off after successful pairing).

Note: This keyboard supports pairing up to 3 devicessimultaneously via key combination "fn1 " + "Q" / "fn1" + "W" / "fn1" + "E".
*The Bluetooth indicator will continue to flash for 3 minutes.
**Slow or failed connections may exist due to different Bluetooth versions, please make sure all the settings are correct.

SWITCH BLUETOOTH DEVICES

Short press key combination "fn1" + "Q" / "fn1" + "W" / "fn1" + "E" to switch to other device.

RECONNECT:

1. Switch the keyboard to the Bluetooth option to activate the keyboard.
2. The Bluetooth indicator flashes for 4 seconds and automatically pairs with the last paired device.
3. If the Bluetooth indicator is off, press any button to enter the connection again.

*The keyboard must have been paired with the device to perform this function.

TURN OFF THE UNIT

Switch the keyboard to the Cable option and unplug the power cable.

BACKLIGHT SETTING

• Short press key combination "fn1" + "caps lock" or "fn1" + "knob (press)" to turn the backlight on/off.
• Short press key combination "fn1" + "A" / "fn1" + "Z" to switch between different types of lighting effects.

OS TOGGLE SWITCH

1. MAC/iOS
   Switch the toggle to Mac/iOS when the keyboard is connected to a Mac or iOS operating system.
2. WINDOWS/ANDROID
   Switch the toggle to Windows/Android when the keyboard is connected to a Windows or Android operating system.
   *When using the Windows/Android mode, keys are used for "Windows" and "Alt" functions.

TROUBLESHOOTING

If unable to pair keyboard to device, confirm that the device you're trying to pair with is Bluetooth-capable. If so, restart the device and try pairing it with the keyboard again.

Note: On a Windows computer, a new Bluetooth connection will sometimes require additional software updates a process that may still be ongoing after a message appears indicating a successful completion. Wait at least 20 minutes after pairing to make sure all updates are completed before restarting the computer.

Confirm that the device is configured to accept Bluetooth connections (Windows) and supports an external keyboard (HID profile).

Go to Bluetooth Devices > Open Settings and select the following:
Allow Bluetooth devices to find this computer
Allow Bluetooth devices to connect to this computer
Alert me when a Bluetooth device wants to connect

My device isn't working in Bluetooth mode

For the computer/smartphone:
Go to your device Bluetooth settings>Select the keyboard and remove/delete/unpair it.
Then restart your device.

For the keyboard:
Turn the keyboard off and back on. Then reconnect it to your device.

Wireless connection is interrupted even within 10 meters

Check if the keyboard is resting on a metal surface that can iinterfere with the wireless signa

Third-party input tools are not compatible with the keyboard.
Due to compatibility, versions, brands and drivers of Windows/Android OS, functions of third party input tools may be affected while using the keyboard. Please make sure your operating system and drivers are up to date.

Certain multimedia keys or function keys do not work

Functions of certain multimedia keys may be disabled due to compatibility, versions, brands, and drivers of devices.

Safety Precaution

Keep the product, accessories and packaging parts out of the reach of children to prevent any accidents and choking hazards.
Always keep the product dry to avoid corrosion.
Do not expose the product to extreme temperatures below -10°C(5°F) or above 50°C(131°F) to preserve the lifespan of the keyboard.

Keychron, Inc.
Dover, DE 19901, United States
Find us at:
https://www.keychron.com
Support@keychron.com
@keychron
@keychron
@keychronMK
