Keychron B1 Pro Manual

Keychron B1 Pro Manual

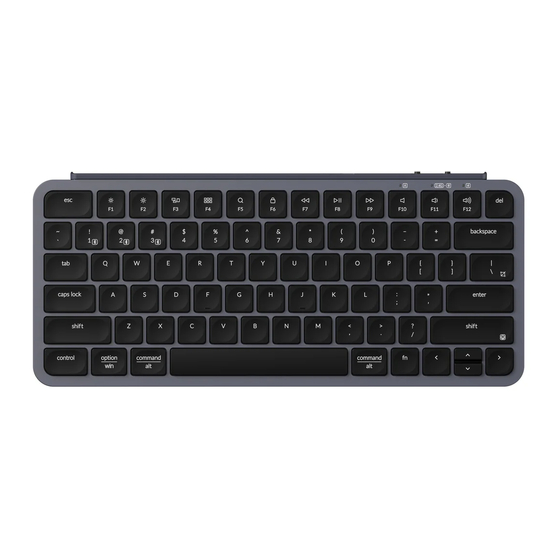

Ultra-slim wireless keyboard

Advertisement

Quick Links

B1 Pro Ultra-Slim Wireless Keyboard

Advertisement

loading
Need help?

Need help?

Do you have a question about the B1 Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Keychron B1 Pro

  • Page 1 B1 Pro Ultra-Slim Wireless Keyboard...
  • Page 2 IN THE BOX: Keychron B1 Pro Ultra-Slim Wireless Keyboard x 1 Type-C Cable x 1 Type-A to Type-C Adapter x1 Type-A 2.4GHz Receiver x 1 Quick Start Guide x 1 Silicone Skin x 1...
  • Page 3 USB port. BT / Cable / 2.4G 2.4G = 2.4GHz Connect Bluetooth Press fn + 1 (for 4 seconds) and pair with device named Keychron B1 Pro. Switch toggle to Bluetooth BT / Cable / 2.4G fn + 1...
  • Page 4 Connect Cable Switch toggle to Cable BT / Cable / 2.4G Switch To The Right System Please make sure the system toggle on the top right corner has been switched to the same system as your computer’s operating system.
  • Page 5 Switch Between Function And Multimedia Keys Press fn + X + L (for 4 seconds) to switch Multimedia keys Function keys F1 / F2 / F3 / F4 / F5 / F6 / F7 / F8 / F9 / F10 / F11 / F12 fn + X + L Reset Keyboard Hold fn + J + Z for 4 seconds.
  • Page 6 The Keychron Launcher App Please visit launcher.keychron.com to access the Keychron online launcher app. This app enables users to remap keys, adjust key actuation points, assign multiple commands to a single key, enter game controller mode, and more. If it cannot recognize your keyboard, please reach our support to get instruction.
  • Page 7 Mode: 2.4GHz / Bluetooth / Wired 2.4GHz / Bluetooth operating distance: Within 10 meters (open space) Name of Bluetooth device: Keychron B1 Pro Operating environment: -10 to 50°C Technical specifications can be subjected to change without notice, we apologize for any...
  • Page 8 B1 PRO ULTRA-SLIM WIRELESS KEYBOARD OVERVIEW ① ② ③ ④ Mac / Windows ① Bluetooth Channel ② Caps Lock Indicator ③ 2.4GHz / Bluetooth Indicator ④ Charging Indicator ⑤ BT Cable (Off) 2.4G (Mode Toggle Swtich) ⑥ Mac Win (OS Toggle Switch) ⑤...
  • Page 9 DEFAULT KEY LAYOUT: LAYER 0: This layer will be activated when your keyboard’s system toggle is switched to Mac.
  • Page 10 Layer 1: This layer will be activated when your keyboard’s system toggle is switched to Mac and press the fn/MO(1) key.
  • Page 11 LAYER 2: This layer will be activated when your keyboard’s system toggle is switched to Windows.
  • Page 12 LAYER 3: This layer will be activated when your keyboard’s system toggle is switched to Windows and press the fn/MO(3) key.
  • Page 13: Key Description

    KEY DESCRIPTION Key Description Key Description Key Description Scr- Screen Brightness Decrease Scr+ Screen Brightness Increase Layer 1 will be activated MO(1) when holding this key Layer 3 will be activated MO(3) when holding this key BTH1 Bluetooth Host 1 BTH2 Bluetooth Host 2 Prvs...
  • Page 14: Led Status Overview

    LED STATUS OVERVIEW LED Location Function Status Charging - static red Power indicator Charging Fully charged - static green Pairing -slow blinking Bluetooth / 2.4GHz Bluetooth / 2.4GHz Paired -static light and then off indicator Reconnecting -fast blinking Enable Caps Lock - static white Caps lock indicator Caps Lock Disable Caps Lock - light off...
  • Page 15 *The Keychron keyboard is compatible with all USB ports. Please use a 5V 1A adapter or USB 3.0 for the best performance. The Keychron B1 Pro can be charged in 2.4GHz/Cable/Bluetooth mode. **This product supports up to 5V charging voltage and 1A charging current. We are not responsible for any problems caused by improper charging.
  • Page 16 SWITCH BLUETOOTH DEVICES Short press key combination “fn” + “1” / “fn” + “2” / “fn” + “3” to switch to other device. RECONNECT: 1. Switch the keyboard to the Bluetooth option to activate the keyboard. 2. The Bluetooth indicator flashes for 3 seconds and automatically pairs with the last paired device. 3.
  • Page 17 My keyboard isn’t working in Bluetooth mode. For the computer/smartphone: Go to your device Bluetooth settings>Select the keyboard and remove/delete/unpair it. Then restart your device. For the keyboard: Turn the keyboard off and back on. Then reconnect it to your device. My keyboard isn't working in 2.4 GHz mode.
  • Page 18 Bluetooth connection is interrupted even within 10 meters. Third-party input tools are not compatible with the keyboard. Due to compatibility, versions, brands and drivers of Windows/Android OS, functions of third-party input tools may be affected while using the keyboard. Please make sure your operating system and drivers are up to date.
  • Page 20 B1 Pro 无线超薄键盘...
  • Page 21 内容清单 Keychron B1 Pro 无线超薄键盘 x 1 Type-C 充电线 x 1 Type-A to C 转接头 x 1 Type-A 2.4GHz 接收器 x 1 快速上手指南 x 1 硅胶防尘膜 x 1...
  • Page 22 连接2.4GHz接收器 将2.4GHz接收器连接到设备USB端口。 把开关拨到2.4GHz模式 BT / Cable / 2.4G 2.4G = 2.4GHz 连接蓝牙 长按fn+1四秒使键盘进入配对模式, 键盘的配对名为: Keychron B1 Pro。 把开关拨到蓝牙模式 BT / Cable / 2.4G fn + 1...
  • Page 23 连接有线 把开关拨到有线模式 BT / Cable / 2.4G 系统切换 请确保键盘右上角的 系统拨片切换到对应系统, 如果没有选择正确, 部分功能将无法使用。...
  • Page 24 在多媒体键和功能键之间切换 长按 fn+X+L 四秒钟来切换。 多媒体键 功能键 F1 / F2 / F3 / F4 / F5 / F6 / F7 / F8 / F9 / F10 / F11 / F12 fn + X + L 重置键盘 组合fn+J+Z键 (长按四秒) , 完成键盘重置。 fn + J + Z...
  • Page 25 关于Keychron Launcher App 请访问launcher.keychron.com 使用在线Launcher App。 该软件可以映射按键, 调节按键触发点, 设置一键多重命令, 体验游戏手柄模式等功能。 如果Launcher App不能识别你的键盘, 请联系我们以获得技术支持。 *在线Launcher App只能在最新版本的Chrome, Edge和Opera浏览器中运行。 *Launcher App仅在键盘通过有线连接到计算机时有效。 关于键盘键层说明 键盘有四层按键设置。 如果您的系统拨片切换到Mac档位, 如果您的系统拨片切换到Windows, 层0和层1是用于Mac系统。 层0将被激活。 那么层2将被激活。 层2和层3是用于Windows系统。 如果您在Windows系统模式下使用, 请对层2进行更改, 而不是层0。 否则无法进行按键映射操作。...
  • Page 26 B1 Pro 键盘概述 ① ② ③ ④ Mac / Windows ① 蓝牙通道 ② 大小写状态指示灯 ③ 2.4GHz / 蓝牙指示灯 ④ 充电指示灯 ⑤ BT Cable(Off) 2.4G (连接模式切换) ⑥ Mac Win (OS切换开关) ⑦ Type-C 充电口 ⑤ ⑥ ⑦...
  • Page 27 B1 Pro 键盘规格 按键: 77键 电池: 800mAh 电池续航: 1200小时 充电时间: 2.5小时 充电端口: Type-C 模式: 2.4GHz / 蓝牙 / 有线 2.4GHz / 蓝牙工作距离: 最长10米 (开放空间) 蓝牙设备名称: Keychron B1 Pro 功能说明 LED状态显示如下: 功能 LED位置 状态 充电—红灯常亮 充电 充电指示灯 满电—绿灯常亮 快闪—回连 蓝牙 / 2.4GHz 蓝牙...
  • Page 28 按键布局 层0: 当您的系统拨片切换到Mac档位的时候, 层0将被激活使用。 层1: 当您的系统拨片切到Mac档位并组合fn/MO(1)键的时候, 层1将被激活使用。...
  • Page 29 层2: 当您的系统拨片切到Windows档位的时候, 层2将被激活使用。 层3: 当您的系统拨片切到Windows档位并组合fn/MO(3)键的时候, 层3将被激活使用。...
  • Page 30 B1 PRO 无线键盘多媒体按键说明...
  • Page 31 充电 将充电线一端插入设备端USB接口, 再将另一端插入键盘充电口。 充电指示灯: 充电时, 充电指示灯红灯常亮; 约2.5小时后充满, 指示灯绿色常亮。 * Keychron B1 Pro 键盘与所有USB端口兼容。 要获得最佳信号和最快充电时间, 建议采用USB3.0端口或5V-1A电源适配器。 * Keychron B1 Pro 可在2.4GHz / 有线 / 蓝牙 模式下充电。 * 有线模式下, 充电指示灯不会熄灭。 * 本产品最高支持5V充电电压, 和1A充电电流。 因不当充电而产生的问题, 我们概不负责。 2.4GHz / 蓝牙 / 有线模式 2.4GHz模式 1. 将键盘2.4GHz接收器连接至设备端口的USB接口...
  • Page 32 回连 1. 将键盘切换到Bluetooth位置启动键盘。 2. 蓝牙指示灯快闪3秒, 自动配对上一次配对的设备。 3. 若回连失败, 可按任意按键再次进入回连模式。 * 键盘必须曾经配对该装置才能实现此功能。 有线模式 1. 将键盘 “模式切换开关” 拨动到 Cable 位置 (没插USB线的时候键盘无任何反应) 。 2. 使用本产品充电线连接电脑即可使用。 * 在有线模式下, 键盘不会自动进入省电模式。 关闭键盘 疑难排解 我无法将键盘与我的设备配对蓝牙。 答: 确认您要配对的设备可使用蓝牙。 重新启动设备并尝试再次与键盘配对。 注意: 在Windows计算机上, 新的蓝牙连接有时需要额外的软件更新 - 在出现表示成功完成的消息后, 该过程可能仍在进行中。 配对 后至少等待20分钟, 以确保在重新启动计算机之前完成所有更新。 确认设备配置可接受蓝牙连接...
  • Page 33 我的键盘无法使用蓝牙。 答: 请打开您的电脑/智能手机上的蓝牙设置>选择键盘并删除此设备/取消配对, 然后重启您的设备; 关闭并重新打开键盘, 然后重新连接到您的设备。 我无法将键盘与我的设备配对2.4GHz。 请确保开关已切换至2.4GHz, 从设备中拔出接收器, 按住 “fn” + “4” 键4秒以强制配对, 然后将接收器重新插入设备, 确保在配对过程 中键盘与接收器的距离不超过20厘米以获得最佳配对效果。 2.4GHz / 蓝牙连接或在10米内受干扰。 答: 检查键盘是否放在可能干扰无线信号的金属表面上。 第三方输入工具与键盘不兼容 答: 由于Windows / Android 系统的兼容性、 版本、 品牌和驱动程序, 第三方输入工具在使用键盘时或被影响。 请确保你的作业系统 和驱动程序为最新版本。 某些多媒体键或功能键在设备上不起作用。 答: 由于设备的兼容性, 系统版本, 驱动程序等原因, 某些多媒体键或者功能键可能无法使用。 *多媒体键: 功能键:...
