  • Page 1 Q5 Max Wireless Mechanical Keyboard...
  • Page 2 Fully Assembled Version Keyboard 1x Fully Assembled Keyboard Including 1x Aluminum Case 1x PCB 1x PC Plate 1x Sound Absorbing Foam 1x IXPE Foam 1x PET Foam 1x Latex Bottom Pad 1x Bottom Case Acoustic Foam 1x Bottom Case PET Foam 14x Gaskets (12 Installed and 2 in the Box) 7 sets x Stabilizers 1 set x Keycaps (PBT Double-shot)
  • Page 3 Barebone Version Keyboard Kit 1x Keyboard Kit (Without Keycaps & Switches) Including 1x Aluminum Case 1x PCB 1x PC Plate 1x Sound Absorbing Foam 1x IXPE Foam 1x PET Foam 1x Latex Bottom Pad 1x Bottom Case Acoustic Foam 1x Bottom Case PET Foam 14x Gaskets (12 Installed and 2 in the Box) 7 sets x Stabilizers Cable...
  • Page 4 Quick Start Guide If you are a Windows user, please find the appropriate keycaps in the box, then follow the instructions below to find and replace the following keycaps. Mac / Windows...
  • Page 5 Switch To The Right System Please make sure the system toggle on the top left corner has been switched to the same system as your computer's operating system. Type-C Connect 2.4 GHz Receiver Extension Adapter Cable For Receiver 2.4 GHz Receiver Connect the 2.4 GHz receiver to the device USB port.
  • Page 6 Connect Bluetooth Press fn + 1 (for 4 seconds) and pair with device named Keychron Q5 Max Switch toggle to Bluetooth Switch toggle to Bluetooth G / Cable / BT fn + 1 Connect Cable Switch toggle to Cable G / Cable / BT...
  • Page 7 The VIA Key Remapping Software Please visit usevia.app to use the online VIA software to remap the keys. If the VIA cannot recognize your keyboard, please reach our support to get the instruction. Your keyboard’s best friend *The online VIA software can only run on the latest version of Chrome, Edge, and Opera browsers yet. *VIA only works when the keyboard is connected by wire to the computer.
  • Page 8 The Backlight Press fn + Q to change the lighting effect Press fn + tab to turn the backlight on/off fn + Q fn + tab Adjust The Backlight Brightness Press fn + W to increase the backlight brightness Press fn + S to decrease the backlight brightness fn + W fn + S...
  • Page 9 Adjust The Backlight Speed Press fn + T to increase the light effect speed Press fn + G to decrease the light effect speed fn + T fn + G Factory Reset Troubleshooting? Don’t know what’s going on with the keyboard? 1.
  • Page 10 Warranty The keyboard is highly customizable and easy to be rebuilt. If anything goes wrong with any of the keyboard components of keyboard during the warranty period, we will only replace the defective parts of the keyboard, not the whole keyboard.
  • Page 11 Charging port: USB Type-C Mode: 2.4 GHz/ Cable / Bluetooth Wireless operating distance: Within 10 meters (open space) Name of Bluetooth device: Keychron Q5 Max Operating environment: -10 to 50°C Technical specifications can be subjected to change without notice, we apologize for any...

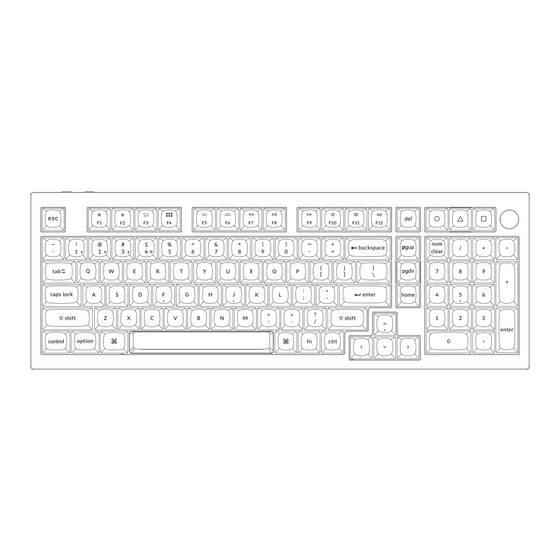

  • Page 12 Q5 MAX WIRELESS MECHANICAL KEYBOARD OVERVIEW ① ② ③ ④ ⑤ ⑥ Windows ① Bluetooth indicator ② 2.4 GHz indicator ③ G Cable BT (Mode Toggle) ④ Win/Android Mac/iOS (OS Toggle) ⑤ Type-C Port ⑥ Battery indicator...
  • Page 13 DEFAULT KEY LAYOUT: LAYER 0: This layer will be activated when your keyboard’s system toggle is switched to Mac. Scr- Scr+ MCtl LPad Brght- Brght+ Prvs Play Next Mute Vol- Vol+ N.Lck Left Shift Right Shift N.Ent LOpt LCmd Space RCmd MO(1) RCtl...
  • Page 14 Layer 1: This layer will be activated when your keyboard’s system toggle is switched to Mac and press the fn/MO(1) key. BTH1 BTH2 BTH3 2.4G Brght+ Hue+ Sat+ Toggle Brght- Hue- Sat- Batt NKRO...
  • Page 15 LAYER 2: This layer will be activated when your keyboard’s system toggle is switched to Windows. N.Lck Left Shift Right Shift N.Ent LWin LAlt Space RAlt MO(3) RCtl Left Ctrl LWin = Left Windows LAlt = Left Alt RAlt = Right Alt RCtl = Right Ctrl...
  • Page 16 LAYER 3: This layer will be activated when your keyboard’s system toggle is switched to Windows and press the fn/MO(3) key. Scr- Scr+ Brght- Brght+ Prvs Play Next Mute Vol- Vol+ Task File BTH1 BTH2 BTH3 2.4G Brght+ Hue+ Sat+ Toggle Brght- Hue-...
  • Page 17: Key Description

    KEY DESCRIPTION Key Description Key Description Key Description Scr- Screen Brightness Decrease RGBMd- RGB Mode Previous Sat+ Saturation Increase Scr+ Screen Brightness Increase Hue+ Hue Increase Sat- Saturation Decrease Bright- Backlight Decrease Hue- Hue Decrease 2.4G 2.4 GHz Host Bright+ Backlight Increase RGB SPI RGB Speed Increase...
  • Page 18: Led Status Overview

    If the power is low, the red light will blink. *The Keychron keyboard is compatible with all USB ports. Please use a 5V 1A adapter or USB 3.0 for the best performance. The Keychron Q5 Max can be charged in 2.4 GHz/Cable/Bluetooth mode.
  • Page 19 3. Hold “fn+1” key for 4 seconds to activate Bluetooth pairing (the Bluetooth indicator fast flashes for 3 minutes to detect pairing). 4. Search for the Bluetooth device “Keychron Q5 Max” on your device and connect it (the Bluetooth indicator goes off after successful pairing).
  • Page 20: Backlight Setting

    SWITCH BLUETOOTH DEVICES Short press key combination “fn” + “1” / “fn” + “2” / “fn” + “3” to switch to other device. RECONNECT: 1. Switch the keyboard to the Bluetooth option to activate the keyboard. 2. The Bluetooth indicator flashes for 4 seconds and automatically pairs with the last paired device. 3.
  • Page 22 My keyboard isn't working in Bluetooth mode. For the computer/smartphone: Go to your device Bluetooth settings>Select the keyboard and remove/delete/unpair it. Then restart your device. For the keyboard: Turn the keyboard off and back on. Then reconnect it to your device. Wireless connection is interrupted even within 10 meters.
  • Page 23 Safety Precaution: Keep the product, accessories and packaging parts out of the reach of children to prevent any accidents and choking hazards. Always keep the product dry to avoid corrosion. Do not expose the product to extreme temperatures below -10°C(5°F) or above 50°C(131°F) to preserve the lifespan of the keyboard.
  • Page 25 Q5 Max 无线机械键盘...
  • Page 26 完全组装版本 键盘 1x 已组装成品键盘 包含 1x 铝合金金属外壳 1x PCB 1x PC定位板 1x PCB与定位板夹心吸音泡棉 1x IXPE垫 1x PET垫 1x 乳胶底垫 1x 底壳吸音泡棉 1x 底壳PET垫 14x Gaskets缓冲垫 (12个缓冲垫已安装 在键盘本体、 2个放置在包装内部) 7套PCB卫星轴 1套键帽 (PBT材质-双色注塑) 1套机械轴体 线材 1x Type-C to Type-C 接口线材 1x Type-A to Type-C 转接头 1x 接收器延长器...
  • Page 27 套件版本 键盘 1x 键盘本体 (不包含键帽、 轴体) 包含 1x 铝合金金属外壳 1x PCB 1x PC定位板 1x PCB与定位板夹心吸音泡棉 1x IXPE垫 1x PET垫 1x 乳胶底垫 1x 底壳吸音泡棉 1x 底壳PET垫 14x Gaskets缓冲垫 (12个缓冲垫已安装 在键盘本体、 2个放置在包装内部) 7套PCB卫星轴 线材 1x Type-C to Type-C 接口线材 1x Type-A to Type-C 转接头 1x 接收器延长器...
  • Page 28 快速上手指南 如果你是Windows用户, 请在包装盒里找到如下的键帽, 用拔键器拔下键盘上的对应键帽并且更换。 Mac / Windows...
  • Page 29 系统切换 请确保键盘左上角的系统拨片切换到对应系统, 如果没有选择正确, 部分功能将无法使用。 连接2.4 GHz接收器 Type-C 线材 接收器 延长器 2.4 GHz 将2.4 GHz接收器连接到设备USB端口。 接收器 把开关拨到2.4 GHz模式 Switch toggle to 2.4 GHz mode G / Cable / BT 注意:为了获得最佳的无线体验, 我们建议将2.4 GHz接收器 插入线材+赠送的接收器延长器, 放置在书桌上靠近你的键盘, G = 2.4 GHz 以降低延迟率和更少的干扰信号。...
  • Page 30 连接蓝牙 长按fn+1四秒使键盘进入配对模式, 键盘的配对名为: Keychron Q5 Max。 把开关拨到蓝牙模式 Switch toggle to Bluetooth Switch toggle to Bluetooth G / Cable / BT fn + 1 连接有线 把开关拨到有线模式 G / Cable / BT...
  • Page 31 关于VIA映射软件 可以访问 usevia.app使用在线VIA软件, VIA是可以映射按键的软件。 如果VIA软件不能识别你的键盘, 请联系我们以获得技术支持。 *在线VIA只能在最新版本的Chrome, Edge和Opera浏览器中运行。 *VIA仅在键盘通过线连接到计算机时有效。 关于键盘键层说明 键盘有四层按键设置。 如果您的系统拨片切换到Mac档位, 如果您的系统拨片切换到Windows, 层0和层1是用于Mac系统。 层0将被激活。 那么层2将被激活。 层2和层3是用于Windows系统。 如果您在Windows系统模式下使用, 请对层2进行更改, 而不是层0。 否则无法进行按键映射操作。...
  • Page 32 更改键盘背光模式以及快速关闭/开启键盘背光 组合fn+Q键, 更改键盘背光模式。 组合fn+tab键, 可快速关闭/开启键盘背光。 fn + Q fn + tab 调整键盘背光亮度 组合fn+W键, 提高键盘背光亮度。 组合fn+S键, 减少键盘背光亮度。 fn + W fn + S...
  • Page 33 调整背光速度 组合fn+T键, 增加光效速度。 组合fn+G键, 降低光效速度。 fn + T fn + G 恢复出厂模式 如果键盘出现了故障, 不知道怎么办? 1. 从我们的网站为您的键盘下载正确的固件和QMK Toolbox; 2. 拔掉数据线, 并将键盘拨动到Cable模式。 3. 拔掉空格键键帽, 然后找到位于PCB上面的复位按钮; 4. 首先长按住复位键, 然后将数据线插入键盘。 2秒后放开这个复位键, 此时键盘会进入DFU模式; 5. 然后您可以使用QMK工具箱进行刷新固件的操作; 6. 烧录完成后, 长按fn+J+Z将键盘恢复出厂设置。 *步骤指南可以在我们的网站上找到。...
  • Page 34 保修 由于Q5 Max客制化键盘是可高度定制且易于组装的, 所以键盘的任何一个部件出了问题, 我们只会更换键盘有问题的部件而不是整个键盘。...
  • Page 35 Q5 Max 键盘概述 ① ② ③ ④ ⑤ ⑥ Windows ① 蓝牙指示灯 ② 2.4 GHz指示灯 ③ G Cable BT (连接模式切换开关) ④ Win/Android Mac/iOS (OS切换开关) ⑤ 充电口 ⑥ 充电指示灯...
  • Page 36 Q5 Max 键盘规格 按键: 101键 轴: 机械轴 电池: 4000mAh 电池续航: 100小时 (无线模式下开启最低背光亮度) 充电时间: 5小时 充电端口: USB Type-C 模式: 2.4 GHz / 有线 / 蓝牙 无线工作距离: 最长10米 (开放空间) 蓝牙设备名称: Keychron Q5 Max 功能说明 LED状态显示如下: 功能 LED位置 状态 充电—红灯常亮 充电 充电指示灯 满电—绿灯常亮...
  • Page 37 按键布局 层0: 当您的系统拨片切换到Mac档位的时候, 层0将被激活使用。 Scr- Scr+ MCtl LPad Brght- Brght+ Prvs Play Next Mute Vol- Vol+ N.Lck Left Shift Right Shift N.Ent LOpt LCmd Space RCmd MO(1) RCtl Left Ctrl 层1: 当您的系统拨片切到Mac档位并组合fn/MO(1)键的时候, 层1将被激活使用。 BTH1 BTH2 BTH3 2.4G Brght+ Hue+ Sat+ Toggle Brght- Hue-...
  • Page 38 层2: 当您的系统拨片切到Windows档位的时候, 层2将被激活使用。 N.Lck Left Shift Right Shift N.Ent LWin LAlt Space RAlt MO(3) RCtl Left Ctrl LWin = Left Windows LAlt = Left Alt RAlt = Right Alt RCtl = Right Ctrl 层3: 当您的系统拨片切到Windows档位并组合fn/MO(3)键的时候, 层3将被激活使用。 Scr- Scr+ Brght- Brght+ Prvs Play Next...
  • Page 39 Q5 Max 客制化键盘多媒体按键说明 Sat+ 饱和度+ Sat- 饱和度- 2.4G 2.4 GHz连接设备 Batt 电池电量 NKRO 全键无冲 BTH1 蓝牙连接设备 1 BTH2 蓝牙连接设备 2 蓝牙连接设备 3 BTH3...
  • Page 40 充电 将电线插入USB端口, 将另一端口插入键盘的端口。 充电指示灯: 充电时, 红色电池指示灯常亮; 在约5小时内完全充电, 指示灯绿色长亮, 低电量时灯闪烁。 *Keychron Q5 Max键盘与所有USB端口兼容。 要获得最佳信号和最快充电时间, 建议采用USB3.0端口或5V-1A电源适配器。 *Keychron Q5 Max可在2.4 GHz/有线/蓝牙模式下充电。 *有线模式下, 充电指示灯不会熄灭。 *本产品最高支持5V充电电压, 和1A充电电流。 因不当充电而产生的问题, 我们概不负责。 背光灯 - 短按组合键 “fn+tab” 或 “fn+旋钮(按压)” 可关闭/开启键盘背光。 - 短按组合键 “fn+Q” / “fn+A” 可切换背光效果。 2.4 GHz / 蓝牙 / 有线模式...
  • Page 41 蓝牙模式 1. 将键盘 “模式切换” 拨动到 BT 位置。 2. 键盘背光灯将打开。 3. 长按 “fn+1” 键4秒激活蓝牙配对 (蓝牙指示灯闪烁3分钟) 。 4. 在你的装置上搜索蓝牙装置 “Keychron Q5 Max” 并连接它 (配对成功后蓝牙指示灯熄灭) 。 注意: 此键盘支持通过组合键 “fn+1” / “fn+2” / “fn+3” 依次配对最多3台设备。 *因蓝牙版本较多等原因, 初次连接可能出现连接缓慢或连接失败等问题, 请耐心检查设备设置是否正确。 切换至蓝牙装置 短按组合键 “fn+1” / “fn+2” / “fn+3” 切换到其他装置。...
  • Page 42 系统切换 1 — MacOS / iOS 连接到Mac或iOS操作系统时, 请将键盘上方系统开关拨至Mac/iOS。 2 — WINDOWS / 安卓 当键盘连接到 Windows 或 Android 操作系统时, 请将键盘上方系统开关拨至Win/Android。 注:由于Windows/安卓OS的兼容性、 版本、 品牌和驱动程序,某些多媒体键的功能可能不能被使用。 我们还建议不要频繁切换操作 系统,因为它可能会影响键盘的操作。 疑难排解 我无法将键盘与我的设备配对。 答: 确认您要配对的设备可使用蓝牙。 重新启动设备并尝试再次与键盘配对。 注意: 在Windows计算机上, 新的蓝牙连接有时需要额外的软件更新 - 在出现表示成功完成的消息后, 该过程可能仍在进行中。 配对 后至少等待20分钟, 以确保在重新启动计算机之前完成所有更新。 确认设备配置可接受蓝牙连接 (Windows) 并支持外部键盘 (HID配置文件) 。 转到蓝牙装置>打开设置,...
  • Page 43 2.4 GHz / 蓝牙连接或在10米内受干扰。 答: 检查键盘是否放在可能干扰无线信号的金属表面上。 第三方输入工具与键盘不兼容 答: 由于Windows / Android 系统的兼容性、 版本、 品牌和驱动程序, 第三方输入工具在使用键盘时或被影响。 请确保你的作业系统 和驱动程序为最新版本。 某些多媒体键或功能键在设备上不起作用。 答: 由于设备的兼容性, 系统版本, 驱动程序等原因, 某些多媒体键或者功能键可能无法使用。 *多媒体键: 功能键: 安全预防措施: 防止儿童接触到产品、 附件和包装部件, 以防止任何意外和窒息的危险。 保持产品干燥, 避免腐蚀。 不要将产品暴露在低于-10°C (5°F) 或高于50°C(131°F)的极端温度下, 以保持键盘的寿命。...
