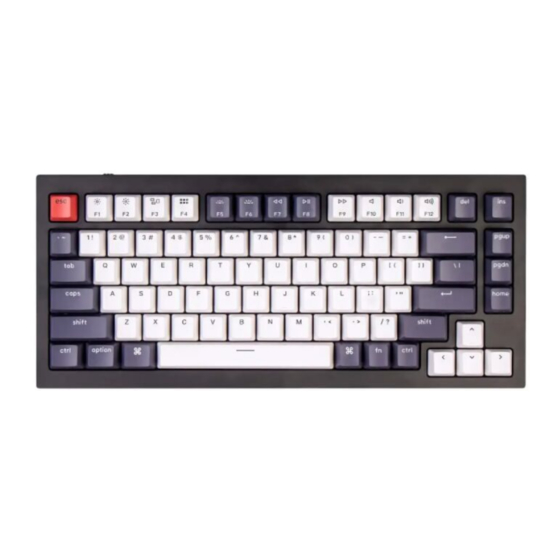

Keychron Q1 Keyboard User Guide

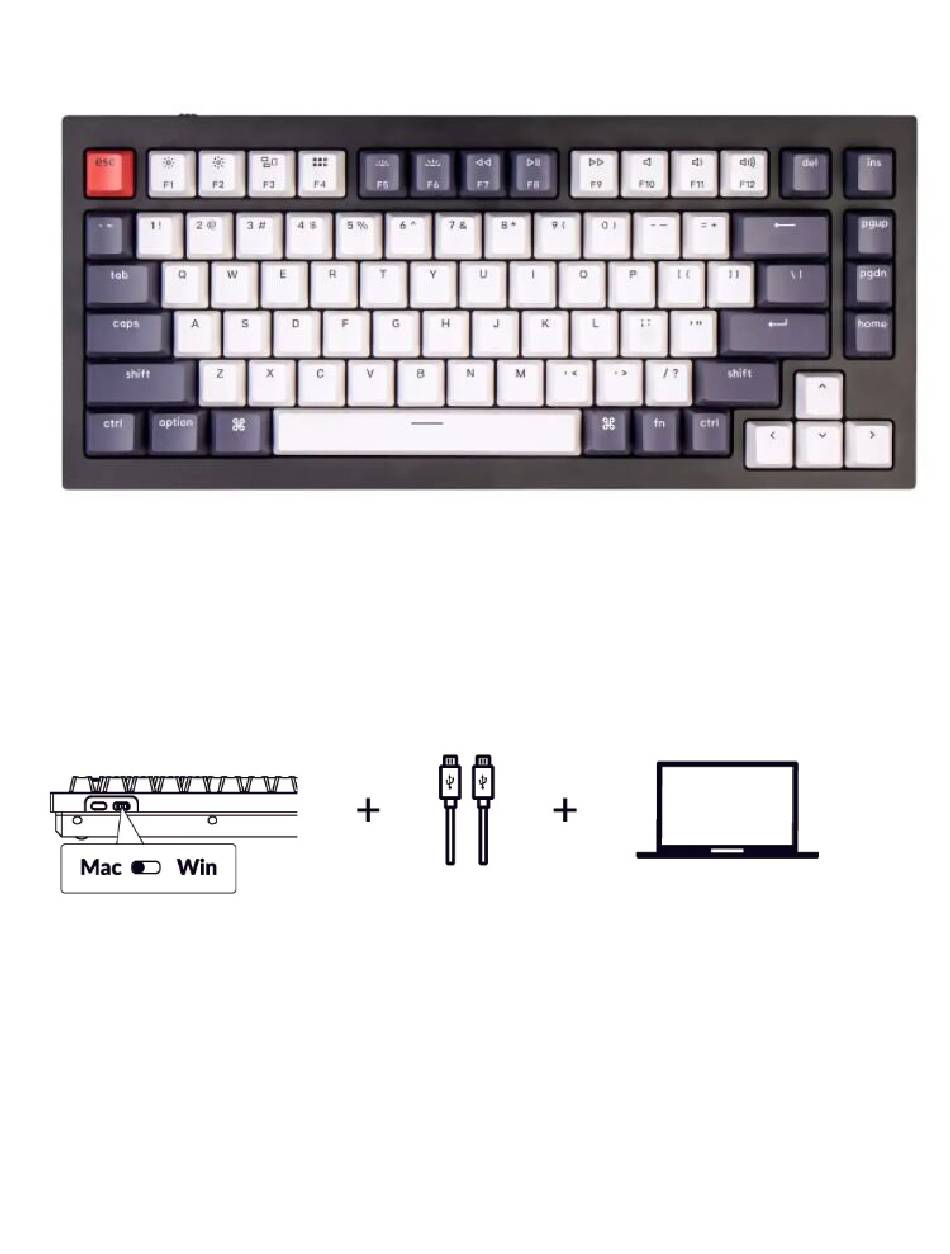

1. Switch To The Right System
Please make sure the system toggle on the top left corner has been switched to the
same system as your computer's operating system.
2. The VIA Key Remapping Software
Please visit caniusevia.com to download the latest VIA software to remap the keys.
If the VIA software cannot recognize your keyboard, please reach out to our
support to get the instruction.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Keychron Q1
Summary of Contents for Keychron Q1
- Page 1 Keychron Q1 Keyboard User Guide 1. Switch To The Right System Please make sure the system toggle on the top left corner has been switched to the same system as your computer’s operating system. 2. The VIA Key Remapping Software Please visit caniusevia.com to download the latest VIA software to remap the keys.
- Page 2 3. The Layers There are four layers of key settings on the keyboard. The layer 0 and layer 1 are for the Mae system. The layer 2 and layer 3 are for the Windows system. If your system toggle is switched to Mac, then the layer 0 will be Active. If your system toggle is switched to Windows, then the layer 2 will be activated.
- Page 3 4. The Backlight 5. Adjust the Backlight Brightness...
- Page 4 6. How to Set Mission Control And Launch Pad For The Mac Click system preference and search ” Mission Control” and choose F3 as the shortcut for the Mission Control Click system preference and search ” Launch” and press F4 to set the F4 as the shortcut for the Launch Pad.
- Page 5 7. Warranty The keyboard is highly customizable and easy to be rebuilt. If anything goes wrong with any of the keyboard components of keyboard during the warranty period, we will only replace the defective parts of the keyboard, not the whole keyboard. 8.
- Page 6 9. How To Connect The FPC ( Flexible Print Circuit) With The Two PCBs 10. Factory Reset Troubleshooting? Don’t know what’s going on with the keyboard?
- Page 7 Front height 21.8 mm (wiMout keycaps) Back height 34.8 mm (without keycaps) Front height 32.2 mm (with OEM keycaps Installed) Back height 44.2 mm (with OEM keycaps installed) Keyboard feet height 2.4 mm Angle 5.2 degree Q1 Mechanical Keyboard Overview...
- Page 8 Default Key Layout: Layer 0: This Layer will be activate when your keyboard’s system toggle is switched to Mac...
- Page 9 LAYER 1: This layer will be activate when your keyboard’s system toggle is switched to Mac and Press the fn/MO(1) key. LAYER 2: This layer will be activate when your keyboard’s system toggle is switched to Windows. LAYER 3: This layer will be activate when your keyboard’s system toggle is switched to Windows and Press the fn/MO(3) key.
- Page 10 Key Description Third party input tools are not compatible with the keyboard.
- Page 11 Do not expose the product to extreme temperatures below -10°C (5°F) or above 50°C (131°F) to preserve the lifespan of the keyboard. Keychron Q1 Keycap Size Below is the hi res image of Q1 keycap size. Q1 Keyboard Plate File...
- Page 12 Troubleshooting? Or Don’t know what’s going on with the keyboard? Factory reset your Keychron Q1. 1. Download the Q1 firmware (the file needs to be unzipped) and download the QMK Toolbox. (If the download link below does not work, use this link: https://github.com/qmk/qmk_toolbox/releases)
- Page 13 Download Q1 V2 Non-Knob ISO Firmware Download Q1 V2 Knob Version ANSI Firmware Download Q1 V2 Knob Version ISO Firmware Keychron Q1 Japan JIS Version Download Q1 Knob Version Japan JIS Firmware QMK Toolbox Download QMK Toolbox for Mac Download QMK Toolbox for Win 2.
- Page 14 Knob version, please choose atmega32u4 for MCU (No need to choose anything for MCU if you got the Q1 Knob Version) and then click the Flash button. It will start flashing. (Note: Do Not unplug the power cable to your keyboard while it’s...
- Page 15 7. Wait a few seconds and when you see the content below, it means the keyboard has flashed successfully factory reset.
- Page 16 If VIA can’t pair with your Keychron Q1 after you tried flashing, you need to follow these steps: 1. Reconnect your keyboard power cable. 2. If VIA still doesn’t pair together after you reconnect the power cable, download the Keychron Q1 JSON file.
- Page 17 You may contact support@keychron.com if a defect covered by the warranty arises in your product within the warranty period. Keychron will honor the warranty of our Q and V series keyboard (e.g.: Q1, Q2, V1, V2, etc.) by one of the following methods at our discretion:...
- Page 18 The Key Combinations Table Of Keychron Q1 For Keychron Q1, we’ve included all the normal and useful functions keys that can be accessed via the default key combinations. Here is the table for all the key combinations and functions it can access.
- Page 19 fn + F3 Task View (Windows mode) fn + F4 File Explorer (Windows mode) fn + F5 Keyboard Backlight Down (Windows mode) fn + F6 Keyboard Backlight Up (Windows mode) fn + F7 Rewind (Windows mode) fn + F8 Play / Pause (Windows mode) fn + F9 Fast Forward (Windows mode) fn + F10...
- Page 20 F12 (Mac mode) fn + J + Z (long press for 3s) Reset the Keyboard *Above are the default key combinations of Keychron Q1. You can customise your own key combinations on each layer and access to more functions through VIA software.
Need help?
Do you have a question about the Q1 and is the answer not in the manual?
Questions and answers

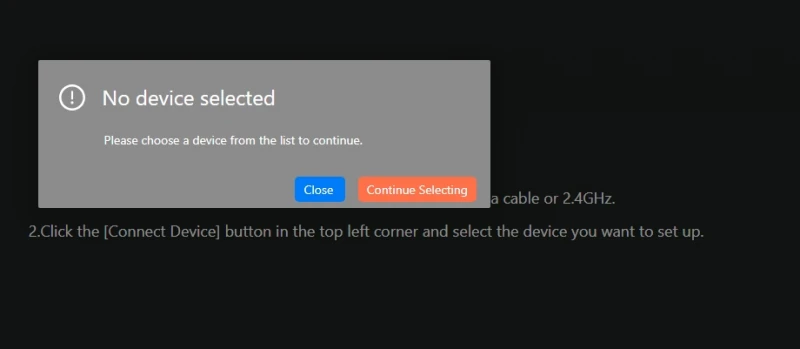

keyboard is not being recognized by VIA software. Keyboard it Keychron Q1
