Pro-Form 580X INTERACTIVE TRAINER User Manual page 6

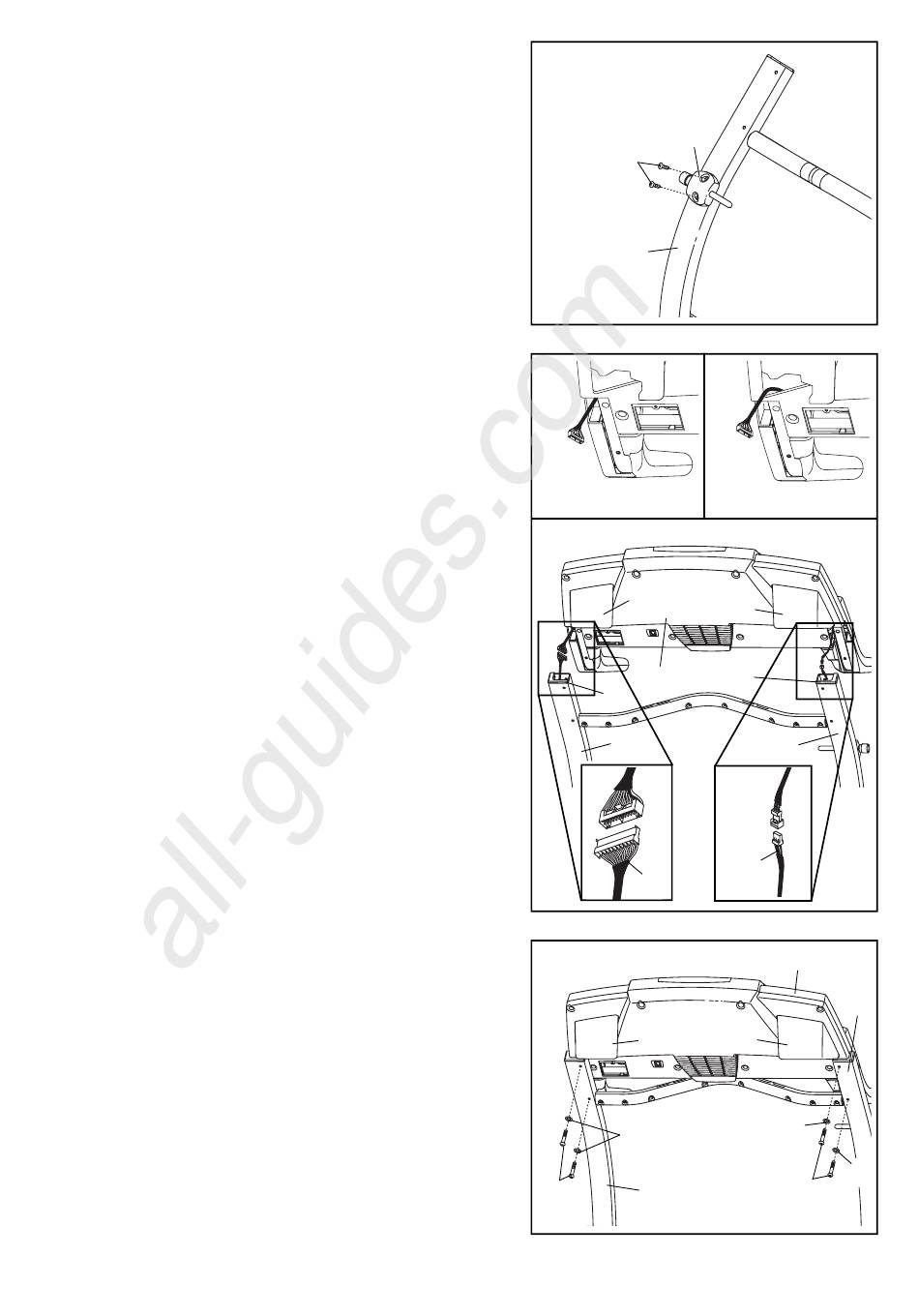

3. Attach the Latch Assembly (82) to the Left Upright (84)
with the two Latch Screws (46). Start both Latch Screws
before tightening either of them. Note: The Latch Screws
may be preattached to the Left Upright.
4. Refer to step 6 and locate the four Upright Bolts (86).
Loosen the Upright Bolts two to three turns.
Refer to drawing 4c. With the help of a second person,
hold the Console Base (101) near the Uprights (80, 84).
Look under the Console Base and locate the wires on
the sides of the Console Base. Make sure that the wires
are not routed through the openings for the Trays (109,
111). Drawing 4a shows the correct route for the wires.
Drawing 4b shows an incorrect route.
Refer to drawing 4c. Cut the plastic ties holding the Wire
Harness (74) and the Pulse Wire in the Uprights (80, 84).
Connect the Wire Harness and the Pulse Wire to the
wires on the sides of the Console Base (101). Make sure
to connect the connectors properly (see the inset
drawings). IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON. The con-
nectors should slide together easily and snap into
place. If the connectors do not slide together easily and
snap into place, turn one connector and try again. Insert
the excess Wire Harness and Pulse Wire up into the
Console Base.
Press the Right and Left Top Endcaps (75, 81) into the
Uprights (80, 84) as shown.
5. Set the Console Base (101) on the Uprights (80, 84).
careful not to pinch the Wires (not shown) in the
Uprights. Attach the Console Base to each Upright with
two Console Bolts (76) and two Internal Star Washers
(77); start all four Console Bolts before tightening any of
them.
Make sure that the Left and Right Trays (109, 111) are
pressed into the Console Base (101).
All manuals and user guides at all-guides.com
Be
6
3
82
46
84
4a
Correct
4c
111
101
75
80
74
5
111
77
76
80
4b
Incorrect
109
81
84
Pulse
Wire
101
84
109
77
77
76
