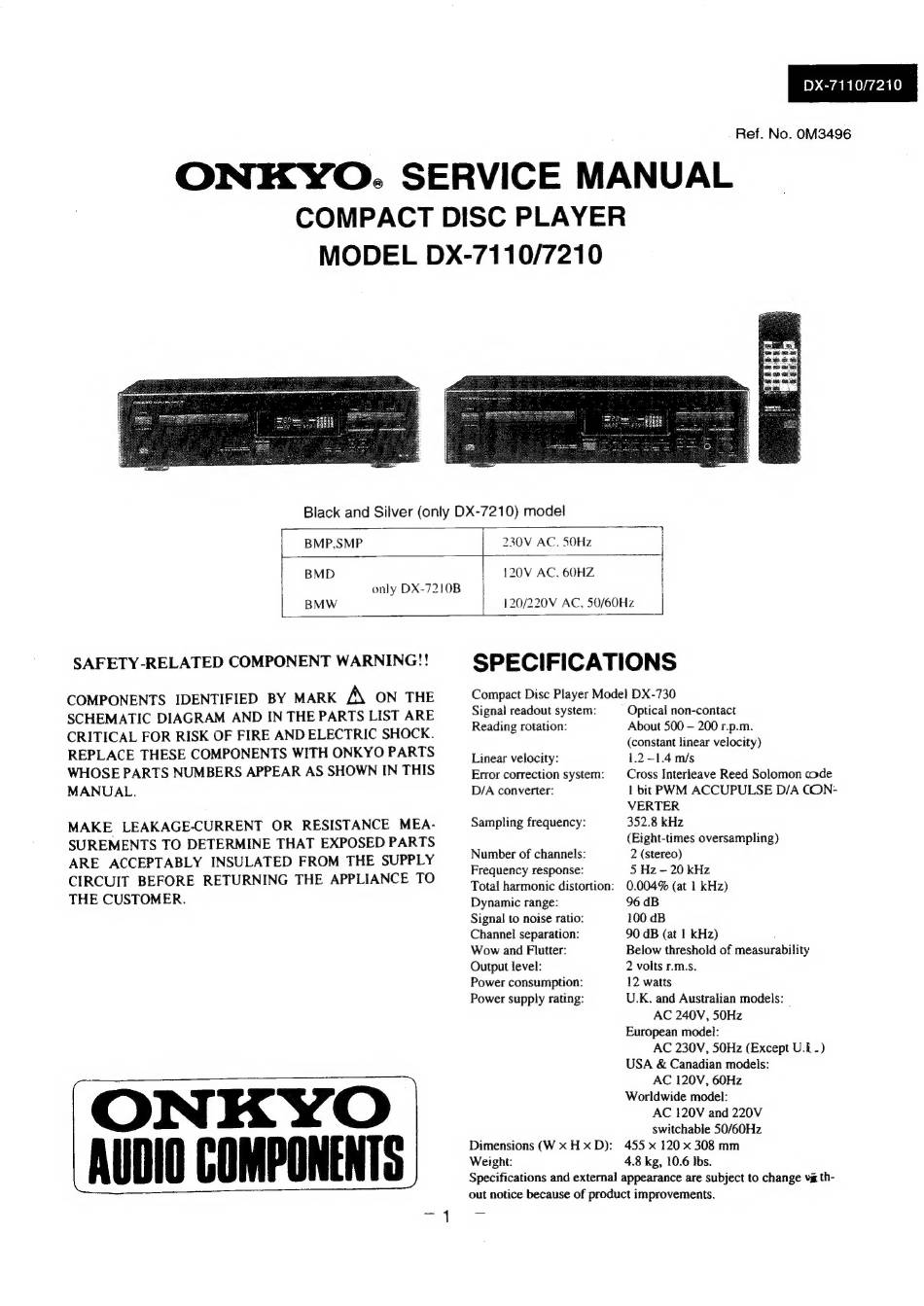

Onkyo DX-7110 Service Manual

DX-7110/7210
Ref. No. OM3496
ONKYO. SERVICE MANUAL

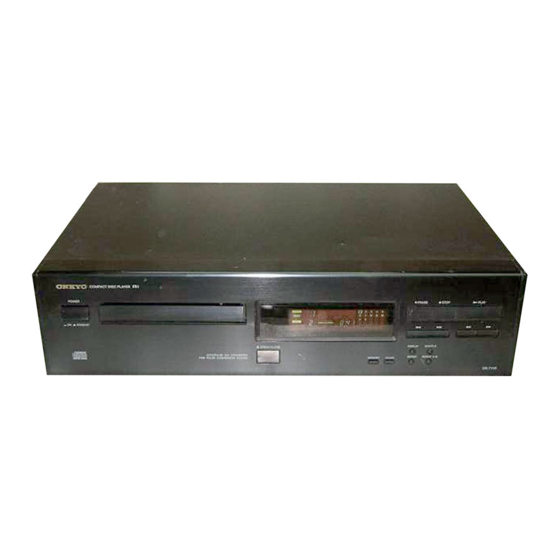

COMPACT DISC PLAYER
MODEL DX-7110/7210
Black and Silver (only DX-7210) model
BMP,SMP 230V AC. 50Hz
120V AC, 60HZ
BMD
only DX-7210B
BMW 120/220V AC, 50/60Hz
Frequency response: 5 Hz — 20 kHz
CIRCUIT BEFORE
RETURNING
THE APPLIANCE TO
Total harmonic distortion:
0.004% (at 1 kHz)
THE CUSTOMER. Dynamic range: 96 dB
Signal to noise ratio: 100 dB
Channel separation: 90 dB (at | kHz)
Wow and Flutter: Below threshold of measurability
Output level: 2 volts r.m.s.
Power consumption: 12 watts
Power supply rating: U.K. and Australian models: |
AC 240V, 50Hz
European model:
AC 230V, 50Hz (Except U.i -)
USA & Canadian models:
AC 120V, 60Hz
Worldwide model:
AC 120V and 220V
switchable 50/60Hz
Dimensions (WxHxD): 455 x 120 x 308 mm
Weight: 4.8 kg, 10.6 Ibs.
Specifications and external appearance are subject to change vm th-
out notice because of product improvements.
a4 =
