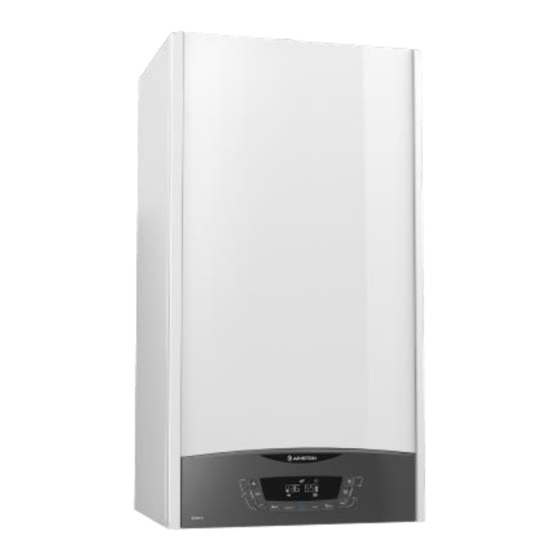

Ariston CLAS X Training Manual

Ariston CLAS X Training Manual

Wall hang boiler, conventional compact
Table of Contents

Advertisement

TRAINING
MANUAL
FAMILY: Wall Hang boiler
UNIT: Conventional Compact
MODELS:
CLAS X FF/CF
RELEASE:
1V0
06.06.2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLAS X and is the answer not in the manual?

Questions and answers

Сергей
April 7, 2025

здравствуйте . Аристон клас иккс . дом отапливается тёплыми полами и гистерезис составляет около 15 градусов в отопительном контуре . как добиться гистерезиса 5 градусов так как 15 градусов на полах очень заметно остывают полы .

1 comments:
Mr. Anderson
April 7, 2025

To achieve a 5-degree hysteresis in the heating circuit for the Ariston CLAS X when using underfloor heating, set the thermoregulation type to "Fixed Flow Temperature" (0 = Fixed Flow) and then set the desired fixed temperature. The system allows temperature settings from 35 °C to 82 °C. Hysteresis control depends on maintaining the temperature range around the setpoint. Specific hysteresis settings are not directly mentioned, so manual adjustment of on/off thresholds around the target temperature may be required.

This answer is automatically generated

Summary of Contents for Ariston CLAS X

  • Page 1 TRAINING MANUAL FAMILY: Wall Hang boiler UNIT: Conventional Compact MODELS: CLAS X FF/CF RELEASE: 06.06.2016...
  • Page 2 Training manual CLAS X 06/06/2016 Document creation VERSION DATA NAME MODIFICATION Pag. 2 di 69...
  • Page 3: Table Of Contents

    Training manual CLAS X INDEX GENERAL INFORMATION ..........................5 SIZES AND DIMENSIONS ..........................5 SEALED CHAMBER OVERALL VIEW (FF) ....................6 SEALED CHAMBER OVERALL VIEW (FF - SYSTEM) ................7 OPEN CHAMBER ASSEMBLY VIEW (CF) ....................8 HYDRAULIC SCHEMES ..........................9 CONTROL PANEL ............................
  • Page 4 Training manual CLAS X 5.8.1 Post-ventilation............................48 EXHAUSTIC CONTROL (CF ) ..................... 49 OPEN CHAMBER 5.10 EXHAUST SYSTEMS ( FF) ....................50 SEALED CHAMBER 5.11 EXHAUST SYSTEMS (CF )....................53 OPEN CHAMBER ELECTRIC AND ELECTRONIC SYSTEM ....................... 54 MAIN CARD ..............................54 6.1.1...
  • Page 5: General Information

    Training manual CLAS X 1 GENERAL INFORMATION SIZES AND DIMENSIONS CAPTION System delivery Hot water outlet Tank return (Clas X System) Gas inlet Cold water inlet Heating system return Pag. 5 di 69...
  • Page 6: Sealed Chamber Overall View (Ff)

    Training manual CLAS X SEALED CHAMBER OVERALL VIEW (FF) CAPTION Flue connector Filling Tap Air pressure switch CH Filter Air pressure switch pressure intake Sanitary flow switch condensate exhaust Main Heat Exchanger Pump NTC1 heating delivery temperature Heating minimum pressure switch...
  • Page 7: Sealed Chamber Overall View (Ff - System)

    Training manual CLAS X SEALED CHAMBER OVERALL VIEW (FF - SYSTEM) CAPTION Flue connector Filling Tap Air pressure switch CH Filter Air pressure switch pressure intake Sanitary flow switch condensate exhaust Main Heat Exchanger Pump NTC1 heating delivery temperature Heating minimum pressure switch...
  • Page 8: Open Chamber Assembly View (Cf)

    Training manual CLAS X OPEN CHAMBER ASSEMBLY VIEW (CF) LEGENDA Flue Manifold Pressure gauge Flue Control Thermostat Filling Tap Flue Hood CH Filter Main Heat exchanger Sanitary flow switch NTC1heating delivery temperature Pump probe Burner Minimum pressure switch Ignition electrodes...
  • Page 9: Hydraulic Schemes

    Training manual CLAS X HYDRAULIC SCHEMES COMBI SYSTEM Pag. 9 di 69...
  • Page 10: Control Panel

    Training manual CLAS X CONTROL PANEL LEGENDA Display On/Off button DHW Temperature control button Auto Summer/ Winter button Reset button CH temperature adjustment buttons zone 1 or Comfort button offset of thermoregulation slope with Auto- function enabled. Pag. 10 di 69...
  • Page 11: Display

    Training manual CLAS X DISPLAY ICONA DESCRIZIONE  Set temperature  Error code  Reset indication  Menu seeing Temperature indication Navigation Menu number Navigation Parameter number Code request Safety shutdown, nor resettable Error signal Flame on and power level...
  • Page 12: Operation

    Training manual CLAS X 2 OPERATION HEATING MODE: OPERATING LOGIC 40°C ÷ 82°C OPERATION By pushing the buttons “+” o “-“,you can see on RANGE the display (for 4 seconds) the set temperature. Through the parameters (min) and (max) is possible to set the maximum and the minimum heating temperature.
  • Page 13 Training manual CLAS X Air pressure switch enabling allows to pass to the following phase (after the enabling the air pressure switch is not checked up to the following restart anymore). Air pressure If this doesn’t occur, after 20 seconds, the boiler...
  • Page 14 Training manual CLAS X After flame detection the boiler is free to modulate the power according to the required thermal load. Modulation is carried out between the maximum heating power values (adjustable from the control panel with parameter 231) and the minimum power value (set made on the gas valve).
  • Page 15: Sanitary Mode: Operating Logic

    Training manual CLAS X SANITARY MODE: OPERATING LOGIC 36°C ÷ 60°C OPERATING By pushing the buttons “+” o “-“,you can see RANGE on the display (for 4 seconds) the set temperature A demand for Domestic hot water, is detected DEMAND FOR by the flow switch.
  • Page 16 Training manual CLAS X Spark Generator Occurs after air pressure switch enabling and gas valve ON BURNER The gas valve is supplied at the set power for the Soft Ignition (adjustable from the control ignition panel with parameter 220). Flame ionization if checked. (by the detection electrode).
  • Page 17 Training manual CLAS X Modulation occurs between the value of the sanitary maximum power (set on the gas valve) and the value of the minimum power FLAME (also set on the gas valve). MODULATION The burner runs until the scale prevention temperature is reached.
  • Page 18: Special Functions

    Training manual CLAS X 3 SPECIAL FUNCTIONS. FLUE CLEANER” Function. This function is used to perform proper boiler combustion analysis and maximum and minimum gas calibration. Follow the instructions below to enable it: PRESS DISPLAY Press Reset button for 5 continuous seconds The display will show this indication ...
  • Page 19: Comfort" Function

    Training manual CLAS X “COMFORT” Function. This function reduces the hot sanitary water output time. The objective is reached by keeping the primary circuit in the boiler hot. To enable this function push the comfort button. Moreover, by means of parameter 2 50 you can set comfort function as follows: ...
  • Page 20: Antifreeze" Function

    Training manual CLAS X “ANTIFREEZE” Function This function is enabled only if the ON/OFF selector is turned on position ON. It is operated by means of the temperature detected by the heating delivery probe (NTC1). CONDITION EVENTS TIME - The PUMP is supplied on speed III...
  • Page 21: Water Flow Check

    Training manual CLAS X “ WATER FLOW CHECK ” What happens Check When 1 P1 1. Immediate safety shutdown - 10sec of post-circulation - 10 sec of post-ventilation Check always with the Gradient Tdel > 7°C/sec The boiler restarts after 10sec.
  • Page 22: Air Purge" Function

    Training manual CLAS X “AIR PURGE” Function (premendo il tasto “Menù/OK”) or This function can be activated by the installer by the parameter pressing of the key Winter/Summer (mode) for 5 sec (continues till to the finish (about 6’) or pressing of the key Winter/Summer).
  • Page 23: Hydraulic Block

    Training manual CLAS X 4 HYDRAULIC BLOCK Combi hydraulic block CAPTION 3 way valve motor Pump 3 way valve Heating filter and pressure gauge connection By-pass Drain tap Sanitary flow switch Filling tap Reed sensor No back-flow valve Automatic air valve...
  • Page 24: System Hydraulic Block

    Training manual CLAS X System hydraulic block CAPTION 3 way valve motor Drain tap 3 way valve Filling tap Automatic air valve No back-flow valve Minimum pressure switch connection 3 bar safety valve Pump By-pass Heating filter and pressure gauge connection...
  • Page 25: 3-Way Valve

    Training manual CLAS X 3-WAY VALVE The boiler uses a 3-way to change the water distribution (heating system side or secondary exchanger side). It’s managed by the PCB that drive the stepper motor. It is formed by a composite material body and an electric stepper motor.
  • Page 26 Training manual CLAS X 3 WAY VALVE MOTOR DISASSEMBLY: Before disassembly the 3 way valve is mandatory remove the stepper motor. To remove the stepper motor the 3 way valve must be in DHW or stand-by position, otherwise it is not possible remove it.
  • Page 27: Stepper Motor

    Training manual CLAS X Remove the stepper motor. Remove the 3 way valve (to do it easier it is possible use a flat screwdriver). 4.3.1 Stepper motor The stepper motor is managed from the PCB. Its supply is not measurable (it would be necessary an oscilloscope).
  • Page 28 Training manual CLAS X To check the stepper motor is possible measure the resistance between the following pins. If it is between 80 and 100 Ohm it means that the coils of the stepper motor are ok. 80÷100Ω 80÷100Ω Pag. 28 di 69...
  • Page 29: Secondary Exchanger

    Training manual CLAS X SECONDARY EXCHANGER The secondary exchanger is fixed to the hydraulic unit with two screws. The two points where the screws are fixed are asymmetric with the body of the exchanger so that it can be assembled only in the proper position.
  • Page 30: Pump Unit

    Pump type: CLAS X 24 CF NG CLAS X 24 FF NG CLAS X 28 FF NG CLAS X SYSTEM 15 CF NG (RU) CLAS X SYSTEM 15 FF NG (RU) CLAS X SYSTEM 24 CF NG Wilo INMTSL 15/5 HE-2...
  • Page 31: Pump Speed Check

    Training manual CLAS X Wilo INMTSL 15/5 HE-2 Wilo INTMTSL 15/6.7 HE-2 4.5.1 PUMP speed check The speed of the pump can be checked by the parameter 8 23 or by measuring the voltage (Vac) between pins 5 and 6 of the electronic card CN10 connector: - 145 Vac: maximum speed;...
  • Page 32: Post-Circulation

    Training manual CLAS X 24/28 CF 4.5.2 Post-circulation. 3 way valve Post-circulation after: Time of post circulation Speed pump position Switching off due to: 3 min Room thermostat opening Heating (set by parameter 237 beetwen 0 e 15’) 3 min...
  • Page 33: Heating Pressure Switch

    Training manual CLAS X HEATING PRESSURE SWITCH The minimum pressure switch verifies the pressure in the heating circuit, with micro-switch ON/OFF. The setting are:  OFF: 0,4 bar;  ON: 0,6 bar. 1 08 When it opens there is the safety shout down FILLING TAP.
  • Page 34: By-Pass

    Training manual CLAS X BY-PASS The boiler has an automatic by-pass and, therefore no regulation is required. In the case of load losses in the system caused for example by the intervention of thermostat or area valves, the by-pass guarantees a flow in the condensing main exchanger of at least 350l/h (on the combi boiler this circulation is done through the DHW plate heat exchanger).
  • Page 35: Primary Heat Exchanger

    Training manual CLAS X In the Combi boiler to remove the by-pass it needs to remove before the ring that fix the 3 way valve motor. By-pass 4.10 PRIMARY HEAT EXCHANGER The heat exchanger transmits heat of the combustion products to the primary circuit water.
  • Page 36: Heating Filter

    Training manual CLAS X 4.11 HEATING FILTER On the heating return unit there is a filter that can be reached from the front side of the boiler. To inspect and clean the filter follow the instructions shown below. Pag. 36 di 69...
  • Page 37: Expansion Vessel

    Training manual CLAS X 4.12 EXPANSION VESSEL. The expansion vessel absorbs primary circuit water expansion when there is a boiler temperature raise. It is constituted by two parts separated by a SBR rubber membrane. On one side nitrogen on the other water of the primary circuit.
  • Page 38: Sanitary Flow Switch

    Training manual CLAS X 4.13 SANITARY FLOW SWITCH The DHW flow meter is positioned in front of e way valve. When turned on sanitary mode, the flow of water passes through the flow switch (on/off), the float moves upwards and through the magnet close the reed sensor contact and the PCB know that the tapping is in progress.
  • Page 39: Temperature Probe

    Training manual CLAS X 4.14 TEMPERATURE PROBE To check the delivery and return temperature use the two contact sensor. To read the sanitary water temperature the NTC1 heating delivery is used. IMPORTANT!!!! Do not use conducting paste for the contact sensors because they alter the resistance value.
  • Page 40: Gas Unit

    Training manual CLAS X 5 GAS UNIT SIT 845 SIGMA GAS VALVE. The gas valve mounted is a SIT 845 SIGMA valve fitted with two operators supplied at 220VCA that consent or cut off the gas supply to the main burner. A low voltage (24V) modulator is mounted on the valve to regulate the outgoing gas pressure of the valve according to the readings detected by the electronic P.C.B.
  • Page 41: Gas Regulations

    Training manual CLAS X GAS REGULATIONS. 5.3.1 SUPPLY PRESSURE CHECK. Fig. A SUPPLY PRESSURE CHECK Loosen screw “1” (fig. A) and insert the pressure gauge fitting pipe in the pressure intake. Put the boiler on maximum operating power (hot water tap open).
  • Page 42: Minimum Power Check

    Training manual CLAS X 5.3.3 MINIMUM POWER CHECK. Fig. D To check the minimum power loosen screw “2” (fig.B) and insert the pressure gauge fitting pipe in the pressure intake. Disconnect the compensation pipe of the air chamber (fig.B). Have the boiler work on minimum power and disconnect a cable from the modulator (fig.D).
  • Page 43: Gas Pressure/Heat Input - Models Cf

    Training manual CLAS X GAS PRESSURE/HEAT INPUT – MODELS CF. 5.3.5 AGGIORNARE GAS PRESSURE/HEAT INPUT – MODELS FF. 5.3.6 AGGIORNARE Pag. 43 di 69...
  • Page 44: Heating Delay Regulation

    Training manual CLAS X 5.3.7 HEATING DELAY REGULATION. - Regulation carried out on parameter 2 36  This boiler has a regulation that allows to change the delay time between the heating request and the burner ignition choosing between 0 and 7 minutes. This regulation is carried...
  • Page 45 Training manual CLAS X AGGIORNARE Pag. 45 di 69...
  • Page 46: Burner

    Training manual CLAS X BURNER The same Polidoro burner is used on all the models. The electrodes (two ignition and one for flame detection) are constituted by one part. The ignition electrodes have to be kept a t a 4±1mm distance from the burner 8±1mm ramp.
  • Page 47: Ignition Cycle

    Training manual CLAS X IGNITION CYCLE. The ignition sequence is carried out in two different ways depends if it is working on sanitary or heating mode:  SANITARY if required the ignition cycle is repeated 3 times: 1st attempt with the power of slow ignition, if at the end of the safety time (8 sec) the flame has not been...
  • Page 48: Air Pressure Switch

    Training manual CLAS X AIR PRESSURE SWITCH The boiler uses a differential pressure switch to check correct evacuation of the fume:  24kW: Off= 50Pa/0,50mbar; On= 60Pa/0,60mbar;  28kW: Off= 74Pa/0,74mbar; On= 89Pa/0,89mbar.  32kW: Off= 74Pa/0,74mbar; On= 89Pa/0,89mbar; The first pressure value is taken on the fan (intake “L” on the air pressure switch).
  • Page 49: Exhaustic Control (Cf Open Chamber)

    Training manual CLAS X EXHAUSTIC CONTROL (CF open chamber) Supplying the card, the control system of proper combusted smoke exhaust is carried out by means of an automatic reset thermostat. “Fume protection” enabling stops the boiler on safety and it will be displayed on...
  • Page 50: Exhaust Systems (Sealed Chamber Ff)

    Training manual CLAS X 5.10 EXHAUST SYSTEMS (sealed chamber FF) The boiler is arranged smoke exhaust 60/100mm. For 80/80mm it needs to use one adapter. Combustion analysis intakes are built-in the smoke exhaust slope (60/100) or in the adapter (80/80).
  • Page 51 Training manual CLAS X COAXIAL 60/100 e 80/125 TWIN PIPE 80/80 Length (L) TYPE OF DIAPHRAME EXHAUST [mm] from [m] to [m]  0,75 Ø44 60/100 C12,C32,C42, COAXIAL  SYSTEMS 0,75 C12,C32,C42,  0,75 AGGIORNARE Ø44 80/125 COAXIAL  SYSTEMS ...
  • Page 52 Training manual CLAS X Length (L) TYPE OF DIAPHRAME EXHAUST [mm] from [m] to [m]  0,75 Ø44 60/100 C12,C32,C42, COAXIAL  SYSTEMS 0,75  Ø44 80/125 C12,C32,C42, COAXIAL  SYSTEMS C12, C32,C42  AGGIORNARE 0,5 / 0,5 11 / 11 Ø44...
  • Page 53: Exhaust Systems (Cf Open Chamber)

    Training manual CLAS X 5.11 EXHAUST SYSTEMS (CF open chamber) The boiler so that both Ø130mm and Ø125mm smoke exhausts can be assembled on it (without any adapters). With both diameters the minimum length of the smoke exhaust is equal to 1 meter.
  • Page 54: Electric And Electronic System

    Training manual CLAS X 6 ELECTRIC AND ELECTRONIC SYSTEM MAIN CARD The boiler uses a GALEVO2 SE electronic card for complete checking of the boiler and one users interfaces display LCD; The GALEVO2 SE electronic card is protected by two 2A, 250 VAC fuses and a VDR protects the card against supply voltage peaks up to 275VAC.
  • Page 55: Electric Diagram Ff

    Training manual CLAS X 6.1.1 ELECTRIC DIAGRAM FF. Pag. 55 di 69...
  • Page 56: Electric Diagram Cf

    Training manual CLAS X 6.1.2 ELECTRIC DIAGRAM CF. Pag. 56 di 69...
  • Page 57: Peripherals Connection

    Training manual CLAS X PERIPHERALS CONNECTION It is possible to connect the peripherals below:  Room thermostat 1 (Crono thermostat available also wireless version);  Room thermostat 2 (Crono thermostat available also wireless version);  Room sensor ;  Outdoor sensor;...
  • Page 58: Menu And Settings

    Training manual CLAS X 7 MENU AND SETTINGS TECHNICIAN MENU and “OK”, and after set the access To enter in the in the technician menu push for 5 second the buttons code “234” and push the button “OK”. COMPLETE MENU 7.2.1...
  • Page 59 Training manual CLAS X FREEPARAMETERS 0: Standard efficiency Boiler circulator type 1: High efficiency GENERAL Slow ignition as % of the See gas 0 ÷ 100 maximum heating power table 0: disabled Thermoregulation 1: enabled 0: disabled 1: 10 seconds...
  • Page 60: Menù 4 : Zone 1 Parameters

    Training manual CLAS X Sanitary delay start 5 ÷ 200 (anti water hammering) (dec) 0: anti-scale (62 o 65°C). Sanitary switch off logic 1: set-point+4°C Post-ventilation: Tflow<75°C = no post- ventilation; Tflow>75°C = 3 min (minimum Sanitary post-circulation and speed); Post-circulation: 30sec...
  • Page 61: Menù 5 : Zone 2 Parameters

    Training manual CLAS X Influence of the room probe on 0 ÷ 20 thermoregulation (with Auto function enabled ) 45 (par. 420=0) Zone 1 maximum heating 20 ÷ 45 (par. 420=0) 82 (par. 420=1) temperature (°C) 35 ÷ 82 (par. 420=1) 20 (par.
  • Page 62: Menù 6 : Zone 3 Parameters

    Training manual CLAS X Zone 2 return temperature (°C) (only visualization) OFF: no Heating request by zone 2 ON: yes (only visualization) OFF: switch-off Zone 2 pump status ON: switch-on (only visualization) ZONE 2 ZONE MODULE SETTINGS (visible only with zone module connected)
  • Page 63: Menù 7 : Zone Module

    Training manual CLAS X ZONE 3 ZONE MODULE SETTINGS (visible only with zone module connected) 0: Fix Zone 3 pump modulation 1: Modulating (ΔT) 7 (par. 420=0) ΔT for pump modulationa 4 ÷ 25 20 (par. 420=1) Pump fixed speed setting (with 20 ÷...
  • Page 64: Menù 8 : Service Parameters

    Training manual CLAS X 7.2.7 Menù 8 : Service parameters Default Function Range setting BOILER STATISTICS Diverter valve cycles (nr x 10) (only visualization) Time of circulator on (h x 10) (only visualization) Boiler circulator cycles (nr x 10) (only visualization)
  • Page 65: Error Codes

    Training manual CLAS X 8 ERROR CODES. BOILER PROTECTION SYSTEMS. There are two types of errors for malfunctions: - Shutdown (solved by resetting); - Safety stop (No Reset: the boiler will start working again properly when the cause is removed).
  • Page 66 Training manual CLAS X SANITARY CIRCUIT 2 02 Storage low probe open or short circuit (solar) No Reset 2 03 Storage probe open or short circuit No Reset 2 04 Solar collector probe open or short circuit No Reset 2 05...
  • Page 67: Technical Data Table

    Training manual CLAS X 9 TECHNICAL DATA TABLE CLAS EVO SYSTEM CLAS EVO SYSTEM CLAS EVO 24 CF Model Name 24 CF 28 CF 1312BR4923 CE certification (pin) 1312BR4794 B11 - B11bs Boiler type Max/min nominal heat input(Hi) 25,8 / 11,0...
  • Page 68 Training manual CLAS X CLAS EVO CLAS EVO 24 FF 28 FF Model Name 1312BR4793 CE certification (pin) C12-C32-C42-C52-C62-C82- Boiler type B22-B22p-B32 Max/min nominal heat input(Hi) 25,8 / 11,0 30,0 / 13,0 Max/min nominal heat input (Hs) 28,7 / 12,2...
  • Page 69: Pag. 3 Di

    Training manual CLAS X CLAS EVO CLAS EVO CLAS EVO SYSTEM 24 FF SYSTEM 28 FF SYSTEM 32 FF Model Name CE certification (pin) 1312BR4793 1312BR4794 C12-C32-C42-C52-C62-C82-B22-B22p-B32 Boiler type Max/min nominal heat input(Hi) 25,8 / 11,0 30,0 / 13,0 32,5 / 14,0...
