Summary of Contents for Summit BIM26H32

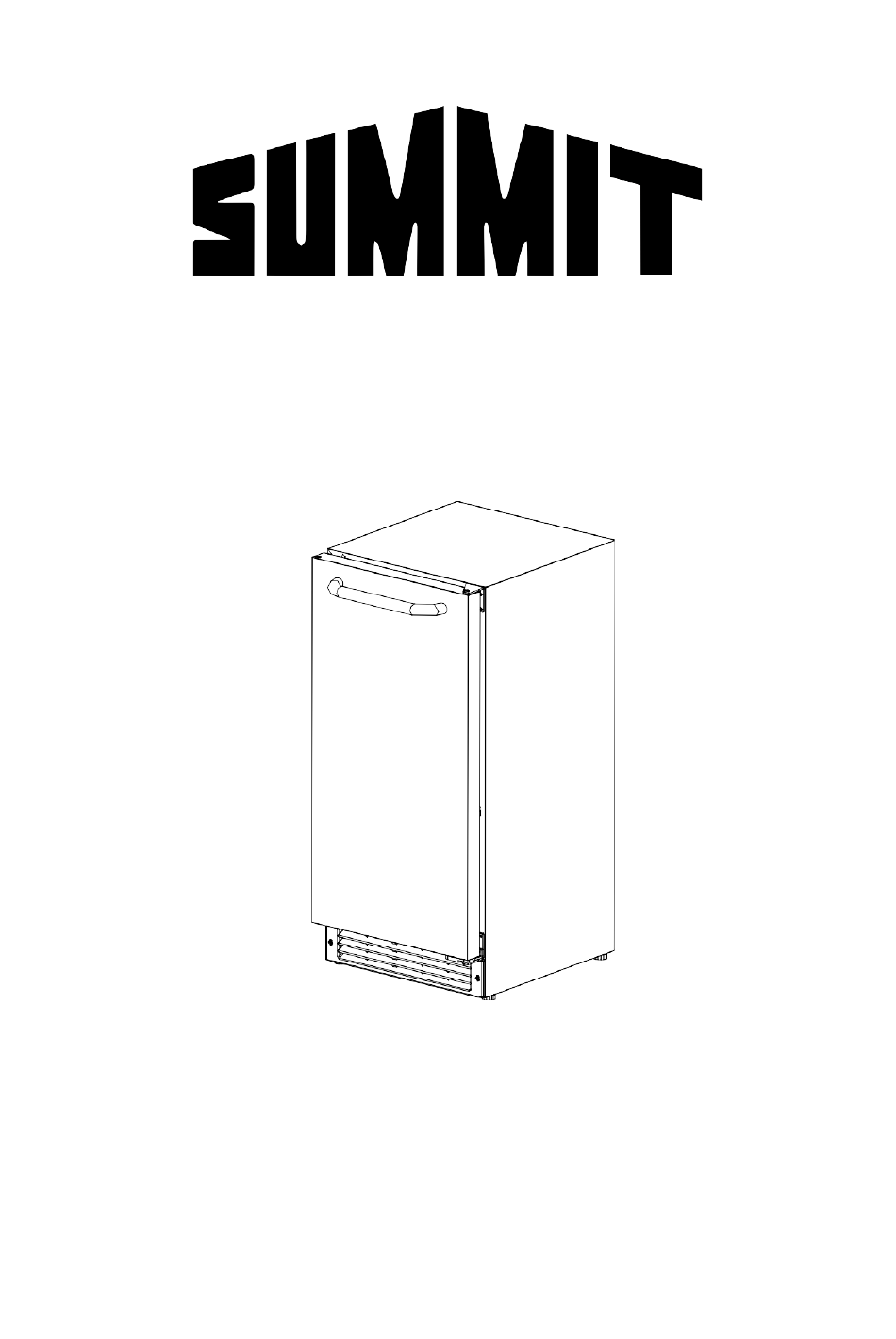

- Page 1 Crescent Ice maker INSTRUCTION MANUAL Model: BIM26H32 BIM26H34 BIM27OSADA BIM271OS Free Standing / Built-in User’s Manual Felix Storch, Inc. An ISO 9001:2008 registered company 770 Garrison Avenue Bronx, NY 10474 www.summitappliance.com...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS DANGER – Risk of fire or explosion. FLAMMABLE REFRIGERANT USED. Do not use mechanical devices to defrost the refrigerator. Do not puncture refrigerant tubing. DANGER – Risk of fire or explosion. FLAMMABLE REFRIGERANT USED. To be repaired only by trained service personnel. Do not puncture refrigerant tubing.
- Page 3 OTHER PRECAUTIONS To ensure proper ventilation for the appliance, keep obstructions away from the front of the unit. • Keep fingers out of the “pinch point” areas. Clearance between the door and cabinet are small. Be careful • closing the door when children are in the area. Do not touch the evaporator with your hand when the appliance is operating.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Product Overview and Specs ................1 - 2 Installation Before Using Your Ice Maker ...................... 3 Installing the Ice Maker ....................... 4 Installing the Handle ........................5 Reversing the Door Swing ......................6 Filter Installation Instructions......................7 Built-in Installation ........................ -
Page 5: Product Overview And Specs
Product Overview and Specs BIM26H32 / BIM26H34 / BIM27OSADA / Model BIM271OS Voltage/Frequency AC 115V 60Hz Rated Ice making current 1.9A 1.5A Rated Ice harvest current R600a, 1.58Oz. Refrigerant Indoor/Outdoor Indoor/Outdoor* IP Rating IPX4 Installation Type Free standing / Built-in Working temperature 50℉... - Page 6 Front View Ice Module Ice Bucket Power Switch Front Vents...
- Page 7 Rear View Power...
-
Page 8: Installation
Accessories Handle Ice Scoop Left Latch Block & Hook Ice Bucket Clips In Line Filter Lower Grill High Feet × 4 INSTALLATION BEFORE USING YOUR ICE MAKER REMOVE THE EXTERIOR AND INTERIOR PACKAGING MATERIAL. • CHECK TO BE SURE YOU HAVE ALL OF THE FOLLOWING PARTS: •... -
Page 9: Installing The Ice Maker
INSTALLING THE ICE MAKER CAUTIONS: The appliance shall not be exposed to rain even for the model with ipx4. • This appliance is designed to expel hot air through the front vent. • This allows for installation in a recessed or built-in application, if desired. -
Page 10: Installing The Handle
INSTALLING THE HANDLE This appliance comes with a stainless steel handle. To install the handle please follow the below instructions: Tools needed: Phillips screwdriver Peel away the gasket from behind the door. There are two mounting holes covered by caps. Remove those caps and insert the screws into the hole. -
Page 11: Reversing The Door Swing
REVERSING THE DOOR SWING NOTE: Some models may not be reversible in the field This appliance can have the door open from either the left or right side. The unit is delivered with the door opening from the left side (hinged on the right). Tools needed: flathead screwdriver, Phillips screwdriver IMPORTANT: Before you begin, make sure the ice maker is unplugged. -
Page 12: Filter Installation Instructions
Filter Installation Instructions Tools needed: Phillips screwdriver 1. Connecting the filter to the potable water supply Remove the blue clip to remove the filter’s plug, then connect the filter to portable water supply by inserting the water supply tube to the inlet end of the filter. Reinsert the clip to lock the tube. 2. -
Page 13: Built-In Installation
Built-in Installation This product is designed to seamlessly integrate into a space that must follow the specifications in the table below which require precise measurement. The opening must be square and plumb front to back. Although not required, you can increase the overall width of the cutout to make the installation process easier. Note: To be able to fully access the ice bucket, the door will need to open to at least 130°, aligned to the cabinet when installing the unit. -
Page 14: Raising The Height Of The Unit
Raising the Height of the Unit This ice maker is ADA compliant, but by switching to the alternate feet provided, the default height can be adjusted to 33 ½” and up to 34 ½”. Tools needed: Phillips screwdriver Changing the Feet Using two or more people, lean the ice maker onto its back and unscrew the pre-installed leveling feet and replace it with the high feet. -
Page 15: Electrical Connection
ELECTRICAL CONNECTION • This ice maker should be properly grounded for safety. The power cord of this ice maker is equipped with a three-prong plug which fits into standard three prong wall outlets to minimize the possibility of electrical shock. •... -
Page 16: Initial Set-Up
OPERATING THE ICE MAKER INITIAL SET-UP 1. Plug the appliance into a 115/120v polarized and grounded wall electrical outlet. 2. Place the on-off switch in the “I” position. 3. Make sure the water supply is on. As soon as the inner mechanism reaches the proper temperature, the icemaker mechanism will fill the mold with water. -
Page 17: Power Failure
CAUTION Failure to unplug the ice maker when cleaning, moving, or servicing it could result in electrical shock or personal injury. POWER FAILURE Most power failures are corrected within a few hours and should not affect the temperature of your ice maker if you minimize the number of times the door is opened. -
Page 18: Troubleshooting
TROUBLESHOOTING GUIDE Before Calling for Service: If the unit is malfunctioning, read through the troubleshooting guide below. Some of the problems mentioned in the Troubleshooting Guide can be solved easily without a service call. Problem Possible Cause Possible Solution The ice maker is unplugged. Plug in the ice maker. - Page 19 If your appliance shows other symptoms than those described above, or if you have checked all items listed as the cause and the problem still exists, then call Summit Appliance Customer Service at 1-800-932-4267 between 9 AM and 5 PM ET or visit our website at any time at https://www.summitappliance.com/support/...
-
Page 20: Limited Warranty
LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory- specified parts and repair labor to correct defects in materials or workmanship.
