USA Measurements

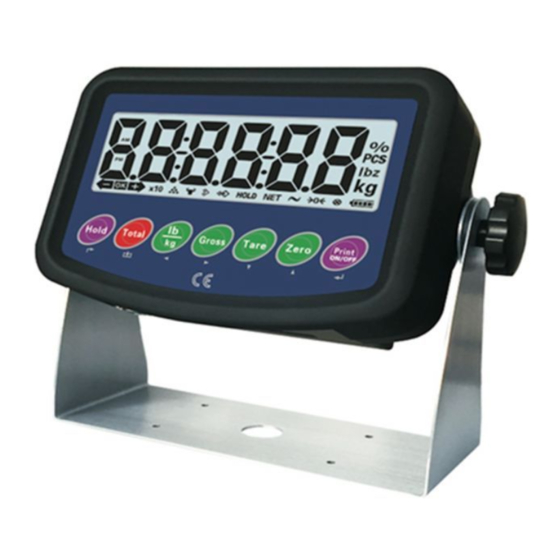

US-1011 Indicator
User Manual
R1.1
____________________________________________________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the US-1011 and is the answer not in the manual?

Questions and answers

Related Manuals for USA Measurements US-1011

Summary of Contents for USA Measurements US-1011

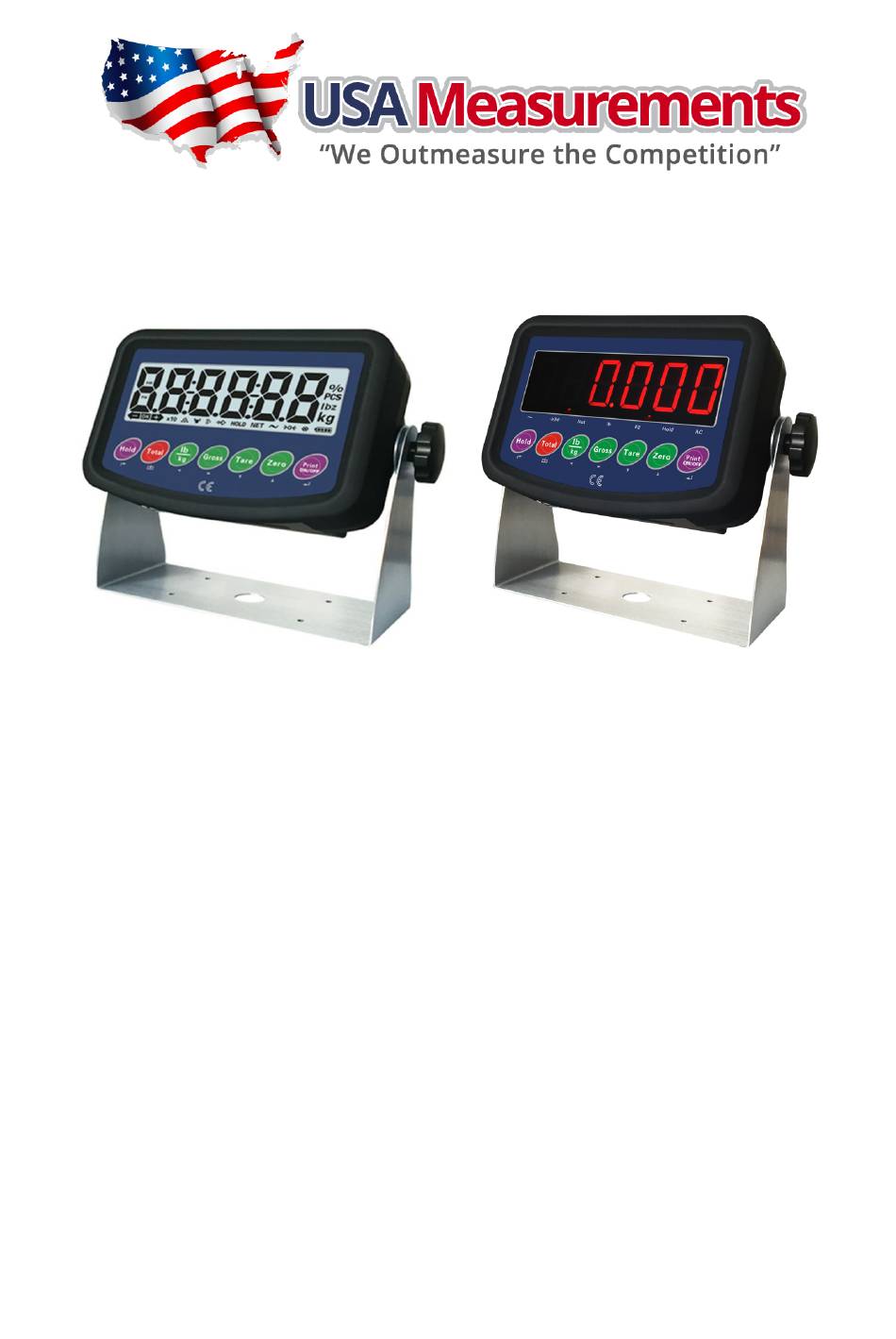

  • Page 1 USA Measurements US-1011 Indicator User Manual R1.1 ____________________________________________________________________...
  • Page 2 Warning Ask professional personnel to debug, detect and repair controller. Warning Please keep good grounding of controller. Warning In electrical connection of controller, please cut off the power supply in advance. Wait for 30 seconds between power-on of the controller for 2 times. Pay Attention to Static Electricity...

  • Page 3: Table Of Contents

    Contents I TECHNICAL INDICATORS ....................... 3 II MAIN FUNCTION ........................3 III BOUNDARY DIMENSION ...................... 4 IV INTRODUCTION TO PANEL ........ ERROR! BOOKMARK NOT DEFINED. V SETTING OF PARAMETERS ........ERROR! BOOKMARK NOT DEFINED............................. 6 NTRY ETTING F1 S ...............

  • Page 4: I Technical Indicators

    I Technical Indicators ● 6-digit 1.2-inch LED display, 7 state indicator lamps. Long service life and shock resistance ● 7 function keys. Operation is simple and convenient ● Protection level: IP5X ● Excitation voltage: +5VDC ● Load capacity of sensor: at most 4 350Ω simulation sensors ●...

  • Page 5: Boundary Dimension

    III Boundary Dimension Instrument size : detailed in the following figure (mm); instrument weight: 1.5kg IV Introduction to Panel ● Introduction to indicator lamps Identification Analysis Sorting and weight check status indicator Extension indicator Counting scale indicator Animal scale indicator Accumulating scale indicator Accumulating scale...
  • Page 6 Weight hold indicator Net weight indicator Scale in dynamic status Scale at zero indicator Key pressed indicator Battery indicator Weight unit Counting scale unit Weight % indicator ● Introduction to operation keys Operation without special specification refers to short press on keys. Normal weighing state Set stage symbol...

  • Page 7: Entry Setting

    Unit conversion key->『lb/kg』 Short key → in weighing state, switch weight Flicker bit is on the left. unit. corresponding unit indication lamp is on. Skin removal key->『Gross』 Short key → net weight turns to gross weight; Flicker bit is on the right. induction lamp of net weight “Net”...
  • Page 8 0.0 ---- 1 decimal place 0.00 ---- 2 decimal places 0.000 ---- 3 decimal places 0.0000 ---- 4 decimal places F1.3 Number of Divisions Selectable parameters: 1 (default value), 2, 5, 10, 20, F1.4 Calibration Unit Selectable parameters: 0 = kg 1= lb F1.5 Gravitational Acceleration Selectable parameters: 9.70000~9.99999.
  • Page 9 F1.9 Automatic Reset Range at Startup Selectable parameters: OFF, 2 %, 10 %, 20 % (default value) F1.10 Button Reset Range Selectable parameters: OFF, 2 %, 10 % (default value), 20 % F1.11 Digital Filter Selectable parameters: 0 ---- Mild Filtering 1 ---- Moderate Filtering (default value) 2 ---- Severe Filtering...

  • Page 10: F3 Setting Of Energy Saving Parameters

    F2.2 Empty-scale threshold value Selectable Parameters: 0~ full range (default value: 0.001) F2.3 Target Weight for Weight Checking and Sorting Selectable Parameters: 0~ full range (default value: 2.000) F2.4 Positive Error for Weight Checking and Sorting Selectable Parameters: 0~ full range (default value: 0.100) F2.5 Negative Error for Weight Checking and Sorting Selectable Parameters: 0~ full range (default value: 0.100) F2.6 Access to Target Weight for Weight Checking and Sorting, and...
  • Page 11 ---- key dispatch protocol A ---- key dispatch protocol B ---- key dispatch protocol A ---- key dispatch protocol B ---- key dispatch protocol C ---- key dispatch protocol D F4.1.2 Setting of Data and Check Pit Selectable Parameters: 8_N_1---- 8-pit no parity check (default value) 7_E_1 ---- 7-pit odd parity check 7_O_1 ---- 7-pit even parity check...

  • Page 12: F5 Maintenance And Service

    F4.2.3 Printing Setting of Accumulative Scale Selectable Parameters: 0 ---- total accumulative data for printing (default value) ---- printing detail total accumulative data F4.2.4 Print language setting Parameters selectable: 0 ---- in Chinese (default) ---- in English F5 Maintenance and Service F5.1 Key test Instrument display 【...
  • Page 13 2. If there have been 4 decimal places, it’s forbidden to change over to ×10 function status; 3. Under ×10 function status, both serial output and printing output are forbidden. 4. Under ×10 function status, it’s forbidden to tare. ● Weight hold function F2.1 = 1 How to operate In normal weighing mode, press 『Hold』...
  • Page 14 Target value acquisition Hold 『Total』 until 【TARGET】 is displayed, and then press 『 Print』 ; the present target value goes on and flashes. If F2.6 = 0, press 『Print』 , the present weight on the scale will be taken as new target value and it exits setting interface. If F2.6 = 1, it displays 【...
  • Page 15 VII Prompt Message of Instrument ● The US-1011 indicator has extremely high stability and reliability, thus it is not easy to have errors in a normal situation. However once an error does occur, first identify what the error is and then make sure the idicator still has an error after turning off and then turning on again before proceeding to troubleshoot.
  • Page 16 below 0 for 5 days Check whether the weighing 【 】 Out of zero clearing range platform has weight. 【 】 Remove weight. 】 Invalid operation 【 Press 『Print』 reprint factory value. Start up again. If the information occurs again, EEPROM checksum and return to factory for repair.

  • Page 17: Appendix 1. Continuous Output Format Specification

    】 Printing 【 Appendix 1. Continuous Output Format Specification 1. Continuous output MT format Continuous output MT format has 18 digits. Continuous output format A B C X X X X X X X X X X X X C Where: 1.
  • Page 18 Status word B Bits Function Bit 0 Gross weight = 0, net weight = 1 Bit 1 Symbol: positive = 0, negative = 1 Bit 2 Overload (upper and lower overload) = 1 Bit 3 Static = 0, dynamic = 1 Bit 4 Constant 1 Bit 5...
  • Page 19 3、 Continuous output B format Continuous output agreement B format: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 HEAD1 , HEAD2 , DATA UNIT CR/LF HEAD1: OL Upper overload or lower overload, or no zero clearing in startup;...

  • Page 20: Appendix 2. Printing Format Specification

    02(\STX) start character ＋ or ! sign bit weighing data highest bit of weight data weighing data weighing data weighing data lowest bit of weight data Decimal places Right to left (0~4) xor checkout Four high bits xor checkout Four low bits 03(\ETX) End character xor"2⊕3⊕……8⊕9...
  • Page 21 Underweight Qualified Overweight F2.1 = 4 accumulation scale, print detailed statement or format of total weight: Print details and total weight Only print total weight REPORT REPORT ------------------------- ------------------------- 0.200kg Total 1.097kg 0.175kg 0.347kg 0.375kg ------------------------- Total 1.097kg F2.1 = 5 counting scale, press『Print』: REPORT ---------------------- Gross...
