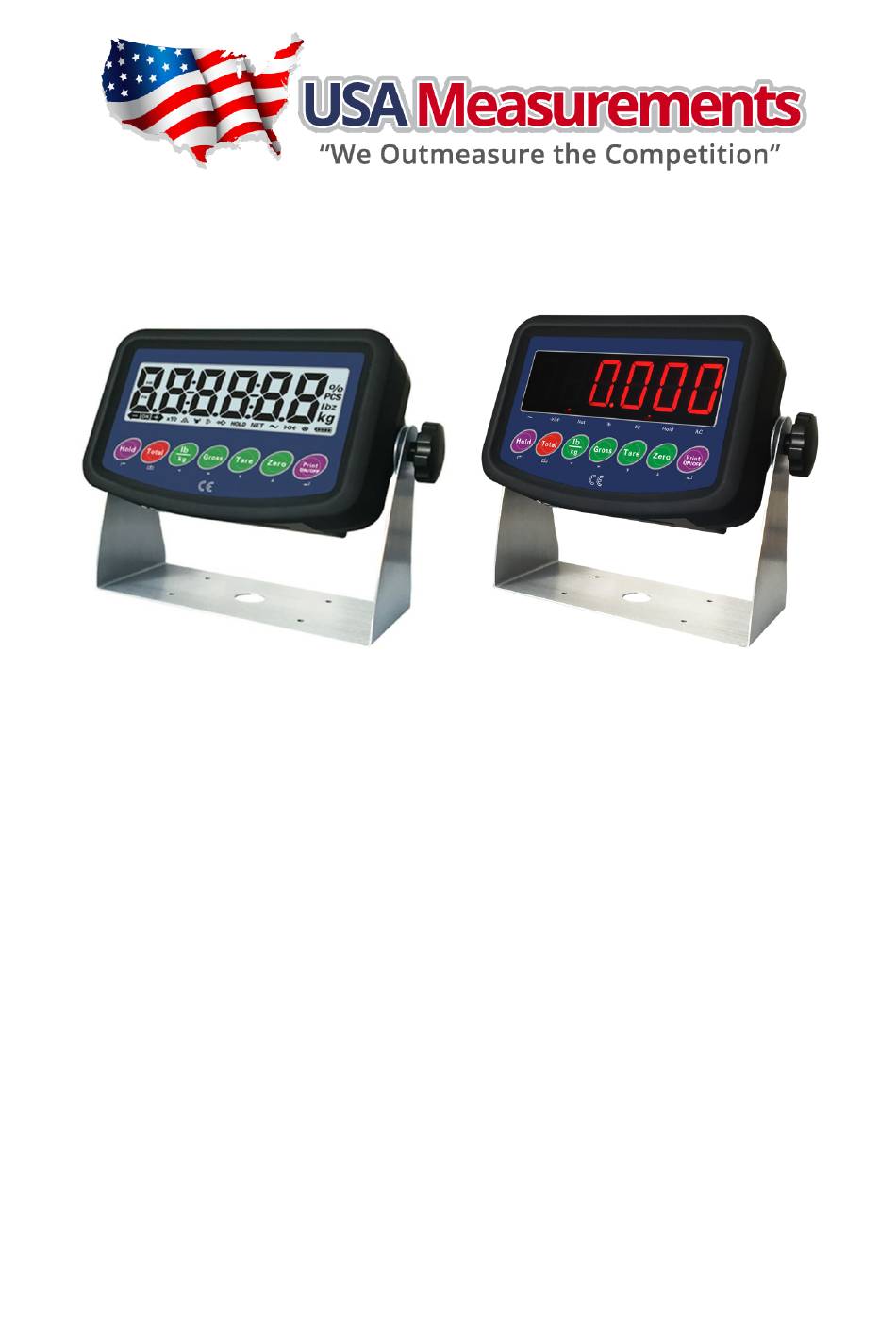

- Page 1 USA Measurements US-1011 Indicator User Manual R1.1 ____________________________________________________________________...
-
Page 2: Table Of Contents
CONTENTS 1.0 BRIEF INTRODUCTION ......... ERROR! BOOKMARK NOT DEFINED........... E TECHNICAL PARAMETERS RROR OOKMARK NOT DEFINED ..............E MAIN FUNCTIONS RROR OOKMARK NOT DEFINED ............E BOUNDARY DIMANSION RROR OOKMARK NOT DEFINED ................ E MODEL TYPE RROR OOKMARK NOT DEFINED 2.0 INTERFACE ............. - Page 3 ....................10 ACCUMULATION FUNCTION 5.3 C ......................10 OUNTING FUNCTION ......….. E APPENDIX INDICATOR ROMPT ESSAGE RROR OOKMARK NOT DEFINED .................. 13 APPENDIX SERIAL PORT OUTPUT FORMAT ........E APPENDIX PRIN G OUTPUT FORMAT RROR OOKMARK NOT DEFINED...
-
Page 4: Brief Introduction
1.0 BRIEF INTRODUCTION 1.1 TECHNICAL PARAMETERS ● 6-digit 1.2-inch LCD display, various state indicator lamps. Long service life and good shock resistance ● 7 functional buttons, operation is simple and easy ● Protection level: IP5x ● Excitation voltage: +5VDC ● Load capacity of sensor: at most four 350Ω simulation sensors ●... -
Page 5: Boundary Dimansion
1.3 Boundary Dimension 1.4 Model type HL318Plus C 2.0 INTERFACE 2.1 Power supply 1Pin(inner core): DC+ 2Pin outer coreA: DC- 2Pin: TXD 3Pin: RXD 5Pin: GND 1Pin: -E 2Pin: -SN 5Pin: SHLD 6Pin: +E 7Pin: +SN 8Pin: -S 9Pin: +S 3.0 Operation 3.1 indicating lamps sign... -
Page 6: Setting
otherwise, the lamp is off The lamp is on when the absolute value of Zero center weight on the scale is less than ±d/4; otherwise, the lamp is off The lamp is on at net weight and off at gross Gross/net weight weight Underload... -
Page 7: Setting Entry
When the counting function is in use, quantity and weight display switch at short Return and exit COUNT press. There is no use by long press. Move cursor to Switch between kg and lb kg/lb the left No definition at gross weight status; At net weight status, skin weight is added to Move cursor to the net weight... -
Page 8: F1 Scale Parameter Setting
PRINT to enter into the menu setting interface, setting parameters from F2~F5. Below shows where the button is. 4.2 Detailed parameter setting F1 Scale parameter setting F1.1 Capacity Selectable parameters 3~200000 (default 6) F1.2 Decimal Selectable parameters: 0-------no decimal 1------ 1 decimal 2-------2 decimals 3-------3 decimals (default) 4-------4 decimals... -
Page 9: F2 Applicable Parameter Setting
second indicating load calibration ends. F1.6 Auto-zero-tracking rate Selectable parameters: 0.5d (default), 1d, 3d At net weight status, zero tracking is ineffective. F1.7 Auto-zero-clearing range at power-on Selectable parameters: OFF (default), ±2 %, ±10 % F1.8 Zeroing range Selectable parameters OFF (default), ±2 % F1.9 Digital filter Selectable parameters: 0~9, default: 5 F1.10 Scale function setting... -
Page 10: F4 Serial Port Communication
F 3.1 Date format setting Selectable parameters: 0-----year.month.day(default) 1--------month.day.year 2--------day.month.year F3.2 Date setting (format see F3.1) F 3.3 Time setting (format: hour.minute.second) F 3.4 Overtime backlight shutdown time setting Selectable parameters: 0~999 seconds (default: 0) If 0 is set, this function is ineffective. F 3.5 Auto power-off Selectable parameters: 0~60min (default: 0) If 0 is set, this function is ineffective. -
Page 11: Function Description
When the indicator displays , press PRINT , Zero , Tare , Gross , kg/lb COUNT in order and the indicator displays Print , Unit Count . Press TOTAL to exit button test. F 5.2 Display test The indicator will conduct an auto-inspection of strokes to insure there is lack of strokes. - Page 12 interfaces. Press ZERO to clear the total quantity and the total weight. Press PRINT to confirm and press COUNT to exit. 5.3 Counting F 1.10=2 Operation: at normal weighing stage, press COUNT to switch between the weight and quantity display. Sampling: long press COUNT until “SAMPLE”...
- Page 13 factory. The calibration input weight is Input≥10 % weight of full range too small The weight in calibration is too Load≥10% weight of full range light The scale is dynamic in scale Inspect the scale body Set according to specification of date Setting error of date and time and time If the error occurs after restarting,...
- Page 14 N T , Appendix 3 Printing output format LIST Date 2018/04/14 Time 15:08:46 ----------------------- LIST Gross 2.061kg Date 2018/04/14 Tare 0.000kg Time 15:10:18 2.061kg ----------------------- Count 206PCS...
