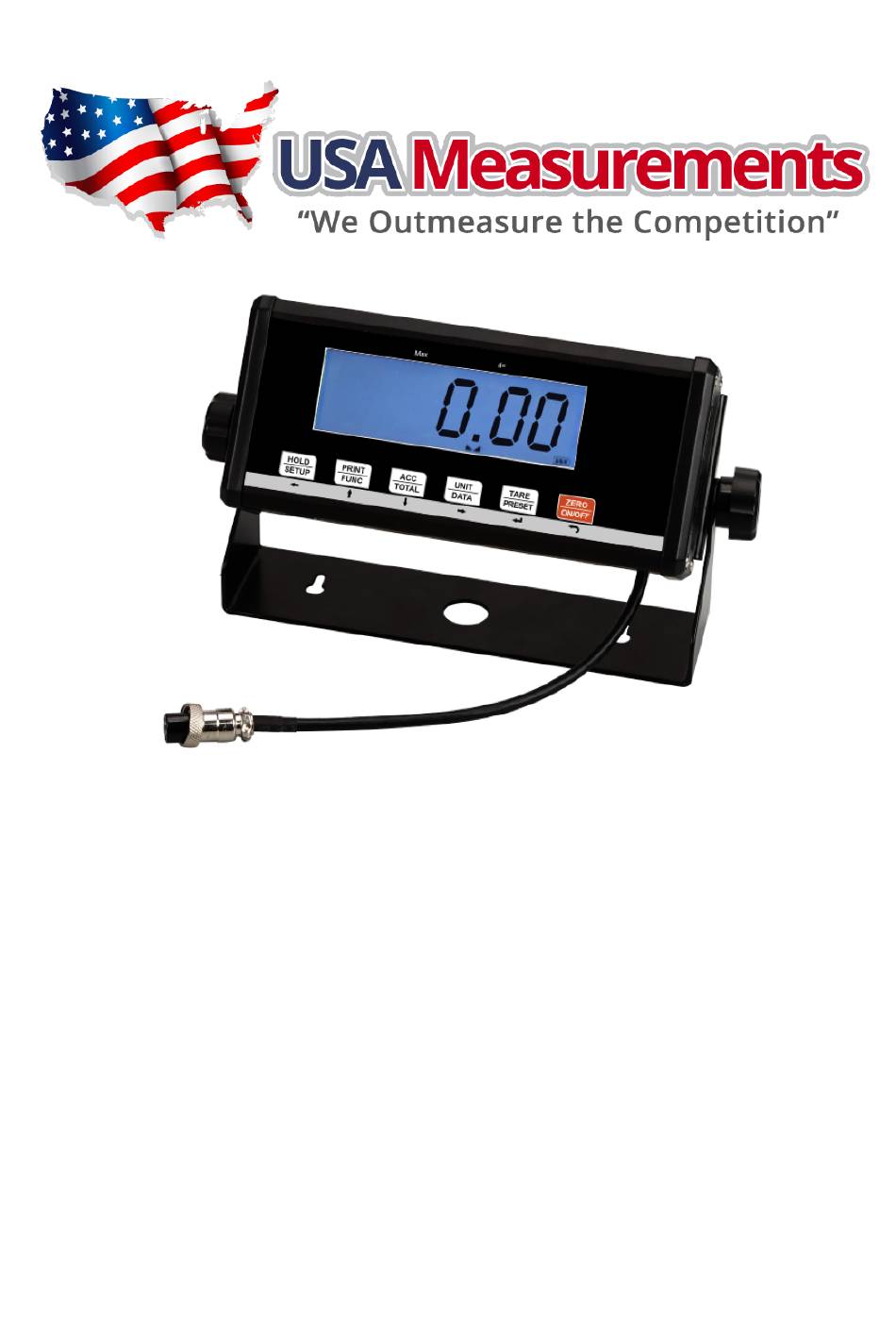

US-4011 Indicator
User / Technical Manual
Contents subject to change without notice
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the US-4011 and is the answer not in the manual?

Questions and answers

Related Manuals for USA Measurements US-4011

Summary of Contents for USA Measurements US-4011

  • Page 1 US-4011 Indicator User / Technical Manual Contents subject to change without notice Version 1.0...
  • Page 2 07/2017 US-4011...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ........................1 Safety Precautions ......................... 1 1.1. Specification ..........................1 1.2. INSTALLATION ........................3 Contents ............................. 3 2.1. Connection types: ........................... 3 2.2. OVERVIEW OF CONTROLS AND FUNCTIONS ..................4 3.1. Indicator Display Character Definitions ....................4 3.2.

  • Page 4: Introduction

    1. INTRODUCTION This manual contains installation, operation and maintenance instructions for the US-4011 indicators. Please read this manual completely before installation and operation. 1.1. Safety Precautions For safe and dependable operation of this equipment, please comply with the following safety precautions: Verify that the input voltage range printed on the data label matches the local AC power to be used.
  • Page 5 Model US-4011 Keypad HOLD/SETUP , PRINT/FUNC, ACC/TOTAL/TOTAL, UNIT/DATA, TARE/PRESET , ZERO/ON/OFF Operating Temperature 15° to 105°F (-10° to 40°C) Humidity Range <90% relative humidity, non-condensing Load Cell Excitation Voltage 5V DC -3mV/V to 3mV/V Load Cell Drive Recommended actual scale >1uV/ display division...

  • Page 6: Installation

    § USB communication cable(option) 2.2. Connection types: 7 pins socket used: Pin1: Excitation + Pin2: Sense + Pin3: Signal + Pin4: Excitation – Pin5: Sense – Pin6: Signal - （7 holes socket） （7 pins socket） Pin7: Shield Indicator Base US-4011...

  • Page 7: Overview Of Controls And Functions

    3. OVERVIEW OF CONTROLS AND FUNCTIONS 3.1. Indicator Display Character Definitions US-4011...

  • Page 8: Indicator Display

    § HI - Data compare (check-weighing) is enabled. Current data (weight, pieces, or percent) is above the specified upper limit. § OK - Data compare is enabled. Current data is between the specified upper and lower limits. § LO - Data compare is enabled. Current data is below the specified lower limit. US-4011...
  • Page 9 ZERO Counting, or ON/OFF >3 seconds Powers off Percent mode Input data mode Ignores the modification Menu selection mode Exits from current working mode Note: Normally, the second function of one key need pressing it down more than 3s. US-4011...

  • Page 10: Operation Menu Structure

    The division value under primary unit; the division 0.05 value under second unit is automatically PRIM.D determined by indicator according to the division value under primary unit. Select the primary unit from kg or lb; defaulted PRIM.Ut calibration standard weight unit is the primary unit. US-4011...
  • Page 11 IZSM range: DSP.OVR =display initial zero is over; WEIGHT WEIGHT = current weight; OV.IZSM DSP.OVR CAL.ZRO = calibration zero; CAL.ZRO LAST.Z.T =switch-off zero and tare If (REGULAR)≠none, the value is fixed on LAST.Z.T DSP.OVR US-4011...
  • Page 12 AUTO weight is over (NLD.RNG) Yes/No =enable/disable Geographical Adjustment GEO.CAL Factor Yes/No =enable/disable weight fine-tuning using WT.ADJ keypad in weighing mode, if (REGULAR)≠none, this item is N.A. * The setting will be limited by choice of REGUALA US-4011...

  • Page 13: User Submenu

    Yes/No =enable/disable output net weight. Prompt is OUT1 “NET” Yes/No =enable/disable output weight percentage. PERCNT Prompt is “PERCENTAGE” Yes/No =enable/disable output weight of 1% UPCTWT percentage. Prompt is “1% REF WT” Yes/No =enable/disable output counts. Prompt is COUNT “QUANTITY” US-4011...
  • Page 14 SINGLE = only displayed content and current status will LAYOUT MULTPL SCP-12 be output, it’s compatible with NCI-SCP01; EH-SCP EH-SCP = Command –response mode; SCP-12 = only displayed content and current status will SCP-12 be output, it’s compatible with NCI-SCP12（NCI3835）; US-4011...
  • Page 15 L.Low =beep when lower than low limitation; L.LOW BEEP IN.LMT =beep when in range of low and high limitation; COMPAR IN.LMT IN.LMT IN.LMT O.HIGH =beep when over high limitation; O.HIGH OUT.LMT =beep when lower than low limitation or higher than high limitation OUT.LMT US-4011...
  • Page 16 Auto off mode: OFF =turn off instrument; DSP.TIM DSP.TIM = display time; OFF.MD AC.TIME =turn off when only battery is used, display AC.TIME time when AC adaptor is used. If set to DSP.TM or AC.TIME, will continuously output time. US-4011...

  • Page 17: Cal Submenu

    Selection of Geographical Position Code 00-70 CODE 00-70 9.76183 Input Gravity of User Location by keyboard GRAVT -9.99999 Input or view calibration parameters value INPUT Calibration end and restart CAL.END NOTE: The details can be referred in section “6.CALIBRATION”. US-4011...

  • Page 18: Misc Submenu

    Test COM1 receiving; details refer to section7 COM1.RD Test COM1 transmitting; details refer to section7 COM1.TD Test COM2 receiving; details refer to section7 COM2.RD Test COM2 transmitting; details refer to section7 COM2.TD Test keys and buzzer; details refer to section7 KEY.TST US-4011...

  • Page 19: Operation

    (same with zero Europe) Tare ＞0 zero and clear the tared weight NOTE: (1) ZERO only be active when scale is stable and weight is in SAZSM setting range. (2) TARE only be active when scale is stable US-4011...
  • Page 20 1 oz 1 oz 0.5 lb 0.2 kg 200g 0.5 lb 10 oz Not available 5 lb 2 kg Not available 5 lb Not available Not available 50 lb 20 kg Not available 50 lb Not available Not available US-4011...

  • Page 21: Count Weighing Mode

    TARE/PRESET key to confirm go to parts counting mode. Before new piece weight is got, the last piece weight will be used. 5.2.4. In counting working mode, the function of ZERO, ON/OFF, TARE, PRESET TARE, ACC, PRINT, HOLD, SETUP are US-4011...
  • Page 22 NOTE: If High number is 0 or is equal or less than low number, the comparison will be disabled. (5) After a reasonable limitation is set and compare is be active, one of announciators HI, OK, LO will be lighted, and the beeper will sound according to its setting in USER-BEEP US-4011...

  • Page 23: Percent Weighing Mode

    If the calculated unit-percentage-weight is less than 0.5d, the indicator will display and go back Pct.Er to percent weighing mode, otherwise, after the reasonable unit-percentage-weight being got, the scale will go back to percent weighing mode. The gotten unit-percentage-weight can be saved after the power off and can US-4011...

  • Page 24: Bmi Working Mode

    HOLD(freeze) this number temporary for user to watch or record. This function can be used in normal weighing mode, counting mode and percent weighing mode. The speed of A/D converter is increased to 80Hz (if is set to ) from original 10Hz for some CONFIG-AD.H.SPD US-4011...
  • Page 25 USER-HOLD-HLD.MOD AUTO weighed one after another without pressing any buttons. After entering this working mode, scale will freeze and display number if scale is stable. If scale is not stable, but the variation is less than , scale USER-HOLD-DYN.RNG US-4011...

  • Page 26: Accumulation

    Changing this value alters the calibration values !!! 5.7.1. To enter this mode, turn on indicator, after indicator displaying 0 weight, put a load (suppose: its correct weight is 1230.0lb) onto scale, then indicator will display the load’s weight, say “1234.5 lb”. Press down TARE/PRESET US-4011...
  • Page 27 1230.0lb ; Press down TARE/PRESET and ZERO/ON/OFF at same time until first digit flashes, this means indicator has entered into “weight fine-tune” mode. Press SETUP key, the displayed weight will be restored to 1234.5, and then press TARE/PRESET to confirm and exit to normal weighing mode. US-4011...

  • Page 28: Calibration

    Use PRINT/FUNC or ACC/TOTAL key to select , use End.y TARE/PRESET to confirm . Similar with doing in step6.5.3 6.5.6 When third standard weight displayed after being shown. It will be calibrated on standard weight for CAL.P3 US-4011...
  • Page 29 COM1 , the print out format is <LF>nn:xxxx<CR>, there are totally eighteen lines. 6.8. After the indicator gets all need data, it will calculate and store all calibration parameters into EEPROM, display . At last, it will re-start and go back to original mode. CAL.End US-4011...
  • Page 30 US-4011...

  • Page 31: Misc And Test Operation

    6V, press TARE/PRESET key to confirm 6V calibration. When CAL.6V CV.End is shown, that means the voltage calibration is completed and then exit to display voltage. 7.2.4. Press HOLD/SETUP key to return to last menu item, press ZERO/ON/OFF key to prepare to exit this mode. US-4011...

  • Page 32: Display And Set Time

    7.8.1. Before test the receiving function of COM1 or COM2 , a cable is need to connect a PC and this indicator, and a software be similar with Super Terminal of Windows is also need to run on PC to send bytes to this indicator. US-4011...

  • Page 33: Serial Port1/2(Com1/2) Transmitting Test

    7.9.3. In this mode, transmitted hex data (0x00 – 0xff) will be displayed on -- position, and keys can be used to modify transmitted data. 7.9.4. Press HOLD/SETUP key to return to last menu item, press ZERO/ON/OFF key to prepare to exit this mode. US-4011...

  • Page 34: Details About Serial Communication

    0=battery ok 1= eeprom error 1=calibration error 1=initial zero error 1=low battery always 1 always 1 always 1 always 1 always 1 always 1 always 1 always 1 always 0 always 1 always 1 always 0 parity Parity Parity Parity US-4011...
  • Page 35 <CR><ETX>---over capacity ②<LF>________U <CR><LF> H <CR><ETX>---under capacity W<CR> 57 0d ③<LF>-------- U <CR><LF> H <CR><ETX>---zero-point error ④<LF><p>W <dp>W <CR><LF>H <CR><ETX>---normal data S<CR> 53 0d <LF> H <CR><ETX>; read scale status Z<CR> 5a 0d <LF> H <CR><ETX> ; simulate ZERO/ON/OFF key US-4011...
  • Page 36 112lb 2.34oz NET: 1222.40kg ACC. N: QUANTITY: 24448pcs TOTAL: 789lb 15.2oz PIECE WT: 0.05kg DATE: 2011-06-12 ACC. N: TIME: 12:34:56 TOTAL: 23456pcs A/D CODE: 1234567 DATE: 2011-06-12 VOLTAGE: 6.7V TIME: 12:34:56 STATUS: bpq2 A/D CODE: 1234345 VOLTAGE: 6.7V STATUS: bpq2 US-4011...
  • Page 37 <CR> (2) if current weight is invalid <STX>?<Status Byte><CR> Simulate ZERO/ON/OFF key: <STX>?<Status Byte><CR> Switch to and send standard weight. Same as W above Switch to and send metric weight. Same as W above Un-known commands: others <STX>?<Status Byte><CR> US-4011...
  • Page 38 Un-known commands: <LF>?<CR> 8.9.5. If your indicator need work with UPS worldship, you can try following settings: USER-COM1 -BAUD.RT 4800 USER-COM1 -BYT.FMT USER-COM1 -LAYOUT SCP-12 (4) Set scale port to NCI3835 in UPS worldship. US-4011...

  • Page 39: Connectors And Jumpers

    Adapter input voltage – (GND) Power ground 0Vdc 9.4. BAT---Battery power input Connector PIN # DEFINITION IN/OUT/POWER ELECTRICAL LEVEL Battery input voltage + Power input 4-6.8Vdc Battery input voltage – (GND) Power ground 0Vdc Temperature sensor on Battery input Power ground US-4011...
  • Page 40 9.8. JP1 Jumper: CONNECTED PINS FUNCTION Two shorter on pin1-2: 4 wires Load cell is used Two shorter on pin2-3: 6 wires load cell is used 9.9. ICM1 Socket: used for USB interface 9.10. JTAG and IOSEL used by Manufacture US-4011...

  • Page 41: Meaning Of Some Symbols And Troubleshooting

    Unit kg is selected Unit lb is selected UNIT.LB Piece weight is error, it’s too small (<0.5d). PWT.ER Sample goods weight to calculate SPL.PCT input percentage of weighted goods INP.PCT PCT.ER Unit-Percentage -Weight is too small (<0.5d). CACU.ER Internal calculation overflows US-4011...
  • Page 42 Load cell damage. Service required. Cannot display weight in Unit not set to enable, or d≥5oz,when unit Enable unit in CONFIG-UNITS desired weighing unit. is lb:oz Battery symbol is empty Batteries are discharged. Charge batteries Lo.bAt is shown US-4011...
