To Remove The Crosspoint Module From The Chassis; Installing A New Crosspoint Module; To Position The New Crosspoint Module Into The Chassis; To Affix The Module Using The Four Hex Head Screws - Ross ULTRIX-FR12 Replacing

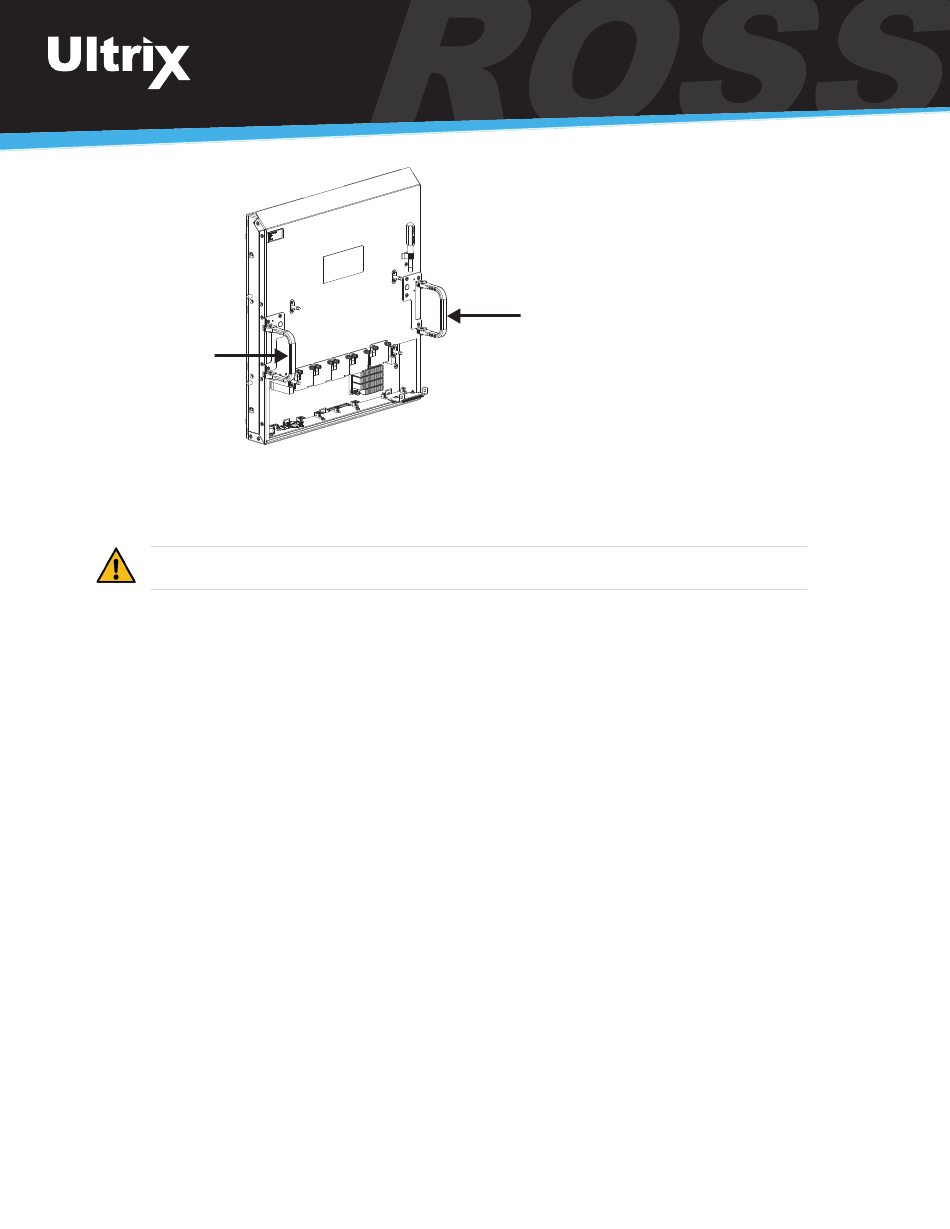

Handle
3. Make a note of the Crosspoint Module position within the chassis.

The new module will install in the same position.

To remove the Crosspoint Module from the chassis

Caution
1. Grasp a red handle in each hand.
2. Slowly pull the module away from the chassis.
3. Set the module on a flat, clean, and static-free surface.

Installing a New Crosspoint Module

This section outlines how to position the new Crosspoint Module in the ULTRIX-FR12 chassis, affix the module
using the four hex head screws, then re-install and close the front door.

To position the new Crosspoint Module into the chassis

1. Locate the red handle on each side of the new Crosspoint Module.
2. Flip each handle up and away from the module.
You will use the handles to position the module into the chassis.
3. Grasp a red handle in each hand.
4. Slide the module into the chassis until the module is fully seated.
5. Ensure the posts on both sides of the module are engaged in their slots in the chassis.
6. Flip each handle down and towards the module.

To affix the module using the four hex head screws

1. Locate the four hex head screws on the new module.
3
— The Crosspoint Module weighs approximately 15lbs (6.8kg).
Handle
