  • Page 2 HHT-5000/6000/8000/10000/12000 Series 3-Phase Hybrid Storage Inverter USER MANUAL...

  • Page 3: Table Of Contents

    CATALOGUE SYMBOLS ON THE LABEL ....................4 SAFETY AND WARNINGS ....................5 UNPACKING ......................... 6 3.1 Scope of Delivery ......................6 3.2 Product Overview ......................7 INSTALLING .......................... 9 4.1 Installation Requirement ....................9 4.2 Mounting Location ......................10 4.3 Mounting ......................... 10 4.4 Installing the PE cable ....................

  • Page 4: Symbols On The Label

    1. OPERATION MODES INTRODUCTION HHT normally has the following operation modes based on your configuration and layout conditions. 2. SYMBOLS ON THE LABEL DANGER, WARNING AND RECYCLABLE AND REUSABLE CAUTION HIGH VOLTAGE AVOID DAMP AND MOISTURE AVOID CONTACT HIGH TEMPERATURE SHIPMENT STACK LIMIT: 7 AVOID CONTACT HHT-5000/6000/8000/10000/12000 USER MANUAL 4...

  • Page 5: Safety And Warnings

    3. SAFETY AND WARNINGS All persons who are responsible for mounting, installation, commissioning, maintenance, tests, and service of HYPONTECH inverter products must be suitably trained and qualified for corresponding operations. They MUST be experienced and have knowledge of operation safety and professional methods. All installation personnel must have knowledge of all applicable safety information, standards, directives, and regulations.

  • Page 6: Unpacking

    The DC input voltage of the PV array MUST never exceed the maximum input voltage of the inverter. DO NOT touch parts of the inverter during operation as heat will be induced and these parts will exceed 60℃. There are installations where multiple inverter energy systems are used and electrical installation connects at 3-phase points of supply to the grid, please refer to the requirements of Appendix B.

  • Page 7: Product Overview

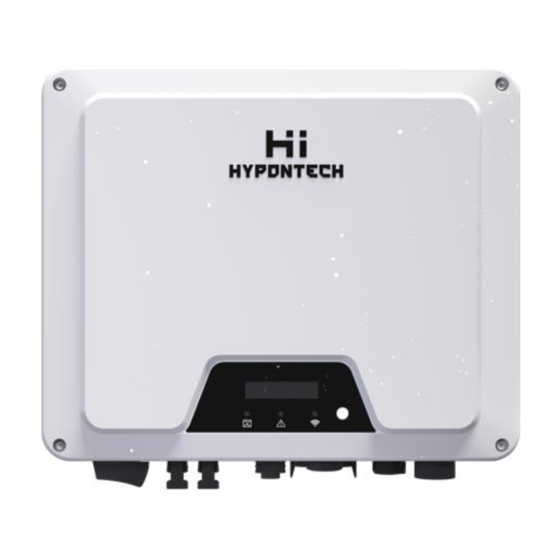

    DEVALAN MOUNTING MOUNTING BAT+/- AC –GRID INVERTER DC PLUGS BRACKET ACCESSORIES CONNECTOR CONNECTOR (SEALED) COMMUNICA BACK -UP TION METER /DRED DOCUMENTS CONNECTOR DATALOGGER CONNECTOR (OPTIONAL) 3.2 Product Overview The total size of HHT-5000/6000/8000/10000/12000 is 425(width) ×351(height) ×200(depth) mm. It has 2 pairs of PV input terminals 、1 pair of Battery input terminal and 2 communication ports.
  • Page 8 The detail description is shown below: Mark Num. Component Description LED&LCD or LED Display and setting device at field DC Switch For switch on/off the inverter PV Terminal (s) Connected with PV Panel Battery Terminal Connected with Battery COM1: Wi-Fi/GPRS/RS485 Alternative distant communication method COM2: METER/DRED For smart-meter or DRED...

  • Page 9: Installing

    5. INSTALLING 4.1 Installation Requirement Please install the inverter(s) in places that can avoid inadvertent contact. Installation method, location and surface must be fitting for the inverter’s weight and dimensions. Please install the inverter in an accessible location for operation, future maintenance and service.

  • Page 10: Mounting Location

    4.2 Mounting Location DO NOT mount the inverter near any inflammable materials. DO NOT mount the inverter near any explosive materials. DO NOT mount the inverter on tilting surface over 15° backwards. Please mount the inverter on a vertical wall surface. DO NOT mount the inverter on any surfaces tilting forward or to either sides.

  • Page 11: Installing The Pe Cable

    4.4 Installing the PE cable Insert the grounding conductor into the suitable terminal lug and crimp the contact. Align the terminal lug with the grounding conductor and the ground washer on the screw. The teeth of the ground washer must be facing the housing. Tighten it firmly into the housing (screwdriver type: T25, torque: 2.5Nm).

  • Page 12: Commissioning

    M6×12 pan head screw PE Conductor cross-section: mm² 6. COMMISSIONING 5.1 Safety Instructions Measure the frequency and voltage of grid connection and make sure they follow the inverter’s grid connection specifications. An external circuit-breaker on the AC side (or a fuse) at 1.25*AC rated current is strongly recommended.

  • Page 13: Ac、Back-Up Wire Assembly And Connection

    Model recommended Conductor cross-  Meter/RS4 Outdoor shielded section:0.14~1.0mm² 85/DRED twisted pair cable Cable outer diameter:approx. 6mm  5.2 AC、Back-up Wire Assembly and Connection 5.2.1 AC Commissioning 5.2.2 AC Switch Types Please install an individual 2-stage miniature circuit breaker according to the following specifications.

  • Page 14: Pv Wire Assembly And Connection

    5.3.2 Back-up Switch Types Please install an individual 2-stage miniature circuit breaker according to the following specifications. Maximum Back-up current Back-up Breaker Rated current Model （A） （A） HHT -5000 50A/230V AC HHT -6000 50A/230V AC HHT -8000 63A/230V AC HHT -10000 63A/230V AC HHT-12000 63A/230V AC...

  • Page 15: Battery Wire Assembly And Connection

    DC Commissioning： 5.5 Battery Wire Assembly and Connection Make sure there is an external DC breaker (≥40A) connected for battery without build-in DC breaker. Make sure battery breaker is off and battery nominal voltage is less than 800V before connecting battery to inverter and make sure inverter is totally isolated from PV and AC power.

  • Page 16: Residual Current Protection

    Datalogger in and tighten. For user guidance and configuration of Datalogger, please refer to the corresponding HYPONTECH Wi-Fi Stick Guide manual, which is available in printed form inside Documents pack, or an online manual on HYPONTECH website at https://www.hypontech.com/xiazai.
  • Page 17 When installing RS485, the COM sealing plate needs to be removed. All operation MUST NOT proceed until AC and DC power is securely disconnected and discharged to prevent electric shocks. 17 HHT-5000/6000/8000/10000/12000 USER MANUAL...

  • Page 18: Demand Responsive Modes（Drms

    6.2 Demand Responsive Modes（DRMs） DRMs Application Description • Only applicable to AS/NZS4777.2:2015. • Only DRM0 is available. Users can close the S9 on DREDBOX to activate DRED function and Operate the Disconnection Device by close S0. Other function of DRED is all disabled. The inverter shall detect and initiate a response to all supported demand response commands.
  • Page 19 Load side and if the Back-up connector is properly and securely installed. Check if the Back-up connector is firmly plugged into Back-up terminal. 7. AC Connectors and Wire Assembly: Check if wires are assembled correctly on the AC side and if the AC connector is properly and securely installed. Check if the AC connector is firmly plugged into AC terminal.

  • Page 20: Inverter Led Indicators

    7.2 Inverter LED Indicators When the inverter operates, LED symbols on display have the following meanings: HHT-5000/6000/8000/10000/12000 USER MANUAL 20...

  • Page 21: Display And Control Logics

    7.3 Display and Control Logics When inverter starts up and operates, there is a control button beside LCD Display of the inverter. Please follow the logics listed below. System Loading Manufacturer wait system loading Running Pac=xxxxxW short press Peps = xxxxxW = xxxxxW short press E-Today = xx.xkWh...

  • Page 22: Disconnecting From Voltage Resources

    9. DISCONNECTING FROM VOLTAGE RESOURCES Before proceeding any operations on inverter, please disconnect the inverter from all voltage resources as described in this manual. Following these steps in described sequence are mandatory. Disconnect miniature circuit-breaker and prevent from unintentional reconnections. Disconnect all loads,unscrew and remove the Back-up connector.
  • Page 23 Danger to life due to high voltages. Inverter capacitors need 5 minutes to be completely de-energized. When an error occurs, DO NOT remove the cover of the inverter onsite. Improper operations and attempts may induce electric shock. 23 HHT-5000/6000/8000/10000/12000 USER MANUAL...

  • Page 24: Technical Parameters

    10. TECHNICAL PARAMETERS HHT- HHT- HHT- HHT-10000 HHT-12000 Module 5000 6000 8000 PV INPUT DATA Max. PV Power（Wp） 7500 9000 12000 15000 18000 Max. Input Voltage（V） 1000 150~850 MPP Voltage Range（V） Min. DC Voltage（V） 100/145 Nominal DC-Input Voltage（V） Max. Input Current（A） 15 per string 20 per string Max.
  • Page 25 Max. output current（A） 13.5 Max. AC current from grid（A） Adjustable displacement power 0.8leading to 0.8lagging factor THDi at rated power <3% Grid connection 3W/N/PE AC OUTPUT DATA(BACK-UP) Norminal AC output power[W] 5000 6000 8000 10000 12000 Peak apparent output 10000 12000 15000 15000...
  • Page 26 DC Type Ⅱ，AC Type Ⅱ Surge protection Battery revers protection Integrated GENERAL DATA Dimensions(W*H*D) mm 425*351*200 Weight（kg） Noise emission(typical) dB(A) <40 User Interface LED/LCD DC connection type AC connection type Plug-in Connector Battery connection type Sunclix Communication WiFi/4G(optional) Cooling method Natural Cooling Operating ambient temperature -25℃….+60℃...
  • Page 27 The power quality modes can be enabled or disabled via our monitoring APP or Web. Please refer to the “Safety Parameter Setting User Manual” on our website at https://www.hypontech.com/xiazai , or contact our servicer for more information. Please access the monitoring platform on www.hyponportal.com/signin...

  • Page 28: Trouble Shooting

    If an external indication of earth fault alarm is required, please connect PV System to inverter monitoring app/portal. The monitoring platform will send email notification in the event of an Earth Fault. Please refer to Sector 6.1 and HYPONTECH WI-FI STICK GUIDE on how to setup your inverter communication function.
  • Page 29 1. Disconnect the inverter from the utility grid and the PV array, and reconnect it after LED turns off. 2. If the fault persists, measure the phase to phase voltage and The difference between INV phase to zero and zero to ground voltage with a multimeter to A faulty grid relay voltage and output voltage ensure that the voltage is normal and the zero to ground...
  • Page 30 Please confirm: Inverter Heat sink and internal ⒈Whether the airflow to the heat sink is obstructed. temperature too environment temperature ⒉ Whether the installation site is in direct sunlight and ambient high higher than 85 degree temperature around the inverter is too high. If all above is normal, contact the service.
  • Page 31 ⒈If it happens occasionally, it belongs to the short-time abnormality of the power grid, the inverter will return to normal operation after detecting the normal power grid, and there is no need to deal with it. 2. In case of frequent occurrence but automatic recovery, please Grid frequency confirm if the grid voltage is outside the permissible range due to grid frequency exceeds the...
  • Page 32 Check the open-circuit voltages of the strings and make sure it is Bus-voltage too Bus-voltage is 20V lower below the maximum DC input voltage of the inverter. If the input than standard Bus-voltage voltage lies within the permissible range while the fault occurs, please contact the service.
  • Page 33 Check whether the Back-up output voltage exceeds the normal Back-up load over- Back-up voltage exceeds range.If the Back-up output voltage normally while this fault voltage the normal range occurs, please contact the service. 33 HHT-5000/6000/8000/10000/12000 USER MANUAL...

  • Page 34: System Maintenance

    12. SYSTEM MAINTENANCE For the inverter’s long-term performance, it is suggested to maintain your inverter regularly: NOTICE： HEAT SINK MIGHT INDUCE INJURY When the inverter is operating, the heat sink might exceed 60℃ • Please disconnect all electrical cables and connections. Wait for the inverter to cool down completely.

  • Page 35: Restarts

    13. RESTARTS When reconnecting the inverter for electrical power supply, please follow the commissioning procedures and safety instructions as described in Section 6 when applicable (e.g. DC Wires need to be reassembled). Please run safety checks as described in Section 7 before closing the DC Switch and starting up again, 35 HHT-5000/6000/8000/10000/12000 USER MANUAL...
