Summary of Contents for Hypontech HPS 7000 Pro Series

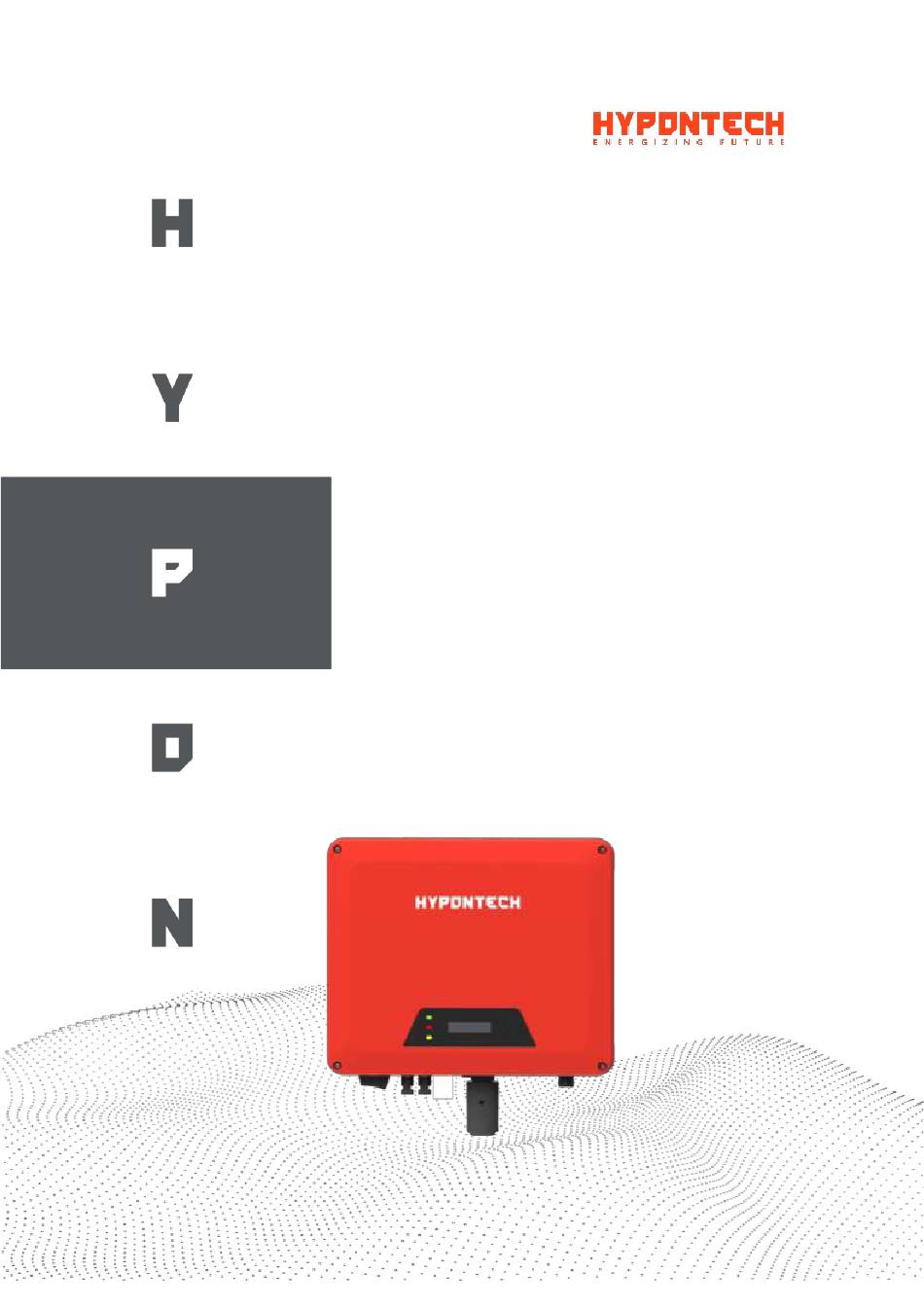

- Page 1 USER MANUAL V1.00 HPS- 7000 ~8000 Pro Series Single-Phase Grid-tied Solar Inverters...
-
Page 2: Table Of Contents
9.2 Connect the Inverter to HYPON.Cloud ``` ```` ``` `` ``` ```` ```` `````` ``` ```` ````` ```` 13 10. TECHNICAL PARAMETERS ```````````````````````````````````````````````````````````14 11. TROUBLE SHOOTING ```````````````````````````````````````````````````````````18 12. SYSTEM MAINTENANCE ``````````````````````````````````````````````````````````22 13. RESTARTS ```````````````````````````````````````````````````````````23 HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 3: Symbols On The Label `````````````````````````````````````````````````````````````````````````````````````1
2. SAFETY AND WARNINGS All persons who are responsible for mounting, installation, commissioning, maintenance, tests, and service of HYPONTECH inverter products must be suitably trained and qualified for corresponding operations. They MUST be experienced and have knowledge of operation safety and professional methods. All installation personnel must have knowledge of all applicable safety information, standards, directives, and regulations. -
Page 4: Unpacking ```````````````````````````````````````````````````````````````````````````2
(Wi-Fi OR LAN OR 4G) 3.2 Product Overview 5- COM2: METER/DRED 1 - LCD &LED 3 - PV Terminal(s) 6 - AC Terminal 2 - DC Switch 4 - COM1:Wi-Fi/LAN/4G/RS485 7- Secondary PE Terminal Dimension: W×H×D=425*351*168mm HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 5: Installing `````````````````````````````````````````````````````````````````````` `````3
To ensure sufficient room for heat dissipation and maintenance, the clearing space between inverter(s) and other surroundings is indicated below for reference: Avoid direct exposure to sunlight and rain and snow layup. HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 6: Mounting Location
Use M5 screw ( torque:2.5Nm ) to attach the heat sink fins to the munting bracket. It is recommended to attach the anti-theft lock to the inverter. Lock diameter φ4- 5.5mm recommended. HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 7: Installing The Pe Cable
Tighten it firmly into the housing (Use M5 terminal、M5 screw .screwdriver type: T25, torque: 2.5Nm). Information on grounding components: Object Description Housing M5 terminal lug with protective conductor M5×12 pan head screw PE Conductor cross-section: 10 mm² HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 8: Commissioning
5.2 AC Wire Assembly and Connection 5.2.1 AC Commissioning 5.2.2 AC Switch Types Please install an individual 2-stage miniature circuit breaker according to the following specifications. Model Maximum output current（A） AC Breaker Rated current（A） HPS-7000P HPS-7500P HPS-8000P HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 9: Dc Wire Assembly And Connection
This product is equipped with residual current protection device internally, in accordance with IEC 60364-7-714. An external residual current protection device is not needed. If the local regulation demands otherwise, it is recommended to install a 300mA Type B residual current protection device. HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 10: Communication
6.1.1 Wi-Fi /LAN/4G Datalogger Installation Unpack the Datalogger from package. Unscrew the cap in COM1 port and plug the Datalogger in and tighten. For user guidance and configuration of Datalogger, please refer to the HYPONTECH website at https://www.hypon.com. 6.1.2 RS485/Smart Meter/DRED Connection... -
Page 11: Output Power Control Via Smart Meter ``````````````````````````````````````````````````````````9
Secure and tighten the screws on COM sealing plate. • Warranty will be void if the inverter is damaged due to moisture and dust caused by poor installation of COM sealing plate. HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 12: Start Up And Operation `````````````````````````````````````````````````````````10
DC input voltage and grid conditions meet the requirements of inverter startup. 7.2 Inverter LED Indicators When the inverter operates, LED symbols on display have the following meanings: HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 13: Display And Control Logics ``````````````````````````````````````````````````````````11
CEI 0-21 requirement, then the next test starts. Test order is 81>. S1 (maximum over frequency), 81>.S2(maximum over frequency), 81<.S1(minimum under frequency), 81<.S2(minimum under frequency), 59.S1(maximum voltage over 10min), 59.S2(maximum over voltage), 27.S1(minimum under voltage), 27.S2(minimum under voltage). HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 14: Disconnecting From Voltage Resources
Danger to life due to high voltages. Inverter capacitors need 10 minutes to be completely de-energized. When an error occurs, DO NOT remove the cover of the inverter onsite. Improper operations and attempts may induce electric shock. HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 15: Set Up Monitoring System `````````````````````````````````````````````````````````13
Connect the Inverter to the network using HYPON.Cloud APP. Please refer to the HYPON.Cloud User Manual to set up monitoring system. Product information is subject to change without notice. (Please download reference guides at https://www.hypon.cloud). HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 16: Technical Parameters
Rated power frequency（HZ） Max. output current（A） Max. output overcurrent protection(A) Adjustable displacement power 0.8ind to 0.8cap factor <3% THDi at rated power EFFICIENCY Max. Efficiency Euro Efficiency 97.6% 97.6% 97.6% ＞99.9% MPPT Efficiency HYPONTECH HPS- 7000 ~8000 Pro series user manual... - Page 17 Operating ambient temperature range 0%~100% Allowable relative humidity range 3000(>3000 derating) Max. operating altitude(m) Degree of protection(IEC 60529) IP66 Climatic category （IEC 60721-3-4) 4K4H No-isolated Topology Power consuption <1(Without night monitoring), <6(With night monitoring) HYPONTECH HPS- 7000 ~8000 Pro series user manual...
-
Page 18: Trouble Shooting
600V, it is the inverter. If the input voltage lies within the too high determined as permissible range while the fault occurs, please the PV voltage contact the service. is too high. HYPONTECH HPS- 7000 ~8000 Pro series user manual... - Page 19 ①whether the AC circuit breaker is disconnected voltage failed ②whether the AC terminal or fuse is in good contact ③whether the power supply line is normal If this fault is still being shown, contact the service. HYPONTECH HPS- 7000 ~8000 Pro series user manual...
- Page 20 Disconnect the inverter from the utility grid and the Error, e.g. Micro CPU read PV array, and reconnect it after LED turns off. If this transition EEPROM failed fault is still being displayed, please contact the disturbance service. HYPONTECH HPS- 7000 ~8000 Pro series user manual...
- Page 21 If this fault is still being displayed, please contact service. Check the connection of AFCI device. If the device is AFCI Self-Test connected normally while this fault occurs, please Fault contact the service. HYPONTECH HPS- 7000 ~8000 Pro series user manual...
-
Page 22: System Maintenance
Commissioning Annually OR Half a the parts in contact with metal surfaces year Half a year after first commissioning •Check if the cables are securely grounded Grounding Annually OR Half a year HYPONTECH HPS- 7000 ~8000 Pro series user manual... -
Page 23: Restarts
Section 5 when applicable (e.g. DC Wires need to be reassembled). Please run safety checks as described in Section 7 before closing the DC Switch and starting up again. HYPONTECH HPS- 7000 ~8000 Pro series user manual... - Page 24 Suzhou Hypontech Co., Ltd. - HQ Offices Suzhou Hypontech Co., Ltd. -Manufacturing Suzhou Hefeng Science And Technology No.588 Wutaishan Road, SND, Suzhou 215000, China Innovation Park No.2, Taishan Road, Suzhou China · 215129 T +86 400 6339 990 Hypontech Deutschland GmbH – Germany Branch E info@hypon.com...
