Element ERT21CSCW User Manual page 13

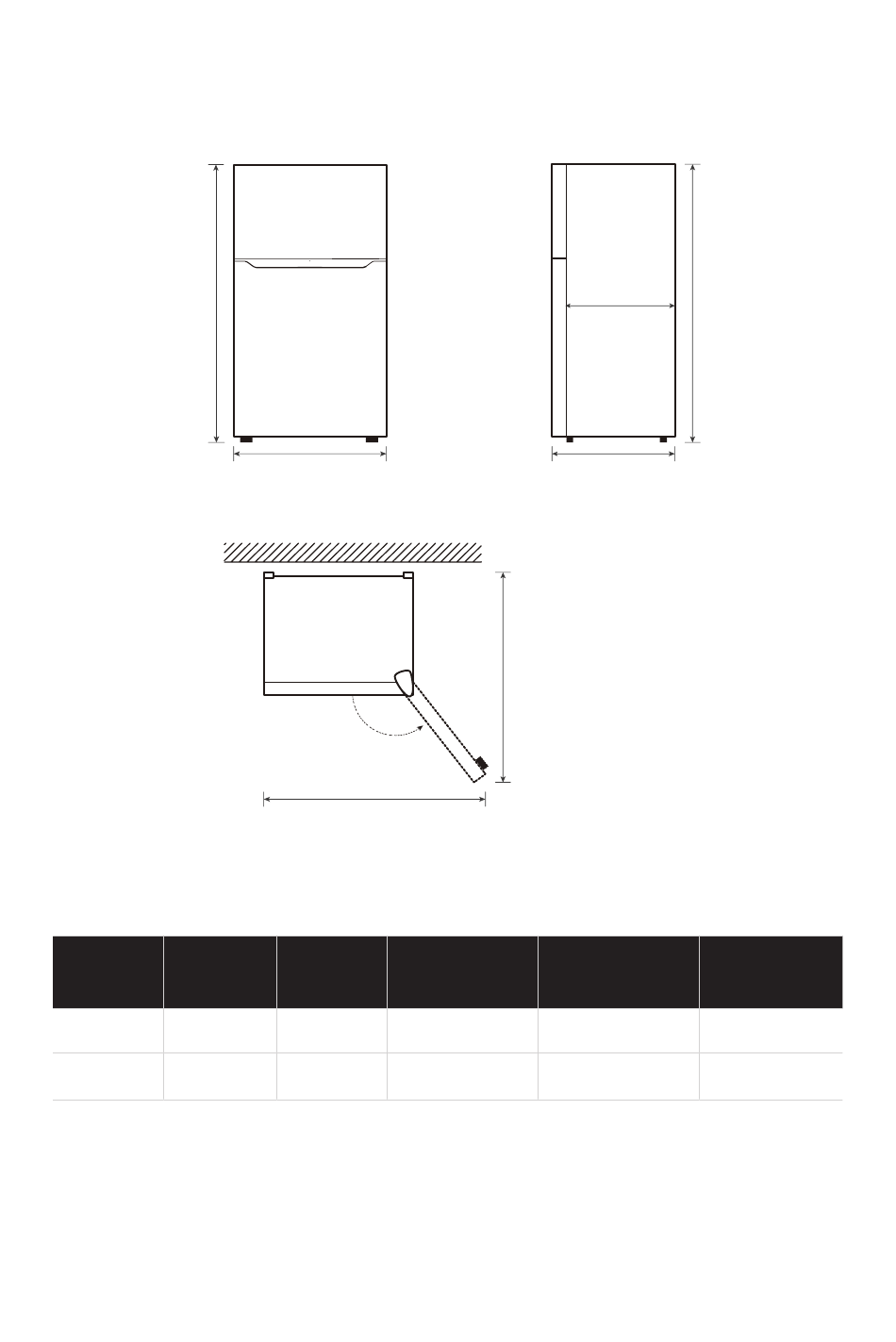

Space requirement diagram (when the door is open and when the door is closed)
B
B
C1
C C
A
E
135 °
D
Width Depth
Overall Depth
Width Depth doors open doors open
Height Only Cabinet
o o
135 135
A B C C1 D E
755mm / 29.7" 1692mm / 66.6" 830mm / 32.7" 734mm / 28.9" 1275mm / 50.2" 1395mm / 54.9"
Notice: All dimensions in mm & inches
13
