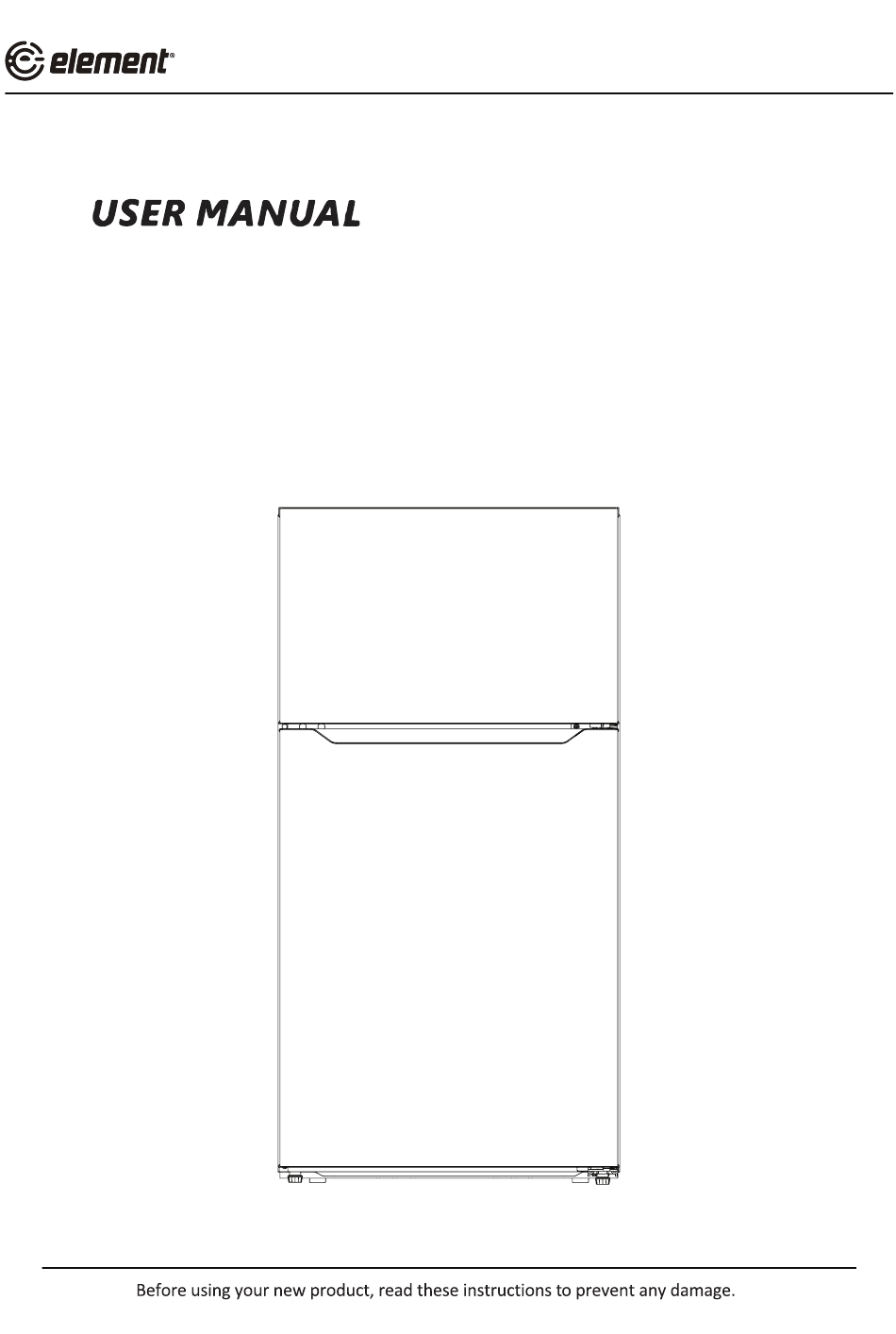

- Page 1 20.5 cu.ft. Top Freezer Refrigerator ERT21CSCW ERT21CSCB ERT21CSCS Product may vary. Refer to the actual product...
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS --------------------------------------- SPECIFICATIONS ------------------------------------------------ PRODUCT OVERVIEW ----------------------------------------- PRODUCT INSTALLATION ------------------------------------ OPERATION INSTRUCTIONS --------------------------------- CLEANING AND MAINTENANCE ---------------------------- TROUBLESHOOTING ------------------------------------------- DISPOSAL AND RECYCLING ---------------------------------- WARRANTY --------------------------------------------------------... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Intended Use Before switching on the appliance for the first time read the following safety hints! This appliance is intended to be used in household and similar applications such houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments;... - Page 5 WARNING • DANGER mechanical devices to defrost refrigerator.Do not puncture refrigerant tubing. • DANGER only by trained service personnel. Use only manufacturer authorized service refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing. CAUTION • CAUTION accordance with the applicable federal or local regulations. Flammable refrigerant used.
- Page 6 WARNING Electrical Safety Incorrect electrical installation or excessive mains voltage can lead to electric shocks! • Only connect your fridge-freezer to a properly installed earthed socket if the label*. • Do not use extension cords or ungrounded (two-pin) adapters. • Make sure that all electrical cables outside the appliance are protected from damage (e.g.
- Page 7 CAUTION Risk of Injury and Damage! • Never put frozen food in your mouth immediately after taking it out of the freezer. • Avoid prolonged skin contact with frozen food, ice and the pipes in the freezer compartment. • propellant in this appliance. Do not place flammable products near the product. •...
- Page 8 Before the First Use The packaging must be undamaged. Check the device for transport damage. Do not connect a damaged device under any circumstances. In case of damage, please contact the supplier. Remove transport cover The unit and parts of the interior are protected for transport. You can remove all adhesive tapes on the right and left side of the device door as well as any adhesive residues with cleaning solvent.
- Page 9 CAUTION Notes for Cleaning Disconnect the appliance from the power supply before cleaning. • cooling effect and energy saving. • Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. •...
-
Page 10: Specifications
SPECIFICATIONS ERT21CS** Product model Total Storage Volume 20.5 cu.ft. Rated Voltage 115V~/60Hz Rated Current 1692mm x 755mm x 830mm Overall Dimension (H x W x D) 66.6″x 29.7″x 32.7″... -
Page 11: Product Overview
PRODUCT OVERVIEW Names of Components Display panel on the side 2 2 5 2 2 6 2 2 7 2 2 4 Freezer glass shelf Freezer door tray Display control Storage box Refrigerator shelf Refrigerator door tray Fruits and vegetables box ATTENTION on the physical product or statement by the distributor. -
Page 12: Product Installation
PRODUCT INSTALLATION Installation Instruction Finding a suitable location • This refrigerator is designed to be free standing only, and should not be recessed or built-in. • The refrigerator should be placed in a well-ventilated indoor place; the ground should • Keep away from heat and avoid direct sunlight. Do not place the refrigerator in moist or watery places to prevent rust or reduction of insulating effect. - Page 13 Space requirement diagram (when the door is open and when the door is closed) 135 ° Width Depth Overall Depth Width Depth doors open doors open Height Only Cabinet 755mm / 29.7" 1692mm / 66.6" 830mm / 32.7" 734mm / 28.9" 1275mm / 50.2"...
- Page 14 Door Right - Left Change more convenient to reverse the position of the door. CAUTION CAUTION: To avoid injury to yourself or your property, we recommend that someone assist you during the door reversal process. Preparing to reverse the door position You will need: A standard screwdriver, a Phillips screwdriver, and the included Allen wrench.
- Page 15 Steps: 1. Unplug your refrigerator and remove all food from the doors and shelves. 2. Remove the cover plate and the top hinge cover, then unscrew and remove the top hinge. Keep the screws to reuse. 3. When the user removes the top hinge cover, note that the hinge cover cannot be directly removed.
- Page 16 hole 8. Unscrew the hinge pin from the bottom hinge and reattach it to the other in the hinge pin. Then, secure the bottom hinge to the opposite side of the refrigerator using the screws you removed previously. Remove the hole caps and plastic bushings from the top of the freezer and refrigerator doors.
- Page 17 13. Attach the refrigerator door to the bottom hinge, then attach the center hinge to the refrigerator. Use the center hinge from the hinge kit (not the piece removed in step 4). Attach the top hinge Attach the center hinge 14.
- Page 18 Installing an Optional Ice Maker Ice maker type: • This refrigerator is compatible with Element brand ice maker EAIMM19. Ice maker installation: • If the refrigerator can be installed with an ice maker, please refer to the ice maker installation instructions provided separately for the installation method of the ice maker.
- Page 19 Tips for Energy Saving • Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption. • of the appliance and at the back of the appliance. Never cover ventilation openings. •...
-
Page 20: Operation Instructions
OPERATION INSTRUCTIONS Control Panel Display panel on the side Setting Button Display temperature can be adjusted. ATTENTION The actual control panel may differ from model to model. - Page 21 Operating Instructions Refrigerator and Freezer setting • Press and hold the temperature setting button for 3 seconds, when the freezer compartment indicator light is on, the freezer temperature can be adjusted. • Press and hold the temperature setting button again for 3 seconds to switch to the refrigeration compartment.
- Page 22 Tips on Storing Food Freezer compartment • The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice. • Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
-
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE Defrosting • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. Cleaning Door Trays •... - Page 24 Stop Using Power failure: In case of power failure, even if it is in summer, food inside the refrigerator can be kept for several hours. During the power failure, the times of door opening should be reduced, and no more fresh food should be put into the appliance. Long-time nonuse: The refrigerator should be unplugged and then cleaned;...
-
Page 25: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. Problem Possible reason • Check whether the appliance is connected to power or whether the plug is in well contact Failed operation •... - Page 26 Problem Possible reason • Remove foreign matters on the door seal Door seal fails to be tight • Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating) •...
-
Page 27: Disposal And Recycling
DISPOSAL AND RECYCLING Important Instructions for Environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. -
Page 28: Warranty
WARRANTY...
