Summary of Contents for Element ERFD19CGCS

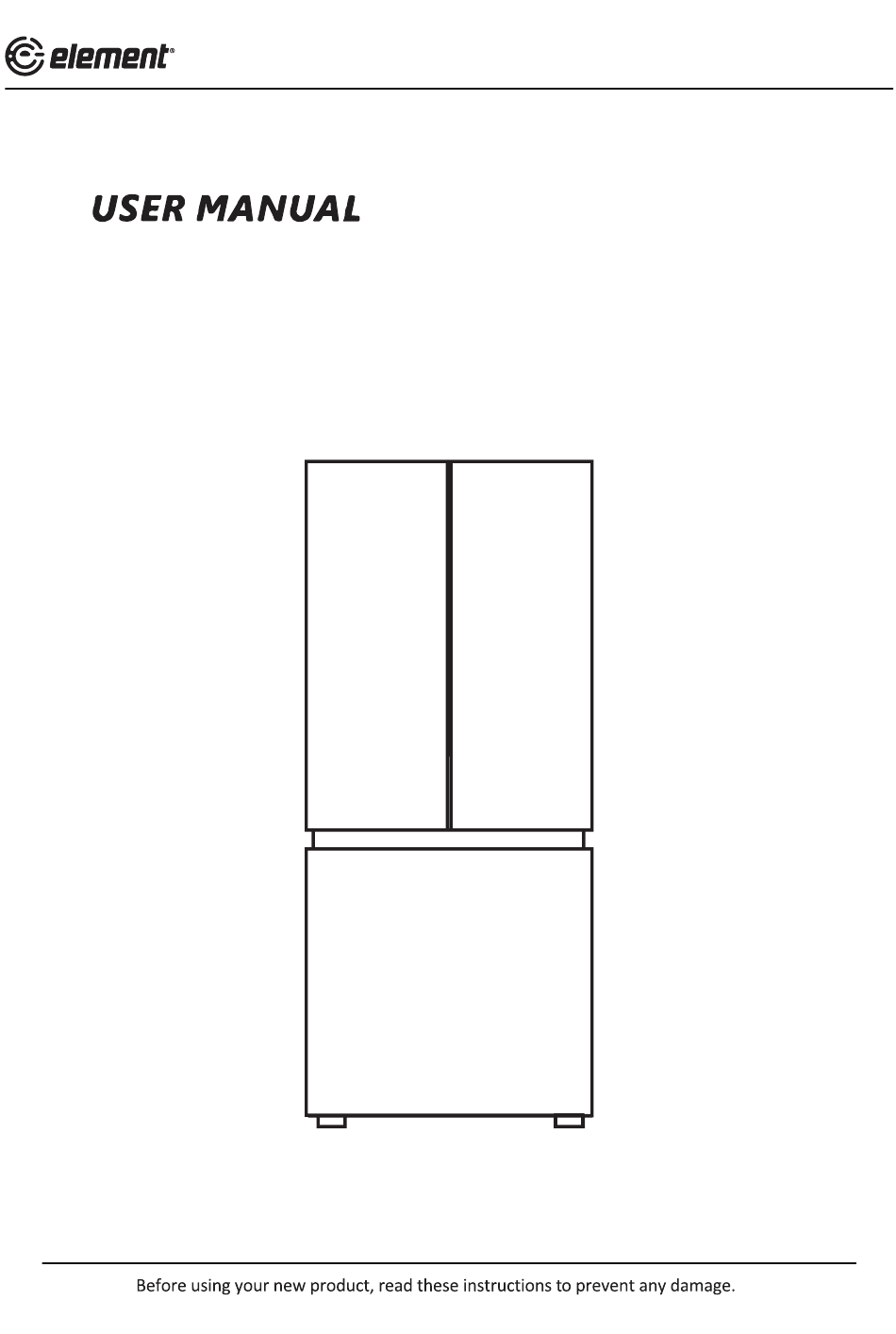

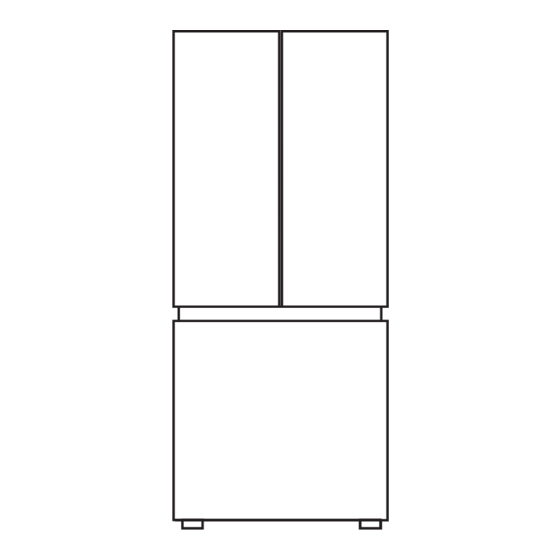

- Page 1 18.4 cu.ft. French Door Refrigerator ERFD19CGCS ERFD19CGCB ERFD19CGCW Product may vary. Refer to the actual product...
-
Page 3: Table Of Contents
CONTENTS SAFETY WARNINGS -------------------------------------------- PRODUCT OVERVIEW ----------------------------------------- PRODUCT INSTALLATION ------------------------------------ OPERATION INSTRUCTIONS --------------------------------- CLEANING AND MAINTENANCE ---------------------------- TROUBLESHOOTING ------------------------------------------- WARRANTY -------------------------------------------------------... -
Page 4: Safety Warnings
SAFETY WARNINGS Warning: risk of fire / flammable materials • This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments;... -
Page 5: Product Overview
PRODUCT OVERVIEW Names of components Door tray Quick cold dial block Shelf Fruit and vegetable box Fruit and vegetable box Upper freezer drawer LED lighting Lower freezer drawer Control and display panel ATTENTION The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor... -
Page 6: Product Installation
Installing an Optional Ice Maker The refrigerator comes set up for ice maker installation, This refrigerator is compatible with the Element EAIMM19 ice maker. Please refer to individual ice maker installation instruction manual. • WARNING: Connect to potable water supply only. - Page 7 Space requirement diagram (when the door is open and when the door is closed) 135 ° Depth Width Overall Depth Width Depth doors open doors open Height Wiht handle 29.5 66.6 30.9 27.7 40.9 50.3 Notice: All dimensions in inches...
- Page 8 Leveling feet 1. To avoid vibration, the unit must be leveled. 2. If required, adjust the leveling screws to compensate for the uneven floor. 3. The front should be slightly higher than the rear to aid in door closing. 4. Leveling screws can be turned easily by tipping the cabinet slightly. 5.
- Page 9 Changing the light • Any replacement or maintenance of the LED lights is intended to be made by the manufacturer, its service agent or similar qualified person. Connecting the appliance • After installing the appliance, connect the power plug into a socket outlet. ATTENTION •...
-
Page 10: Operation Instructions
OPERATION INSTRUCTIONS Control panel Alarm/power off/power on button Freezer button Fridge button Display The initial power up takes 3 seconds while the boot bell rings, While the boot bell rings, and then goes into normal operation display. (Refrigerator and freezer are mid-range at the time of first power-up) Display fault code in the event of a failure (Loop display);... - Page 11 Operating instructions Refrigerator settings • Press the refrigeration key to adjust the refrigeration set gear, each press the refrigeration key once, the gear change one gear, the order is as follows: ℉ ℉ ℉ Freezer settings • Press the refrigeration key to adjust the refrigeration set gear, each press the refrigeration key once, the gear change one gear, the order is as follows: ℉...
- Page 12 Tips on storing food Freezer compartment • The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice. • Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
-
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE Defrosting • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. Cleaning of door tray •... - Page 14 • First, pull out the fruit and vegetable box. Because the fruit and vegetable box has a stop, it needs to be lifted upward before the fruit and vegetable box can be removed. • The roller seat is stuck in the box tank groove, press the arrow in the direction of the image, remove the roller seat, clean the box tank groove as needed.
-
Page 15: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. Problem Possible reason • Check whether the appliance is connected to power or whether the plug is in well contact Failed operation •... - Page 16 Problem Possible reason • Remove foreign matters on the door seal Door seal fails to be tight • Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating) •...
-
Page 17: Warranty
Warranty are determined by Element or Element’s authorized service provider to be defective in material or workmanship, Element will, at its sole and absolute discretion and option: (i) repair the defective part or component at no charge to the Original Customer, (ii) replace the defective Product with a new Product of similar or better quality, at no charge to the Original Customer, or (iii) refund the documented purchase price paid by the Original Customer (excluding tax) to the Original Customer upon return of the defective Product as directed by Element. - Page 18 United States, and only applies to Product if it was purchased and serviced in the United States. The addi�on of equipment or features to the Product that are not manufactured or recommended by Element could affect the intended func�on of the Product, and therefore may void the Warranty.
- Page 20 CONTACT US: Element, the Element Logo, and Bring it home are trademarks of Element Brand Holding, LLC. All other trademarks are the property of their respec�ve owner, who has not sponsored, endorsed, or approved this product. ©2023 Element Appliance Company, LLC. All rights reserved.
