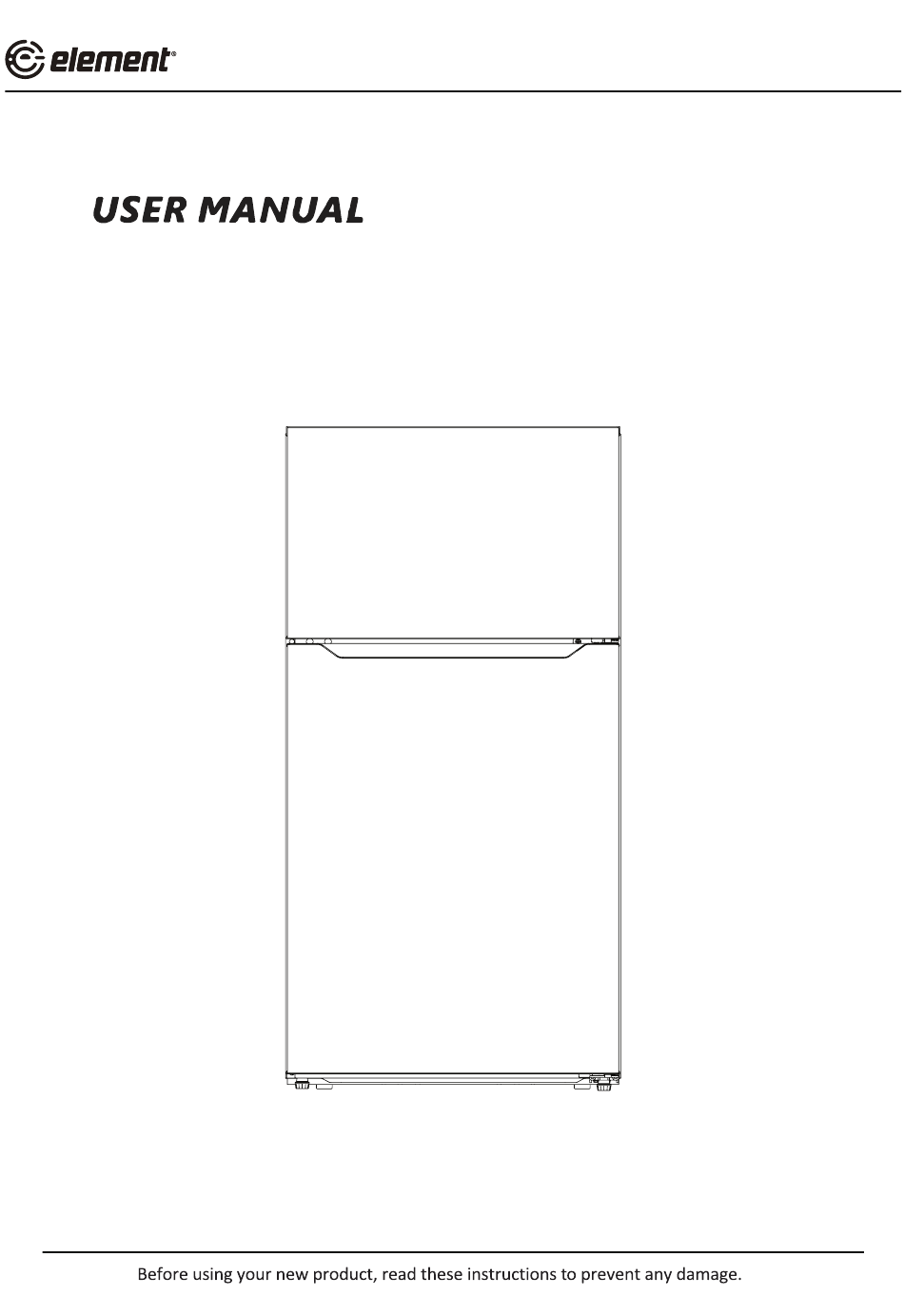

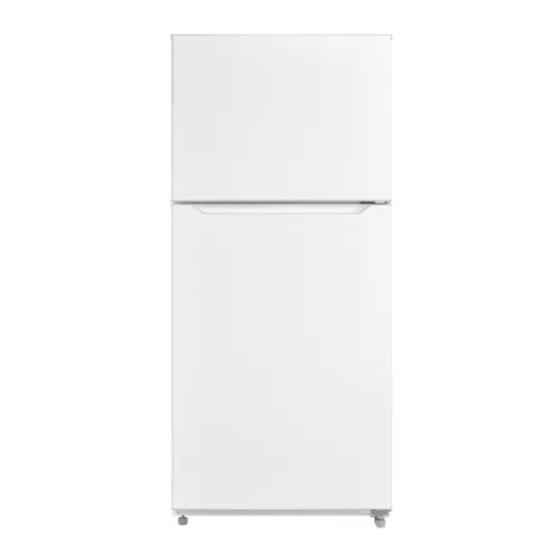

- Page 1 14.2 cu.ft. Top Freezer Refrigerator ERT14CSCW ERT14CSCB ERT14CSCS Product may vary. Refer to the actual product...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INFORMATION ..............3 2. PROPER USE OF REFRIGERATOR ..........11 2.1 PLACEMENT ..................11 2.2 ENERGY SAVING TIPS ..............12 2.3 CHANGING THE LIGHT ..............12 2.4 START TO USE ................13 2.5 COMPONENTS ................14 2.6 FUNCTIONS ..................16 2.7 REVERSE DOOR HINGES (OPTIONAL) ......... -
Page 3: Safety Information
SAFETY INFORMATION YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT To prevent injury to the user or other persons and property damage, these instructions must be followed. Incorrect operation due to ignoring instructions may cause harm or damage, leading to serious injuries or death. The level of risk is shown by the following indications. - Page 4 • Children should be supervised to ensure that they do not play with the appliance. • If the supply cord is damaged, it must be replaced by the manufacturer, service agent, or another qualified persons in order to avoid a hazard. •...
- Page 5 DANGER • Risk of child entrapment. Before you dispose of your old refrigerator: -Leave the shelves in place so that children may not easily climb inside. • The refrigerator must be disconnected from the main power before attempting the installation of accessories. •...
- Page 6 WARNING For EU standard: • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
- Page 7 SAVE THESE INSTRUCTIONS THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY State of California Proposition 65 Warnings: WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov. PROPER DISPOSAL WARNING Su ocation Hazard Before you dispose of your old refrigerator: • Remove the door or lid so that children cannot hide or get trapped inside your old appliance.
- Page 8 ELECTRICITY-RELATED • Do not use electrical appliances on top of the WARNINGS appliance, unless they are recommended by the • Do not pull the power cord manufacturer. when pulling the power plug of the refrigerator. Firmly WARNINGS RELATED grasp the plug and pull out from the socket.
- Page 9 • Do not allow children to enter or WARNINGS FOR USE climb inside the refrigerator to prevent children from hiding and • Do not arbitrarily disassemble getting trapped in the refrigerator or reconstruct the refrigerator, or being injured due to falling nor damage the refrigerant Refrigerator.
- Page 10 ENERGY WARNINGS Refrigerating appliances Do not exceed the storage might not operate consistently time(s) recommended by the (possibility of contents food manufacturers for any kind of food; particularly for defrosting or temperature becoming too warm in the commercially quick-frozen food freezer compartment) in food-freezer and frozen- when set for an extended...
-
Page 11: Proper Use Of Refrigerator
PROPER USE OF REFRIGERATOR • 2.1 PLACEMENT The space on top of the refrigerator should be greater than 30cm, and the refrigerator • Before use, remove all packing should be placed against a materials, including bottom wall with a distance of more pads, foam pads and tapes than 10cm to facilitate heat inside of the refrigerator;... -
Page 12: Energy Saving Tips
2.3 CHANGING THE NOTE LIGHT This refrigerator needs to be installed independently and cannot be used as a built-in. Otherwise, it will cause problems • Any replacement or such as failure to install into the cabinet, maintenance of the LED lights the performance and life of the product is intended to be made by the are reduced. -
Page 13: Start To Use
2.4 START TO USE • Before initial start, keep the refrigerator still for two hours before connecting it to power supply. • Before placing any fresh or frozen food, the refrigerator should run for 2 - 3 hours, or above 4 hours in summer when the ambient temperature is high. -
Page 14: Components
2.5 COMPONENTS Door tray Shelf Door tray Shelf Door tray Shelf Door tray Fruits and vegetables box The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor... - Page 15 Refrigerating chamber Freezing chamber • • The refrigerating chamber is The low temperature freezing suitable for storage of a variety chamber may keep food fresh for of fruits, vegetables, beverages a long time and it is mainly used and other short-term food, but to store frozen food.
-
Page 16: Functions
2.6 FUNCTIONS Temperature Controlling Knob The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor Freezer temperature adjustment: 1. Adjust the temperature control knob to Cold, the temperature inside the freezer becomes the highest. -
Page 17: Reverse Door Hinges (Optional)
2.7 REVERSE DOOR HINGES (OPTIONAL) Precautions before operation: • Before making changes, the refrigerator must be disconnected from power. Before adjusting the door, precautions should be taken to prevent any personal injury. List of tools to be provided to the user Putty knife, thin-blade Phillips screwdriver screwdriver... - Page 18 1) Unplug the refrigerator and take out all the food in the refrigerator; 2) Remove the right hinge cover, screws and upper hinge on the top of the box, and the hole cover on the left; take out the freezing door upwards. Hole cover Hinge cover Screw...
- Page 19 5) Install the lower hinge and tighten the screws on the left side of the refrigerator, install two leveling feet, and stand up the refrigerator. 6) Unscrew and remove the shaft sleeves, door stops, and right door self-locking screws of the two door bodies. Take out the left door self-locking from the accessory bag, and install it to the left corner of the door body together with the door stops and shaft sleeves.
-
Page 20: Leveling Feet
8) Install the freezing door onto the middle hinge, remove the upper hinge shaft and install it into the shaft hole on the other side of the hinge. Install the upper hinge and tighten the screws; then install the upper hinge cover and the right hole cover. Hinge cover Hole cover Upper hinge... -
Page 21: Maintenance Of Refrigerator
MAINTENANCE OF REFRIGERATOR • 3.1 OVERALL CLEANING Clean the door tray, shelves and drawers with a soft cloth dampened with soapy water or • Dust behind the refrigerator and diluted detergent. Dry with a on the floor must be cleaned to soft cloth or dry naturally. -
Page 22: Defrosting
3.2 DEFROSTING • Frost formed due to change of season or temperature may be manually removed by disconnecting the appliance from the power supply or by wiping with a dry towel. 3.3 OUT OF OPERATION • Power failure: In case of power failure, even in summer, food inside the appliance can be kept for several hours. -
Page 23: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Call the after-sale service department if the issues are not solved. • Malfunction Check whether the appliance is connected to power or whether the plug is inserted properly. • Check whether the voltage is too low. -
Page 24: Appendix
APPENDIX Installation Instructions For refrigerating appliances with climate class Depending on the climate class, this refrigerating appliance is intended to be used at ambient temperature ranges as specified by the following table. The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specified range. - Page 25 How to store for best preservation (applicable models only) Cover food to retain moisture and prevent them from picking up odors from other food. A large pot of food, like soup or stew, should be divided into small portions and put in shallow containers before being refrigerated. A large cut of meat or whole poultry should be divided into smaller pieces or placed in shallow containers before being refrigerated.
- Page 26 Refrigerator & Freezer Storage Chart The shelf life depends on the temperature and exposure to moisture. Since product dates are not a guide for the safe use of a product, consult this chart and follow these tips. Milk products Product Refrigerator Freezer Milk...
- Page 27 SPECIAL FOR NEW EUROPEAN STANDARD The ordered parts in the following table can be acquired through the service provider Ordered part Provided by Minimum time required for provision Thermostat Professional maintenance At least 7 years after the model personnel was launched Temperature Professional maintenance At least 7 years after the model...
- Page 28 PARAMETERS TECHNICAL DATA Model Fresh food storage compartment volume Frozen food storage compartment volume Storage temperature Energy consumption Energy consumption ___kWh per year, based on standard test results for 24 hours. Household appliances category Energy grading EU ecolabel Defrosting type Climate class This appliance is intended to be used at an ambient temperature between _°F and _°F.
-
Page 29: Warranty
TIMING AND PROCEDURE: Before Warranty service can commence, the Original Customer must contact either (i) the retailer from whom the Original Customer purchased the Product, or (ii) Element directly, in either case for problem determination and service procedures. Valid Proof of Purchase evidencing that the Product is within the Warranty Period MUST be presented by Original Customer in order to obtain the requested Warranty service. - Page 30 United States, and only applies to Product if it was purchased and serviced in the United States. The addition of equipment or features to the Product that are not manufactured or recommended by Element could affect the intended function of the Product, and therefore may void the Warranty.
- Page 31 CONTACT US: Element, the Element Logo, and Bring it home are trademarks of Element Brand Holding, LLC. All other trademarks are the property of their respec�ve owner, who has not sponsored, endorsed, or approved this product. ©2022 Element Appliance Company, LLC. All rights reserved.
