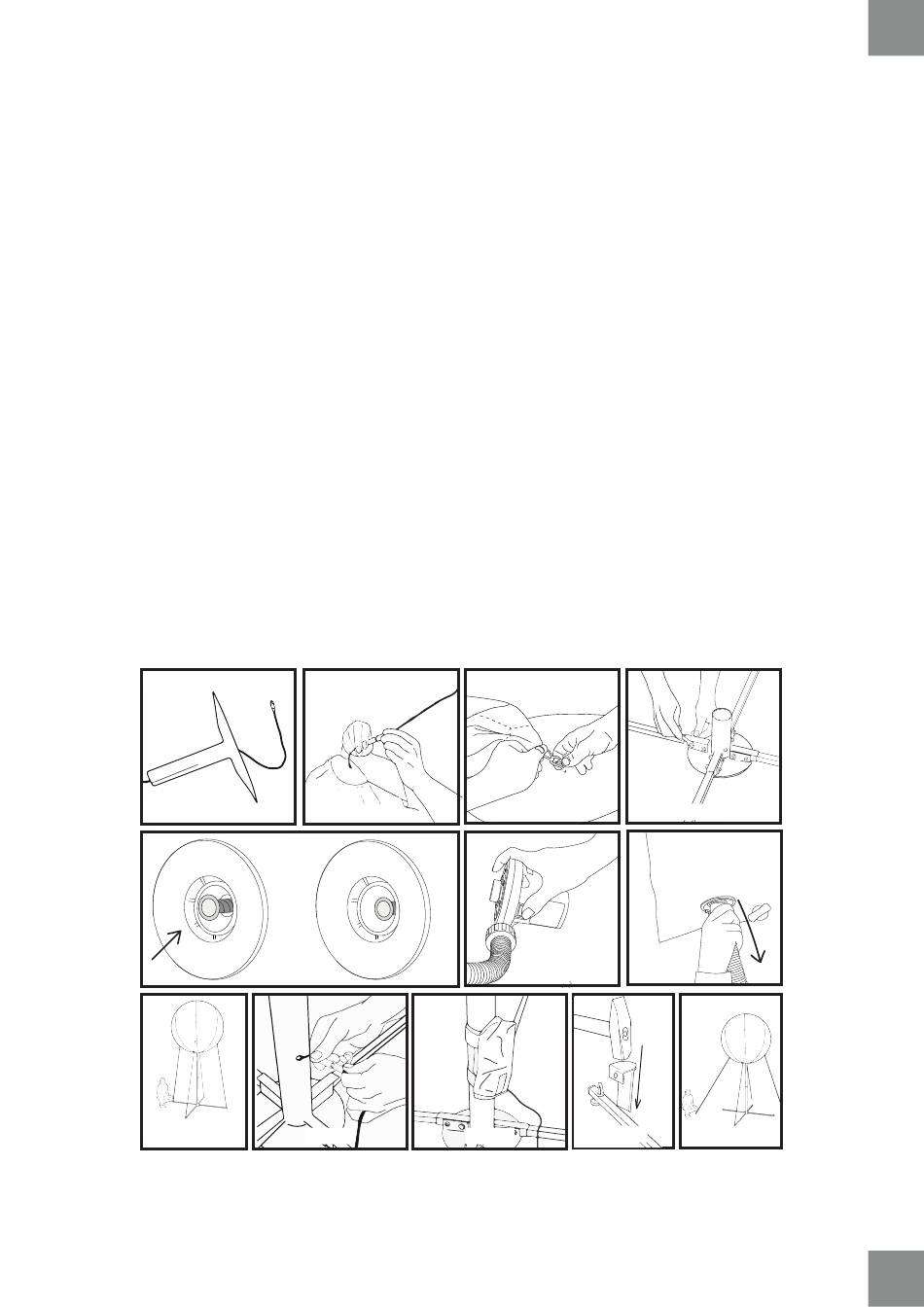

INSTRUCTION
Fig. 1
Fig. 8
www.inventini.com
1. Choose a flat even spot where you want to pitch the product.
2.
a.
If the ball has lighting pull the main power cord through the top tube
(shorter one) of the stand and the plate, so that the plug protrudes from
the center of the plate (Fig. 1). Connect the plug of main power cord to that
of the ball (Fig. 2).
b.
Clip the cover to the plate with a carabiner (Fig. 3).
3. Unfold the feet of the stand base and screw in the outer screws (Fig. 4).
4. Assemble the stand by inserting the components one by one into the other.
The following are successively: stand base with feet, long tube, short tube, plate.
5. Clip the first end of the rope to the eyelet on the side of the ball.
Repeat the action with all the ropes.
6. Make sure the pump valve is in the position CLOSED (Fig. 5).
7. Use the pump to inflate the product until it gets its shape (minimally taut) (Fig. 6).
8. Disconnect the pipe of the pump from the product, then turn the pump off
(otherwise the air will escape from product) (Fig. 7).
9.
Clip the second end of the rope to the eyelet located on the foot of the stand.
Repeat the action with all the ropes (Fig. 8).
10.
If the ball has a lighting, connect the plug of the main power cord to that of power
supply, then pin the power supply to the stand with Velcro straps (Fig. 9, Fig. 10).
When using the ball outdoors:
11. Anchor the feet of the stand with angle anchors (Fig. 11).
12. As an alternative to the attachment method described in points 9 and 11,
you can attache the second ends of the ropes to eyelets of the angle anchors
driven into the ground (Fig. 12)
Fig. 2
CLOSED
OPEN
Fig. 5
Fig. 9
Fig. 3
Fig. 6
Fig. 10
Fig. 11
ASSEMBLY
Fig. 4
Fig. 7
Fig. 12
EN
7
