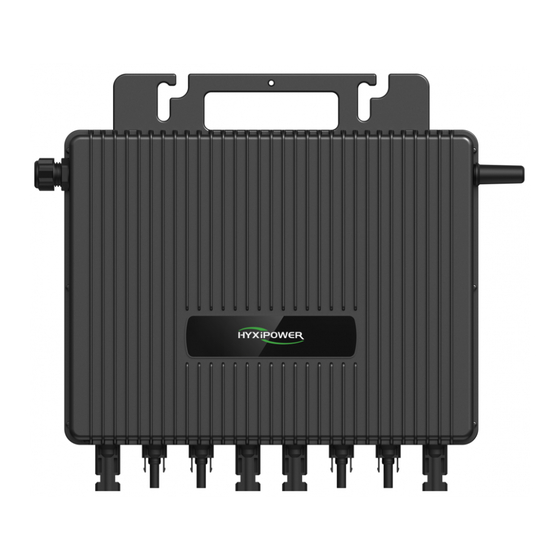

- Page 1 User Manual M1600/1800/2000-SW MICRO INVERTER Carefully read this inverter user instructions before using. Read and save these instructions.
- Page 2 ZHEJIANG HYXI TECHNOLOGY CO., LTD ( hereinafter referred to as "HYXIPOWER" ). TRADEMARKS and other HYXIPOWER trademarks are the trademarks or registered trademarks of HYXIPOWER All other trademarks mentioned herein are the properties of their respective owners.
-
Page 3: Table Of Contents
HYX-M1600/1800/2000-SW User Manual Contents Contents 1. Safety Instructions ............................1 1.1 Safety Instruction .................................1 1.2 Symbol Description ................................2 1.2.1 Symbols Used in the Manual ............................2 1.2.2 Other Symbols .................................2 1.3 Radio Wave Interference Statement ..........................2 2. Product Introduction ............................4 2.1 Photovoltaic On-Grid System ............................4 2.2 Microinverter ..................................4 2.3 4-in-1 Microinverter System ............................5 2.4 Communication Technology ............................5... - Page 4 HYX-M1600/1800/2000-SW User Manual Contents 5.4 End-of-life Disposal ................................18 6. Human-Computer Interaction ........................19 6.1 Installing the App ................................19 6.2 APP User manual ................................19 6.3 System debugging ................................19 7. Appendix ................................20 7.1 Technical Specifications ..............................20 7.2 Wiring Diagram .................................21 7.3 Installation Map ................................22 7.4 Contact Information ...............................
-
Page 5: Safety Instructions
• Before disconnecting the microinverter from the solar module, the AC side power grid must be disconnected first. • If the microinverter does not work normally, contact after sales services of HYXIPOWER. Unauthorized destruction or opening of the microinverter will not be covered by warranty. -
Page 6: Symbol Description
HYX-M1600/1800/2000-SW User Manual 1. Safety Instructions 1.2 Symbol Description 1.2.1 Symbols Used in the Manual DANGER • Indicates dangerous conditions that might cause fatal electric shock risk, serious personal injury or fire. CAUTION • To avoid potential safety hazards, the corresponding instructions must be strictly followed. - Page 7 HYX-M1600/1800/2000-SW User Manual 1. Safety Instructions • Relocate the receiving antenna away from other devices. • Ncrease the distance between the microinverter and the antenna. • Use metal or concrete materials to separate the microinverter from the antenna. • Consult a local supplier or skilled radio technician.
-
Page 8: Product Introduction
2.1 Photovoltaic On-Grid System The on-grid system diagram of HYX-M2000-SW series microinverter is as follows: 2.2 Microinverter HYX-M1600-SW, HYX-M1800-SW, HYX-M2000-SW series are 4-in-1 microinverters, which can connect four photovoltaic modules. They are module-level photovoltaic inverters with module- level monitoring function. -
Page 9: 4-In-1 Microinverter System
1-in-1 2-in-1 4-in-1 This manual mainly introduces Hyxipower 4-in-1 microinverter series. This series of HYX-M2000-SW has outstanding performance in 4-in-1 series, with an output power up to 2000VA. Each microinverter can be connected to four photovoltaic modules. It has independent MPPT and module-level data monitoring functions, high power generation, easy and convenient maintenance features. -
Page 10: Inverter Size And Termnial Instruction
HYX-M1600/1800/2000-SW User Manual 2. Product Introduction 2.6 Inverter Size and Termnial Instruction A： AC Branch Connector B： Antenna C： DC terminal... -
Page 11: Installation
HYX-M1600/1800/2000-SW User Manual 3. Installation 3. Installation Each microinverter is installed on a mount just below the solar module panel. The low-voltage DC line on the panel side of the solar module can be directly connected to the microinverter, but it must be protected from direct sunlight, rain, snow, ultraviolet rays, etc. A clearance of at least 20mm should be left around the microinverter enclosure to ensure ventilation and heat dissipation. -
Page 12: Installation Procedures
HYX-M1600/1800/2000-SW User Manual 3. Installation 3.3 Installation Procedures 3.3.1 How to Make a T-Junction Bus • Step 1: Prepare several sections of T-junction connecting wires according to the number of microinverters to be installed on site. • Step 2： Removing the T-junction cable at the end. •... -
Page 13: Microinverter Installation
HYX-M1600/1800/2000-SW User Manual 3. Installation • Step 4: Secure the T-junction cable Put the T-junction connecting wire on the guide rail and fix it with cable tie. CAUTION • Nut tightening torque： 2.5±0.5N·m， Screw tightening torque： 0.8±0.1N·m， Do not over-tighten, Do not damage the sealing ring in the T-junction connector during assembly and disassembly. -
Page 14: Connect Microinverter With T-Junction
HYX-M1600/1800/2000-SW User Manual 3. Installation 3.3.3 Connect Microinverter with T-junction Insert the output AC feeder connector of the microinverter into the T-junction bus connector until hearing a "click" sound. Ensure that the installation is tight. 3.3.4 Connect PV module • Step 1： Install the PV module above the microinverter. •... -
Page 15: Draw Installation Map
• Step 2: Close the AC circuit breaker of each microinverter branch, and the system will automatically generate power after about 2 minutes. • Step 3: Set up monitoring system on Hyxipower Smart PV Cloud Platform. 3.3.7 Configure the Gateway •... - Page 16 HYX-M1600/1800/2000-SW User Manual 3. Installation Method 2: After login A: Log in to the app and click the "Me". B: Click the "Tool". C: Click the "Wi-Fi Config". • Step 2： Choose Wi-Fi connection method, then Search for microinverter Wi-Fi:MI- XXXXXXXXXXX, enter the Wi-Fi default password: 12345678.
-
Page 17: Fault Clearance
HYX-M1600/1800/2000-SW User Manual 4. Fault Clearance 4. Fault Clearance Only qualified professionals can implement the following troubleshooting operations when the microinverter solar system is not working properly. 4.1 Status indication and error reporting 4.1.1 Start indicator When the DC side of the microinverter is powered on for the first time : •... - Page 18 HYX-M1600/1800/2000-SW User Manual 4. Fault Clearance Fault code Fault description Solution PV-1 & PV-2 terminal 1. Check if the terminal connect to the PV 3091 connection fault module. 3092 PV-3 & PV-4 terminal 2. Check if the port is properly connected if connection fault connection is fine.
- Page 19 HYX-M1600/1800/2000-SW User Manual 4. Fault Clearance Fault code Fault description Solution 1. If the input DC current is too high, please ensure that the input photovoltaic module current is not higher than the maximum input PV1- PV4 Primary side current of the microinverter. 3097 hardware overcurrent 2.
-
Page 20: On-Site Inspection (Qualified Installers Only)
• Step 6: Verify whether the DC voltage of the solar module is within the range specified in the technical parameter table of the user manual. • Step 7: If the problem persists, please call Hyxipower's customer support number. Precautions for routine maintenance: DANGER •... -
Page 21: Maintenance Guide
HYX-M1600/1800/2000-SW User Manual 5. Maintenance Guide 5. Maintenance Guide 5.1 Routine maintenance 1、 Only authorized personnel are allowed to perform maintenance operations and are responsible for reporting abnormal conditions. 2、 Wear personal protective equipment for maintenance operations. 3、 In normal operation, check the environment. Make sure that the environment does not meet the normal working requirements of the microinverter due to time changes, and ensure that the microinverter is not exposed to harsh weather and is not covered by foreign objects. -
Page 22: End-Of-Life Disposal
HYX-M1600/1800/2000-SW User Manual 5. Maintenance Guide contact the supplier or authorized dealer of Hxyi to apply for repair/replacement and consult the relevant procedures. The storage temperature of the microinverter should be maintained between -40° C to +85° C. 5.4 End-of-life Disposal If the device is no longer in use or needs to be stored for a long time, please make sure that the packaging is intact. -
Page 23: Human-Computer Interaction
Scan the following QR code to download and install the App according to the prompt information: 6.2 APP User manual For more information on using the HYXiPower APP, please refer to the user manual "HYXiPower APP". 6.3 System debugging For system configuration and debugging, please refer to the user manual "HYXipower Local... -
Page 24: Appendix
HYX-M1600/1800/2000-SW User Manual 7. Appendix 7. Appendix 7.1 Technical Specifications Product Model HYX-M1600-SW HYX-M1800-SW HYX-M2000-SW Input (DC) Typical module compatibility 320 - 600 ⁺ W 360 - 670 ⁺ W 400 - 670 ⁺ W Min./Max. MPPT voltage 16 - 60V... -
Page 25: Wiring Diagram
HYX-M1600/1800/2000-SW User Manual 7. Appendix Product Model HYX-M1600-SW HYX-M1800-SW HYX-M2000-SW General Data Operating ambient temperature -40 to +65℃ Dimensions (W*H*D) 310*236*35.5mm Enclosure rating IP67 Cooling Natural convection - No fans Weight 4.8kg Relative humidity 0-100% RH Class of pollution Work environment... -
Page 26: Installation Map
HYX-M1600/1800/2000-SW User Manual 7. Appendix 230V Single Phase Grounding Map 7.3 Installation Map... -
Page 27: Contact Information
HYX-M1600/1800/2000-SW User Manual 7. Appendix 7.4 Contact Information If you have any questions about this product, please contact us ! In order to provide you with faster and better after-sales service, we need your assistance to provide the following information: Device model：... - Page 28 Version: v1.0 2023 The manual is subject to change without notice while the product is being improved. Zhejiang Hyxi Technology Co., Ltd. 9-10F, Building 3, Jiuyao Commercial Center, Zhuantang Sub-district, Xihu District, Hangzhou, Zhejiang Province, China, 310008 support@hyxipower.com www.hyxipower.com...
- Page 29 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 30 IC Warning This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
