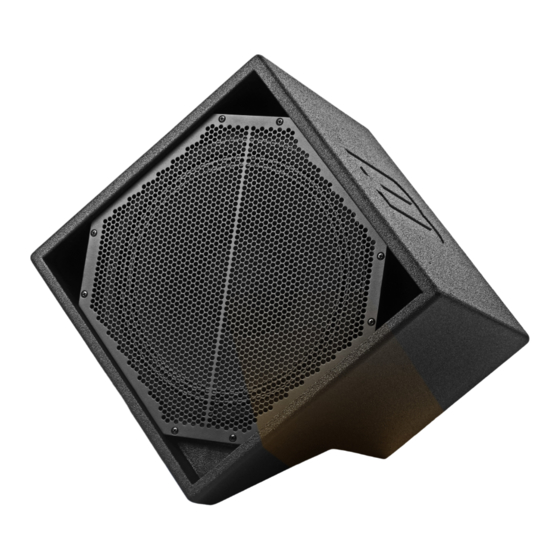

    Important Notes FCC Compliance Notice Este manual está disponible en español en nuestro sitio web en bassboss.com/support The DiaMon-MK3 is a high-output, point-source loudspeaker that can make your life easier thanks to its remarkably small size. This very compact and portable system provides impressive output without ever having to lift a large, heavy cabinet.
  • Page 3 14” x 14” x 11” and weigh less than 30 pounds. The proprietary BASSBOSS processing ensures exceptional sound quality thanks to its premium quality, high-fidelity electronics. Its ultra-low noise CODECS, 96kHz sampling rate processor and high- resolution amplification are some of the finest in the industry.
  • Page 4: Quick Start Guide

    Provided the cabinets are physically aligned, any BASSBOSS sub can be combined with any BASSBOSS top and their outputs will be phase-coherent. This means no cancellations and no gaps in the response at the crossover frequency, regardless of which preset is selected.
  • Page 5: Outboard Processor Warning

    When your speaker is powered on, you’ll see all the indicator lights turn on and then show the system’s current status. If you need to share circuits, don’t exceed two BASSBOSS single-driver subwoofers or one double- driver subwoofer along with one or two top speakers on the same circuit.
  • Page 6: Operation And Controls

    1. Each preset includes all necessary low-pass and high-pass filters at the selected frequencies and all the necessary alignments to maintain phase coherence in the crossover range when used with other BASSBOSS powered speakers. Presets help you fine-tune the balance between the subwoofers and top speakers. More details on the different combinations are on page 7.
  • Page 7: How To Use The Presets

    It’s recommended that you try several, if not all, combinations when first setting up to determine which combination works best in each environment. You will likely choose different combinations for wood floors, concrete floors and outdoors. Experiment with different combinations to dial in your preferred combination in different environments. bassboss.com 7...
  • Page 8: Pre-Installed Onboard Presets

    Additional presets are accessible through software. See “How to Use the Presets” section for more information. New presets will be available for download at bassboss.com/software as they are developed. To be notified when new presets are released register your gear at: www.bassboss.com/support Instructions on linking to your computer for remote monitoring and control: www.bassboss.com/software...
  • Page 9: Power Distribution

    With optional True 1 TOP link cables, power can be linked between subs and tops. Using these, DiaMons can be powered via the pass-through power connections all BASSBOSS subwoofers. (Do not connect equipment that will draw more than 15A on a single power outlet.) Contact your salesperson for information about ordering linking power cables.
  • Page 10: Specifications

    29.76 lbs (13.5kg) Shipping Weight: 35 lbs (15.9kg) Exterior Finish: B lack weatherproof bonded high-pressure polyurea Grill: Perforated, powder-coated Steel Pole Socket: 35mm, Steel Optional Cover: Heavy-duty padded nylon transport cover and carrying bag Online Information: bassboss.com/diamon Our proactive philosophy causes specifications to be subject to change whenever improvements are made. DiaMon-MK3 User Manual...
  • Page 11: Warranty

    BASSBOSS personnel. Service will be performed upon the return of the failed unit, together with its original sales receipt or other proof of purchase, to BASSBOSS or an Authorized Service Facility. Purchaser is responsible for all costs of shipping and handling. Cosmetic damage is specifically excluded from this warranty.
  • Page 12: Safety Information

    Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual. Contact your dealer or BASSBOSS support if the product is not functioning properly. For installation purposes BASSBOSS strongly recommends that this product be installed by a qualified, professional installer who can ensure correct installation and certify that it is installed in compliance with the regulations in force.
  • Page 13: Important Notes

    Manufacturer True Lee Loudspeakers | BASSBOSS 2028 E Ben White Blvd. #240-8220 Austin TX 78741 We declare, under our sole responsibility, that to the best of our knowledge to which this declaration relates, our products are in conformity with the applicable requirements.
  • Page 14 Single 12” DiaMon-MK3 Powered Subwoofer Need more assistance? We’re here to help. bassboss.com/support...
