Summary of Contents for BassBoss DiaMon 112

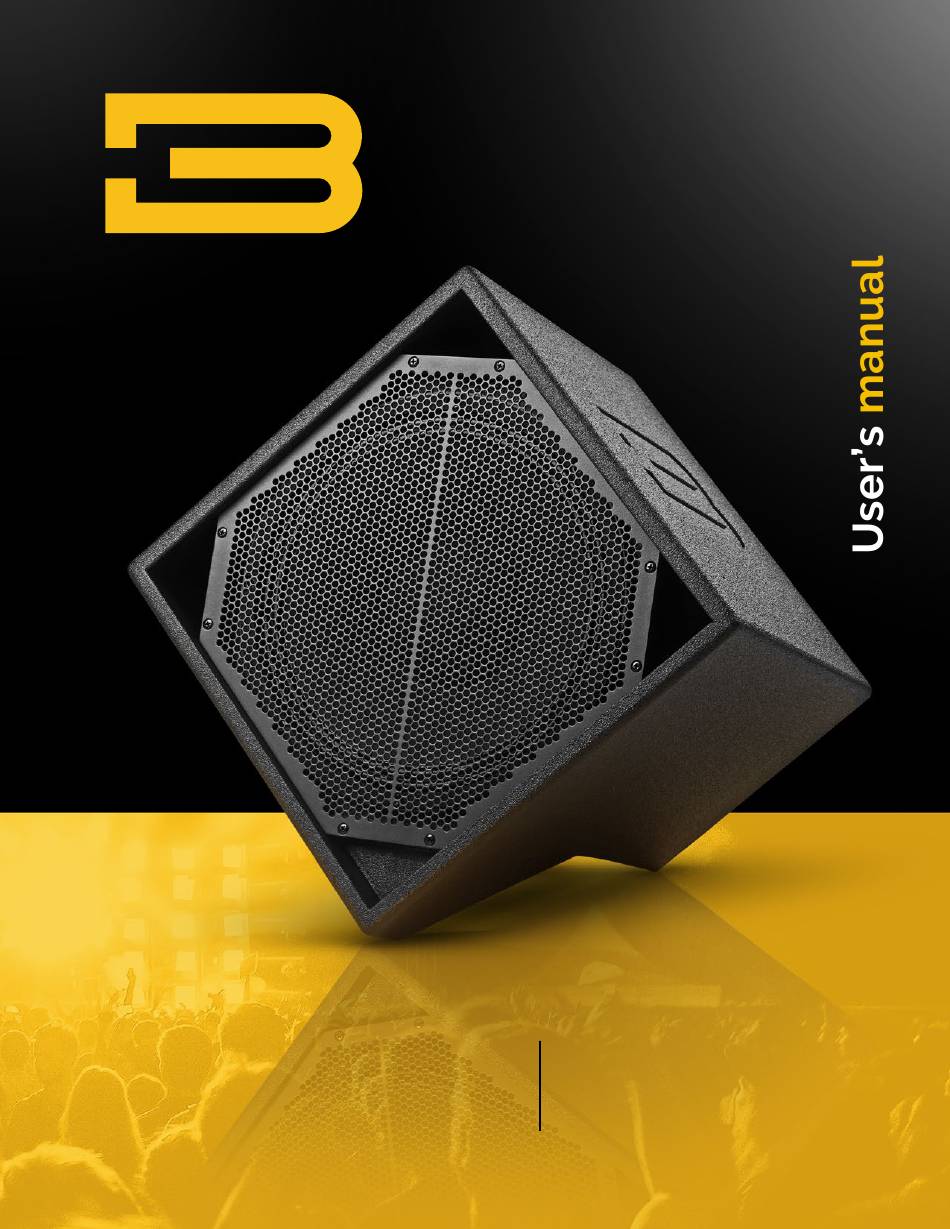

- Page 1 DiaMon 112 12”Powered MicroMain...
- Page 2 Photos Description Specifications Setup Instructions Controls Table of Contents Preset Functions Troubleshooting Safety Information Warranty FCC Compliance Notice bassboss.com...

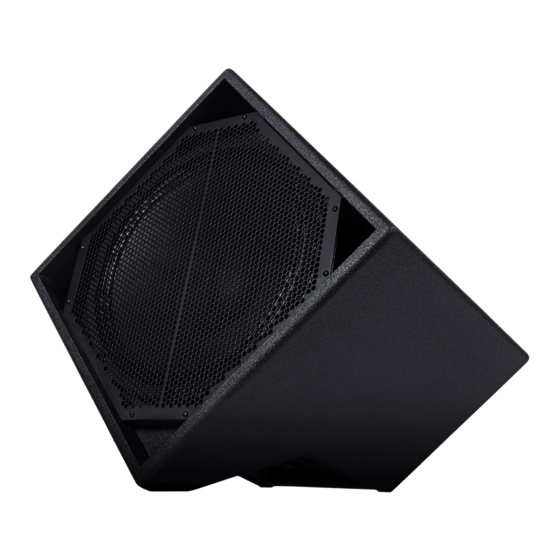

- Page 3 The DiaMon 112 has a unique angle-cut corner that allows it to be placed on a table and used as a DJ monitor without pole- mounting. It also has a securely attaching threaded pole-mounting system for when it is used attached to a socket-equipped BASSBOSS subwoofer or on a similarly equipped tripod stand.
- Page 4 *Peak output is calculated using “industry standard” techniques. These calculation methods create theoretical specifications that are inflated over what can actually be achieved. BASSBOSS real world output specifications are provided as “Maximum Sustained Output” ratings, which reflect actual measured, continuous output levels.
- Page 5 Rotate the input attenuator clockwise to achieve the desired sound level. Controls: Preset Select: The DiaMon 112 compact monitor loudspeaker’s DSP is supplied with 4 presets. All four presets contain limiter settings to ensure safe operation of the unit. The presets are accessed in sequence via the preset select button on the bottom of the unit.
- Page 6 It is recommended to run signal to the nearest box first and patch to the next nearest box in sequence. It is recommended to run the DiaMon 112 as the last box in the sequence when it is mounted on a pole or tripod stand.
- Page 7 BASSBOSS personnel. This warranty does not cover labor other than that authorized and performed by BASSBOSS personnel. Service will be performed upon the return of the failed unit, together with its original sales receipt or other proof of purchase, to BASSBOSS or an Authorized Service Facility.
- Page 8 • Consult the dealer or an experienced radio/TV technician for help. EC Declaration of Conformity Manufacturer: True Lee Loudspeakers | BASSBOSS 2620 S. Hill St. Los Angeles CA 90007 We declare that under our sole responsibility the product: DV12-MKII MicroMain...
