Summary of Contents for BassBoss MK3 Series

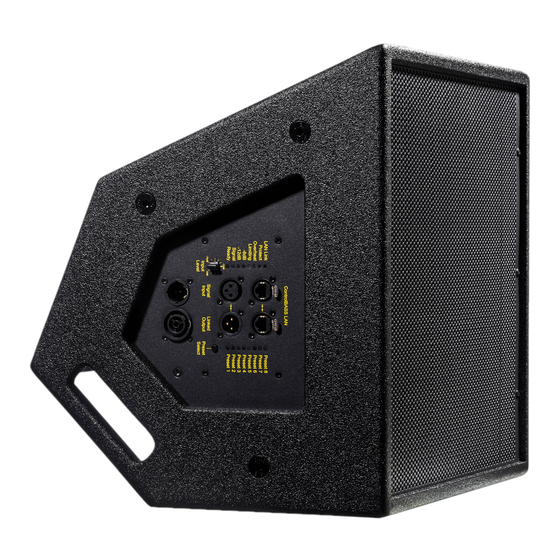

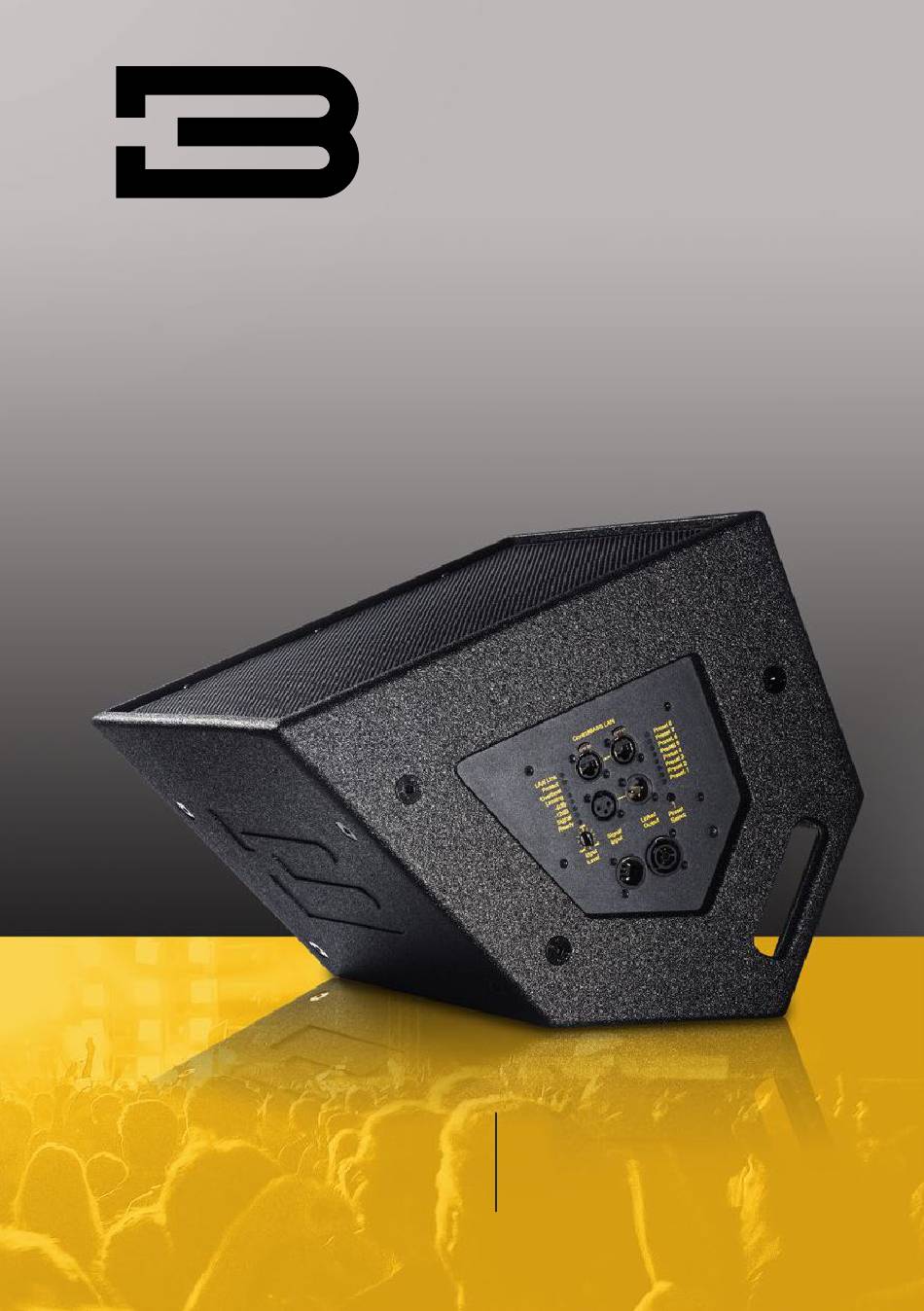

- Page 1 User ManUal Single 12” CCM12-MK3 Powered Monitor...
-
Page 2: Table Of Contents
Warranty Safety Information Important Notes FCC Compliance Notice Este manual está disponible en español en nuestro sitio web en bassboss.com/support Overview The CCM12-MK3 is a Compact Coaxial Monitor with a host of features intended for professional performers which also functions as an excellent main or fill monitor for venues with limited space. C = Compact - Small footprint, small frontal area, lightweight. The front of the cabinet is 50% smaller than most 12”... - Page 3 LF output with limited SPL and to maximize SPL when used with a subwoofer. The proprietary BASSBOSS processing ensures exceptional sound quality thanks to its premium quality, high-fidelity electronics. Its ultra-low noise CODECS, 96kHz sampling rate processor and high-resolution amplification are some of the finest in the industry.
-
Page 4: Quick Start Guide
Provided the cabinets are physically aligned, any BASSBOSS sub can be combined with any BASSBOSS top and their outputs will be phase-coherent. This means no cancellations and no gaps in the response at the crossover frequency, regardless of which preset is selected. -
Page 5: Outboard Processor Warning
Outboard Processing Warning Third-party outboard processing (Drive Racks, etc.) are not recommended and are not necessary with BASSBOSS MK3 series powered loudspeakers. Outboard processing will not improve, and will very likely degrade the sound quality, reliability and output capacity. Using external processing inappropriately can cause driver damage that is not covered by warranty. -
Page 6: Operation And Controls
1. Each preset includes all necessary low-pass and high-pass filters at the selected frequencies and all the necessary alignments to maintain phase coherence in the crossover range when used with other BASSBOSS powered speakers. Presets help you fine-tune the balance between the subwoofers and top speakers. More details on the different combinations are on page 7. -
Page 7: How To Use The Presets
Mounted For Ceiling Mounting, use : • Preset 5 (Full-Range) • Preset 6 (High-passed) Flown or Truss Mounted - Flown or Truss For Flown or Truss Mounted, use : Mounted • Preset 7 (Full-Range) • Preset 8 (High-passed) bassboss.com 7... -
Page 8: Pre-Installed Onboard Presets
Additional presets are accessible through software. See “How to Use the Presets” section for more information. New presets will be available for download at bassboss.com/software as they are developed. To be notified when new presets are released register your gear at: www.bassboss.com/support Instructions on linking to your computer for remote monitoring and control: www.bassboss.com/software... -
Page 9: Power Distribution
Connect no more than one 5000W or two 2500W subwoofer amplifiers to a single 20A circuit. If you need to share circuits don’t exceed two BASSBOSS single-driver subwoofers or one double-driver subwoofer along with one or two top speakers on the same circuit. -
Page 10: Specifications
29.76 lbs (13.5kg) Shipping Weight: 35 lbs (15.9kg) Exterior Finish: B lack weatherproof bonded high-pressure polyurea Grill: Perforated, powder-coated Steel Pole Socket: 35mm, Steel Optional Cover: Heavy-duty padded nylon transport cover and carrying bag Online Information: bassboss.com/ccm Our proactive philosophy causes specifications to be subject to change whenever improvements are made. CCM12-MK3 User Manual... -
Page 11: Warranty
BASSBOSS personnel. This warranty does not cover labor other than that authorized and performed by BASSBOSS personnel. Service will be performed upon the return of the failed unit, together with its original sales receipt or other proof of purchase, to BASSBOSS or an Authorized Service Facility. Purchaser is responsible for all costs of shipping and handling. -
Page 12: Safety Information
Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual. Contact your dealer or BASSBOSS support if the product is not functioning properly. For installation purposes BASSBOSS strongly recommends that this product be installed by a qualified, professional installer who can ensure correct installation and certify that it is installed in compliance with the regulations in force. -
Page 13: Important Notes
Manufacturer True Lee Loudspeakers | BASSBOSS 2028 E Ben White Blvd. #240-8220 Austin TX 78741 We declare, under our sole responsibility, that to the best of our knowledge to which this declaration relates, our products are in conformity with the applicable requirements. - Page 14 Single 12” CCM12-MK3 Powered Monitor Need more assistance? We’re here to help. bassboss.com/support...
