10. 規格
FM 調諧器
整機
頻率范圍......87.0 MHz 到 108 MHz
電源電壓......14.4 V DC
實際靈敏度......11 dBf
50 dB 無噪聲靈敏度......17 dBf
耗電......小于 15 A
相隔信道專一度......75 dB
揚聲器阻抗......4Ω（4Ω 到 8Ω）
立體聲分離度 (1 kHz)......35 dB
重量......1.5 kg
頻率響應 (± 3 dB)......30 Hz 到 15 kHz
尺寸
......寬 178 mm x 高 50 mm x 深 155 mm
AM 調諧器
頻率范圍......531 kHz 到 1602 kHz
實際靈敏度......25 μV
(178 mm)
磁帶
抖晃率 (WRMS)......0.08%
信道分離 (1 kHz)......45 dB
信噪比......70 μs
（二氧化鉻､鉻化鐵､金屬帶） : 58 dB
(188 mm)
頻率響應 (± 3 dB)
120 μs（普通）......30 Hz 到 18 kHz
70 μs（二氧化鉻､鉻化鐵､金屬帶）
注意︰
......30 Hz 到 20 kHz
• 本規格符合 EIA 標準。
• 由于產品更新的需要﹐ 規格和設計若有變更﹐ 恕不
音頻
另行通知。
最大功率輸出......200 W（50 W x 4 聲道）
連續平均功率輸出......17 W x 4﹐接 4Ω 20 Hz
到 20 kHz, 1% THD
低音控製 (30 Hz)......± 13 dB
高音控製 (10 kHz)......± 10 dB
線路輸出......1.8 V （ 在CD A/C 1kHz 10 kΩ 狀態）
Clarion Co., Ltd.
All Rights Reserved. Copyright © 2002: Clarion Co., Ltd.
2002/11 (C/A)
（10.8 V 到 15.6 V 均可）
(50 mm)
(58 mm)

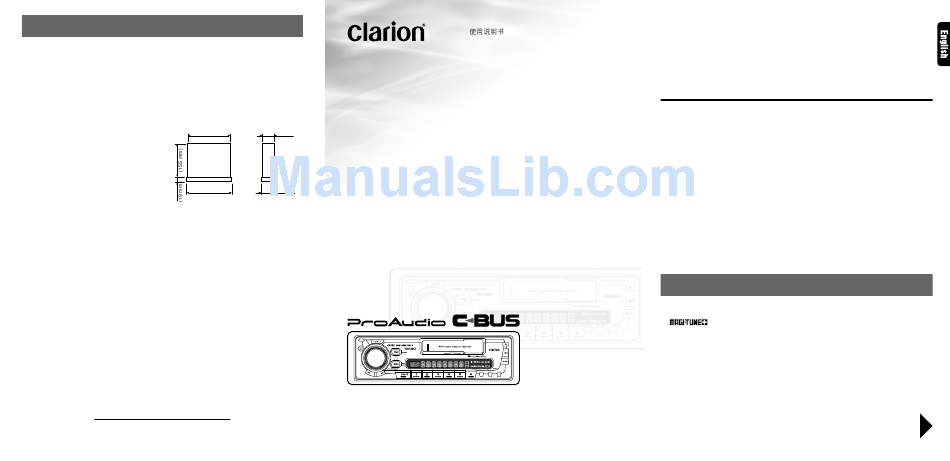

PE-1712K-E
280-7890-00
Owner's manual
AX430
AM/FM CASSETTE PLAYER
WITH CD CHANGER CONTROL
•
AM/FM 盒式放音機
帶有 CD 換片機控製
Thank you for purchasing the Clarion product.
* Please read this owner's manual in its entirety before operating this equipment.
* After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).
* Check the contents of the enclosed warranty card and keep it carefully with this manual.
Contents
1. FEATURES ................................................................................................................................. 2
2. CONTROLS ................................................................................................................................ 3
3. NOMENCLATURE ...................................................................................................................... 4
Names of Buttons ....................................................................................................................... 4
4. PRECAUTIONS .......................................................................................................................... 4
5. DCP ............................................................................................................................................. 5
6. REMOTE CONTROL .................................................................................................................. 6
Inserting the Batteries ................................................................................................................. 6
Functions of Remote Control Unit Buttons ................................................................................ 7
7. OPERATIONS ............................................................................................................................ 8
Basic Operations ........................................................................................................................ 8
Radio Operations ........................................................................................................................ 9
Tape Operations ....................................................................................................................... 11
CD Changer Operations ........................................................................................................... 12
8. IN CASE OF DIFFICULTY ....................................................................................................... 13
9. ERROR DISPLAYS .................................................................................................................. 13
10. SPECIFICATIONS .................................................................................................................... 14
1. FEATURES
I DIN Chassis with Detachable Control Panel
I Z-Enhancer with 3 Mode Sound Selector
I
FM Reception System
I AM/FM Bands-1 AM, 3 FM/18 FM/6 AM Touchbutton Memory
I Full Logic Tape Transport with True Function
I Auto Reverse with Azimuth Adjust
I Auto Metal Tape EQ
I Multi-Color LC Display
I 2-Channel RCA Line Level Output with Fader Control
I 200 W (50 W × 4) Maximum Power Output
I Infrared Remote Control
Be sure to unfold and read the next page.
請務必展開並閱讀下頁。
