Clarion ARX2371R Service Manual

Clarion Co., Lid.
~ ARX2371R ~
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo,'150 Japan Tel: 03-3400-1121
Service Dept.- 50 kamitoda, Toda-shi,Saitama,335 Japan Tel: 048-443-1111 FAX:048-433-6996
Service
~ RDS-EON/FM-MPX Radio.
Cassette Combination With
CD Changer Control

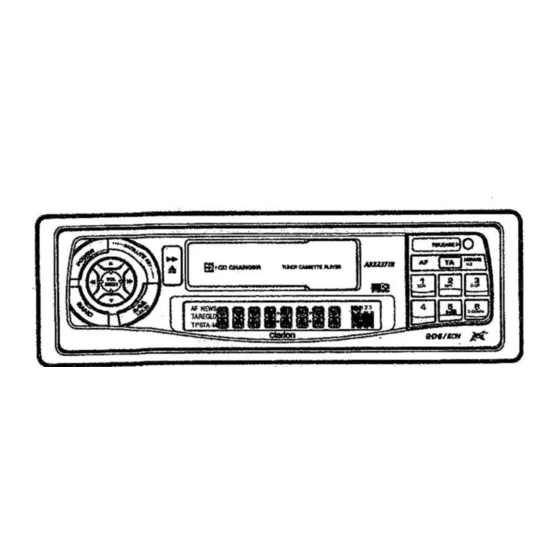

woder ARX2371R
(PE-1 536E-A/Iilumination:Amber)
(PE-1536E-B/Illumination:Green)
RDS-EON/FM-MPX Radio
Cassette Combination
Model ARX 137 IR | |
(PE-1538E-A//llumination:Amber)
(PE-1538E-B/Iliumination:Green)
igi SPECIFICATIONS
Radio section
Tuning system: PLL synthesizer tuner
Receiving frequencies:
FM 87.5 to 108MHz
Tape deck section
Cassette type: Compact audio cassette
Frequency response: 30Hz to 15kHz+3dB
Wow & flutter: 0.15%(WRMS)
S/N ratio: 52dB
Tape type: Normal
_ General
Max.power output: 4X30W
Effective power output:
4X 14W(1% THD)
Power supply voltage: 14V DC(10.8 to 15.6V allowable),
| negative ground |
Power consumption: Less than 10A
- Speaker impedance: 40(4 to 8Q allowable)
Line output: 1.8V |
(CD changer 1kHz,10kQ)
~1-
Auto antenna rated current:
0.5A or less
Weight: 1.3kg
Dimensions: 178(W) X50(H)X152(D)mm
* Specifications and design are subject to change with-
out notice for further improvement.
~ MCOMPONENTS|
_PE-1536E-A / PE-1536E-B
PE-1538E-A / PE-1538E-B
Main unit —_—————— 1
Universal mounting bracket 300-9677-00 1
Parts bag
a
Hook plate 331-0488-00 2
Cord clamp(ARX2371R Only) 335-0833-07 1
Rubber cap 345-3653-01 |
Screw 716-0726-01 1
