Purmo Unisenza Installation And User Manual
Hide thumbs
Also See for Unisenza:
- Installation and user manual (28 pages) ,
- Installation and user manual (28 pages)
Related Manuals for Purmo Unisenza
Summary of Contents for Purmo Unisenza

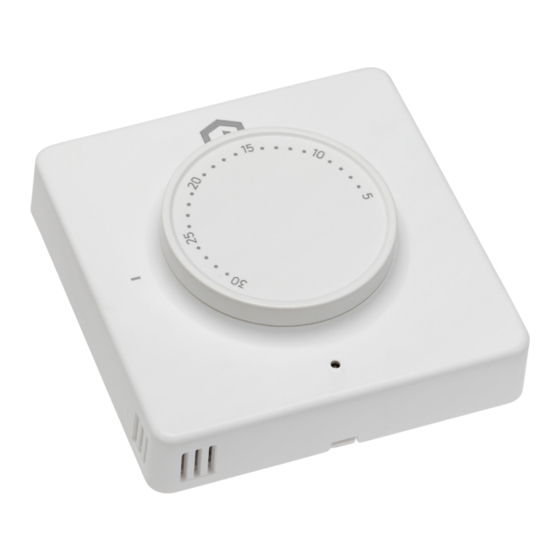

- Page 1 Installation and user manual Riscal./raffred. Modalità notturna ridotta Heating and Night set Heat /Cool Night set back mode Cooling back mode Unisenza - Dial Thermostat...
- Page 3 Unisenza - Dial Thermostat Installation and user manual Index SAFETY WARNING ........................................3 TECHNICAL SPECIFICATIONS ....................................3 REFERENCE STANDARDS .....................................3 INSTALLATION AND ELECTRICAL CONNECTION ............................4 Wall fixing .............................................4 Wiring diagram ...........................................4 4.2.1 Thermostat terminals description ..................................4 4.2.2 Type of wirings ..........................................5 4.2.3 Connection to the Wiring Centre..................................6 USER GUIDE ..........................................6...
- Page 4 Unisenza - Dial Thermostat Installation and user manual 4 INSTALLATION AND ELECTRICAL CONNECTION Wall fixing N NSB/CO SWL N NSB/CO SWL CLIK CLIK N NSB/CO SWL N NSB/CO SWL CLIK CLIK N NSB/CO SWL N NSB/CO SWL 4.2 Wiring diagram 4.2.1 Thermostat terminals description...
- Page 5 Unisenza - Dial Thermostat Installation and user manual 4.2.2 Type of wirings Functions Jumper Wiring diagram Heating and cooling N NSB/CO SWL N NSB/CO SWL function N NSB/CO SWL N NSB/CO SWL N NSB/CO SWL No Live on CO/NSB terminal: Heating with...
- Page 6 Unisenza - Dial Thermostat Installation and user manual 4.2.3 Connection to the Wiring Centre Dial Thermostat N NSB/CO SWL Wiring Center Zone 1 to 10 (5) Zone 1 to 10 Note: - CO connection is optional. It’s needed to use change over function. (Futher explanation in Wiring center manual).
- Page 7 Unisenza - Dial Thermostat Installation and user manual Setting the temperature setpoint Decrease temperature Increase temperature Operating status indicator Red led On - Heating Blue led On - Cooling 6 WEEE DIRECTIVE APPLICATION - DIRECTIVE 2012/19 / EU The crossed-out wheeled bin symbol indicates that within the European Union all electrical and electronic products at the end of their useful life must be collected separately from other waste.
- Page 8 Every care has been taken in the creation of this document. No part of this document may be reproduced without the express written consent of Purmo Group. Purmo Group accepts no responsibility for any inaccuracies or consequences arising from the use or...
