Witschi ProofMaster Operating Instructions Manual

Hide thumbs Also See for ProofMaster:
Table of Contents

Advertisement

Quick Links

Download this manual
®
®
ProofMaster
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProofMaster and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Witschi ProofMaster

Summary of Contents for Witschi ProofMaster

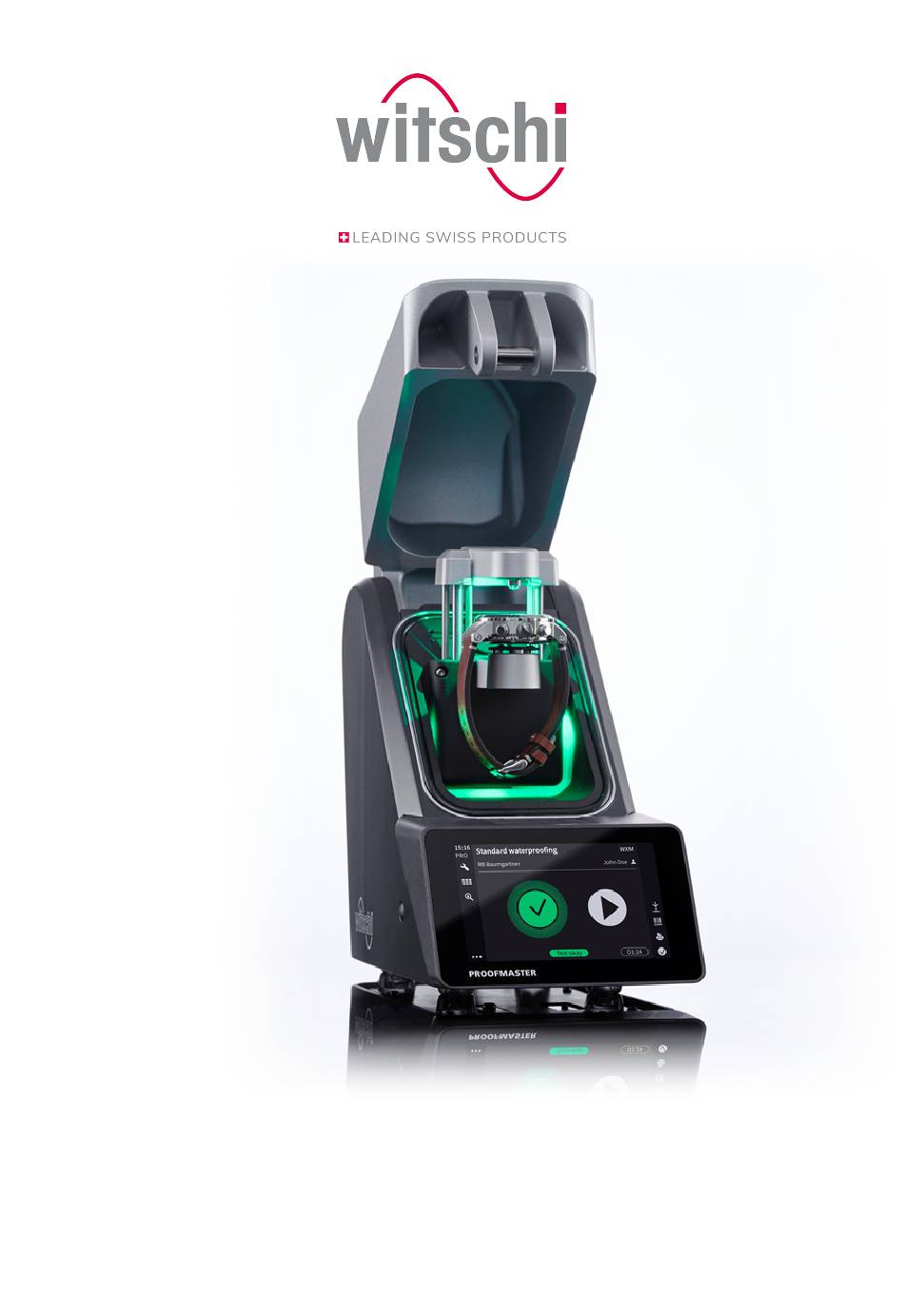

  • Page 1 ® ® ProofMaster Operating instructions...
  • Page 2 Copyright Reproduction of this document in whole or in part is not permitted. Without the prior written consent of Witschi Electronic AG, no section may be copied, edited or electronically reproduced, transmitted or recorded on magnetic media or in any other way.

  • Page 3: Table Of Contents

    Requirements regarding the installation site ....................Working area of the operator........................... List of equipment..............................Initial operation ..............................3.8.1 Current..............................3.8.2 Compressed air ..........................3.8.3 Thermal printer........................... 3.8.4 Network ..............................Description ................................Proofmaster................................Included accessories ............................Required accessories ............................28.03.2022 3 / 112...
  • Page 4 Identifying the tests .......................... Measurement results ............................5.3.1 Displaying test results ........................5.3.2 Selecting the results display ......................5.3.3 Access to results (ProofMaster PRO) ..................5.3.4 Sorting results (ProofMaster PRO)....................5.3.5 Deleting measurement results (ProofMaster PRO) ............... LeakFinder (ProofMaster PRO) ........................Programming................................
  • Page 5 7.4.2 Start by pressing the bell cover....................7.4.3 Sensor lighting............................ 7.4.4 Quiet pressure release........................7.4.5 Unit of leak rate..........................User management (ProofMaster PRO) ......................7.5.1 Administrator and user modes ..................... 7.5.2 Activating user mode ........................7.5.3 Activating administrator mode..................... 7.5.4 Changing the password........................
  • Page 6 Table of contents 10 Data sheet................................109 6 / 112 28.03.2022...

  • Page 7: General Information

    These instructions enable safe and efficient handling of the ProofMaster leak tightness testing device (referred to in the following as "device" or "ProofMaster"). These instructions are an integral part of the device and must be kept near the device so that it can be accessed by personnel at all times.

  • Page 8: Technical Support

    General information Technical support Rating plate The rating plate of the ProofMaster is located on the reverse of the device and contains the following information: • Manufacturer • Device name • Type • Serial number • Year of manufacture Technical support inquiries...

  • Page 9: Versions

    There are two potential software versions for the ProofMaster: • ProofMaster and • ProofMaster PRO. The ProofMaster PRO software version has the widest range of functions. All functions are described in the operating instructions. Differences between the two software versions are indicated by (ProofMaster PRO).

  • Page 10: Safety

    Safety Safety This section provides an overview of all the important safety aspects that ensure personal protection and safe and trouble-free operation. The relevant sections contain additional warnings on the various tasks. Mandatory All safety and protection regulations described here must be read and observed in order to avoid damage to equipment, persons and the environment.

  • Page 11: Proper Use

    You can also use the ProofMaster to build up positive pressure in the case of a leaky watch to then find the leak by testing it in water.

  • Page 12: Safety Sign

    2.3.1 Labels on the device The stickers listed below are affixed to the ProofMaster. Calibration of the The sticker on the underside of the device shows when the device was last calibrated.
  • Page 13 Safety CAUTION Risk of injury from compressed air! If compressed air escapes uncontrolled, there is a risk of injury. • Take care when working on the compressor or the compressed air hoses. Prohibition Do not exceed the maximum supply pressure of 12 bar! Device components could otherwise burst.
  • Page 14 Caution - material Material damage due to short circuit! Damage to the insulation on the power cord or the power supply unit can result in a short circuit and damage the ProofMaster. Prohibition Never immerse the device in water! It is not designed for immersion.
  • Page 15 Prohibition Never open the housing yourself! Opening the housing will void the warranty and Witschi Electronic AG will not be liable for any accident occurring after the housing has been opened by an unqualified person.

  • Page 16: Owner's Liability

    The watch can only be safely immersed in water for as long as there is positive pressure in the housing. Witschi Electronic AG accepts no liability for watches that are penetrated by water. If the display is red, remove the watch from the water! The positive pressure in the watch is too low and water can penetrate.

  • Page 17: Personnel Qualifications

    Safety Personnel qualifications CAUTION Risk of injury in the event of inadequate personnel qualifications! If unqualified personnel carry out work on the device or stay in the device's danger zone, there is a risk of injury and significant material damage. Mandatory Follow the obligations set out below: All activities may only be carried out by qualified personnel!

  • Page 18: Personal Protective Equipment

    [} Page 8]. Info For a list of spare parts, see Accessories and spare parts [} Page 74]. Noise emissions The noise emissions from the ProofMaster are below 75 dB(A) and have been measured according to the guidelines EN ISO 3740:2001-03 and EN ISO 11200:2014-10. 18 / 112 28.03.2022...

  • Page 19: Initial Operation

    Follow the obligations set out below: Always transport the packages vertically and never throw them! Observe the markings on the packaging! Do not remove the ProofMaster from its packaging until shortly before commissioning! The packaging protects the ProofMaster from external damage.

  • Page 20: Transport Inspection

    Make a note of the extent of the damage on the transport company's delivery note. c) Write a complaint. Mandatory Report damage or missing parts to Witschi Electronic AG immediately! Claims for damages can only be made within the applicable claim periods.

  • Page 21: Space Requirement

    Space requirement 149 mm 305 mm Requirements regarding the installation site The ProofMaster is designed for use on a worktable in as dry and dust- free an environment as possible. The ProofMaster is not suitable for outdoor use. Caution - material...

  • Page 22: Working Area Of The Operator

    Initial operation Working area of the operator In order for the operator to work comfortably, we recommend leaving at least 50 cm space on each side of the ProofMaster in order to place the watch shop there. 50 cm 50 cm 22 / 112 28.03.2022...

  • Page 23: List Of Equipment

    1 ProofMaster Measuring the leak-tightness of watches. ProofMaster 2 Protective cover Protects the ProofMaster from dust deposits. 3 Compressed air hose Transfers compressed air from the compressor to the ProofMaster. 4 Power supply unit Provides power to the ProofMaster.

  • Page 24: Initial Operation

    Initial operation Initial operation Initial operation of the ProofMaster includes connecting the power and compressed air supply and making all other connections for smooth operation (printer, network, etc.). 3.8.1 Current Caution - material Risk of material damage if an unsuitable power supply...

  • Page 25: Compressed Air

    Recommended compressor • ProofMaster Required equipment • Compressed air hose • Compressor (not included in the scope of delivery of ProofMaster) a) Put the compressor into operation as specified in the Connecting manufacturer's instructions. b) Make sure that the compressor is switched off and the outlet valve is closed.

  • Page 26: Thermal Printer

    • ProofMaster Required equipment • Thermal printer (not included in the scope of delivery of ProofMaster) • Standard USB cable type A–B or a Bluetooth set II (not included in the scope of delivery of the ProofMaster). See Accessories and spare parts [} Page 74].

  • Page 27: Network

    The following steps are necessary when using a PC within a network. • ProofMaster Required equipment • Ethernet cable (not included in the scope of delivery of ProofMaster) • PC incl. network environment (not included in the scope of delivery of ProofMaster) a) Ensure that the ProofMaster is switched off.

  • Page 28: Description

    Description Description Proofmaster Front view Bell cover Deformation sensor Test chamber Compressed air inlet and outlet Flap over catch Touchscreen The bell cover covers the test chamber. During testing, the bell cover is closed and locked by the catch under flap 5.

  • Page 29: Included Accessories

    Included accessories Power supply unit Power cable (country-specific) Transformer Power connection (on device) Item no.: JA01-PSD60E120K3 The ProofMaster is connected to the power supply using the power supply unit with the following key figures: Description Unit Value Input voltage 100 to 240 Input current 28.03.2022...
  • Page 30 ARO 210 plug nipple (compressor side) Open end (device side) Compressed air hose Item no.: 31.10.311 The compressed air hose is used to supply the ProofMaster with compressed air. The open end is connected to the compressed air supply of the ProofMaster and the coupling on the compressor.

  • Page 31: Required Accessories

    Description Protective cover Item no.: 31.24.04.30.001 The dust cover covers the ProofMaster when not in use to protect it from dust deposits. Mandatory When not in use, always cover the ProofMaster with the corresponding dust cover. This prevents the test chamber from leaking due to dust and dirt penetrating between the seal and bell cover.

  • Page 32: Optional Accessories

    Optional accessories Thermal printer The test results can be printed out on the thermal printer. The thermal printer can be connected directly to the ProofMaster via the USB cable type A–B or the USB Bluetooth adapter. See Thermal printer [} Page 26]. Witschi Electronic AG provides the following components: Thermal printer, item no.

  • Page 33: Procedure Of A Tightness Test

    Test pressure Test pressure Automatic measuring time The ProofMaster has a new evaluation algorithm which detects elastic deformation of watches and automatically compensates them. In the standard setting, the ProofMaster automatically determines the required measuring time for each measurement. The software continues the measurement until a meaningful result is obtained.

  • Page 34: Definitions

    Description Definitions Deformation measurement The measuring method of the ProofMaster is based on the principle of deformation. The watch is subjected to positive pressure to compress the watch housing, or a vacuum to expand it. The faster the deformation is compensated, the larger the leak in the watch case. The deformation of the case within a certain time serves as the basis for the measurement to determine whether the watch is leakproof or not.

  • Page 35: Reference To Standard Iso 22810

    A negative leak rate can be caused by a number of factors, e.g.: • Elastic deformation of the test specimen; • Thermal influences. Over a longer measurement duration, the ProofMaster measurement algorithm compensates for these influences and displays a more accurate result. This makes it more reliable and faster than an algorithm used for conventional deformation measurement.

  • Page 36: Use

    Safety during use Cracked glass CAUTION Risk of injury from cracked glass! The positive pressure can penetrate into leaking watches during the test. If this is the case, the interior of the watches will be under pressure after the test. The glass in the watch can then splinter or crack. It can cause serious eye injuries and even blindness.

  • Page 37: Basic Operation

    ð The home screen appears. ð The bell cover opens. Info When the ProofMaster is switched on for the first time, the display language can be selected on the displayed screen. The display language can be changed at any time, see Language selection [} Page 77].

  • Page 38: Enabling Screen Saver Or Standby

    ProofMaster to standby. ð The bell cover closes and is locked. ð The ProofMaster is in standby or screen saver mode (standby screen is always black). ð The screen saver is displayed (date and time in this example).

  • Page 39: Switching Off The Device

    Enabling screen saver or standby [} Page 38]. ð The bell cover closes and is locked. d) Switch off the ProofMaster by pressing the switch in the direction of the arrow. e) Cover the ProofMaster with the corresponding dust cover.
  • Page 40 The ProofMaster can generate a maximum vacuum of 85% compared to the ambient pressure. The maximum vacuum that can be generated therefore varies depending on the height at which the ProofMaster is operated. The following table shows the maximum vacuum that can be generated...

  • Page 41: Programming A Quick Test

    5.2.5 Programming a quick test ü The ProofMaster shows the start screen. Test pressure a) Press ð The Quick select screen appears. b) Press Pressure. ð The selection of test pressure values appears. c) Press the required test pressure or Manual.
  • Page 42 The programmed values are shown and the ProofMaster is ready Quick test programmed for a test. 42 / 112 28.03.2022...

  • Page 43: Selecting The Program (Proofmaster)

    5.2.6 Selecting the program (ProofMaster) Info The tile view only exists on the ProofMaster. Not on the ProofMaster PRO. The vacuum test can be activated or deactivated. Preset programs a) Press ð The Select program screen appears. b) Determine whether the vacuum test is to be performed.

  • Page 44: Selecting The Program (Proofmaster Pro)

    5.2.7 Selecting the program (ProofMaster PRO) Info This function is available in the ProofMaster PRO software version. Quick select is used for individual tests or for a single watch. Essentially, Quick select quick select is intended for a watchmaker who wants to test a watch before or after a repair, for example.

  • Page 45: Starting The Test

    5.2.8 Starting the test a) Select the program. ð See Selecting the program (ProofMaster PRO) [} Page 44] and/or Programming a quick test [} Page 41]. CAUTION Observe all safety regulations for the test pressures in order to avoid accidents and damage to the watch or the ProofMaster! See Safety regulations [} Page 15].

  • Page 46: Cancelling The Test

    Temperature fluctuations in the housing during testing may affect the test result. • Keep the watch next to the ProofMaster before testing. • If the watch has come directly from the user, wait until it has reached the ambient temperature.

  • Page 47: 5.2.11 Manually Lowering/Lifting The Sensor

    a) Position the watch strap so that the watch is lying securely on the watch underlay. If necessary, remove the watch strap. b) Make sure that the watch strap does not come into contact with any parts of the device. ð...

  • Page 48: 5.2.12 Identifying The Tests

    5.2.12 Identifying the tests All measurements are identified by the measured test specimen (model). It is possible to add further identification elements: • Prefix (for example, part number) • User • Comment (4 lines with maximum 32 characters) Enabling identification a) Press to open the identification window.

  • Page 49: Measurement Results

    The only result of a leak test to be displayed is whether the test is good or bad. However, it is also possible to enable leak rate measurement. See Creating a program (ProofMaster PRO) [} Page 62]. Test area When the bell cover is opened after a leak test, the test area is illuminated green if the test result is good and red if the test result is bad.
  • Page 50 Measured deformations for each test Leak rate (only in Precise mode) End result of the test Total testing period The following examples show possible display phases. Test running Test OK Test rejected Test manually aborted Reduced display The reduced display provides the following information: Test specimen prefix Name of the operator (only with enabled identification, in the example above Opera)

  • Page 51: Selecting The Results Display

    In the examples below, the first test is running, the second test result is OK and the third test result is not OK. Test running Test OK Test rejected Test manually aborted 5.3.2 Selecting the results display The results can be displayed in numeric or reduced form. a) Press (at the bottom right of the screen) to show the results in reduced or a numerical display.

  • Page 52: Access To Results (Proofmaster Pro)

    Access to results (ProofMaster PRO) Info This function is available in the ProofMaster PRO software version. The ProofMaster stores the last 100 test results in the memory. a) Press to access old results. ð The window with the results appears 1.

  • Page 53: Sorting Results (Proofmaster Pro)

    5.3.4 Sorting results (ProofMaster PRO) Info This function is available in the ProofMaster PRO software version. ü Display in the Results menu. a) Press to select the sort type. ð The selection window for the sort type appears. b) Press the desired sort type in the list (in the above example, Title).

  • Page 54: Deleting Measurement Results (Proofmaster Pro)

    ð The selection window for the deletion type appears. d) Press Yes to delete the selected result, No to cancel the deletion and Delete all to delete all results of the ProofMaster. (No results in WiCoTRACE are deleted.) 54 / 112...

  • Page 55: Leakfinder (Proofmaster Pro)

    This function is available in the ProofMaster PRO software version. To locate a leak, the ProofMaster uses the LeakFinder. This program creates a positive pressure inside the watch case. When the watch is then placed in a container filled with water, the rising bubbles indicate the point of leakage.
  • Page 56 ð When this message is displayed, the leak is very small. The ProofMaster asks whether it should continue with to build up pressure, which can take a long time, or cancel the process and resume it at a later time. Press Cancel to cancel pressure build-up or press Continue to continue.
  • Page 57 The watch can only be safely immersed in water for as long as there is positive pressure in the housing. Witschi Electronic AG accepts no liability for watches that are penetrated by water. If the display is red, remove the watch from the water! The positive pressure in the watch is too low and water can penetrate.
  • Page 58 Once the leak is located, the number of bubbles decreases or 30 seconds remain, remove the watch from the water and press to end the countdown on the ProofMaster. 58 / 112 28.03.2022...

  • Page 59: Programming

    Quick Select menu Leak test menu (ProofMaster PRO) Functions of the buttons Start a test sequence Stop a test sequence End the countdown Creating a user program (ProofMaster PRO) Numerical display Reduced display Expand the menus Reduce the menus Bluetooth connection...

  • Page 60: Preset Programs

    The ProofMaster offers two types of programs: • Preset programs: Programs predefined by the manufacturer These are marked with the symbol. • Customer programs (ProofMaster PRO): Free definition of all parameters Each newly created program is therefore a customer program. Abbreviation...
  • Page 61 Universal NoVac For all types of watch that are classified as water-resistant to 10 bar 10 ATM/100 m or more. Without vacuum test. Calibrated Leak For testing the function of the ProofMaster in combination with Witschi reference leaks. Parameters for the preset programs Abbreviation...

  • Page 62: Creating A Program (Proofmaster Pro)

    5.5.3 Creating a program (ProofMaster PRO) Info This function is available in the ProofMaster PRO software version. Creating a program a) Press to display the program menu options. b) Press to open the program menu options. c) Press to create a new program and open the basic programming window.

  • Page 63: Editing A Program (Proofmaster Pro)

    To guarantee test results, the pressure of a test must always be greater than that of the previous test. When saving the program, the ProofMaster arranges the test sequence starting with the test with the lowest pressure value and ending with the test with the highest pressure value.
  • Page 64 Press to display the user program configuration window. c) Change and save the desired settings. ð See the Basic programming and Advanced programming sections of the Creating a program (ProofMaster PRO) [} Page 62] procedure. 64 / 112 28.03.2022...

  • Page 65: Deleting A Program (Proofmaster Pro)

    5.5.5 Deleting a program (ProofMaster PRO) Info This function is available in the ProofMaster PRO software version. a) Select the user program to be deleted. ð See Selecting the program (ProofMaster PRO) [} Page 44]. b) Press to display the confirmation window for deleting the user program.

  • Page 66: Viewing A Program

    Info The preset programs cannot be edited. The settings can only be viewed. a) Select the preset program. ð See Selecting the program (ProofMaster PRO) [} Page 44]. b) Press to display the basic configuration settings of the program. c) Press Advanced parameters to display the advanced settings of the program.

  • Page 67: Chronomaster Air

    Switching on the ChronoMaster Air (switch under the base). ð The ChronoMaster menu is displayed in the bottom left of the screen. ü The ProofMaster is switched on, see Switching on the With the USB cable Proofmaster [} Page 37]. a) Insert the USB connector for the ChronoMaster into an unused USB port on the ProofMaster.

  • Page 68: Configuring The Measurement

    a) Open the clamping jaws. b) Insert the calibre, ensuring that the winding stem is next to the microphone. c) Release the clamping jaws. d) Press to start a measurement. Display of the current measurement data Measuring position of the calibre Graphic display of the diagram 5.6.3 Configuring the measurement...
  • Page 69 a) Press Beat rate. Beat rate ð The selection of the test beat rate appears. Auto: Automatic determination of beat rate; Freq: Automatic determination of beat rate for rate deviation = 0 s/d; Manual: Manual determination of beat rate. Range from 3600 to 7200 A/h;...

  • Page 70: Maintenance

    Caution - material Danger of material damage due to short circuit! Damage to the insulation on the power cord or the power supply unit can result in a short circuit and damage the ProofMaster. Prohibition Never immerse the ProofMaster in water! This will destroy the device.

  • Page 71: Maintenance Schedule

    Make sure that the bell cover is closed at the end of the day. See Switching off the device [} Page 39]. Annually Have the ProofMaster recalibrated. To do so, contact the point of Customer service (recommended) sale. See Technical support [} Page 8].

  • Page 72: Cleaning The Seal (O Ring)

    Maintenance Cleaning the seal (O ring) ü The ProofMaster is switched off and the bell cover is open. a) Clean the seal with a microfibre cloth. Replacing the seal (O ring) ü The ProofMaster is switched off and the bell cover is open.

  • Page 73: Software Updates

    If necessary, unzip the update files for ProofMaster. b) Save the unzipped files on a USB stick. c) Insert the USB stick with the update files for the ProofMaster. d) Switch on the ProofMaster. ð See Switching on the Proofmaster [} Page 37].

  • Page 74: Accessories And Spare Parts

    T-compressed air connection KA03-3104-06-00 Exhaust air kit (without silencer) 31.24.050 Silencer incl. exhaust air kit 31.24.051 Noise reduction up to 40 dB(A) Connection for up to 4 ProofMaster Printing Accessories Item no. Thermal printer JB01-SLK-TE25-S Bluetooth Set II to Printer 95.1511...

  • Page 75: Settings

    Settings Settings Quick settings menu ü The ProofMaster is switched on, see Switching on the Opening the quick settings Proofmaster [} Page 37]. a) Swipe the touchscreen with your finger in the direction of the arrow. ð The quick settings appear. b) Move the cursor left to decrease the brightness and right to increase the brightness.

  • Page 76: Settings

    Settings Settings The settings of the ProofMaster can be changed in the settings. Proceed as follows to access the settings: The ProofMaster offers quick access – see the Quick settings menu [} Page 75] – and conventional access to the configuration menu settings.

  • Page 77: System

    Settings System 7.3.1 Language selection a) Select System from the list. ð System is highlighted in blue and the right window displays the system options. b) Tap the display language to open the selection window. c) Select the desired display language from the list. 28.03.2022 77 / 112...

  • Page 78: Screen Saver

    7.3.2 Screen saver If the automatic screen saver function of the ProofMaster is activated, the bell cover closes after the "Enable after" time set on the ProofMaster and the screen saver is displayed. a) Select System from the list. ð System is highlighted in blue and the right window displays the system options.

  • Page 79: Display And Audio Settings

    Press to delete the desired imported screen saver. a) Enable or disable the screen saver display. Enabling automatic standby of the ProofMaster. b) Select the desired time. 7.3.3 Display and audio settings a) Select System from the list. ð System is highlighted in blue and the right window displays the system options.

  • Page 80: Date & Time

    Mandatory The ProofMaster must have an Internet connection! a) Enable or disable the automatic setting of the date and time. ð The button is blue when the function is enabled and grey when it is not.

  • Page 81: Automatic Software Update

    Select the desired time zone. 7.3.5 Automatic software update With the further development of the ProofMaster, the software will also be improved. It is possible to configure an automatic update of the software. The ProofMaster must have an Internet connection in order to be able to communicate with the Witschi Electronic AG update server.
  • Page 82 Settings ü Using an Ethernet cable, connect the ProofMaster to a network that has access to the Internet. a) Select System from the list. ð System is highlighted in blue and the right window displays the system options. b) The user can configure the system so that it checks whether there is an update available when it is switched on.

  • Page 83: Device

    Settings Device 7.4.1 Opening speed of the bell cover a) Select Device from the list. ð Device is highlighted in blue and the right window displays the device options. b) Open the bell cover speed selection by tapping the current selection.

  • Page 84: Sensor Lighting

    Settings ð Device is highlighted in blue and the right window displays the device options. b) Activate or deactivate the function Start by pressing the bell cover. ð The button is blue when the function is enabled and grey when it is not. 7.4.3 Sensor lighting a) Select Device from the list.

  • Page 85: Unit Of Leak Rate

    Settings 7.4.5 Unit of leak rate a) Select Device from the list. ð Device is highlighted in blue and the right window displays the device options. b) Open the unit selection for the leak rate by tapping the current selection. c) Select the desired leak rate unit.

  • Page 86: User Management (Proofmaster Pro)

    Settings User management (ProofMaster PRO) Info This function is available in the ProofMaster PRO software version. 7.5.1 Administrator and user modes The device has two modes, administrator mode and user mode. Administrator mode Administrator mode enables access to all device settings, and the symbol (1) is displayed on the screen.

  • Page 87: Activating User Mode

    Settings 7.5.2 Activating user mode a) Select User from the list. ð User is highlighted in blue and the right window displays the user options. b) Activate user mode by pressing c) Press OK to confirm. 7.5.3 Activating administrator mode a) Select User from the list.

  • Page 88: Changing The Password

    Settings c) Enter the password. ð The default password is witschi. d) Press OK to confirm. ð In the event of an error, an information window appears. 7.5.4 Changing the password a) Select User from the list. ð User is highlighted in blue and the right window displays the user options.

  • Page 89: Import/Export

    Settings Import/export 7.6.1 Importing/exporting settings The ProofMaster allows you to import and export these settings using a USB stick. This means settings created can be transferred to other devices. Exporting a) Insert the USB stick on which the settings are to be stored in the ProofMaster.
  • Page 90 Settings Importing a) Insert a USB stick with the settings into the ProofMaster. Mandatory The settings to be imported must be combined in a file with the file name config.json. The file is created by carrying out an export. Otherwise the ProofMaster will not find the settings to import.

  • Page 91: Importing/Exporting Programs (Proofmaster Pro)

    Info This function is available in the ProofMaster PRO software version. The ProofMaster allows the import and export of programs within the network or using a USB stick. Export with USB stick a) Insert the USB stick on which the programs are to be stored in the ProofMaster.
  • Page 92 Settings Import with USB stick a) Insert a USB stick with the programs into the ProofMaster. Mandatory The programs to be imported must be combined in a file with the file name programs.json. The file is created by carrying out an export.

  • Page 93: Exporting Measurements

    Info This function is intended for analysis by Witschi Electronic AG Customer Service. The ProofMaster allows you to export measurement data using a USB stick. This enables the measurements that have been performed to be analysed by Witschi Electronic AG.

  • Page 94: Resetting The Device Settings

    Settings 7.6.4 Resetting the device settings This process restores the factory settings of the ProofMaster. The programs and test results are retained. a) Select Import/export from the list. ð Import/export is highlighted in blue and the right window displays the import, export and recovery options.

  • Page 95: Restoring Factory Settings

    Settings 7.6.5 Restoring factory settings This process restores the factory settings of the ProofMaster and deletes all program data, measurement results, etc. on the device. a) Select Import/export from the list. ð Import/export is highlighted in blue and the right window displays the import, export and recovery options.

  • Page 96: Printer

    Printer 7.7.1 Configuring the printer The configuration of the thermal printer is carried out on the ProofMaster. a) Select Printer from the list. ð Printer is highlighted in blue and the right window displays the device options. b) Enable the printer.

  • Page 97: Configuring The Label

    Settings 7.7.2 Configuring the label Configurable areas Logo Header Results Footer The figure above shows the different configurable areas of the label. ü Printer configured. a) Select Printer from the list. ð Printer is highlighted in blue and the right window displays the printer options.
  • Page 98 ð The Witschi logo is printed on the label. a) Open the logo selection by tapping the name of the displayed logo. Importing the logo b) Insert a USB stick with the desired logo into the ProofMaster (BPM or GIF, optimal width: 368 p). c) Press Load new logo.
  • Page 99 Settings c) Enter the header using the alphanumeric keypad. ð 4 lines with maximum 30 characters. ð The entered header is printed on the label. Selecting the results The measurement result can be displayed in numeric or reduced form. display See examples below. Numeric format Reduced format Not OK...

  • Page 100: Network

    Settings Network The connection option allows automatic configuration of the ProofMaster with the help of a server. a) Select Network from the list. ð Network is highlighted in blue and the right window displays the network options. b) Enable or disable the network.

  • Page 101: Wicotrace

    Read off and note down the IP address of the server. ProofMaster Note: The subnet mask must enable communication between the IP address of the PC or the server IP address of the ProofMaster. a) The network settings must be configured in the ProofMaster, see Network [} Page 100].
  • Page 102 You should consult the entire documentation for the WicoTrace software in order to find out about all the technical options available. When using the ProofMaster in a computer network, you need technical knowledge and administrator rights in order to configure the devices correctly.

  • Page 103: Chronomaster Air (Establishing A Connection For Bluetooth)

    ProofMaster 1. ð The Bluetooth dongle is automatically recognised by the ProofMaster. ð Switch on the ProofMaster and the ChronoMaster Air. b) Select ChronoMaster Air from the list. ð ChronoMaster Air is highlighted in blue and the right window displays the device options.

  • Page 104: System Information

    Settings a) Deactivate the ChronoMaster Air. ChronoMaster Air not ð The button is grey when the function is not enabled and blue coupled when it is. 7.11 System information This menu displays the following information: • Serial numbers • IP address •...

  • Page 105: Troubleshooting

    Troubleshooting Troubleshooting Error messages Info Error messages appear when there is a malfunction on the device. The following table contains information on the possible causes of an error message and information about troubleshooting. The most important malfunctions are described below. Contact customer service if the error continues after taking all troubleshooting measures.

  • Page 106: Malfunctions

    Troubleshooting Error message Cause Remedy Printer not found! Printer not switched on. Check the printer and USB cable. Check the printer and USB USB cable faulty or not connected connection. correctly. WiCoTRACE (SMX-Service) error! Ethernet cable faulty or not Check Ethernet cable. connected correctly.

  • Page 107: Opening The Bell Cover In An Emergency

    Switch off the compressor as specified in the manufacturer's documentation. b) Release the air from the compressed air hose of the compressor. c) Switch off the ProofMaster. ð The remaining pressure in the test chamber escapes. ð See Switching off the device [} Page 39].

  • Page 108: Decommissioning And Disposal

    Never force the device cover to open when the device is under pressure! Otherwise parts could be ejected. ü The ProofMaster is switched off. a) Switch off the compressor as specified in the manufacturer's documentation. b) Disconnect the compressor from the compressed air hose as specified in the manufacturer's documentation.
  • Page 109 Data sheet Data sheet Dimensions and weight Term Value Unit Weight Width Height with closed bell cover Height with open bell cover Depth Technical data Term Value Unit Vacuum range -0.1 to -0.8 * Pressure range 0.1 to 10 Accuracy of the test pressure ±...
  • Page 110 Data sheet Measuring characteristics Term Value Unit Measuring time 20 to 600 Leak-tightness limit 10 to 999 µg/min (unit selectable: µg/min, mm /min, µl/min) Measuring resolution 0.01 µm Deformation: Resolution 0.01 μm -500 to 1200 µm Ambient conditions Term Value Unit Temperature 15 to 35...
  • Page 111 Notes 28.03.2022 111 / 112...
  • Page 113 Witschi Electronic AG Bahnhofstrasse 26 3294 Büren an der Aare Switzerland +41 32 352 05 00 www.witschi.com...

This manual is also suitable for:

Proofmaster proHw420bHw420c

Table of Contents

Save PDF
