Witschi WAIO Operating Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
®
WAIO
Operating instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the WAIO and is the answer not in the manual?

Questions and answers

Related Manuals for Witschi WAIO

Summary of Contents for Witschi WAIO

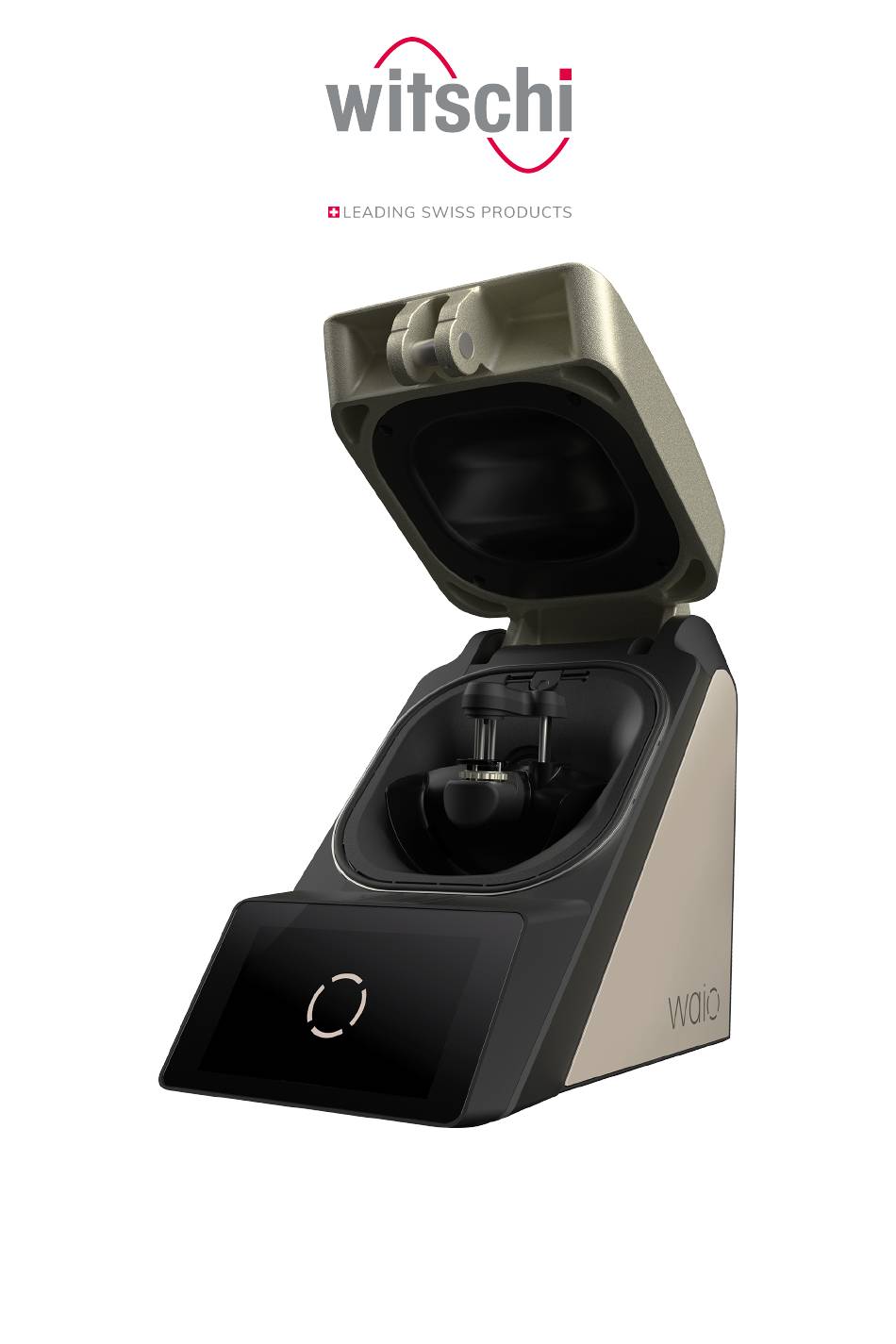

  • Page 1 ® WAIO Operating instructions...

  • Page 2: Characteristic Data

    Reproduction of this document in whole or in part is not permitted. Copyright Without the prior written consent of Witschi Electronic AG, no section may be copied, edited or electronically reproduced, transmitted or recorded on magnetic media or in any other way.

  • Page 3: Table Of Contents

    Initial operation............................... 3.8.1 Current ..............................3.8.2 Connection to Wicotrace 360° via WLAN................. 3.8.3 Connection to Wicotrace 360° via Ethernet ................Description................................WAIO ..................................Included accessories............................. Procedure of a tightness test ..........................Definitions ................................Reference to standard ISO 22810........................22.11.2024 3 / 72...
  • Page 4 Table of contents Use .................................... Safety during use..............................Basic operation............................... 5.2.1 Switch on the WAIO ......................... 5.2.2 Enabling screen saver or standby ....................5.2.3 Switching off the device........................Main screen................................5.3.1 Header..............................5.3.2 Footer..............................Performing measurements..........................5.4.1 Entire process ............................
  • Page 5 Table of contents More functions ................................ Troubleshooting ..............................Error messages............................... Malfunctions ................................Opening the bell cover in an emergency ....................... Decommissioning and disposal......................... 10 Data sheet................................22.11.2024 5 / 72...

  • Page 6: General Information

    Illustrations contained in these instructions are intended for illustration purposes only and may deviate from the model sold. Technical support Rating plate The identification plate of the WAIO is located on the underside of the device and contains the following information: • Manufacturer • Device name •...

  • Page 7: Definitions

    Contact the customer service of Witschi Electronic AG. The point of sale can provide you with technical information. Customer service The nearest point of sale can be found on the Witschi Electronic AG website www.witschi.com. Witschi Electronic AG would also be pleased to receive information and feedback, which can be helpful for the improvement of the products.

  • Page 8: Safety

    Safety Safety This section provides an overview of all the important safety aspects that ensure personal protection and safe and trouble-free operation. The relevant sections contain additional warnings on the various tasks. Mandatory All safety and protection regulations described here must be read and observed in order to avoid damage to equipment, persons and the environment.

  • Page 9: Proper Use

    Recommendation or advice. Proper use The "WAIO" device is used for testing the water resistance of watches by means of positive and negative pressure. It can also be used to demagnetise watches. It is additionally used to check the chronometry of watches.

  • Page 10: Safety Sign

    2.3.1 Labels on the device The stickers listed below are affixed to the WAIO. Calibration of the WAIO The sticker on the underside of the device shows when the device was last calibrated.

  • Page 11: Moving Parts

    WAIO. Mandatory Follow the obligations set out below: Work on electronic components of the WAIO must only be carried out by customer service! Failure to do so could void the warranty.

  • Page 12: Test Pressure

    Test pressure Caution - material Material damage due to excessive test pressure! Applying excessive test pressure can damage the watch being tested and/or the WAIO. Mandatory Follow the obligations set out below: Make sure that the watch can withstand the pressure! To avoid damaging the watch.

  • Page 13: Personnel Qualifications

    Safety • The owner must ensure that the service intervals specified in the instructions are complied with. • The owner must ensure that the service intervals for the components (especially the compressor) are complied with. Personnel qualifications CAUTION Risk of injury in the event of inadequate personnel qualifications! If unqualified personnel carry out work on the device or stay in the device's danger zone, there is a risk of injury and significant material...

  • Page 14: Personal Protective Equipment

    [} Page 7]. Info For a list of spare parts, see Accessories and spare parts [} Page 54]. Noise emissions The noise emissions from the WAIO are below 75 dB(A) and have been measured according to the guidelines EN ISO 3740:2001-03 and EN ISO 11200:2014-10. 14 / 72 22.11.2024...

  • Page 15: Initial Operation

    Follow the obligations set out below: Always transport the packages vertically and never throw them! Observe the markings on the packaging! Do not remove the WAIO from its packaging until shortly before commissioning! The packaging protects the WAIO from external damage.

  • Page 16: Transport Inspection

    Make a note of the extent of the damage on the transport company's delivery note. c) Write a complaint. Mandatory Report damage or missing parts to Witschi Electronic AG immediately! Claims for damages can only be made within the applicable claim periods.

  • Page 17: Space Requirement

    Initial operation Space requirement 218 mm 377 mm Please take the following additional space requirements into account to ensure that the appliance functions properly: • Lateral: Approximately 50 mm per side; • Rear: Approximately 100 mm; • Top with device open: Approximately 50 mm. 22.11.2024 17 / 72...

  • Page 18: Installation Site Requirements

    The following instructions must be observed for reliable measurements: • Do not position the WAIO and test object in the vicinity of radiators or open windows. • Do not expose the WAIO or the test object to direct sunlight.

  • Page 19: Equipment List

    1 WAIO Measuring the tightness, chronometry and WAIO demagnetisation of watches. 2 Power supply unit Provides power to the WAIO. (12 VDC, min. 80 W) 3 Calibration certificate Info Please contact the points of sale to order accessories or spare parts.

  • Page 20: Initial Operation

    Initial operation Initial operation Commissioning of the WAIO includes connection to the power supply and all connections required for smooth operation (network, etc.). 3.8.1 Current Caution - material Risk of material damage if an unsuitable power supply unit is used! Using an unsuitable or damaged power supply unit can result in a short circuit.

  • Page 21: Connection To Wicotrace 360° Via Wlan

    The following steps are necessary when using the WAIO with Wicotrace 360° via Ethernet. • WAIO Required equipment • Ethernet cable (not included in the scope of delivery of the WAIO) • Internet connection with access to Wicotrace 360°. a) Ensure that the WAIO is switched off. Connecting b) Connect the Ethernet cable to the network.

  • Page 22: Description

    Description Description WAIO Front view Bell cover Demagnetising coil Test chamber Flap over catch Control and display element The bell cover covers the test chamber 3. During testing, the bell cover is closed and locked by the catch under flap 4.

  • Page 23: Sensor Unit

    Description Sensor unit Deformation sensor and mechanical signal pickup Sensor head Soft foam cushion (to hold the watch in place) Stylus for measuring the deformation (deformation sensor) and the mechanical watch signal (mech. signal pick-up) Soft support (Scratch Protect) with non-slip coating 3-point support (manually adjustable) Signal pickup for analogue quartz watches Illumination for results display (green/red)

  • Page 24: Included Accessories

    Included accessories Power supply unit Power cable (country-specific) Transformer Power connection (on device) Item no.: JA01-GST90A12-GP1M The WAIO is connected to the power supply using the power supply unit with the following key figures: Description Unit Value Input voltage 100 to 240...

  • Page 25: Procedure Of A Tightness Test

    Test pressure Test pressure Duration of an automatic measurement The WAIO has a new evaluation algorithm which detects elastic deformation in watches and automatically compensates it. In the standard setting, the WAIO automatically determines the required measuring time for each measurement. The software continues the measurement until a meaningful result is obtained.

  • Page 26: Definitions

    Description Definitions Deformation measurement The measuring method of the WAIO is based on the principle of deformation. The watch is subjected to positive pressure to compress the watch housing, or a vacuum to expand it. The faster the deformation is compensated, the larger the leak in the watch case. The deformation of the case within a certain time serves as the basis for the measurement to determine whether the watch is leakproof or not.

  • Page 27: Reference To Standard Iso 22810

    • Elastic deformation of the test specimen; • Thermal influences. As the measuring time progresses, the measuring algorithm of the WAIO compensates for these influences and displays a more accurate result. This makes it more reliable and faster than an algorithm used for conventional deformation measurement.

  • Page 28: Use

    ð The home screen appears. ð The bell cover opens. Info When the WAIO is switched on for the first time, the display language can be selected on the displayed screen. The display language can be changed at any time, see Language selection.

  • Page 29: Enabling Screen Saver Or Standby

    Press "Screen saver" or tap to switch the WAIO to standby. ð The bell cover closes and is locked. ð The WAIO is in standby or screen saver mode (standby screen is always black). ð The screen saver is displayed.

  • Page 30: Switching Off The Device

    Enabling screen saver or standby [} Page 29]. ð The bell cover closes and is locked. c) Switch off the WAIO by pressing the switch in the direction of the arrow. d) Cover the WAIO with the corresponding dust cover.

  • Page 31: Main Screen

    Main screen The high-resolution 7-inch screen (1280 x 800 px) with touch function displays three different areas. No. Description Screen header, see Header [} Page 31]. Display area of the current page. See Performing measurements [} Page 33]. Screen footer, see Footer [} Page 32]. 5.3.1 Header On each screen, the header is displayed at the top with the following information:...

  • Page 32: Footer

    5.3.2 Footer The lower bar is always displayed with the following information: No. Description Interactive area with various buttons: Return to the measuring steps; Back to the main menu; Selection of the display language; Lower the soft support; Lift the soft support; Open the bell cover;...

  • Page 33: Performing Measurements

    Manually adjust the 3-point support to the size of the case. e) Centre the watch on the soft support with the crown facing the inside of the WAIO. Make sure that the bracelet is in the protective cage but not touching it and then proceed to the next step with ð...

  • Page 34: User Login

    5.4.1.1 User login ü The device must be connected to Wicotrace 360°. See Setting up Same user Wicotrace 360° [} Page 62] a) Log in the user. b) Enter your personal PIN and confirm. ð The user is logged in and the symbol is displayed.

  • Page 35: Positioning The Watch

    • Keep the watch next to the WAIO before testing. • If the watch has come directly from the user's wrist, wait until the watch has reached the ambient temperature. Positioning the watch It is important to position the watch correctly in the WAIO. 22.11.2024 35 / 72...

  • Page 36: Incorrect Positioning

    Manually adjust the 3-point support in the test chamber to the diameter of the watch case. b) Position the watch with the crown facing the inside of the WAIO so that the stylus of the sensor head is centred on the watch when it is lowered.

  • Page 37: Detecting The Signal

    If the watch was manually placed incorrectly in the test chamber or the rate of the watch was not measured by the WAIO, the screen shown above will be displayed. It is possible to open the bell cover to reposition the watch or proceed to perform a leak tightness test only.

  • Page 38: Test Step

    5.4.4 Test step For mechanical watches, all three test steps are activated by default. For analogue quartz watches, however, only two test steps (tightness and chronometry) are activated. • The test step is activated; • The test step is deactivated. 5.4.4.1 Leak tightness The leak test is carried out with the previously selected test pressure.
  • Page 39 Internal leak test procedure No. Description Leak test and display of the selected pressure Display of the pressure measurement Display of the deformation measurement Measurement criteria Deformation The deformation measurement detects the deformation of the watch case under pressure. The deformation sensor works very accurately and detects even the smallest changes.
  • Page 40 Demagnetisation The WAIO demagnetises the watch in three test positions. The watch is demagnetised in all three test positions by means of a decaying oscillating magnetic field.
  • Page 41 Functional criteria Standard program Test positions CH; CH+45; CH-45 Test step AUTO Internal demagnetisation process No. Description Rate measurement before demagnetisation in the CH test position Demagnetisation in the CH, CH+45 and CH-45 test positions Rate measurement after demagnetisation in the CH test position Description of current test step No.
  • Page 42 Tolerance Test step AUTO 5.4.4.3 Chronometry for a mechanical watch The WAIO uses an acoustic sensor to measure the striking noise of the movement. The rate measurement of the watch is carried out in four test positions. A stabilisation time is required for each test position before the device measures the movement.
  • Page 43 Internal chronometry process No. Description Measurement in the CH test position Measurement in the 12H test position Measurement in the CB test position Measurement in the 6H test position Description of current process step No. Test step description Remaining time Test step designation Symbol 22.11.2024...
  • Page 44 Measurement criteria Rate deviation The rate deviation of a watch, measured in seconds per day, corresponds to its frequency deviation. It indicates how much the oscillation frequency of the oscillator (balance wheel) deviates from the ideal frequency. A low absolute value of this deviation indicates an accurate watch.
  • Page 45 5.4.4.4 Chronometry on an analogue quartz watch The WAIO measures the pulses of the motor coil with an inductive sensor. The measurement of the watch is carried out in a single test position. The test time is slightly longer for analogue quartz watches with inhibition.
  • Page 46 (quartz) deviates from the ideal frequency. A low absolute value of this deviation indicates an accurate watch. Duration of the motor pulse This is the duration of the motor coil pulse that is measured and recorded by the WAIO. 46 / 72 22.11.2024...

  • Page 47: Measured Results

    Tolerances Rate: -1 s/d to +1 s/d Measured results The WAIO sends the measurement results to the Wicotrace 360° database, provided communication has been established. Display The results are first displayed in short form. The results can also be displayed in detail in numeric form.

  • Page 48: Leak Tightness

    5.5.1 Leak tightness Numerical display The numerical display provides the following information: Test step Result of the test Test pressure Test measuring time Measured deformations for the test End result of the test 5.5.2 Magnetisation Numerical display The numerical display provides the following information: 48 / 72 22.11.2024...

  • Page 49: Chronometry

    Test step Rate measurement before demagnetisation Rate measurement after demagnetisation Difference between the two measurements and 3) End result of the test 5.5.3 Chronometry Numerical display The numerical display provides the following information: Test step Measured values in the CH position Measured values in the CB position Measured values in the 6H position Measured values in the 12H position...

  • Page 50: View Measurement Results Online

    Description of the test positions 5.5.4 View measurement results online The measurement results can be viewed online using a smartphone. ü The device must be connected to Wicotrace 360°. See Network [} Page 62] a) Show QR code ð The QR code is displayed. b) Scan the QR code with your smartphone.

  • Page 51: Maintenance

    Caution - material Risk of damage to the WAIO due to insufficient maintenance! If the WAIO is not maintained, proper operation of the device cannot be guaranteed. • Make sure to comply with the maintenance cycles specified in the following maintenance plan.
  • Page 52 Make sure that the bell cover is closed at the end of the day. See Switching off the device [} Page 30]. Annually Have the WAIO recalibrated. To do so, contact the point of sale. See Customer service (recommended) Technical support [} Page 7].

  • Page 53: Cleaning The Seal (O Ring)

    Maintenance Cleaning the seal (O ring) ü The WAIO is switched off and the bell cover is open. a) Clean the seal with a microfibre cloth. Replacing the seal (O ring) ü The WAIO is switched off and the bell cover is open.

  • Page 54: Accessories And Spare Parts

    Accessories and spare parts Ordering spare parts To order accessories or spare parts, please contact technical customer service; see the Technical support [} Page 7] section. Your nearest point of sale can be found on our website www.witschi.com. Accessories Accessories Item no. Reference leaks 42.40.xxx...

  • Page 55: Settings

    Settings Settings Quick settings menu ü The WAIO is switched on, see Switch on the WAIO [} Page 28]. Opening the quick settings a) Swipe the touch screen with your finger in the direction of the arrow. ð The quick settings appear.

  • Page 56: Settings

    Settings Settings The settings of the WAIO can be changed in the settings. Proceed as follows to access the settings: a) Swipe your finger from bottom to top across the entire touch screen; see Quick settings menu [} Page 55]. b) Press to access the settings.

  • Page 57: Automatic Software Update

    Information on how to download the updates can be found on our website at www.witschi.com. If you register your WAIO on our website, we will notify you personally about important updates. ü Connect the WAIO to a network that has Internet access using an Ethernet cable or WLAN.

  • Page 58: User Management

    Settings User management 7.4.1 Administrator and user modes The device has two modes, administrator mode and user mode. Administrator mode Administrator mode enables access to all device settings, and the symbol (1) is displayed on the screen. User mode User mode deactivates or removes the following functions/settings, and the symbol (1) is displayed on the screen.

  • Page 59: Activating Administrator Mode

    ð Operator is highlighted in an accent colour and the right- hand window displays the user options. b) Activate administrator mode by pressing c) Enter the password. ð The default password is witschi. d) Press OK to confirm. ð In the event of an error, an information window appears. 22.11.2024...

  • Page 60: Changing The Password

    Open the window for changing the password by pressing Change. c) Enter the current password. ð The default password is witschi. d) Enter the new password. e) Confirm the new password. f) Press OK to confirm.

  • Page 61: Import/Export

    Info This function is intended for analysis by Witschi Electronic AG Customer Service. The WAIO allows you to export measurement data using a USB stick. This enables the measurements that have been performed to be analysed by Witschi Electronic AG.

  • Page 62: Network

    Settings Network 7.6.1 Setting up Wicotrace 360° ü You must have a Wicotrace 360° account. Creating communication ü You must have set the device PIN. ü You can find all the information in the Wicotrace 360° instructions. a) Select Network from the list. ð...
  • Page 63 Settings No communication If no connection to the Wicotrace 360° is possible, there may be various reasons for this: • Network connection (see Network [} Page 62]) • Poor internet connection • Wicotrace 360° temporarily unavailable If the problem cannot be solved in the short term, you can continue working offline in standalone mode.

  • Page 64: System Information (Info)

    Settings System information (info) This menu displays the following information: • Serial numbers • IP address • Versions of the different systems and programs • Information on device operation (cycle counter, measuring counter, etc.) • Last calibration • Legal information (licenses) a) Select Info from the list.

  • Page 65: Troubleshooting

    Troubleshooting Troubleshooting Error messages Info Error messages appear when there is a malfunction on the device. The following table contains information on the possible causes of an error message and information about troubleshooting. The most important malfunctions are described below. Contact customer service if the error continues after taking all troubleshooting measures.

  • Page 66: Malfunctions

    Troubleshooting Malfunctions Description of malfunction Cause Remedy Incorrect test result The watch is not positioned correctly. Reposition the watch. See Positioning the watch [} Page 35]. Adhesive or protective film on the Remove the adhesive or protective watch case. film. The watch is not at ambient Wait until the watch has warmed up temperature.

  • Page 67: Opening The Bell Cover In An Emergency

    Mandatory Wear safety goggles during the entire bell cover opening process! a) Disconnect the WAIO from the power supply. ð The remaining pressure in the test chamber escapes. ð See Disconnecting the power [} Page 20]. b) Loosen both lower fastening screws and remove the left side panel 1.

  • Page 68: Decommissioning And Disposal

    Never force the device cover to open when the device is under pressure! Otherwise parts could be ejected. ü The WAIO is switched off. a) Switch off the other used accessories properly. b) Pull out all cables (USB/Ethernet). c) Disconnect the power supply unit connection from the local mains network.

  • Page 69: Data Sheet

    Data sheet Data sheet Dimensions and weight Name Value Unit Weight Width Height with closed bell cover Height with open bell cover Depth Technical data Name Value Unit Vacuum range -0.1 to -0.5 Pressure range 0.1 to 5 Accuracy of the test pressure ±...
  • Page 70 Notes 70 / 72 22.11.2024...
  • Page 71 Notes 22.11.2024 71 / 72...
  • Page 72 Witschi Electronic AG Bahnhofstrasse 26 3294 Büren an der Aare Switzerland +41 32 352 05 00 www.witschi.com...
