Summary of Contents for Beko HIMW 95225 SXE
- Page 1 1301801370_R.AA/17.02.2020...
- Page 2 Please read this user manual first! Dear Customer, Thank you for purchasing this Beko product. We hope that you get the best results from your pr o- duct which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Preparation Important instructions for safety and environment Tips for saving energy ......... 17 Initial use............. 17 General safety ............4 First cleaning of the appliance ......17 Safety when working with gas........ 4 Electrical safety ............. 6 Using the hob Product safety ............ -
Page 4: Important Instructions For Safety And Environment
Important instructions for safety and environment This section contains safety instruc- • Ensure that the product function tions that will help protect from risk knobs are switched off after of personal injury or property dama- every use. ge. Failure to follow these instructi- •... - Page 5 ments regarding ventilation; See • Good combustion is required in Before installation, page 12 gas appliances. In case of in- • The use of gas cooking applian- complete combustion, carbon ce results in the production of monoxide (CO) might develop. heat and moisture in the room in Carbon monoxide is a colourless, which it is installed.
-
Page 6: Electrical Safety
Electrical safety • The appliance must be installed so that it can be completely dis- • If the product has a failure, it connected from the mains supply. should not be operated unless it The separation must be provided is repaired by an Authorized by a switch built into the fixed Service Agent. -
Page 7: Intended Use
• Do not place any flammable ma- • Ensure liquid or moisture is not terials close to the product as the accessible to the electrical con- sides may become hot during nection point. use. • To prevent gas leakage ensure •... -
Page 8: Disposing Of The Old Product
Disposing of the old product harmful and prohibited materials specified in the Directive. Compliance with the WEEE Directive and Dispo- Package information sing of the Waste Product: • Packaging materials of the product are manu- factured from recyclable materials in accordan- ce with our National Environment Regulations. -
Page 9: Your Product

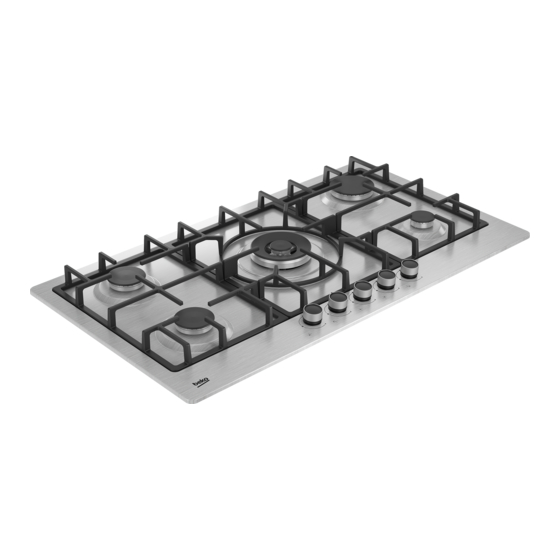

Your product Overview 1 Pan support 7 Burner plate 2 Normal burner 8 Rapid burner 3 Assembly clamp 9 Wok burner 4 Control panel 10 Normal burner 5 Base cover 6 Auxiliary burner Control panel Normal burner Front left Rapid burner Rear right Normal burner Rear left Auxiliary burner Front right Wok burner Middle... -
Page 10: Package Contents
Wok pan adaptor Package contents Used for hosting a wok pan with a round bottom. Accessories supplied can vary depending on the product model. Not every accessory described in the user manual may exist on your product. User Manual Coffee pot adaptor Used for coffee pots. -
Page 11: Technical Specifications
Technical specifications Inox Ceramic glass Inox Ceramic glass HIMW 95225 SXE HISW 95225 SE HIMW 95226 SXEL HISW 95226 SEL HIMW 95225 SXEL HISW 95225 SEL Burners 5 Gas Burner 5 Gas Burner 5 Gas Burner 5 Gas Burner Voltage / frequency... -
Page 12: Installation
Installation Before installation Product must be installed by a qualified person in accordance with the regulations in force. The manu- The hob is designed for installation into commercially facturer shall not be held responsible for damages available work tops. A safety distance must be left arising from procedures carried out by unauthorized between the appliance and the kitchen walls and persons which may also void the warranty. - Page 13 INOX installation made by a qualified electrician while using the product with or without a transformer. Our com- Room ventilation pany shall not be liable for any damages that will All rooms require an openable window, or equvalent, arise due to using the product without a grounding and some rooms will require a permanent vent as installation in accordance with the local regulations.
- Page 14 Connecting the gas hose For LPG DANGER: • Have your product connected in a way that it Before starting any work on the electrical will be close to the gas connection and not gas installation, disconnect the product from the leakage will exist.
- Page 15 If there is a built-in oven installed under the hob; • Gas hose must be routed in a way that it will not touch the oven, sharp edges or corners be- neath the hob, or will not be kinked or twisted. If you will make the gas connection from left hand side when viewed from your position, fix the hose with clamps.
- Page 16 Rear view (connection holes) DANGER: There are gas and electric components on hobs. Therefore stove, only the connection hole shown in this manual should only be fixed to the unit as shown in the manual using the supplied fasteners and screws supplied. Otherwise, it is dangerous to the life and property safety.
-
Page 17: Preparation
Preparation Tips for saving energy The following information will help you to use your appliance in an ecological way, and to save energy: • Defrost frozen dishes before cooking them. • Use pots/pans with cover for cooking. If there is no cover, energy consumption may increase 4 times. -
Page 18: Using The Hob
Using the hob will not extend the bottom of the vessel and General information about cooking center the vessel on saucepan carrier. Using the hobs Never fill the pan with oil more than one third of it. Do not leave the hob unattended when heating oil. - Page 19 Gas shut off safety system (in models with ther- mic component) As a counter measure against blow out due to fluid overflows at burners, safety mechanism trips and shuts off the gas. 1. Gas shut off safety • Push the knob inwards and turn it counter clockwise to ignite.
-
Page 20: Maintenance And Care
Maintenance and care Cleaning the hob General information Service life of the product will extend and the possibi- Cleaning the burner lity of problems will decrease if the product is cleaned 1. Remove the pan supports, burner heads and at regular intervals. burner caps and clean them with a soft and damp cloth. - Page 21 Assembling the Wok burner parts Assembling the burner parts Inner burner cap Burner cap Outer burner cap Burner head Burner head Burner chamber Burner chamber Injector Injector Plug (in products with igniter) Plug (in products with igniter) Thermic element (in products with thermic element) Thermic element (in products with thermic element)
-
Page 22: Cleaning The Control Panel
If the surface is heavily soiled, apply the cleaning agent on a sponge and wait until it is absorbed well. Then, clean the surface of the hob with a damp cloth. Sugar-based foods such as thick cream and syrup must be cleaned promptly without waiting the surface to cool down. -
Page 23: Troubleshooting
Troubleshooting Clanging is heard while the product is heating and cooling. This is not a failure. • When the metal parts are heated, they may expand and make noise. >>> There is no ignition spark. Check the fuses in the fuse box. •... - Page 24 Brand BEKO Hob Type Built-in Gas Hob Model Inox Ceramic glass Inox Ceramic glass HIMW 95225 SXE HISW 95225 SE HIMW 95226 SXEL HISW 95226 SEL HIMW 95225 SXEL HISW 95225 SEL Symbol Value Value Unit Number of the gas burners...
