2.1.3

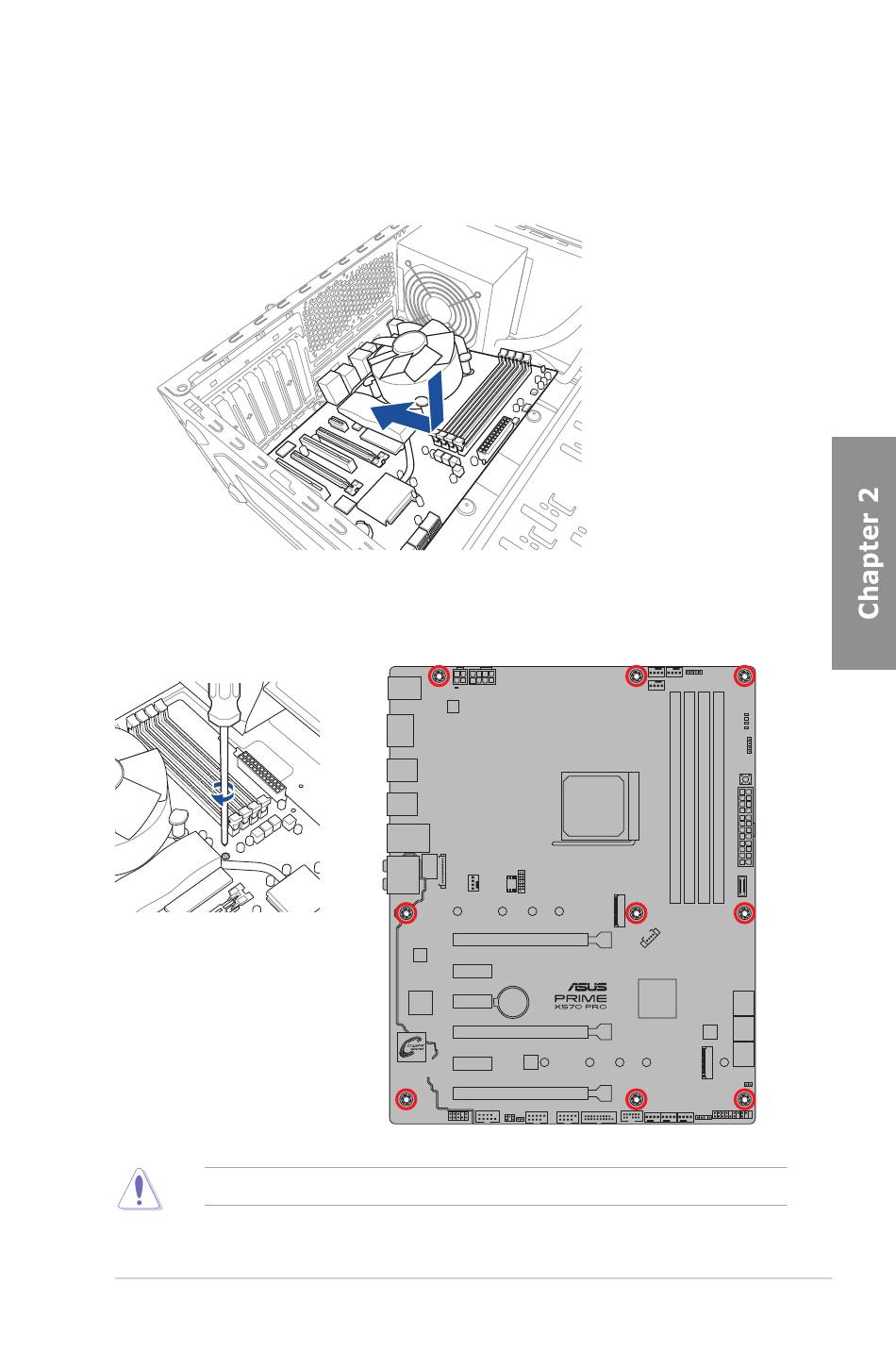

Motherboard installation
1.
Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to
the chassis' rear I/O panel.
2.
Place nine (9) screws into the holes indicated by circles to secure the motherboard to
the chassis.
DO NOT over tighten the screws! Doing so can damage the motherboard.
ASUS PRIME X570-PRO
2-5
