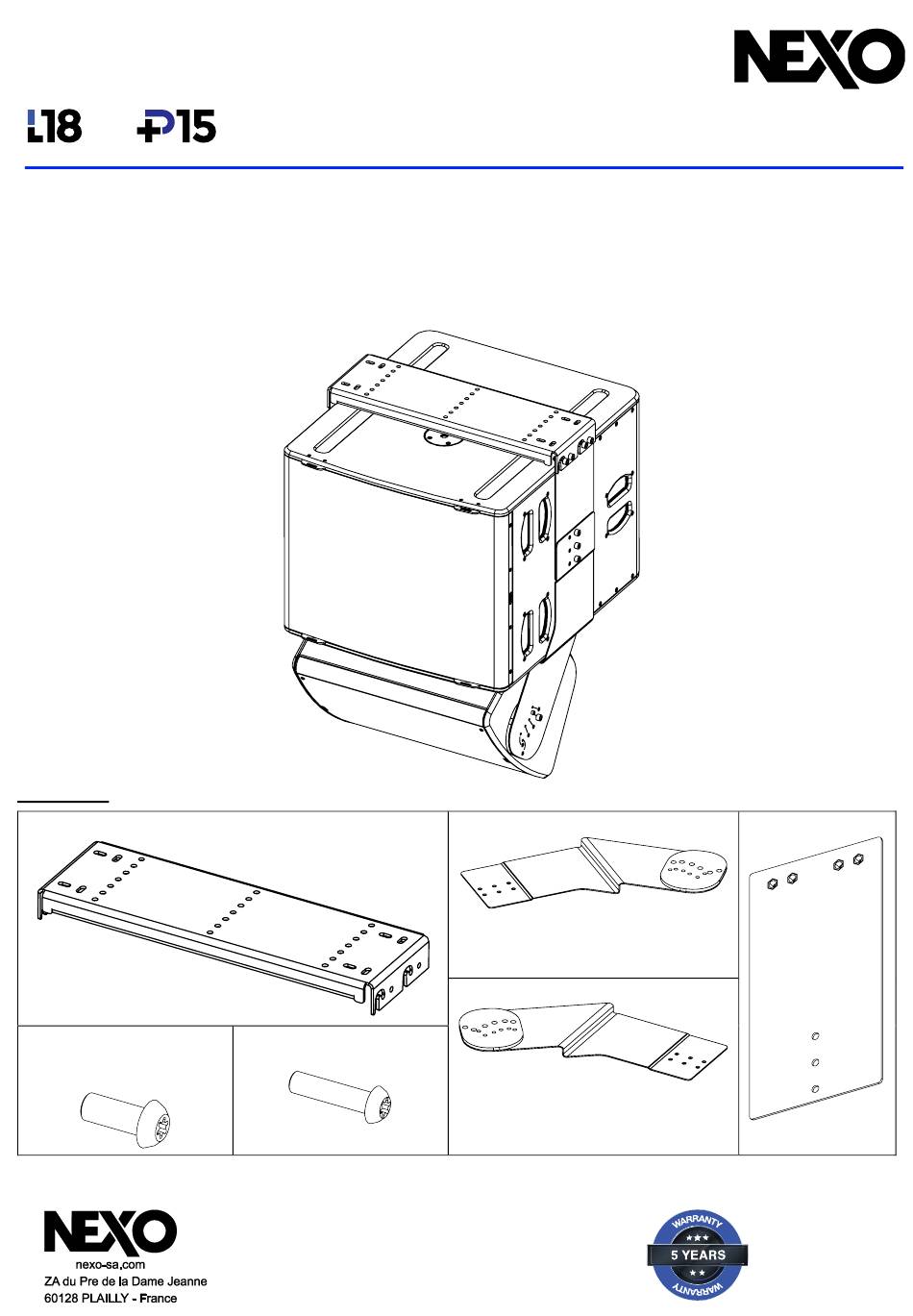

PNI-P15TOL18
DP5578 – 01d - DI
P15 Under L18 Rigging System
Contents:
X1
X8
M10x30 (a)
X2
M10x25 (a)
X6
M10x18 (a)
(a): The type of the screws may differ from the representation
Weight: 21 kg / 46.2 lb
Ceiling Plate
X2
M6x25 (a)
- Read t his docum ent before using.
- Keep t his docum ent .
- Observe all warnings and caut ions.
X1
Left Plate
X1
Right Plate
X2
Main Plate
PAGE 1 OF 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nexo P15 Under L18 Rigging System
Summary of Contents for Nexo P15 Under L18 Rigging System
- Page 1 PNI-P15TOL18 DP5578 – 01d - DI P15 Under L18 Rigging System Contents: Ceiling Plate Left Plate Main Plate Right Plate M10x30 (a) M6x25 (a) M10x25 (a) M10x18 (a) (a): The type of the screws may differ from the representation Weight: 21 kg / 46.2 lb - Read t his docum ent before using.
- Page 2 Dimensions: For fixation, you have the choice between M8 and M10 WARNINGS Ensure that the mounting location and fasteners can support at least 4 times the weight of all the installed cabinets, auxiliary equipment and cables. Use only the provided screws (thread lock coated) and accessories. Implementation of a L18 Prepare the Main plates by screwing the Place the assembly below the ceiling...
- Page 3 Implementation of a P15 Place P15 between the plates, position at the chosen angle, fasten with M10x25 screws and secure with M6x25 screws. PNI-P15TOL18 frame tilt Holes 1 Holes 2 Holes 3 Holes 4 Holes 5 Holes 6 Holes 7 0°...
- Page 4 -35° -45° -55° • NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself. • Please check the web site nexo-sa.com for the latest update. - Read t his docum ent before using.
