LNI-3L18
DP5660 - 01 - DI
Contents:
X1
X8
M10x30
Weight: 26.5 kg / 58.5 lb
Up to 3xL18 Rigging System
Ceiling Plate
X18
M10x16
- Read t his docum ent before using.
- Keep t his docum ent .
- Observe all warnings and caut ions.
X4 L18 Plate
X2
Main Plate
PAGE 1 OF 4
Advertisement
Related Manuals for Nexo LNI-3L18
Summary of Contents for Nexo LNI-3L18

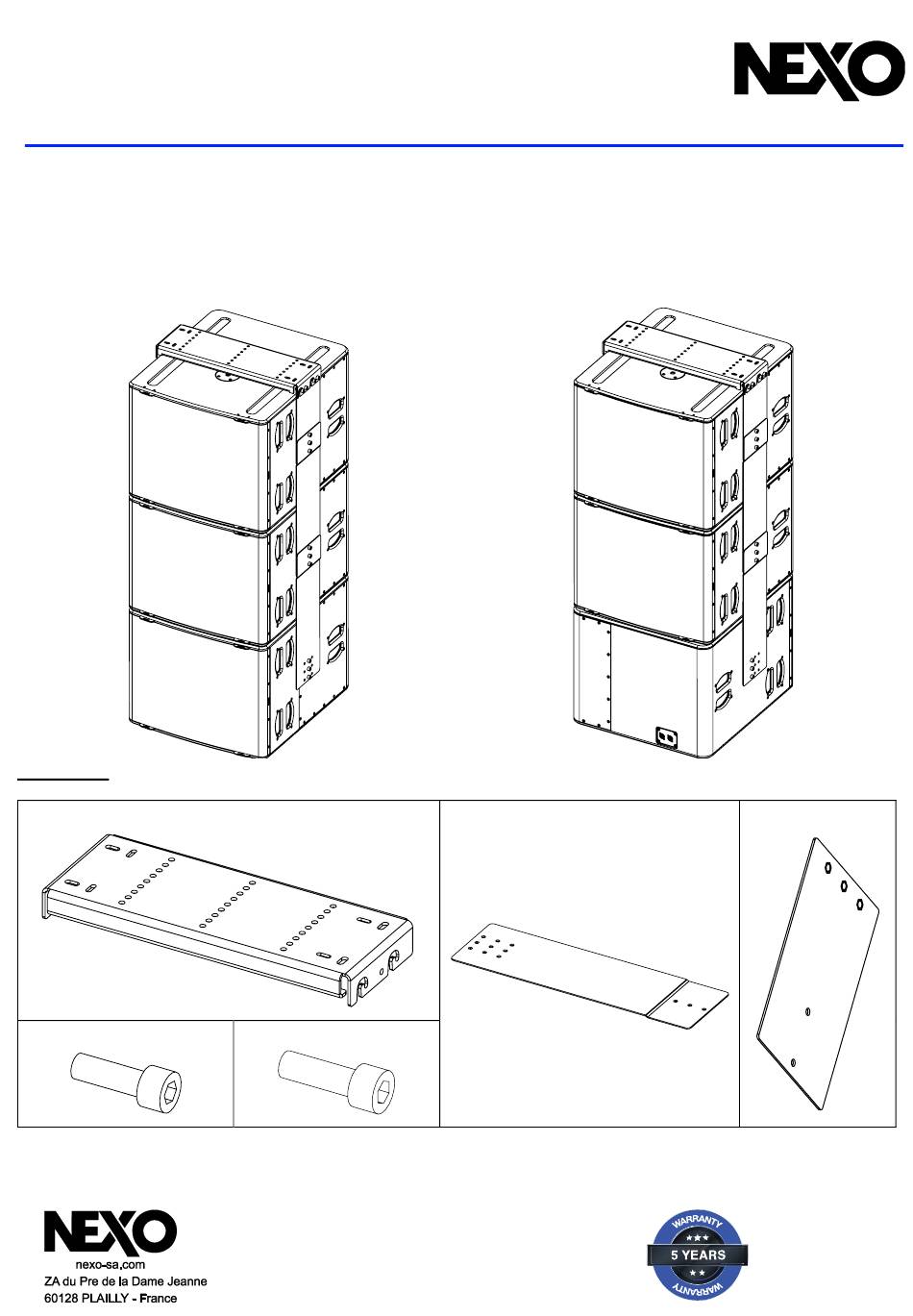

- Page 1 LNI-3L18 DP5660 - 01 - DI Up to 3xL18 Rigging System Contents: X4 L18 Plate Ceiling Plate Main Plate M10x30 M10x16 Weight: 26.5 kg / 58.5 lb - Read t his docum ent before using. - Keep t his docum ent .
