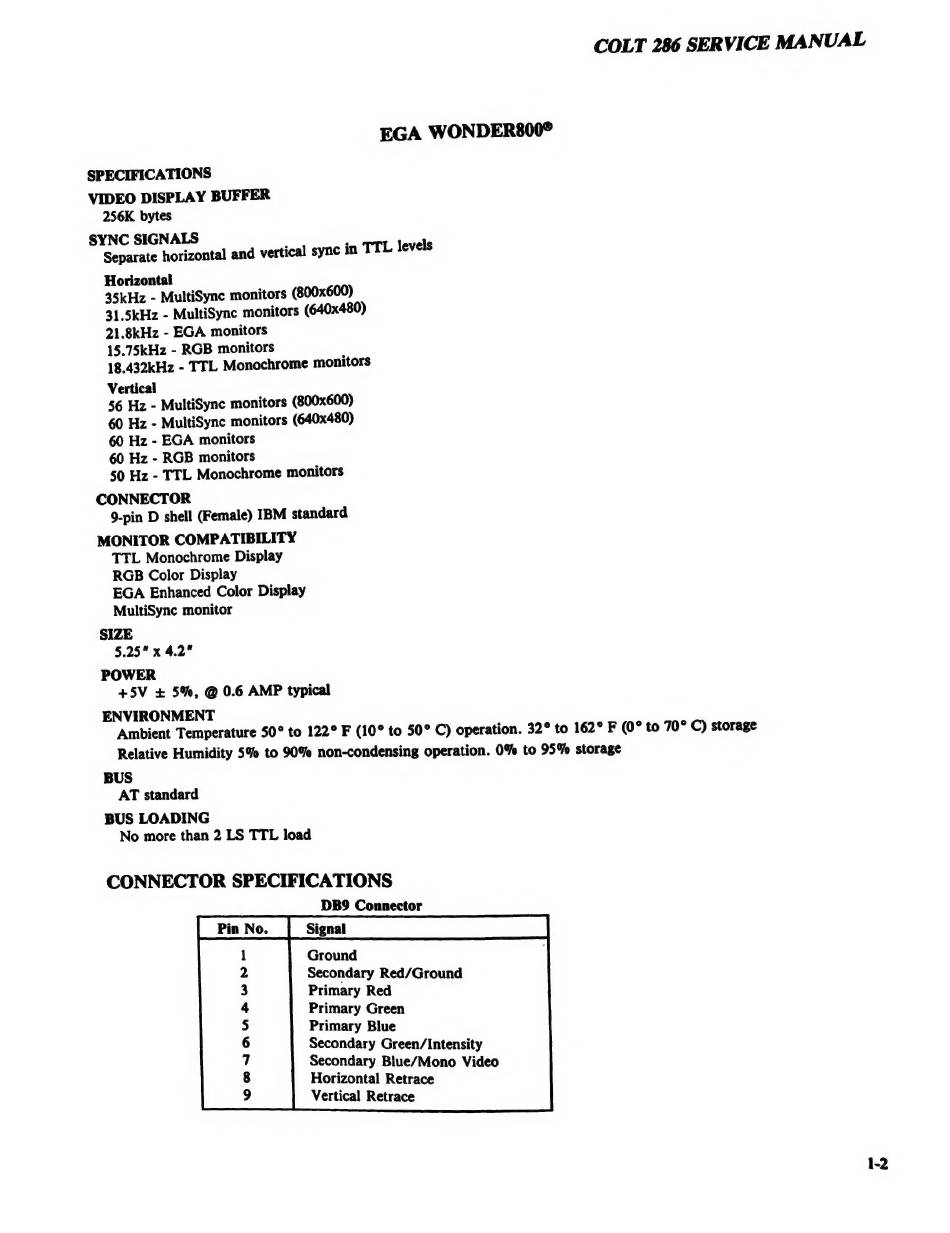

Section 1 - Specifications - Commodore COLT 286 Service Manual

SYNC SIGNALS
Separate horizontal and vertical
sync in TTL levels
Horizontal
Vertical
RGB Color Display
MultiSync monitor
SIZE
5.25" x 4.2"
POWER
BUS
AT standard
BUS LOADING
No more than 2 LS TTL load
CONNECTOR SPECIFICATIONS
DB9 Connector
Ground
Secondary Red/Ground
Primary Red
Primary Green
Primary Blue
Secondary Green/Intensity
Secondary Blue/Mono Video
Horizontal Retrace
Vertical Retrace
1
2
3
4
5
6
7
8
9
