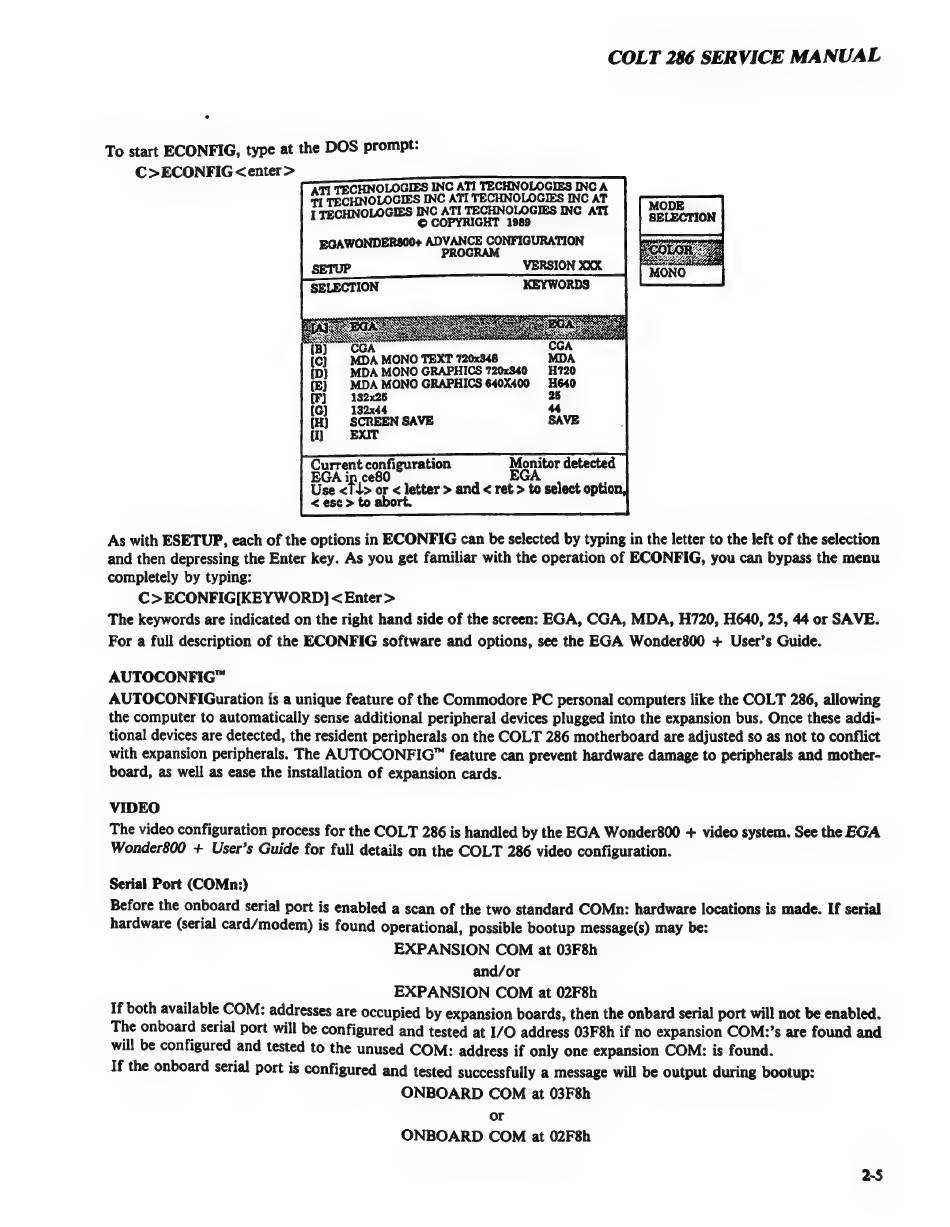

Commodore COLT 286 Service Manual page 11

aoe POGIES INC ATI TECHNOLOGIES INC. ATT
GIES
Ereeere © COPYRIGHT 1989
ER800+ ADVANCE CONFIGURATION
pase PROGRAM
VERSION XXX
ERR NG as
CGA
(G) 132x44 "4
({H]
SCREEN SAVE
SAVE
(0) EXIT
Current configuration Monitor detected
GA in cel0 GA
Use <I L> or < letter > and < ret > to select option,
< esc > to abort.
As with ESETUP, each of the options in ECONFIG can be selected by typing in the letter to the left of the selection
and then depressing the Enter key. As you get familiar with the operation of ECONFIG, you can bypass the menu
completely by typing:
C>ECONFIG[KEYWORD] <Enter>
The keywords are indicated on the right hand side of the screen: EGA, CGA, MDA, H720, H640, 25, 44 or SAVE.
For a full description of the ECONFIG software and options, see the EGA Wonder800 + User's Guide.
AUTOCONFIG™
AUTOCONFIGuration is a unique feature of the Commodore PC personal computers like the COLT 286, allowing
the computer to automatically sense additional peripheral devices plugged into the expansion bus. Once these addi-
tional devices are detected, the resident peripherals on the COLT 286 motherboard are adjusted so as not to conflict
with expansion peripherals. The AUTOCONFIG™ feature can prevent hardware damage to peripherals and mother-
board, as well as ease the installation of expansion cards.
VIDEO
Serial Port (COMn:)
Before the onboard serial port is enabled a scan of the two standard COMn: hardware locations is made. If serial
hardware (serial card/modem) is found operational, possible bootup message(s) may be:
EXPANSION COM at 03F8h
and/or
EXPANSION COM at 02F8h
2-5
