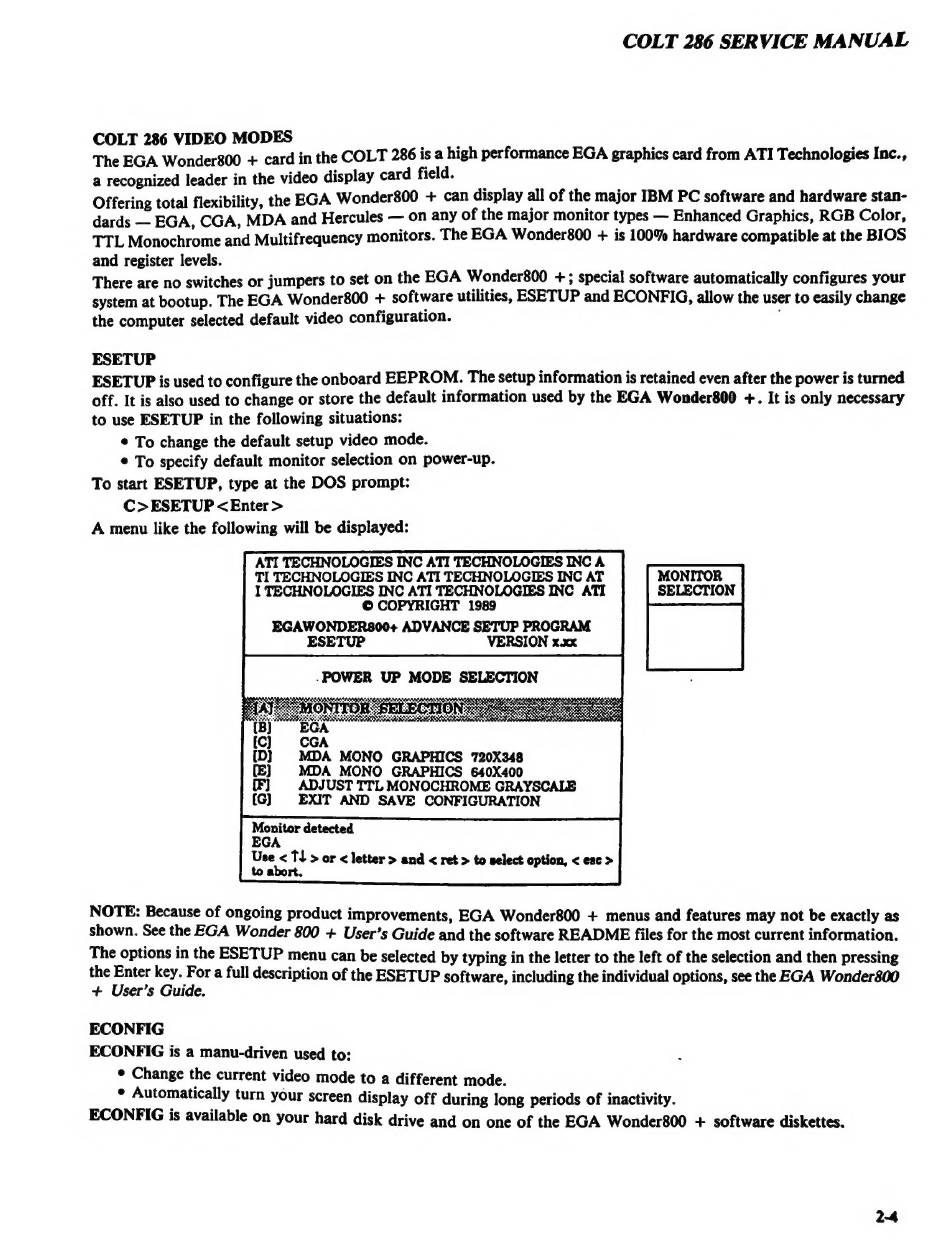

COLT 286 SERVICE MANUAL
COLT 286 VIDEO MODES a s i s
The EGA Wonder800 + card in the COLT 286 is a high performance EGA graphics card from ATI Technologies Inc.,
and register levels.
There are no switches or jumpers to set on the EGA Wonder800 +; special software automatically configures your
ESETUP
ESETUP is used to configure the onboard EEPROM. The setup information is retained even after the power is turned
off. It is also used to change or store the default information used by the EGA Wonder800 +. It is only necessary
to use ESETUP in the following situations:
© To change the default setup video mode.
© To specify default monitor selection on power-up.
To start ESETUP, type at the DOS prompt:
C>ESETUP <Enter>
A menu like the following will be displayed:
ATI TECHNOLOGIES INC ATI TECHNOLOGIES INC A
TI TECHNOLOGIES INC ATI TECHNOLOGIES INC AT
I TECHNOLOGIES INC ATI TECHNOLOGIES INC ATI
© COPYRIGHT 1989
EGAWONDERS00+ ADVANCE SETUP PROGRAM
MONITOR
SELECTION
-POWER UP MODE SELECTION
LoS SEAMEN MAI IANNENIS YAS
MDA MONO GRAPHICS 720X348
(FE) MDA MONO GRAPHICS 640X400
{(F] ADJUST TTL MONOCHROME GRAYSCALE
EXIT AND SAVE CONFIGURATION
Monitor detected
EGA
ECONFIG
ECONFIG is a manu-driven used to:
24
