COLT 286 SERVICE MANUAL

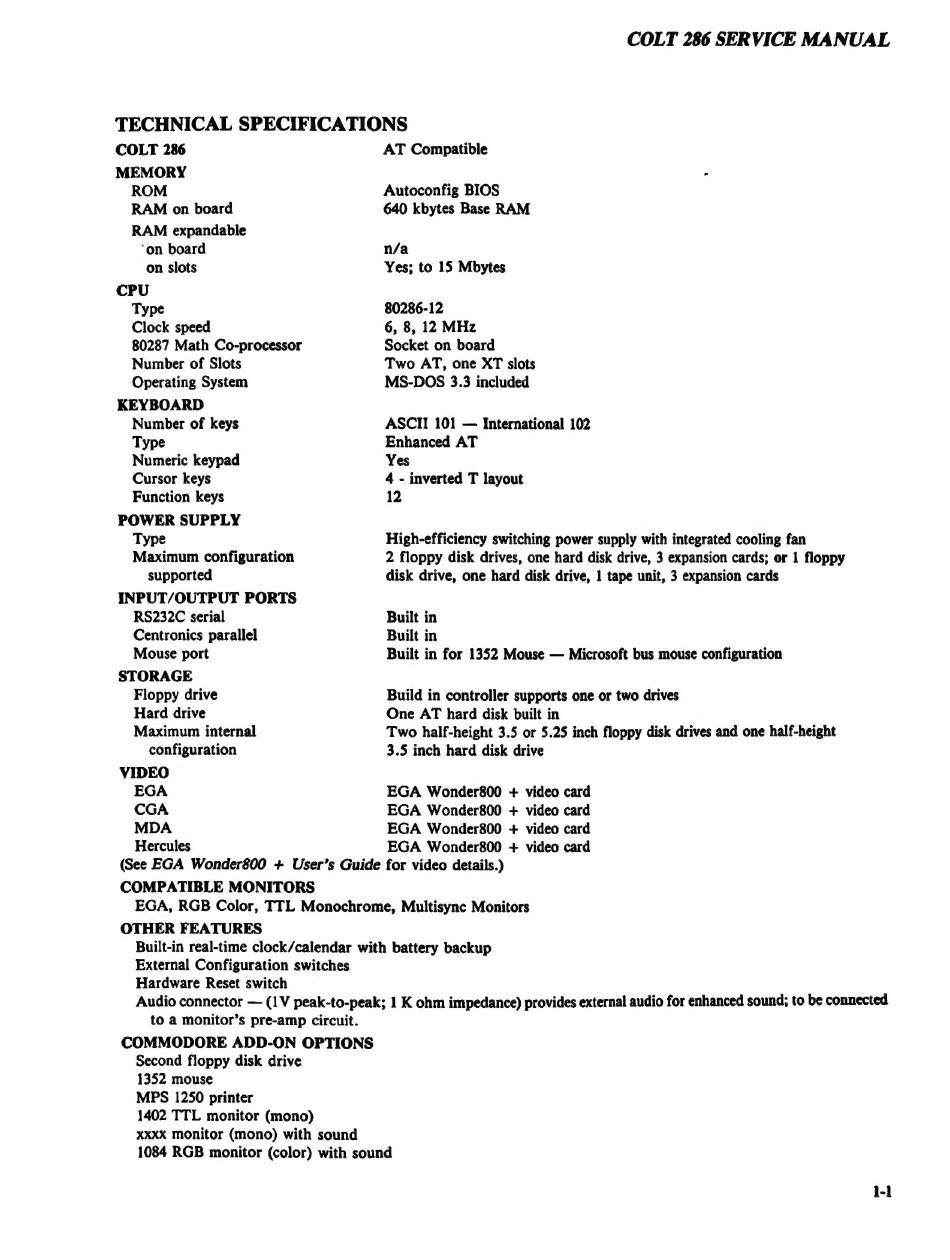

TECHNICAL SPECIFICATIONS
COLT 286
MEMORY
ROM
RAM on board
RAM expandable
'on board
on slots
CPU
Type
Clock speed
80287 Math Co-processor
Number of Slots
Operating System
KEYBOARD
Number of keys
Type
Numeric keypad
Cursor keys
Function keys
POWER SUPPLY
Type
Maximum configuration
supported
INPUT/OUTPUT PORTS
RS232C serial
Centronics parallel
Mouse port
STORAGE
Floppy drive
Hard drive
Maximum internal
configuration
VIDEO
EGA
CGA
MDA
Hercules
AT Compatible
Autoconfig BIOS
640 kbytes Base RAM
n/a
Yes; to 15 Mbytes
80286-12
6, 8, 12 MHz
Socket on board
Two AT, one XT slots
MS-DOS 3.3 included
ASCII 101 — International 102
Enhanced AT
Yes
4 - inverted T layout
12
High-efficiency switching power supply with integrated cooling fan
2 floppy disk drives, one hard disk drive, 3 expansion cards; or 1 floppy
disk drive, one hard disk drive, 1 tape unit, 3 expansion cards
Built in
Built in
Built in for 1352 Mouse — Microsoft bus mouse configuration
Build in controller supports one or two drives
One AT hard disk built in
Two half-height 3.5 or 5.25 inch floppy disk drives and one half-height
3.5 inch hard disk drive
EGA Wonder800 + video card
EGA Wonder800 + video card
EGA Wonder800 + video card
EGA Wonder800 + video card
(See EGA Wonder800 + User's Guide for video details.)
COMPATIBLE MONITORS
EGA, RGB Color, TTL Monochrome, Multisyne Monitors
OTHER FEATURES
Built-in real-time clock/calendar with battery backup
External Configuration switches
Hardware Reset switch
Audio connector — (1 V peak-to-peak; 1 K ohm impedance) provides external audio for enhanced sound; to be connected
to a monitor's pre-amp circuit.
COMMODORE ADD-ON OPTIONS
Second floppy disk drive
1352 mouse
MPS 1250 printer
1402 TTL monitor (mono)
xxxx monitor (mono) with sound
1084 RGB monitor (color) with sound
