Value 14.99.3413 Quick Installation Manual

Wireless Audio/Video
System, HDMI, 100 m
14.99.3413
Quick Installation Guide
Ver. 1.0
All brand names and trademarks are properties of
their respective owners

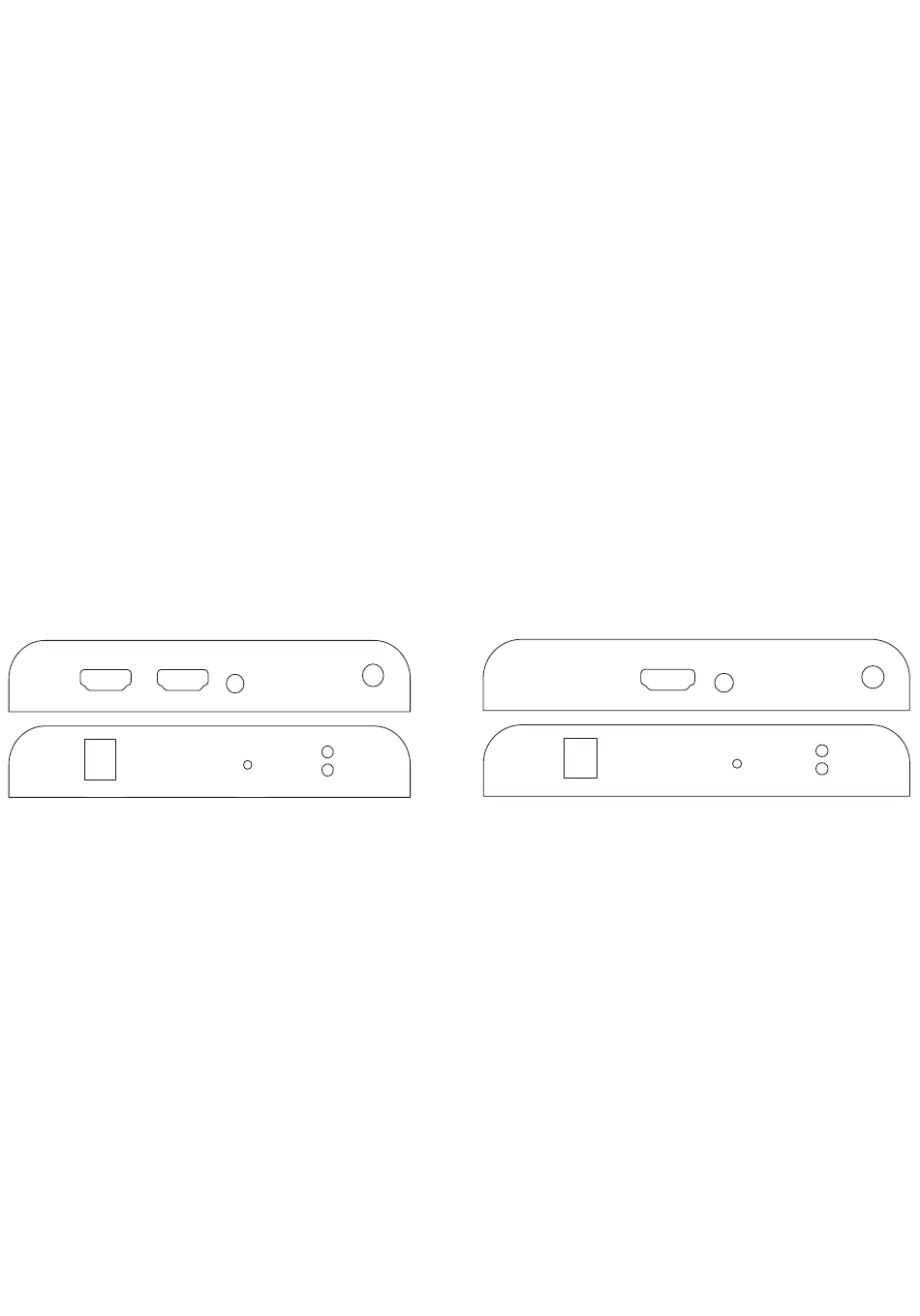

INTERFACE DESCRIPTION:
Sender:
HDMI In HDMI Out
DC 12V
●
HDMI In: Connect to the HDMI output of your HDMI source device.
●
HDMI Out: HDMI local Output, connect to the HDMI input of your local HDMI sink device.
●
IR Out: Plug the IR blaster into this jack.
●
DC 12V: Plug one of the included AC power adapters into this DC jack.
●
Reset: Press and hold this button for about 10 seconds to reset the Sender to the factory
default settings.
●
Power LED: This LED illuminates when power is applied to the Sender.
●
Link LED: System status indicator, this LED illuminates when the Sender searching
Receiver, and this LED flashing Sender and Receiver working properly.
IR Out
Link
Power
Reset
INTRODUCTION:
The HDMI extender uses the standard Ethernet TCP / IP protocol to transmit high-
definition audio and video signals through wireless WIFI signals, enabling point to
multi-point applications. Meanwhile, the included infrared expansion function
makes remote control more convenient. The device has excellent image
processing and transmission capabilities to make the signal transmission more
smooth and stable. It is a cost-effective HDMI signal extension.
FEATURES:
● Supports HDMI video and audio signals transmitted through WIFI wireless up
to 100 meters
● Supports HD video signal resolution up to 1920X1080P@60Hz
● Compatible with HDMI 1.3
● Dedicated format to encode and decode video signal, effectively improve the
transmission efficiency, to ensure the playback function smoothly.
● Support external remote infrared expansion, easy to control remote devices
● Automatic identification and configuration of various display modes
● Built-in automatic balance system, supports picture smooth, clear and stable
● Built-in ESD electrostatic protection circuit, all-round protection system
security
● Installation is simple and convenient, plug and play, no need to setup
PACKAGE CONTENTS:
● 1 x Main unit Sender
● 1 x Main unit Receiver
● 2 x Antenna
● 2 x Power adapter
● 1 x IR-Receiver cable
● 1 x IR-Blaster cable
● 1 x 3.5mm Stereo audio cable
● 1 x User Manual
Receiver:
HDMI Out
DC 12V
● HDMI Out: Connect to the HDMI input of your remote HDMI sink device.
● IR In: Plug the IR receiver into this jack.
● DC 12V: Plug one of the included AC power adapters into this DC jack.
● Reset: Press and hold this button for about 10 seconds to reset the Receiver to
the factory default settings.
● Power LED: This LED illuminates when power is applied to the Receiver.
● Link LED: System status indicator. This LED illuminates when the Receiver is
searching Sender, and this LED is flashing when Sender and Receiver are
working properly.
IR In
Link
Power
Reset
