Value 14.99.3568 User Manual

Hdmi extender, ipcolor over ip 60hz, 120m
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
14.99.3568
VALUE HDMI Extender, IPCOLOR over IP 60Hz, 120m

Advertisement

loading
Need help?

Need help?

Do you have a question about the 14.99.3568 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Value 14.99.3568

Summary of Contents for Value 14.99.3568

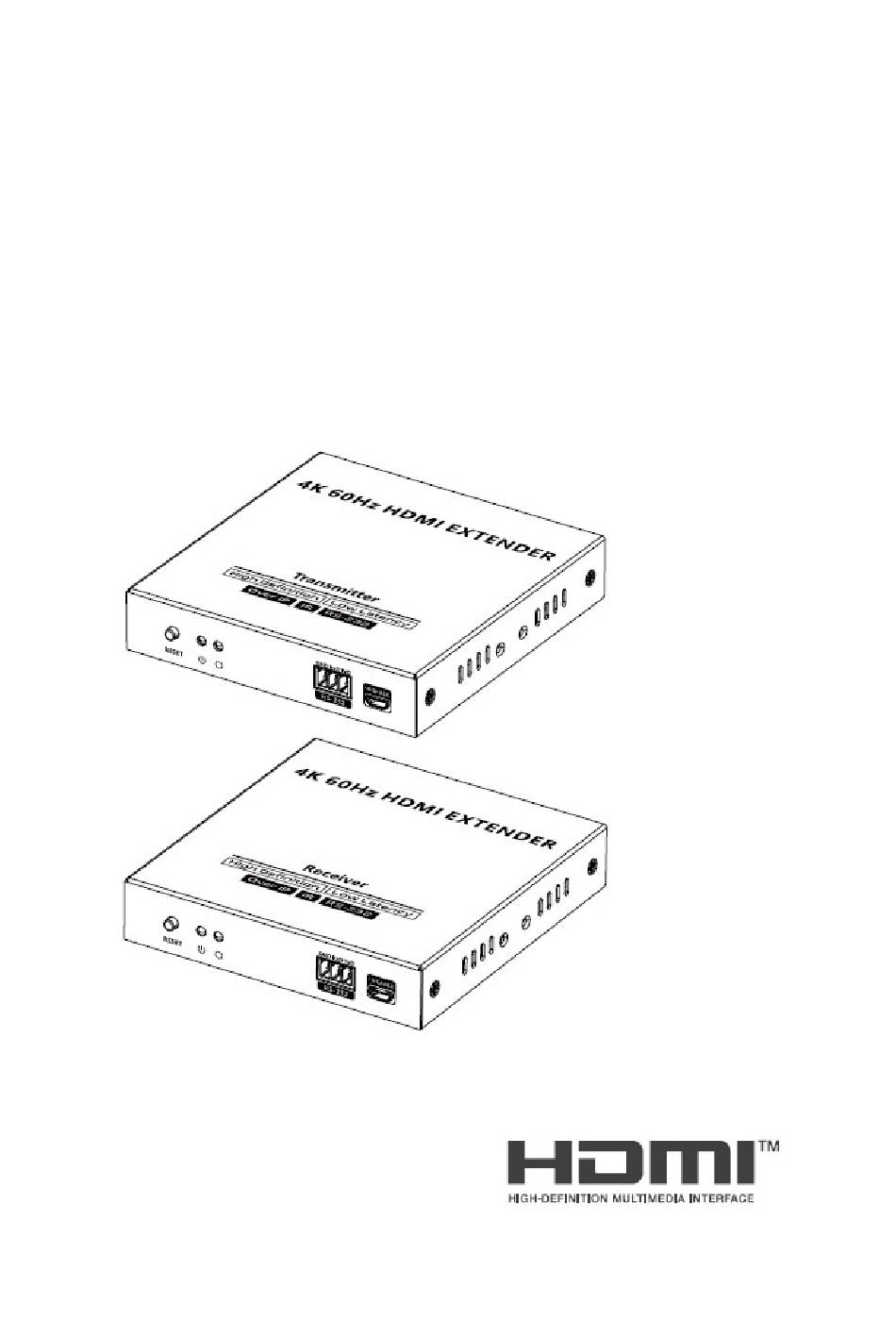

  • Page 1 User Manual 14.99.3568 VALUE HDMI Extender, IPCOLOR over IP 60Hz, 120m...

  • Page 2: Important Safety Instruc Ons

    Important Safety Instruc ons 1) Do not expose this device to rain or place it near water. Any liquid that goes into the device may cause a failure, fire, or electric shock. 2) Never insert anything metallic into the open parts of this device. This may cause a danger of electric shock.

  • Page 3: Package Contents

    Package Contents Transmi er x1 Receiver x1 Power adapter x 2 User manual x1 IR receiver extension cable x1 IR blaster extension cable x1 Moun ng ear x4 Screw x10 Grounding Screw x1 Terminal block (RS-232) x2...
  • Page 4 Installa on Requirements Item Descrip on Requirement Signal source device PC, DVD, NVR, etc. with HDMI HDMI cable ≤ 5m port Cable Cat5/5e/6 or above, following Cat6/6A/7 ≤ 120m standard IEEE-568B Display device TV, projector, LED screen, etc. HDMI cable ≤ 5m with HDMI port Network switch One-to-many or...
  • Page 5 Panel Descrip on 1. Transmi er Reset Press to restart the device Power indicator The indicator will turn on when the power is turned on (blue) 1) Light off: The transmi er and the receiver have not established a connec on 2) Slow flash: The transmi er and the receiver are connected but Status indicator no video data transmission (Gigabit Ethernet)
  • Page 6 2. Receiver Reset Press to restart the device Power indicator The indicator will turn on when the power is turned on (blue) 1) Light off: The transmi er and the receiver have not established a connec on 2) Slow flash: The transmi er and the receiver are connected but Status indicator no video data transmission (Gigabit Ethernet) (orange)
  • Page 7 Installa on 1. Follow the standard of IEEE-568B: 1-white and orange 2-orange 3-white and green 4-blue 5-white and blue 6-green 7-white and brown 8-brown 2. Connec on Diagrams 1) One-to-one connec on 2) One-to-many connec on (through gigabit switch): 3) One-to-many connec on (cascade of gigabit switches): Note: It is suggested to use gigabit (1000 Mbps) switches in LAN transmission.
  • Page 8 3. Connec on Instruc ons 1) Connect the source device to the HDMI IN port of the transmi er with an HDMI cable, and connect the HDMI OUT port of the receiver to the display device with another HDMI cable. 2) If it's a one-to-one connec on, use a network cable to connect the RJ45 port of the transmi er and receiver.
  • Page 9 5.3 Check baud rate If you want to check the baud rate, set the value for the baud rate of the test tool for the serial interface to the default value 115200, connect the test tool for the serial interface to the device and switch it on.

  • Page 10: Technical Parameters

    Technical Parameters Item Transmi er Receiver Video Input interface 1x HDMI 1x RJ45 1x HDMI Output interface 1x HDMI 1x RJ45 HDMI cable length ≤ 5m ≤ 5m Maximum transfer rate 18 Gbps HDMI 2.0 Compa bility HDCP 1.4/HDCP 2.2 3840x2160@24/30/50/60Hz, 1080p@50/60Hz, Resolu ons 720p@50/60Hz, 1920x1200@60Hz, 2560x1440@60Hz,...
