Alpha Technologies CSM56 Installation & Operation Manual

+/-190 vdc compact remote power supply and backup module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CSM56 +/-190 Vdc Compact Remote
Power Supply and Backup Module
Installation & Operation Manual
XXX XXX B0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSM56 and is the answer not in the manual?

Questions and answers

Related Manuals for Alpha Technologies CSM56

Summary of Contents for Alpha Technologies CSM56

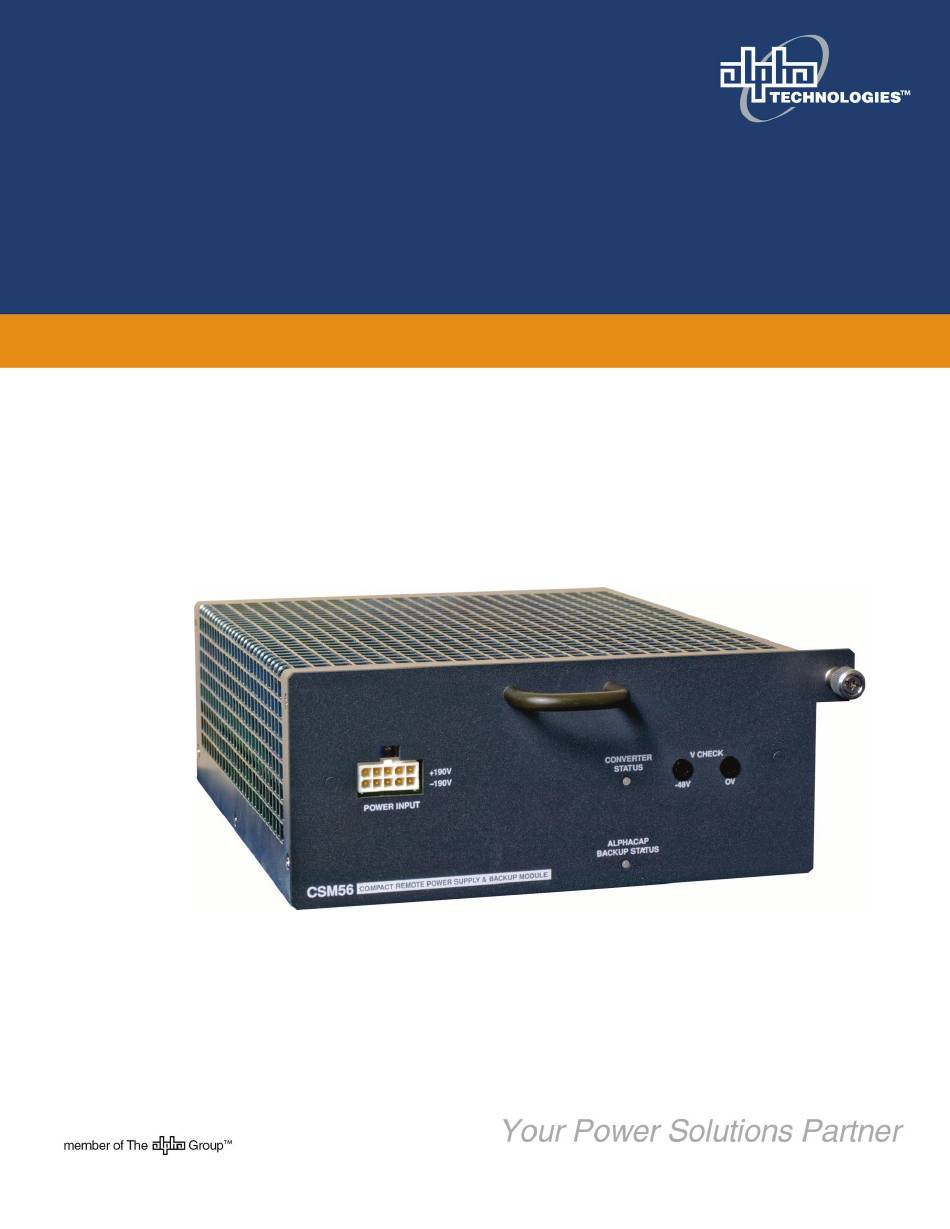

  • Page 1 CSM56 +/-190 Vdc Compact Remote Power Supply and Backup Module Installation & Operation Manual XXX XXX B0...
  • Page 2 This page is intentionally left blank. Alpha Technologies Ltd. 013-034-B2 Rev F Printed in C . © 2010 Alpha Technologies Ltd. ALPHA and CORDEX are trademarks of Alpha Technologies Ltd. All Rights Reserved.
  • Page 3 CSM56 manual 013-034-C0 • Specifications: 013-034-B1 • Customer connection drawing: 013-034-08 • Outline Drawing: 013-034-06 Alpha Technologies Ltd. 013-034-B2 Rev F Printed in China. © 2010 Alpha Technologies Ltd. ALPHA and CORDEX are trademarks of Alpha Technologies Ltd. All Rights Reserved.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This section contains important instructions that must be followed during the installation and maintenance of the equipment and batteries. Read all of the instructions before operating the equipment, and save this manual for future reference.

  • Page 5: Table Of Contents

    ABLE OF ONTENTS ..............................1 NTRODUCTION Scope of the Manual ............................. 1 Product Overview ............................1 Part Numbers and List Options ........................1 ..........................2 ONVERTER ODULE EATURES Microcontroller ............................. 2 Indicators ..............................2 Test Points ..............................2 Lock ................................2 Handle ................................
  • Page 6 Normal Mode of Operation .......................... 9 Reverse Polarity Protection .......................... 9 ..............................10 AINTENANCE ............................11 LPHA ONVENTIONS Numbering System ............................11 Acronyms and Definitions ........................... 11...

  • Page 7: Introduction

    48 Vdc supply. Supercapacitors have been incorporated into the CSM56 to provide at least four (4) seconds of backup for a 350 W, 48 Vdc load.

  • Page 8: Converter Module Features

    A captive type screw is used to lock the module into place in the Lucent Stinger® DSLAM cabinet. Handle The front mounted grip (handle) is used for easy insertion and removal of the CSM56. 013-034-C0 Rev E Alpha Technologies Ltd.

  • Page 9: Dc Inputs

    Output Power Each of the isolated converters on the CSM56 module has a maximum output capacity of 75 W for a total capacity of 375 W per module. The power output is a function of the input voltage into each converter. Proper network engineering and copper pair sizing is required to accommodate the power demand of the load.

  • Page 10: Over Temperature Protection

    CAUTION: To optimize safety, wire the shelf with the correct polarity on all inputs. 013-034-C0 Rev E Alpha Technologies Ltd. Burnaby, British Columbia. Telephone: 604 436 5900, Fax: 604 436 1233. Page 4 of 11...

  • Page 11: Inspection

    If the original container is unavailable, make sure that the product is packed with at least three inches of shock- absorbing material to prevent shipping damage. Alpha Technologies is not responsible for damage caused by the improper packaging of returned products. Check for Damage Before unpacking the product, note any damage to the shipping container.

  • Page 12: Installation

    To remove a module, loosen the screw on the faceplate. Pull on the module handle and slide the module away from the rear connector and out of the shelf. 013-034-C0 Rev E Alpha Technologies Ltd. Burnaby, British Columbia. Telephone: 604 436 5900, Fax: 604 436 1233. Page 6 of 11...
  • Page 13 Mounting rail (2PL) Module locking screw Figure 4–Perspective view of CSM56 module, showing mounting rail 013-034-C0 Rev E Alpha Technologies Ltd. Burnaby, British Columbia. Telephone: 604 436 5900, Fax: 604 436 1233. Page 7 of 11...

  • Page 14: Wiring And Connections

    Volts. DC Output Shelf Connection Insert the CSM56 into the Lucent Stinger® DSLAM cabinet for the –50 V and +Gnd output terminations. The connection is made via a 10-pin blind-mate Molex connector located on the rear panel. Figure 5–Rear view of CSM56 module 013-034-C0 Rev E Alpha Technologies Ltd.

  • Page 15: Initial Startup

    5. Measure the output voltage at the front panel test points. 6. The front panel Converter Status LED will illuminate yellow temporarily, and will illuminate green after the CSM56 self-test is finished. 7. The AlphaCap Backup Status LED may illuminate red initially, and will then flash green when the AlphaCaps are charging.

  • Page 16: Maintenance

    Confirm output voltage measured at test points Table A–Sample maintenance log CAUTION Stored energy hazard. Do not open the cover! No serviceable parts inside. 013-034-C0 Rev E Alpha Technologies Ltd. Burnaby, British Columbia. Telephone: 604 436 5900, Fax: 604 436 1233. Page 10 of 11...

  • Page 17: Alpha Conventions

    Numbering System Alpha Technologies uses an eight-digit drawing number system, which is broken into three blocks. The first three digits describe the category of the product; e.g., rectifier or fuse panel. The next three digits indicate the sequence in which the product number was allocated in a particular category.
  • Page 18 Specifications for Alpha Technologies’ CSM56 +/–190Vdc Compact Remote Power Supply and Backup Module System Output Voltage Range: -50 to -55 Vdc with inputs operational Current Maximum: 7.5 A @ 50 V (derates linearly with input voltage) 7.8 A @ 45 V...
  • Page 19 Specifications for Alpha Technologies’ CSM56 +/–190Vdc Compact Remote Power Supply and Backup Module Continued System Input Voltage: 200 to 390 Vdc (±100 to ±195 Vdc) Noise: Compliant to GR-1089-CORE, Section 3.2.2.2 and 3.3 Transient Protection: Compliant to GR-1089-CORE, Section 4.6.7 for lightning surge susceptibility Section 4.6.10 for ac power faults...
  • Page 20 Specifications for Alpha Technologies’ CSM56 +/–190Vdc Compact Remote Power Supply and Backup Module Continued Mechanical Module Size: 86.4 mm H x 223.1 mm W x 238.9 mm D, w/ fastener (3.40" H x 8.78" W x 9.41" D) 86.4 mm H x 223.1 mm W x 264.2 mm D, w/ handle (3.40"...
  • Page 21 UNITS: mm [in] X [X.X] [ 0.040] PINS 9,10 - N/C X.X [X.XX] [ 0.020] X.XX [X.XXX] 0.05 0.002] ANGULAR: SCALE: CUSTOMER CONNECTION, TITLE: CSM56,5x ±190V I/P,48V NAME DATE O/P,ALPHACAP DESIGN C.D.D. 2009/03 ISSUE SHEET DATE DRAWN 2009/03 SIZE TYPE DWG NO.
  • Page 22 [ 0.020] X.XX [X.XXX] 0.05 0.002] ANGULAR: SCALE: OUTLINE DRAWING, TITLE: CSM56 NAME DATE FRONT VIEW DESIGN C.D.D. 2009/03 ISOMETRIC VIEW ISSUE SHEET DATE DRAWN 2009/03 SIZE TYPE DWG NO. 013-034-06 CHECKED 2009/03 APPROVED 2009/03 © © 2010 ALPHA TECHNOLOGIES...
  • Page 23 Certification What are the CSA and NRTL? CSA (Canadian Standards Association also known as CSA International) was established in 1919 as an independent testing laboratory in Canada. CSA received its recognition as an NRTL (Nationally Recognized Testing Laboratory) in 1992 from OSHA (Occupational Safety and Health Administration) in the United States of America (Docket No.
  • Page 24 Warranty Alpha Technologies Limited (ATL) warrants its products to be free from defects in material and workmanship for a period of two (2) years from the date of purchase. ATL obligation under this warranty is limited to the repair or replacement, at its sole discretion, at the ATL factory or ATL Authorized Service Center, of any de- fective product.
  • Page 25 This page is intentionally left blank. Alpha Technologies Ltd. 013-034-B 2 Rev F Printed in China. © 2010 Alpha Technologies Ltd. ALPHA and CORDEX are trademarks of Alpha Technologies Ltd. All Rights Reserved.
  • Page 26 This page is intentionally left blank. Alpha Technologies Ltd. 013-034-B 2 Rev F Printed in China. © 2010 Alpha Technologies Ltd. ALPHA and CORDEX are trademarks of Alpha Technologies Ltd. All Rights Reserved.
