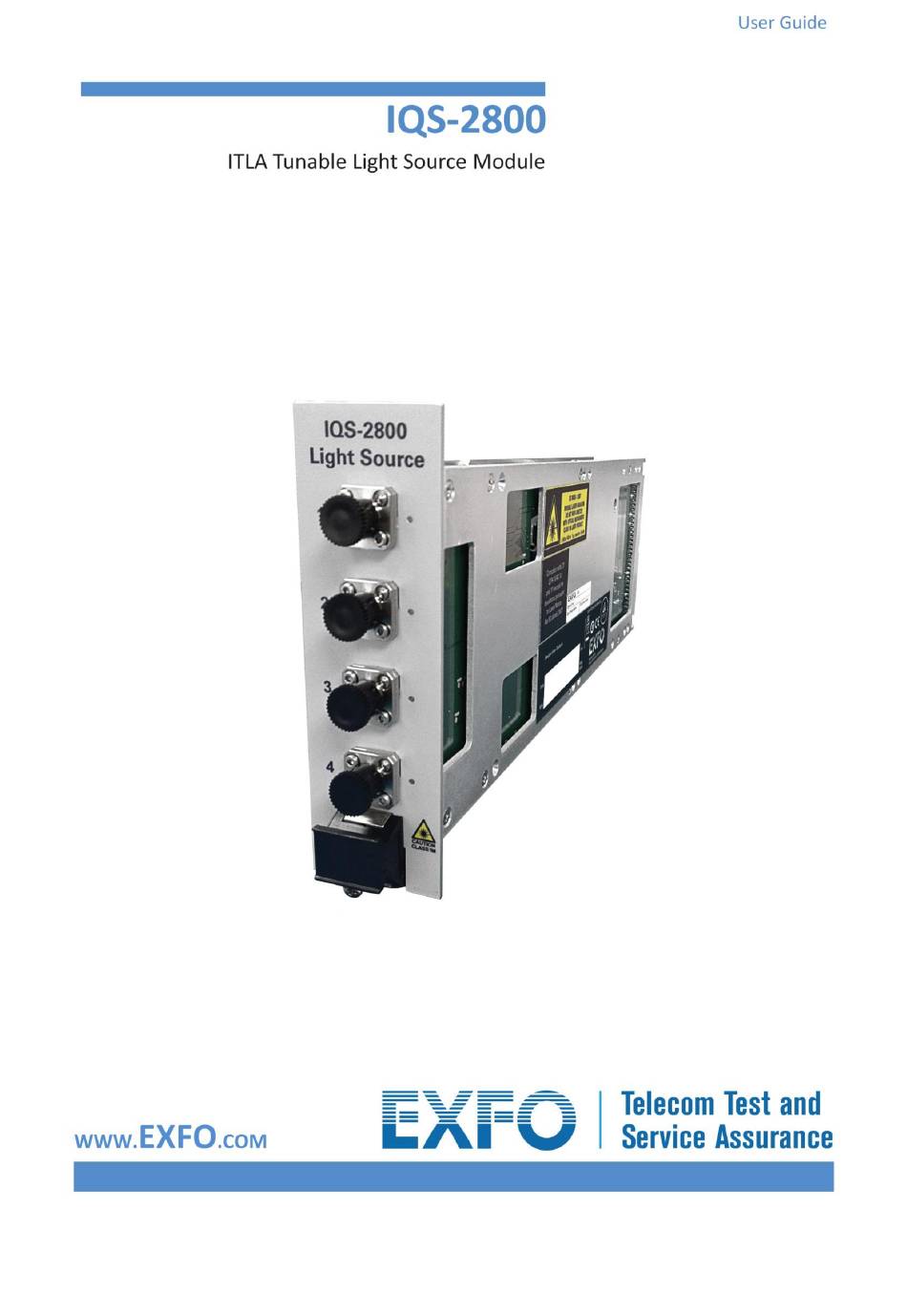

  • Page 1 User Guide...
  • Page 2 Information provided by EXFO is believed to be accurate and reliable. However, no responsibility is assumed by EXFO for its use nor for any infringements of patents or other rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent rights of EXFO.

  • Page 3: Table Of Contents

    Technical Specifications ..................... 5 Connecting Optical Output ..................8 Cleaning and Connecting Optical Fibers ..................... 8 Installing an IQS-2800 Expansion Module ..............10 Removing an IQS-2800 Expansion Module ............... 13 Maintenance ......................17 Recycling and Disposal (Applies to European Union only) ............... 17 Technical Support ....................

  • Page 4: Certification Information

    Canada and the United States. Electronic test and measurement equipment is exempt from FCC part 15, subpart B compliance in the United States of America and from ICES-003 compliance in Canada. However, EXFO Inc. makes reasonable efforts to ensure compliance to the applicable standards.

  • Page 5: Safety Information

    AUTION The IQS-2800 expansion modules are sensitive to electrostatic discharge (ESD). Please be sure to store the modules that are not installed in protective electrostatic packaging.
  • Page 6 IQS-2800  When you see the following symbol on your unit , make sure that you refer to the instructions provided in your user documentation. Ensure that you understand and meet the required conditions before using your product. IQS-2800 (v3.0)
  • Page 7 LASER AVEC CERTAINS INSTRUMENTS D'OPTIQUE (PAR EXEMPLE LOUPES D'HORLOGER, LOUPES À MAIN ET MICROSCOPES) À UNE DISTANCE INFÉRIEURE À 100 MM PEUT PRÉSENTER UN DANGER POUR Figure 2b – Avertissement : Produit de classe laser 1M LES YEUX. IQS-2800 (v3.0)

  • Page 8: Technical Specifications

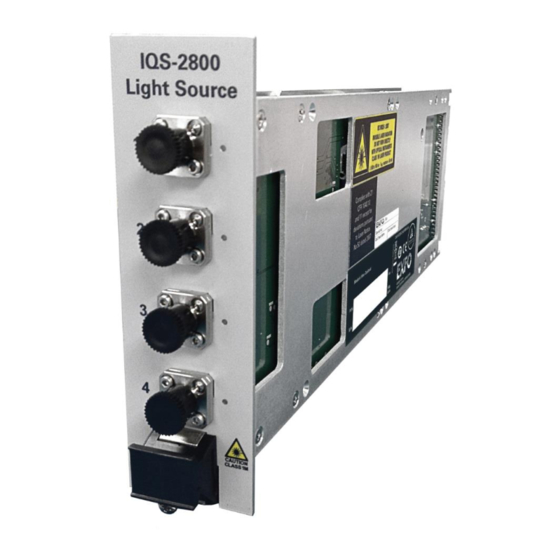

    2. Introducing the IQS-2800 Tunable Laser Source The IQS-2800 Tunable Laser Source is a multi-channel Continuous Wave (CW) laser module designed to be used in the IQS-636 platform. The laser sources are installed as modules with 2 or 4 lasers.
  • Page 9 PM SC/UPC IQS-2800-1-2-L-S-89 PM FC/UPC IQS-2800-1-2-L-S-91 PM SC/UPC 7.0 - 13.0 IQS-2800-1-4-L-S-89 PM FC/UPC 186.350 – 1568.773 – IQS-2800-1-4-L-S-91 PM SC/UPC 191.100 1608.760 IQS-2800-1-2-L-H-89 PM FC/UPC IQS-2800-1-2-L-H-91 PM SC/UPC 7.0 – 15.0 IQS-2800-1-4-L-H-89 PM FC/UPC IQS-2800-1-4-L-H-91 PM SC/UPC IQS-2800 (v3.0)
  • Page 10 ITLA Tunable Light Source Module IQS-2800 Specification (23°C± 3°C) Units All IQS-2800 models Laser type CW ECDL Frequency tuning resolution Wavelength tuning resolution Fine tune frequency resolution Fine tune frequency range Maximum time to tune and power lock (warm start) <...

  • Page 11: Connecting Optical Output

    The type of optical connectors is specific to the IQS-2800 module. The connectors will be of type PM FC/UPC or PM SC/UPC. This information can be found printed on the front plate of the IQS-2800 module and in MPORTANT These technical specifications can change without notice.
  • Page 12 EXFO uses good quality connectors in compliance with EIA-455-21A standards. To keep connectors clean and in good condition, EXFO strongly recommends inspecting them with a fiber inspection probe before connecting them. Failure to do so will result in permanent damage to the connectors and degradation in measurements.

  • Page 13: Installing An Iqs-2800 Expansion Module

    Do not remove the IQS-2800 from the antistatic packaging until instructed during the following installation procedure.  The IQS-2800 is sensitive to ESD. Please be sure to wear a grounded wrist strap at all times when handling the IQS-2800 module to prevent such damage.
  • Page 14 IQS-2800 module as shown in Figure 10 to make sure the IQS-2800 seats correctly. Figure 9 - Installing the IQS-2800 Module Figure 10 – Press the IQS-2800 Module to seat it into the Connector IQS-2800 (v3.0)
  • Page 15 ITLA Tunable Light Source Module IQS-2800 7. Once the IQS-2800 is installed, fasten the screw in the release latch to lock the IQS-2800 into place. Figure 11 – Fasten screw in Release Latch Power on the IQS-636 8. Power on the IQS-636 by pressing the Power On/Off switch.

  • Page 16: Removing An Iqs-2800 Expansion Module

    Acquire storage electrostatic packaging and blanking module 1. In preparation for removal of the IQS-2800 module, locate and retrieve the antistatic packaging the IQS-2800 was supplied in. This should have been stored near the IQS-636 when the IQS-2800 was installed.
  • Page 17 Do not continue unless you have the blanking module and appropriate storage packaging for the removed IQS-2800. If the IQS-2800 is not stored correctly it may be affected by ESD. The specifications of the IQS-2800 are only valid when all slots have blanking modules.
  • Page 18 ITLA Tunable Light Source Module IQS-2800 6. Slide the IQS-2800 module out to remove. Figure 17 – Slide out the IQS-2800 Module Package the IQS-2800 for storage 7. Once removed, put the IQS-2800 module into the antistatic packaging for storage.
  • Page 19 ITLA Tunable Light Source Module IQS-2800 MPORTANT After powering on the IQS-636, please wait at least 2 minutes before attempting to communicate with the instrument. This will allow the IQS- 636 enough time to finish boot procedures and initialize the communication server. IQS-2800 (v3.0)

  • Page 20: Maintenance

     Always inspect fiber-optic connectors before using them and clean them if necessary.  Keep the unit free of dust.  Always use blanking modules in slots that do not have an IQS-2800 laser module.  Clean the unit casing and front panel with a cloth slightly dampened with water.
  • Page 21 CHINESE REGULATION ON RESTRICTION OF HAZARDOUS SUBSTANCES 中国关于危害物质限制的规定 NAMES AND CONTENTS OF THE TOXIC OR HAZARDOUS SUBSTANCES OR ELEMENTS CONTAINED IN THIS EXFO PRODUCT 包含在本 EXFO 产品中的有毒有害物质或元素的名称和含量 Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363-2006 表示该有毒有害物质在该部件所有均质材料中的含量均在...

  • Page 22: Technical Support

    8. Technical Support Contacting the Technical Support Group To obtain after-sales service or technical support for this product, contact EXFO at one of the following numbers. The Technical Support Group is available to take your calls from Monday to Friday, 8:00 a.m. to 7:00 p.m. (Eastern Time in North America).

  • Page 23: Warranty

    Exclusions EXFO reserves the right to make changes in the design or construction of any of its products at any time without incurring obligation to make any changes whatsoever on units purchased. Accessories, including but not limited to fuses, pilot lamps, batteries and universal interfaces (EUI) used with EXFO products are not covered by this warranty.

  • Page 24: Certification

    5. Return the equipment, prepaid, to the address given to you by support personnel. Be sure to write the RMA number on the shipping slip. EXFO will refuse and return any package that does not bear an RMA number.

  • Page 25: Exfo Service Centers Worldwide

    ITLA Tunable Light Source Module IQS-2800 10. EXFO Service Centers Worldwide If your product requires servicing, contact the nearest authorized service center. EXFO Headquarters Service Center 400 Godin Avenue 1 866 683-0155 (USA and Canada) Quebec (Quebec) G1M 2K2 Tel.: 1 418 683-5498...
