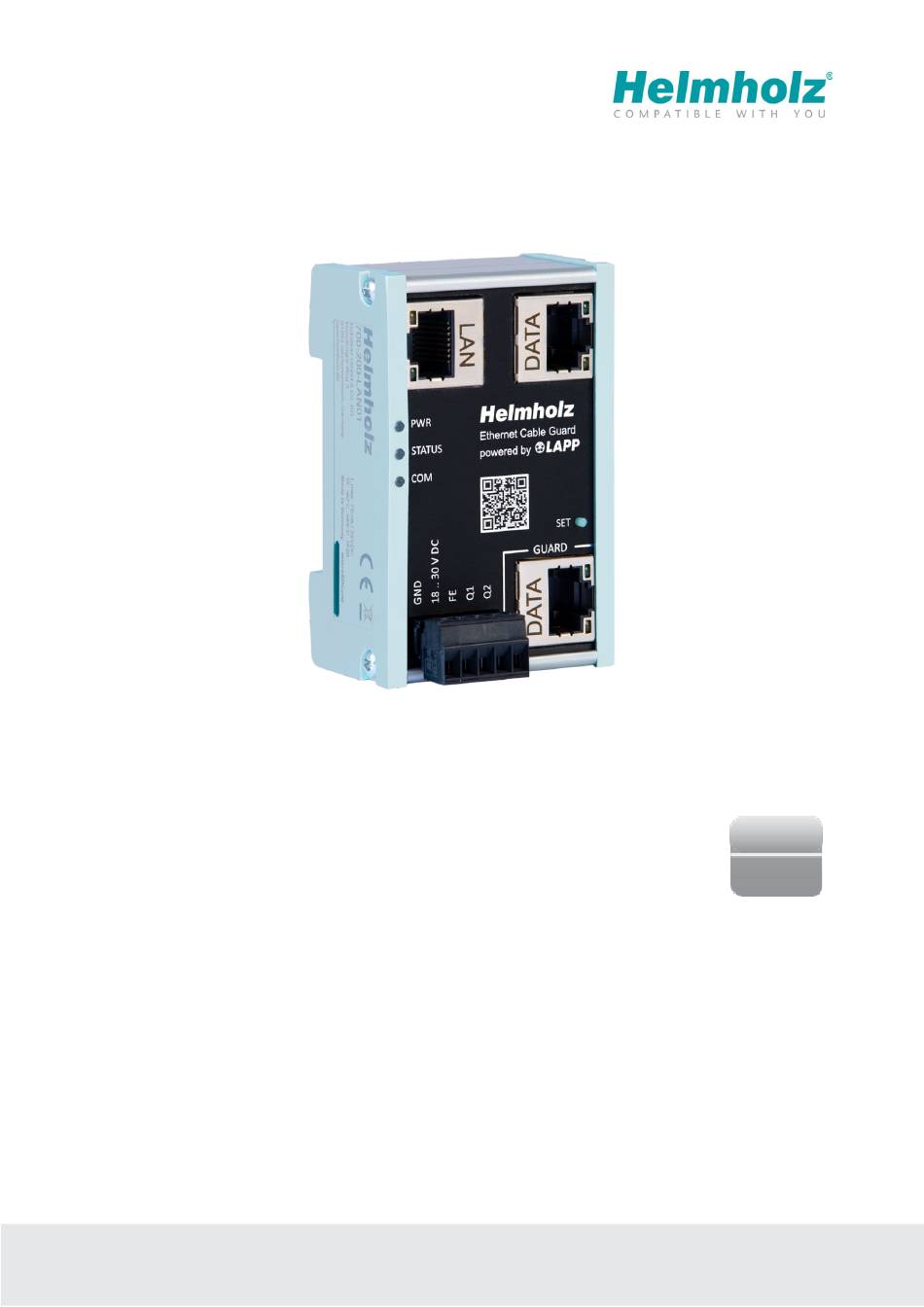

- Page 1 Quickstart Guide Version Ethernet Cable Guard Order number: 700-200-LAN01 Helmholz GmbH & Co. KG | Hannberger Weg 2 | 91091 Großenseebach | Germany 30.01.2024 Phone +49 9135 7380-0 | Fax +49 9135 7380-110 | info@helmholz.de | www.helmholz.de...
-
Page 2: Table Of Contents
Content Safety instructions ....................3 Introduction ......................3 Function of the Ethernet Cable Guard ..............4 Connection ......................4 Power supply ..........................4 Network ............................5 Initial commissioning ................... 5 Display of the operating statuses via the LEDs ................6 Website ........................ -
Page 3: Safety Instructions
2 Introduction This document explains the initial commissioning of the Ethernet Cable Guard. The latest version of the documentation can be found at www.helmholz.de scan the QR code directly. Quickstart Guide Ethernet Cable Guard | Version 1 | 30.01.2024... -
Page 4: Function Of The Ethernet Cable Guard

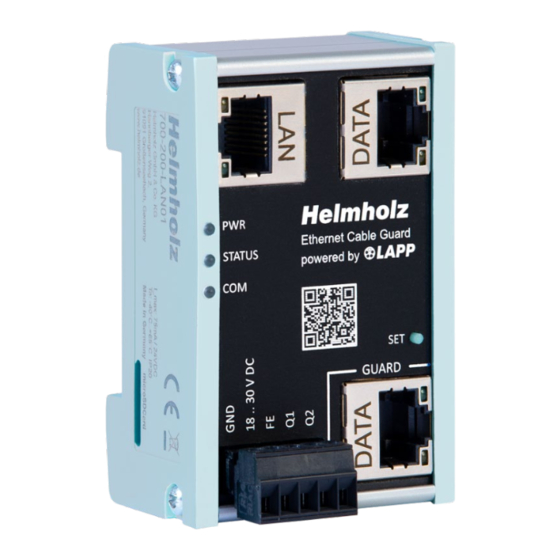

3 Function of the Ethernet Cable Guard The Ethernet Cable Guard enables the service life monitoring of Ethernet data cables (100Base-TX) with a focus on dynamic applications in automation technology, such as a trailing cable to moving machine parts (robots). With the Ethernet Cable Guard, system availability can be increased, and downtimes can be planned. -
Page 5: Network
4.2 Network The Cable Guard has two "DATA" RJ45 connections for the link to be monitored. The cable to be monitored (e.g. a trailing cable) must be connected to the lower connection ("Guard"). The upper DATA connection should then be connected to the communication partner (e.g. -
Page 6: Display Of The Operating Statuses Via The Leds
The status of the line is displayed via the STATUS LED: Green = The cable is OK Flashing red = Maintenance of the cable is required (plan replacement) Permanently red = The cable is defective Data transmission between the two DATA connections only works if the Cable Guard is supplied with power and is in normal operating mode! Further configuration and more information about the status of the Cable Guard can be found on the device's website. -
Page 7: Website
6 Website 6.1 Access to the website Connect the LAN interface of the Cable Guard to your PC using a standard Ethernet cable. When accessing the website for the first time, set your PC interface to the appropriate subnet, e.g. with the IP address 192.168.0.1 with subnet mask 255.255.255.0 for LAN access. -
Page 8: Firmware Update
6.3 Firmware Update The firmware update can be accessed on the web interface via the "Update" menu item. The current firmware version is displayed and a new firmware can be uploaded to the device using the "Browse new firmware file" button. The Cable Guard saves the firmware file in its internal memory. -
Page 9: Technical Data
7 Technical data Order number 700-200-LAN01 Name Ethernet Cable Guard Scope of delivery Ethernet Cable Guard with power supply plug Dimensions (D x W x H) 35 x 48,5 x 75,5 mm Weight Approx. 110 g LAN interface Number Connection... - Page 10 We can send you the corresponding license conditions, including a copy of the complete license text together with the product. They are also provided in our download area of the respective products under www.helmholz.de. We also offer to send you or any third party the complete corresponding source text of the respective open-source software for an at-cost fee of 10.00 Euro as a DVD upon request.
