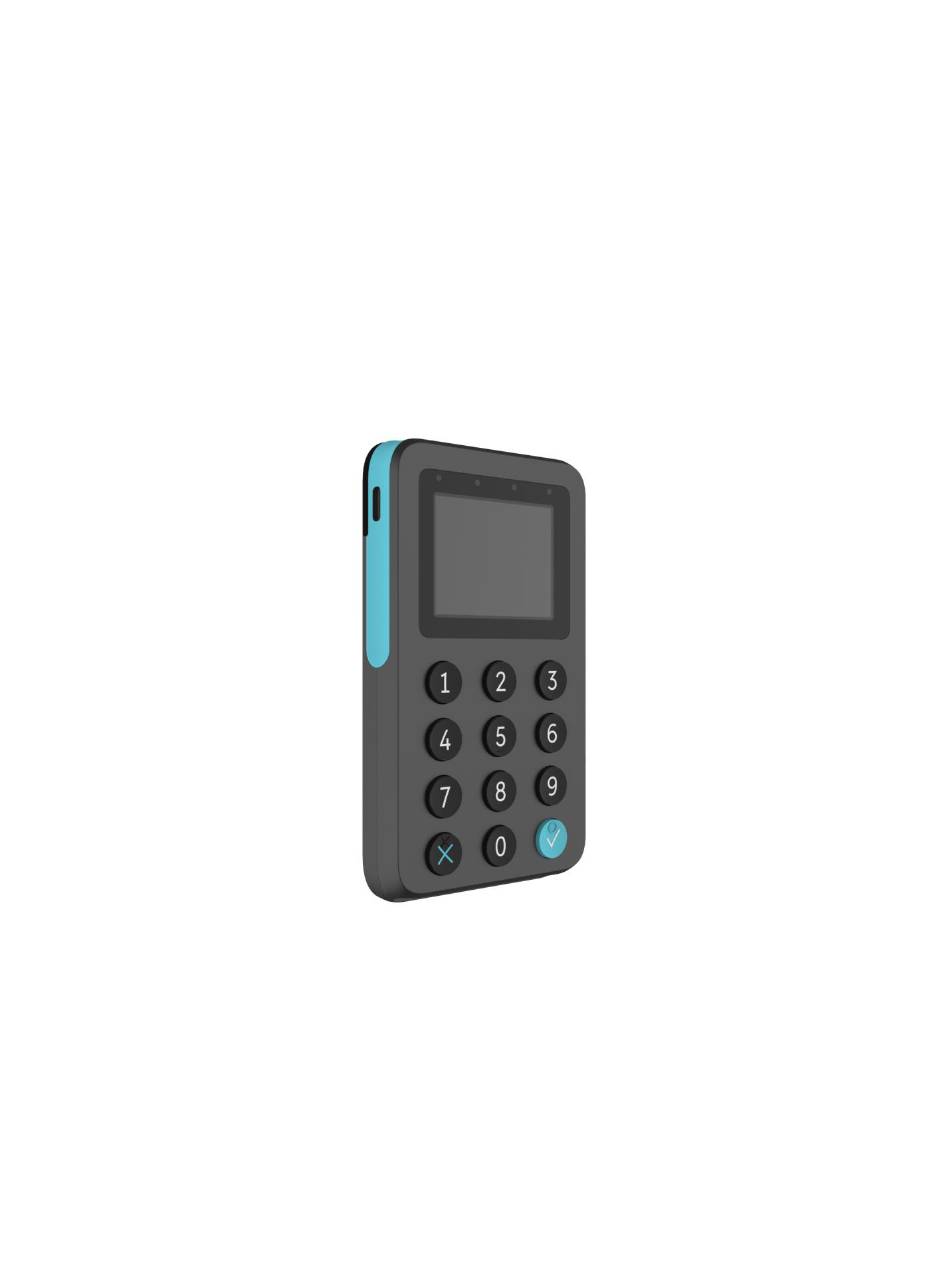

- Page 1 1 DATECS BluePad-50 Plus MSR USER GUIDE BluePad-50 Plus User Guide © 2021 Datecs, Ltd.
- Page 2 Datecs, the Datecs logo, are registered trademarks of Datecs. Other brand names or trademarks associated with Datecs’s products and services are trademarks of Datecs, Ltd. All other brand names and trademarks appearing in this manual are the property of their respective holders.
- Page 3 Change description 1.0.0 09.07.2021 Release version 1.1.0 03.09.2021 Updated section “Update Firmware and Application with using Firmware API” 1.2.0 28.06.2023 Updated section “REGULATORY” 1.3.0 08.08.2023 Updated section “REGULATORY” BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 3 of 25 UM 07.01.36/v1.3.0...
-
Page 4: Table Of Contents
..................16 OPERATING MODE ................................17 DISPLAY ................................... 17 ................................17 ISPLAY NDICATIONS BLUETOOTH PAIRING ............................... 18 UPDATE FIRMWARE AND APPLICATION WITH USING FIRMWARE API ................19 BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 4 of 25 UM 07.01.36/v1.3.0... - Page 5 Check Smart Card Reader ............................... 24 ..............................24 AINTENANCE AND LEANING ..............................24 AIN BATTERY REPLACEMENT ....................................24 AFETY ................................25 ERVICE AND UPPORT ..................................25 ERVICE ETURNS BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 5 of 25 UM 07.01.36/v1.3.0...
-
Page 6: Regulatory
Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: BluePad-50 Plus MSR has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the BluePad-50 Plus MSR kept 0mm from the body. -
Page 7: Preface
Chapter 4, Maintenance and Cleaning. Explains maintenance of BluePad-50 Plus. Chapter 5, Service and Support. Provides information on contacting your Datecs representative or service provider and information on how to order accessories or documentation from Datecs. Chapter 6, Troubleshooting Guidelines. Provides troubleshooting guidelines should you encounter a problem in terminal installation and configuration. -
Page 8: Related Documentation
The warning symbol is used as a warning Due to risk of shock do not when bodily injury might occur. use the terminal near water. Convention Meaning Example BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 8 of 25 UM 07.01.36/v1.3.0... -
Page 9: Overview
3-volt cards. The BluePad-50 Plus sleek and stylish ergonomic. Datecs ships variants of BluePad-50 Plus unit for different markets. Your unit may have a different configuration, such as a Bluetooth module, etc. However, the basic processes described in this guide remain the same, regardless of configuration. -
Page 10: Features And Benefits
BluePad-50 Plus has received EMV Level 1 approval for smart card solutions. • BluePad-50 Plus has received EMV Level 2 approval for smart card solutions. • BluePad-50 Plus has received PCI PTS 6.0 SRED Security Certification. BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 10 of 25 UM 07.01.36/v1.3.0... -
Page 11: Device Specifications
C to +70 C / 5 to 90% RH Drop Test Power Supply • 5V through USB C • 5V through Docking station Accessories • Docking station BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 11 of 25 UM 07.01.36/v1.3.0... -
Page 12: Device Operation
Figure 1 Communication port (USB) Contactless reader Magnetic stripe reader Contactless transaction status LEDs indication LCD Display On/Off button Charging and communication (UART) pads Keypad Chip card reader BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 12 of 25 UM 07.01.36/v1.3.0... -
Page 13: Getting Started
USB port or when is attached to Docking station. Figure 2 Battery of BluePad-50 Plus is non removable, for replacing please see “Main battery replacement”. BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 13 of 25... -
Page 14: Setup
PKFA VER - Version of the public key used for firmware authentication PKAA VER - Version of the public key used for application authentication PKKA VER - Version of the public key used for manufacturing keys authentication BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 14 of 25... -
Page 15: Info Hardware
To exit the mode the “C” button has to be pressed. CLEAR DEA KEYS Deletes the customer’s DEA key hierarchy. EXIT Exit the service menu forwarding the control to the application. BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 15 of 25 UM 07.01.36/v1.3.0... -
Page 16: Application Download Mode (Firmware/Application Update Via Usb Interface)
ADDR: MAC ADDRESS of the Bluetooth NAME: Bluetooth name PASS: Bluetooth password PAIR: DISCOVERABLE/HIDDEN AUTO: ENABLE/DISABLE VER: Bluetooth firmware version MASTER RESET: return to default settings FW UPDATE AUTO OFF 60min*/120min/180min/240min/DISABLE/1min//5min/10min/ 15min/30min/45min BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 16 of 25 UM 07.01.36/v1.3.0... -
Page 17: Operating Mode
Battery indication for fully charged battery Outside power from USB cable – “Plug” Battery is charging from UBS cable or Power station – “Flash” "USB" - connection with USB BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 17 of 25 UM 07.01.36/v1.3.0... -
Page 18: Bluetooth Pairing
4. Then of the screens on both devices will be showed the “Pairing Request”. Figure 4 5. Please confirm if the passkey is same on both devices. BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 18 of 25 UM 07.01.36/v1.3.0... -
Page 19: Update Firmware And Application With Using Firmware Api
* In order to use the BluePad-50 Plus functions with COTS(smart device), special software must be used. Please contact your distributor in order to get the latest demo application and SDK. BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 19 of 25... -
Page 20: Magnetic Card Reader Use
Position a magnetic card as shown in Figure 6. Insert it into the MS card reader slot and then quickly swipe it. Hand BluePad-50 Plus to the customer for signature or PIN entry Figure 6 BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 20 of 25 UM 07.01.36/v1.3.0... -
Page 21: Smart Card Reader Use
Remove the card when the display indicates the transaction is completed. Figure 7 Leave the smart card in the card reader until the transaction is completed. Premature removal can void the transaction. BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 21 of 25 UM 07.01.36/v1.3.0... -
Page 22: Contactless Card Reading
To Conduct a Contactless Credit/Debit Card Transaction Place a contactless card to shown on the BluePad-50 Plus display contactless logo. Remove the card when the display indicates the transaction is completed. Figure 8 BLUEPAD-50 PLUS MSR USER GUIDE 1 DATECS Page 22 of 25 UM 07.01.36/v1.3.0... -
Page 23: Troubleshooting Guidelines
The BluePad-50 Plus unit contains no user-serviceable parts. Do not, under any circumstance, attempt to disassemble the unit. Perform only those adjustments or repairs specified in this guide. For all other services, contact your local Datecs service provider. Service conducted by parties other than authorized Datecs representatives may void any warranty. -
Page 24: Check Smart Card Reader
Never use thinner, trichloroethylene, or ketone-based solvents – they can deteriorate plastic or rubber parts. Do not spray cleaners or other solutions directly onto the keypad or display. Main battery replacement To replace the main battery of BluePad-50 Plus please contact with your your local Datecs representative or service provider. Safety •... -
Page 25: Service And Support
1 DATECS the risk of explosion or fire. Service and Support For BluePad-50 Plus problems, product service, and repair information, contact your local Datecs representative or service provider. • International – Contact your local Datecs distributor Service Returns All customers, please contact your local Datecs Ltd representative or distributor for assistance with your service, return, or replacement.
