- Page 1 1 DATECS Zebra PD20/PD20-1 User Manual...
- Page 2 USER MANUAL THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM DATECS LTD. Address: 4 Datecs Street, Sofia 1592, Bulgaria Phone: +359 2 816 55 50...
- Page 3 1 DATECS ZEBRA PD20/PD20-1 USER MANUAL REVISION HISTORY Version Data Change description 1.0.0 08.01.2021 First Release 1.1.0 31.03.2021 Added PD20 1.2.0 16.04.2021 Updated “TECHNICAL SPECIFICATIONS” 1.3.0 28.04.2021 Updated section “Status LEDs” Updated section “Smart cards reading” 1.4.0 03.06.2021 Added section “REGULATORY”...
-
Page 4: Table Of Contents
1 DATECS ZEBRA PD20/PD20-1 USER MANUAL CONTENTS REGULATORY ................................... 5 TECHNICAL SPECIFICATIONS ..............................6 GENERAL VIEW ..................................7 GETTING STARTED ................................... 9 PERIODIC INSPECTION AND MAINTENANCE ........................10 OPERATION MODES ................................11 ..............11 PPLICATION DOWNLOAD MODE YSTEM MODE AND... -
Page 5: Regulatory
1 DATECS ZEBRA PD20/PD20-1 USER MANUAL REGULATORY FCC ID: YRW-PD20 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 6: Technical Specifications
1 DATECS ZEBRA PD20/PD20-1 USER MANUAL TECHNICAL SPECIFICATIONS Processor ARM Cortex® M3 Security Microcontroller 64KB Internal ROM Memory 256KB Internal RAM 1MB Internal Flash Application Memory 4MB Serial Flash Keypad • ON / OFF key and Bluetooth pairing conformation/cancel • 3-track bi-directional reading Magnetic Card Reader •... -
Page 7: General View

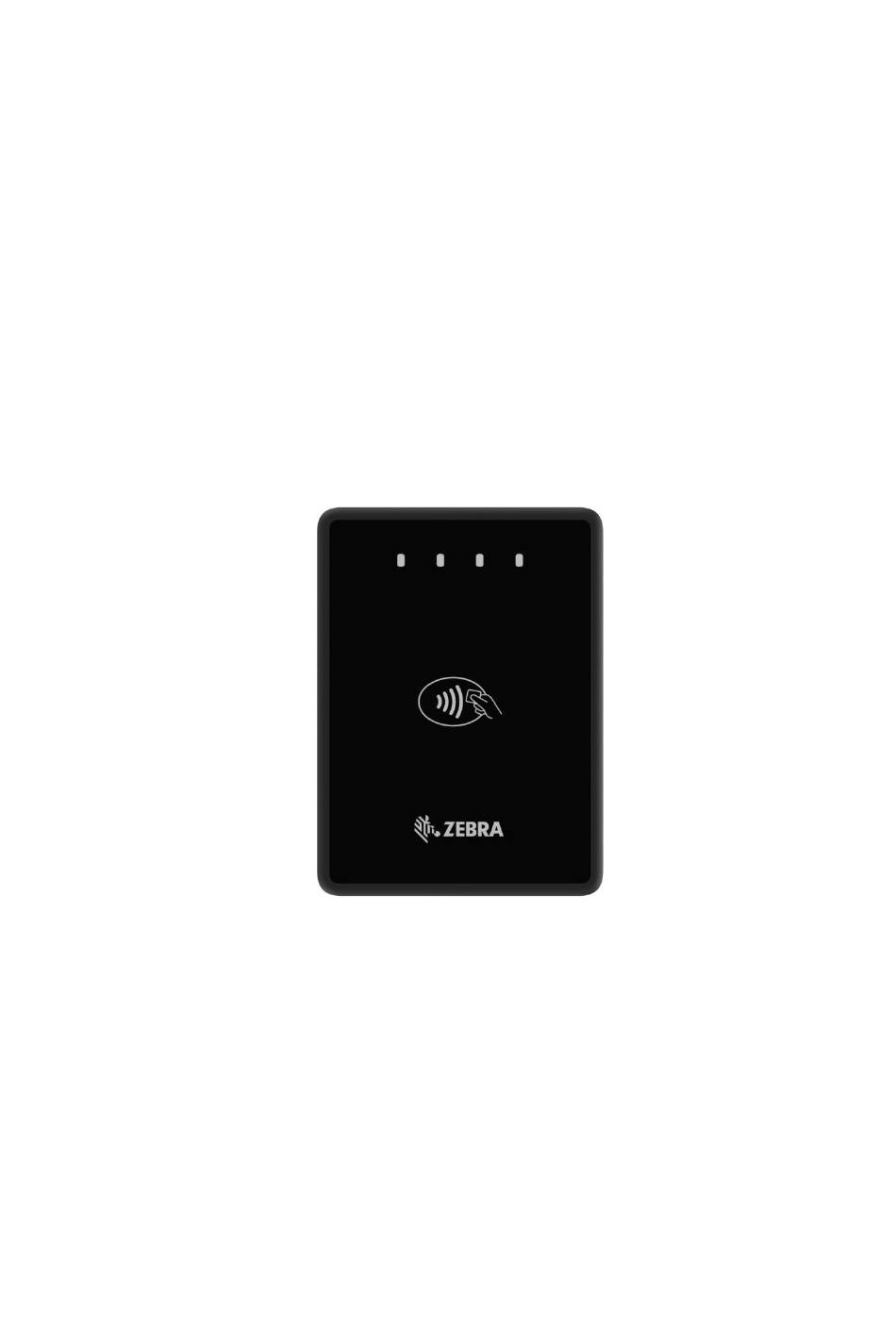

1 DATECS ZEBRA PD20/PD20-1 USER MANUAL GENERAL VIEW Figure 1 UM 07.01.31/v1.4.0... - Page 8 1 DATECS ZEBRA PD20/PD20-1 USER MANUAL 1. LEDs indication for Contactless transaction / LEDs indication for device status 2. Mounting insert 1 3. Rear Pads (USB and charging) 4. Contactless reader 5. On/Off button (Bluetooth pairing and cancel button) 6. USB port 7.
-
Page 9: Getting Started
If the device is fully discharged, charging time to fully charged would be approx. 1 hour and 30min. Charging form USB adapter: Figure 2 Main battery replacement: To replace the main battery of PD20/PD20-1 please contact with your local Datecs representative or service provider. UM 07.01.31/v1.4.0... -
Page 10: Periodic Inspection And Maintenance
1 DATECS ZEBRA PD20/PD20-1 USER MANUAL PERIODIC INSPECTION AND MAINTENANCE The following inspections must be performed on a regular basis after initial receipt and installation of PD20/PD20-1: • There are no visual indications for trying unauthorized opening of the device •... -
Page 11: Operation Modes
1 DATECS ZEBRA PD20/PD20-1 USER MANUAL OPERATION MODES For start operating with PD20/PD20-1 needs to be paired to another Bluetooth BLE device with installed application. For downloading the latest SDKs for iOS, Android and Windows please contact with your distributor. - Page 12 1 DATECS ZEBRA PD20/PD20-1 USER MANUAL LED indication Description Device operating No indication Device is turned off No indication (Depends Device is turned on of Application) System errors After power on the device, on front side first LED light Device is TAMPERED...
-
Page 13: Bluetooth Pairing
1 DATECS ZEBRA PD20/PD20-1 USER MANUAL Bluetooth Pairing Turn on PD20/PD20-1, connect it to PC via USB cable. When device is connected to PC, will create virtual COM port. Check on device manager on which port is connected. After that run the special application for PC (Fig. - Page 14 1 DATECS ZEBRA PD20/PD20-1 USER MANUAL Figure 7 UM 07.01.31/v1.4.0...
-
Page 15: Magnetic Cards Reading
1 DATECS ZEBRA PD20/PD20-1 USER MANUAL Magnetic cards reading The PD20/PD20-1 has a built-in magnetic card reader. The card reader incorporates a (3) track magnetic read head, requiring a single swipe to read field data from all three tracks. The magnetic reading head faces down, towards the top of the bottom cover of the cradle. When swiping the card into the reader, the magnetic stripe must be facing as shown in the figure below. -
Page 16: Contactless Cards Reading
1 DATECS ZEBRA PD20/PD20-1 USER MANUAL Contactless cards reading The contactless card transaction procedure can vary depending on the application loaded on the PD20/PD20-1. Verify the proper procedure with your application provider before performing a contactless card transaction. In order to use the Contactless card reading function, special software must be used. Please contact your distributor in order to get the latest demo application and SDK. -
Page 17: Smart Cards Reading
1 DATECS ZEBRA PD20/PD20-1 USER MANUAL Smart cards reading The smart card transaction procedure can vary depending on the application loaded on the PD20/PD20-1. Verify the proper procedure with your application provider before performing a smart card transaction. To Conduct a Smart Card Transaction Position a smart card with the gold contacts facing downward. -
Page 18: Care, Maintenance And Warranty
For PD20/PD20-1 problems, product service, and repair information, contact your local Datecs representative or service provider. • International – Contact your local Datecs distributor Service Returns: All customers, please contact your local Datecs Ltd representative or distributor for assistance with your service, return, or replacement. UM 07.01.31/v1.4.0... - Page 19 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 20 ISED Statement English:This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B).
