Summary of Contents for Datecs Linea TAB Mini

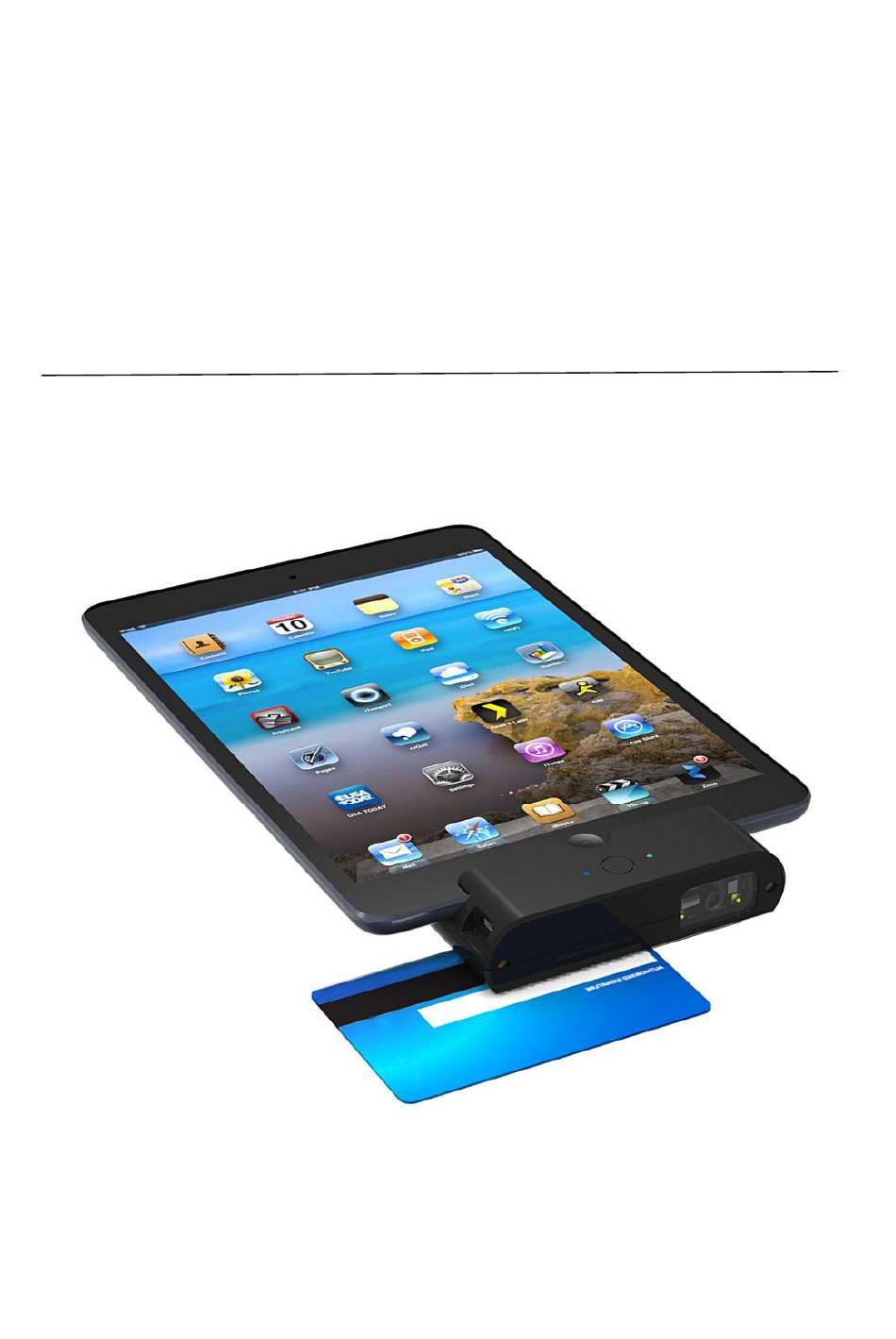

- Page 1 1 DATECS User Manual Linea TAB Mini...
-
Page 2: Table Of Contents
1 DATECS Linea TAB Mini User manual CONTENTS Legal Notice............................. 3 Compatibility ............................3 Linea TAB Mini ............................5 Overview..............................6 Technical Data............................7 Box Contents ............................9 Getting Started ............................10 Buttons overview ........................... 11 Front side view ..........................11 Back side view.......................... -
Page 3: Legal Notice
1 DATECS Linea TAB Mini User manual Legal Notice “Made for iPad” mean that an electronic accesory has been designed to connect specifically to iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible fort he operation of this device or its compliance with safety and regulatory standards. - Page 4 1 DATECS Linea TAB Mini User manual FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 5: Linea Tab Mini
User manual Linea TAB Mini Model Description Linea TAB Mini MSR Linea TAB Mini with 3-Track mag-stripe reader Linea TAB Mini with Secure Encrypting MSR Linea TAB Mini EMSR Module Linea TAB Mini with 3-Track mag-stripe reader Linea TAB Mini MSR 2D... -
Page 6: Overview
User manual Overview Linea TAB Mini allows mobile workers to convert their iPad Mini handset into a powerful point-of-sale solution. The Linea TAB Mini includes optional 1D or 2D barcode scanner, 3-tracks magnetic stripe reader, RFID reader and a rechargeable battery extender in a very compact and durable protective case. -
Page 7: Technical Data
1 DATECS Linea TAB Mini User manual Technical Data Processor 32-bit ARM Cortex - M3 based Microcontroller Magnetic Card • 3-track bi-directional reading Reader • ISO 7810, 7811 and 7813 (option) Secure Magnetic • PCI PTS 3.x certified Card Reader •... - Page 8 1 DATECS Linea TAB Mini User manual ® Certifications CE, FCC, PCI PTS 3.x, Apple Weight, g 140 with battery and 2D barcode reader (without iPad mini) Dimensions 103 x 88 x 23.5 (LxWxH), mm Operating: -10 o C to +40 o C / 5% to 90% RH •...
-
Page 9: Box Contents
1 DATECS Linea TAB Mini User manual Box Contents Your Linea Tab Mini comes with the following items listed below: Item Part Number Descriptions Image Linea TAB Mini / Linea TAB Mini Scanner USB A to mini USB B USB Sync cable... -
Page 10: Getting Started
The Linea TAB Mini allows you to scan barcode and capture Magnetic Strip information onto your iPad Mini. Before using your Linea TAB Mini the battery should be properly charged. The following Quick Start guide will help to get your Linea TAB Mini ready for use. -
Page 11: Buttons Overview
1 DATECS Linea TAB Mini User manual Buttons overview Front side view Battery charging LED Device status LED Volume Scan engine Controls 10-pin mini USB connector Charging Lamellas Scan Button 9-pin lightning connector External RS connector... -
Page 12: Back Side View
1 DATECS Linea TAB Mini User manual Back side view Four LEDs for Contactless status Magnetic Stripe Reader... -
Page 13: Attaching Device
1 DATECS Linea TAB Mini User manual Attaching device Slide iPad mini to the 9-pin lightning connector of the Linea TAB Mini... -
Page 14: Operation Modes
Before first use, the battery pack should be charged for at least (4) hours. Linea TAB Mini can be charged via USB port or DATECS Power Station. When the Linea TAB Mini charging is started, automatically starts the charging of the inserted inside the cradle iPad Mini. -
Page 15: Barcode Scanning
User manual Barcode Scanning Using the 1D barcode scanner: The Linea TAB Mini 1D uses a scan engine that supports one-dimensional (1D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. Scanning 1D Barcodes: To scan a 1D barcode, first activate the scanner. -
Page 16: Using The 2D Barcode Scanner
1 DATECS Linea TAB Mini User manual Using the 2D barcode scanner: The Linea TAB Mini 2D uses a scan engines that supports one-dimensional (1D) and two-dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. -
Page 17: Card Reading
User manual Card Reading Reading Magnetic Stripes: The Linea TAB Mini has a built-in magnetic card reader. The card reader incorporates a (3) track magnetic read head, requiring a single swipe to read field data from all three tracks. The magnetic reading head faces up, towards the top of the bottom cover of the cradle. -
Page 18: Contactless Card Reading
Please contact your distributor in order to get the latest demo application and SDK. Place the card on the shown spot and press the reading RFID card button on the application. The data will be sent from the Linea TAB Mini RFID reader to the Apple Device.
