WALL MOUNTED TALKBACK SPEAKER
FEATURES:
UTILIZES STANDARD CAT 3, 5, OR 6 CABLE
USED WITH TALKBACK PAGE CONTROLS
ELECTRICALLY, ACOUSTICALLY MATCHED PARTS
DESCRIPTION:

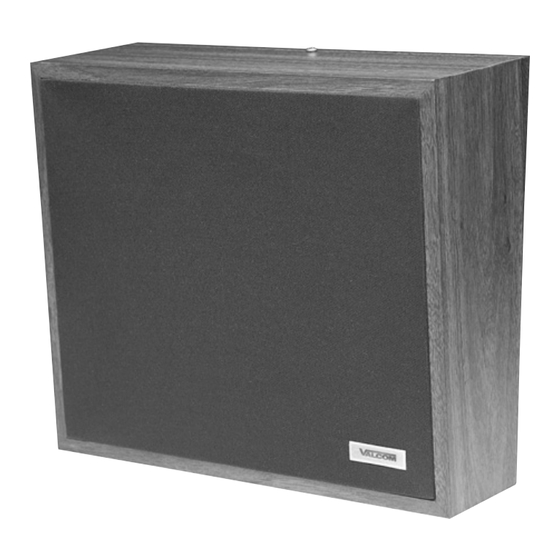

Wall surface mounted speaker assembly complete with 45 ohm speaker, sloped baffle
and mounting bracket.
SPEAKER ELEMENT
Cone Diameter: 8.0" (20.32 cm)
Voice Coil Impedance: 45 ohm
FREQUENCY RESPONSE
80 Hz to 12 kHz
SPEAKER POWER RATING
12 Watts
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
MODEL V-1063A
SPECIFICATIONS:
ENVIRONMENT
Temperature: -4 to +131
Humidity: 0-95% Non-Condensing
HOUSING AND FINISH
Baffle construced of .5" (1.27 cm) particle boad, covered with
simulated walnut vinyl with brown grille cloth.
DIMENSIONS AND WEIGHT
9.6" (24.38 cm) H x 11.5" (29.21 cm) W x 4.2" (10.67 cm) D
Weight: 4.5 lbs (2.05 kg)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
SPECIFICATIONS
°
°
F (-20 to +55
C)
Fax: 540-362-9800
