VALCOM TALKBACK SLIMLINE™ WALL SPEAKER
Valcom Slimline Wall Speaker, V-1046, is a 45 Ohm talkback speaker
designed to be used with Valcom 'handsfree talkback' control units. The
distance you can be away from the speaker and still have good talkback
depends on the ambient noise level. In a typical office environment, the
speaker will cover approximately 600 square feet. Custom colors are
available upon request.
Model V-1046-BK
Model V-1046-W
Model V-1046-BR
Model V-1046-GY
US Patent Number D357,682, UK Reg.'d 2041547

DIMENSIONS/WEIGHT

7.00"H x 10.30"W x 3.40"D
(17.78cm H x 26.16cm W x 8.64cm D)
2.7 lbs. (1.22 kg)

Wiring

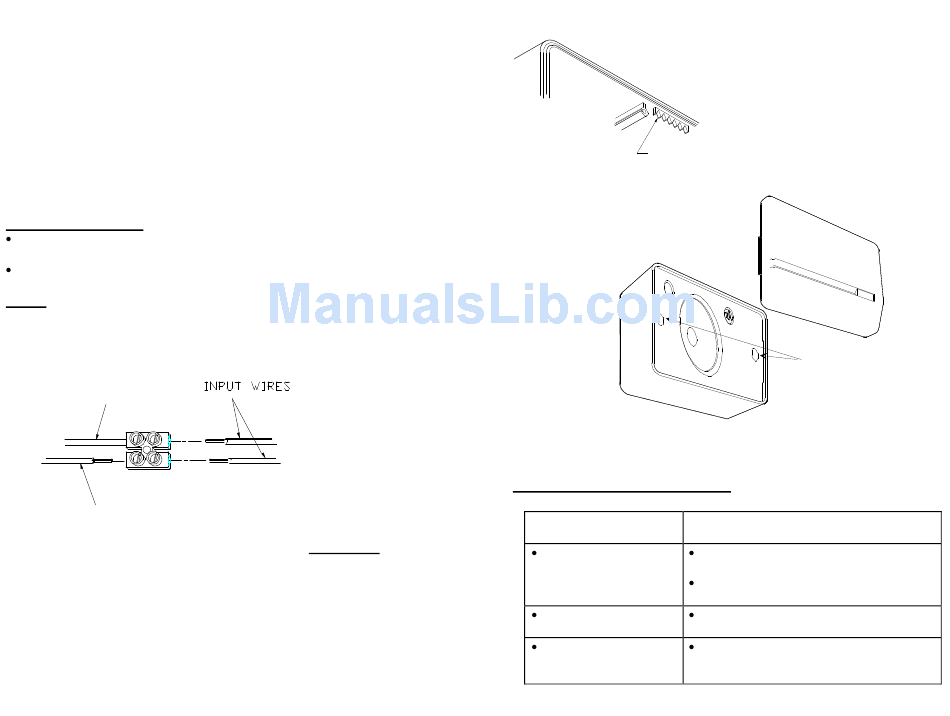

Make connections as shown in Figure 1.
Figure 1
WHITE-TIP/A
BLACK-RING/B
The baffle provides two methods of mounting:
1. The baffle can be suspended from a nail or hook by a "hanger" that
is attached to the housing. See Figure 2.
2. The unit can be attached to a wall using two mounting bosses.
The distance between the mounting boss hole centers is 8.50
inches. Remove cover and secure baffle to wall with screws.
mounting provides better low frequency response for music and a
more secure attachment to the wall. See Figure 3.
Black
White
Brown
Gray

MOUNTING

Figure 2
Figure 3

TROUBLESHOOTING CHART

SYMPTOM
No sound in page
mode
Low sound in page
mode
Poor listening in
This
talkback mode
HANGER
WALL
MOUNTING
BOSSES
ACTION
Check tip and ring for audio at
speaker.
Check tip and ring for audio at control
unit.
Check volume controls at page
control.
Check talkback volume control at
page control. Set control where audio
is clearly audible.
