8
Measuring temperatures
8.4.4.2 Manual adjustment in Level, Max, Min mode
1. To enter manual adjustment mode, select Temperature scale > Manual on the main
toolbar.
2. To simultaneously change the temperature scale minimum and maximum limits, push
the navigation pad up/down.
3. To change the minimum or maximum limit, do the following:
• Push the navigation pad left/right to select (highlight) the maximum or minimum
temperature.
• Push the navigation pad up/down to change the value of the highlighted
temperature.
8.4.4.3 Manual adjustment in Level, Span mode
1. To enter manual adjustment mode, select Temperature scale > Manual on the main
toolbar.
2. Push the navigation pad up/down to increase/decrease the level.
3. Push the navigation pad left/right to increase/decrease the span.

8.5 Color palettes

The camera supports a number of different color palettes. Frequently used palettes in-
clude the iron, gray, and rainbow palettes.
• The iron palette is intuitive and also easy to understand for those without much experi-
ence in thermography. It offers a good balance between geometric and thermal
resolution.
• Gray tones are particularly suited to resolving small geometric details, but are less
suited to displaying small differences in temperature.
• The rainbow palette is more colorful and alternates between light and dark colors.
This results in greater contrast, but this can lead to a noisy image for objects with dif-
ferent surfaces or many temperatures.

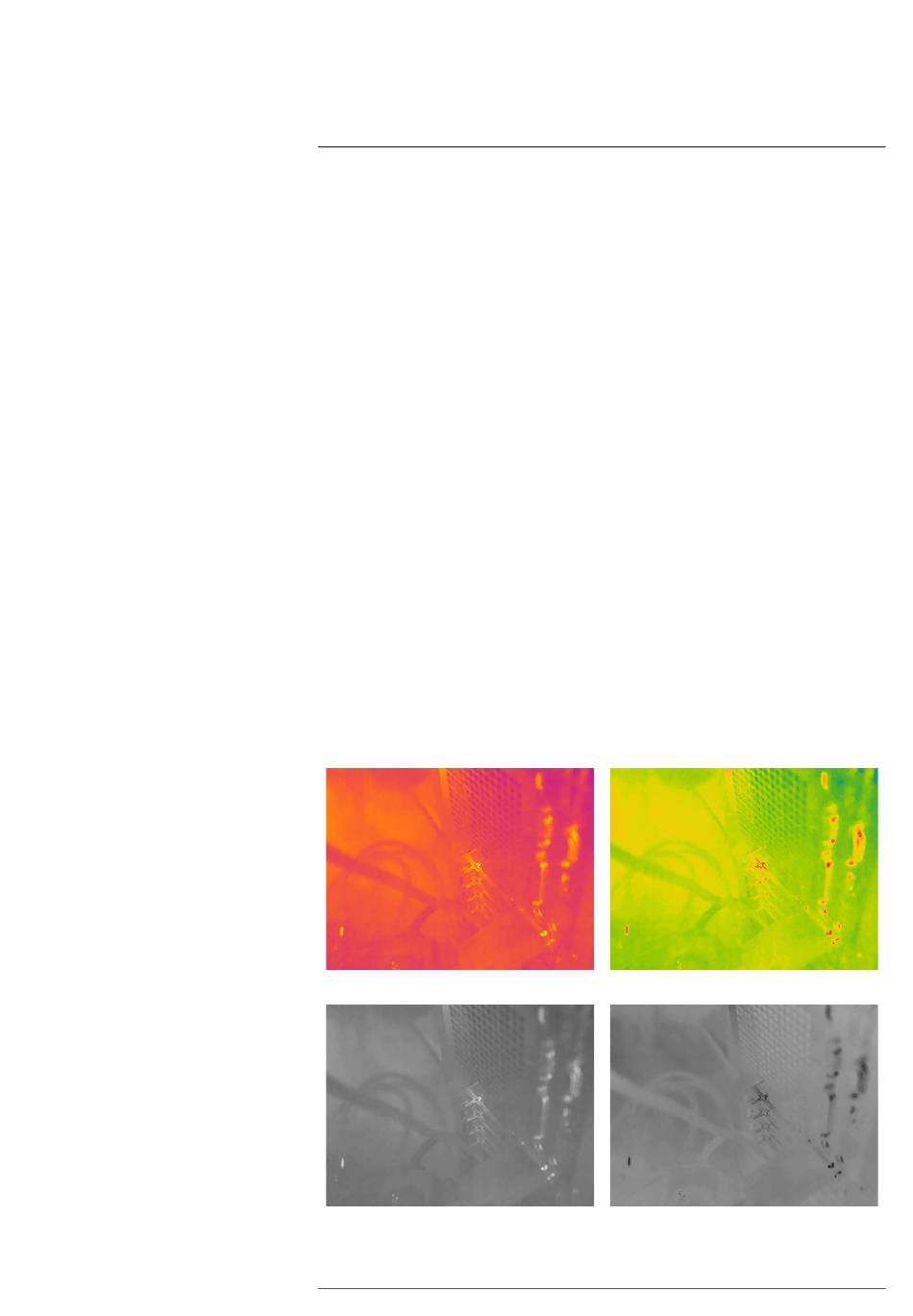

Iron
Gray (White hot)
#T810624; r. AF/93316/93316; en-US
Rainbow
Gray (Black hot)
21
