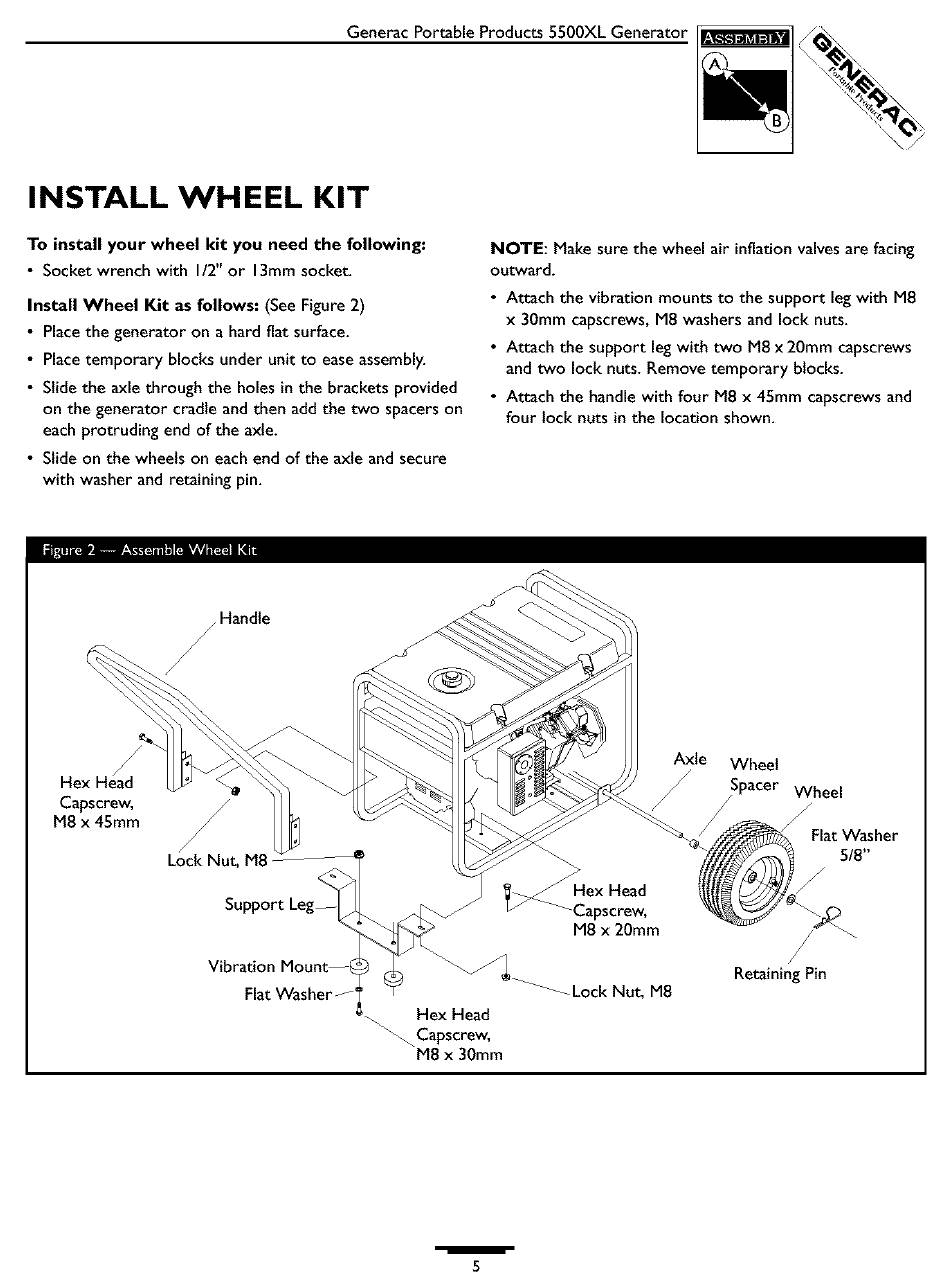

Generac Portable P roducts 5500XL G enerator
INSTALL WHEEL
KIT
To install your wheel kit you need the following:
• Socket wrench with 1/2" or 13mm socket.
Install Wheel Kit as follows: (See Figure 2)
• Placethe generator on a hard flat surface.
• Placetemporary blocks under unit to easeassembly.
• Slide the axle through the holes in the brackets provided
on the generator cradle and then acidthe two spacers on
each protruding end of the axle.
• Slide on the wheels on each end of the axle and secure
with washer and retaining pin.
NOTE:
Make sure the wheel air inflation valves are facing
outward.
• Attach the vibration mounts to the support leg with M8
x 30mm capscrews, M8 washers and lock nuts.
• Attach the support leg with two M8 x 20ram capscrews
and two lock nuts. Remove temporary blocks.
• Attach the handle with four M8 x 45mm capscrews and
four lock nuts in the location shown.
Handle
Capscrew,
M8 x 45mm
/
Lock Nut, M8
Support
Flat WasherJ
_Hex
Head
J
_/
_-Capscrew,
M8 x 20mm
_LockNut,
M8
_
Hex Head
_Capscrew,
M8 x 30mm
Axle
Wheel
jSpacer
Wheel
/
/
Retaining Pin
/
5
